Create Onion Layers of Security

This is my presentation to the UKOUG last December on creating onion layers of security around your data.

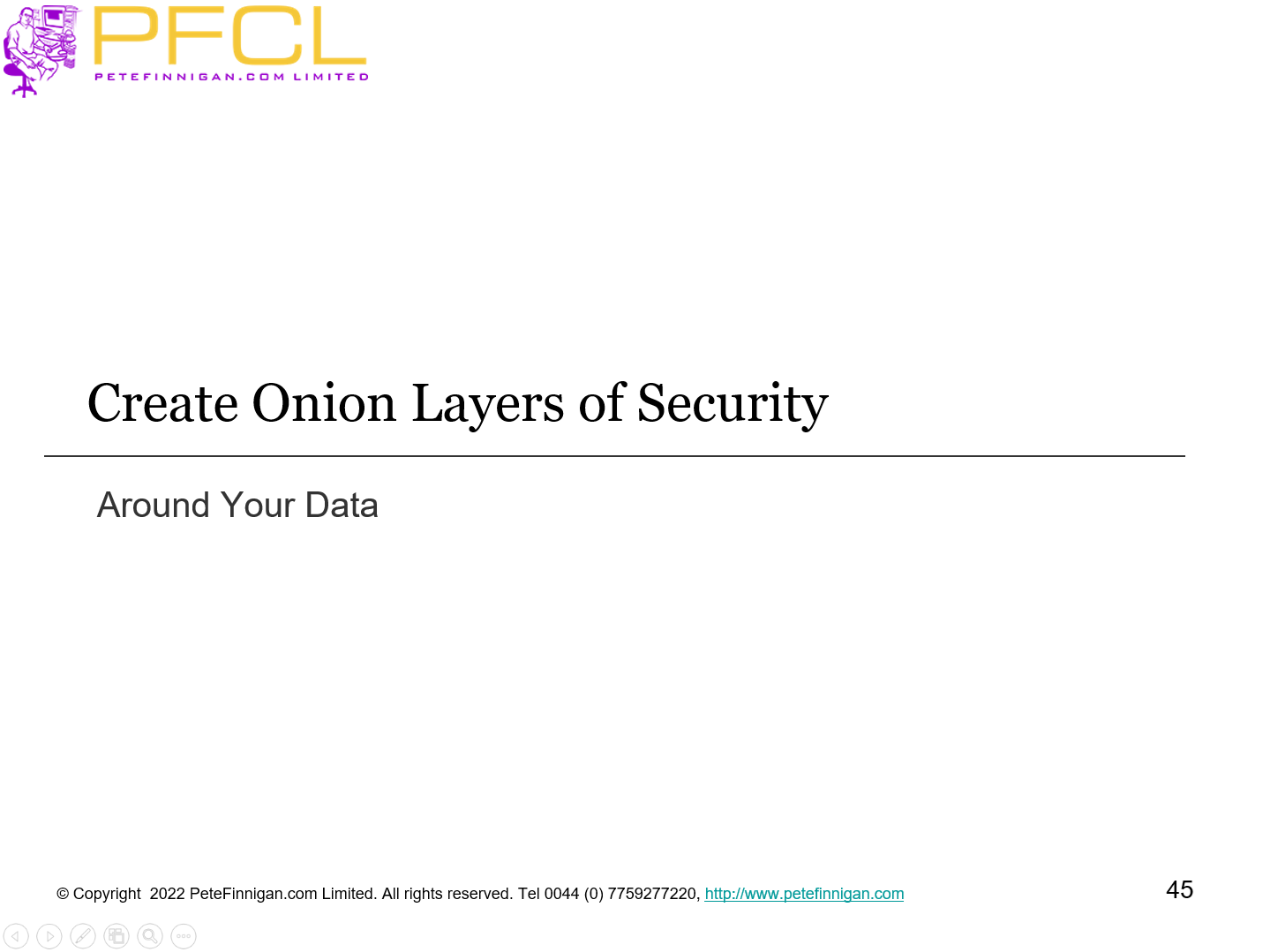

Slide 1 - Create Onion Layers of Security

Around Your Data

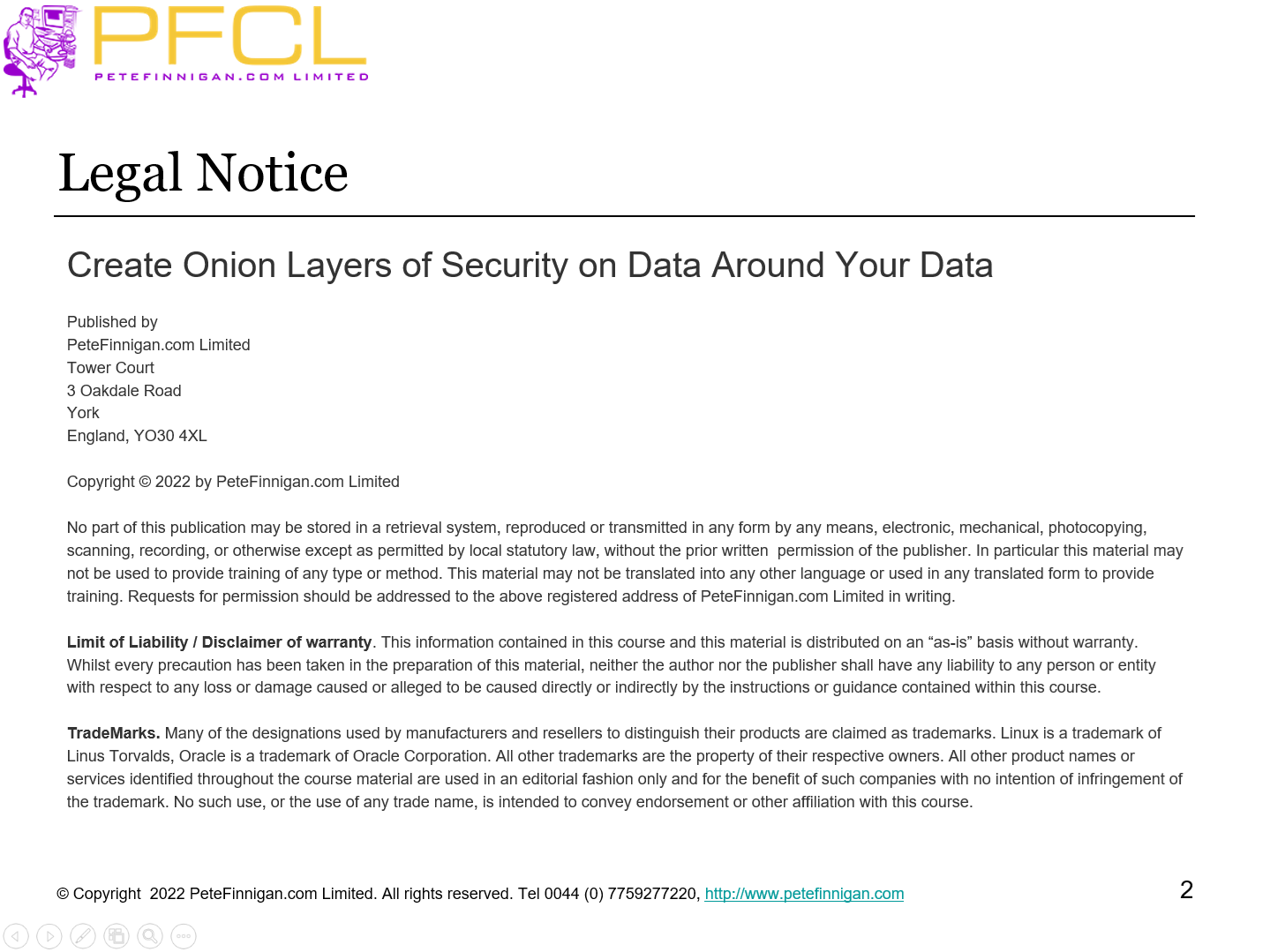

Slide 2 - Legal notice

Create Onion Layers of Security

Published by
PeteFinnigan.com Limited
Tower Court
3 Oakdale Road
York
England, YO30 4XL

Copyright © 2025 by PeteFinnigan.com Limited

No part of this publication may be stored in a retrieval system, reproduced or transmitted in any form by any means, electronic, mechanical, photocopying, scanning, recording, or otherwise except as permitted by local statutory law, without the prior written permission of the publisher. In particular this material may not be used to provide training of any type or method. This material may not be translated into any other language or used in any translated form to provide training. Requests for permission should be addressed to the above registered address of PeteFinnigan.com Limited in writing.

Limit of Liability / Disclaimer of warranty. This information contained in this course and this material is distributed on an “as-is” basis without warranty. Whilst every precaution has been taken in the preparation of this material, neither the author nor the publisher shall have any liability to any person or entity with respect to any loss or damage caused or alleged to be caused directly or indirectly by the instructions or guidance contained within this course.

TradeMarks. Many of the designations used by manufacturers and resellers to distinguish their products are claimed as trademarks. Linux is a trademark of Linus Torvalds, Oracle is a trademark of Oracle Corporation. All other trademarks are the property of their respective owners. All other product names or services identified throughout the course material are used in an editorial fashion only and for the benefit of such companies with no intention of infringement of the trademark. No such use, or the use of any trade name, is intended to convey endorsement or other affiliation with this course.

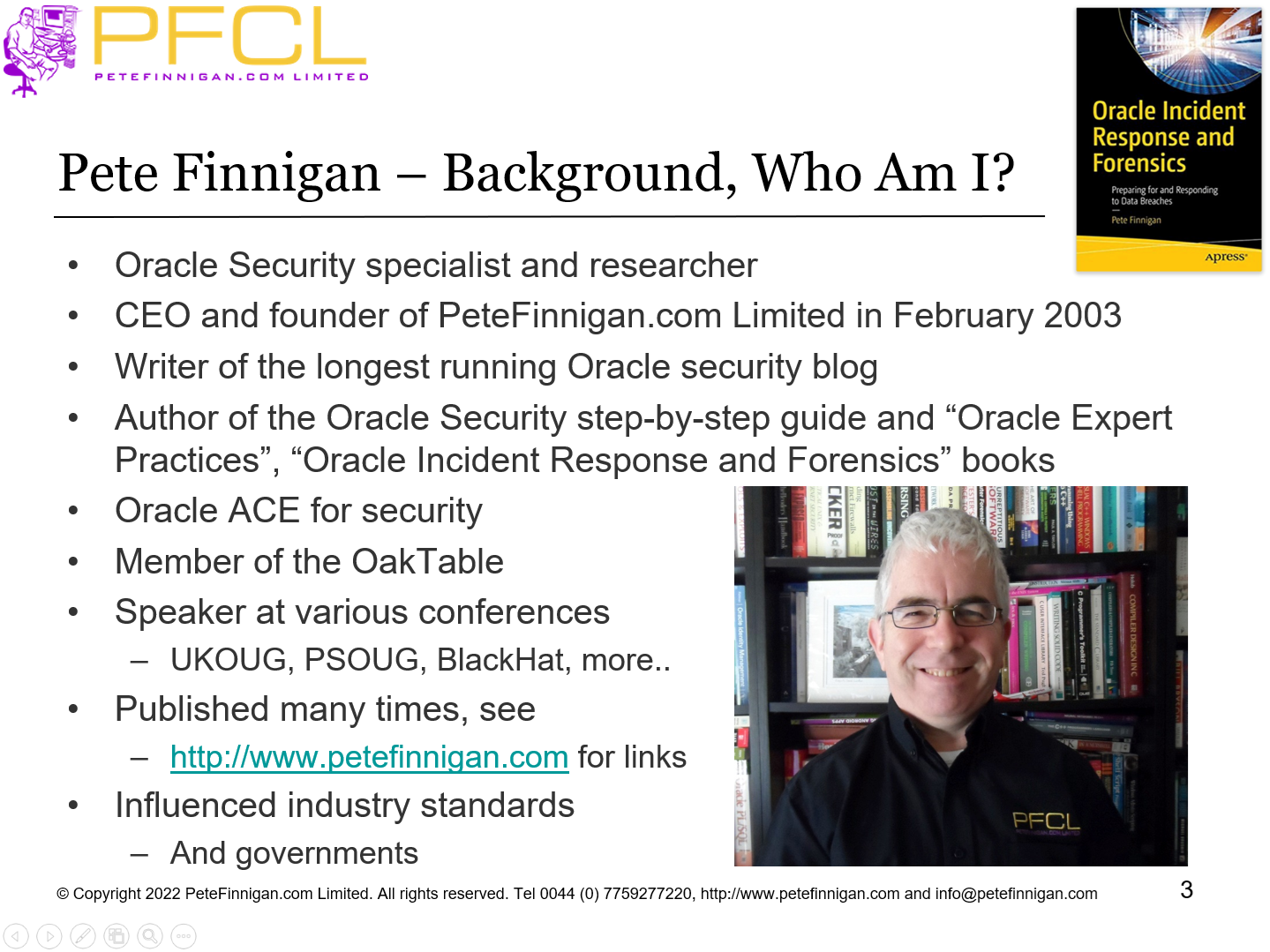

Slide 3 - Background

Pete Finnigan – Background, Who Am I?

Oracle Security specialist and researcher
CEO and founder of PeteFinnigan.com Limited in February 2003
Writer of the longest running Oracle security blog
Author of the Oracle Security step-by-step guide and “Oracle Expert Practices”, “Oracle Incident Response and Forensics” books
Oracle ACE for security
Member of the OakTable, SYM 42
Speaker at various conferences UKOUG, PSOUG, BlackHat, more..
Published many times, see http://www.petefinnigan.com for links

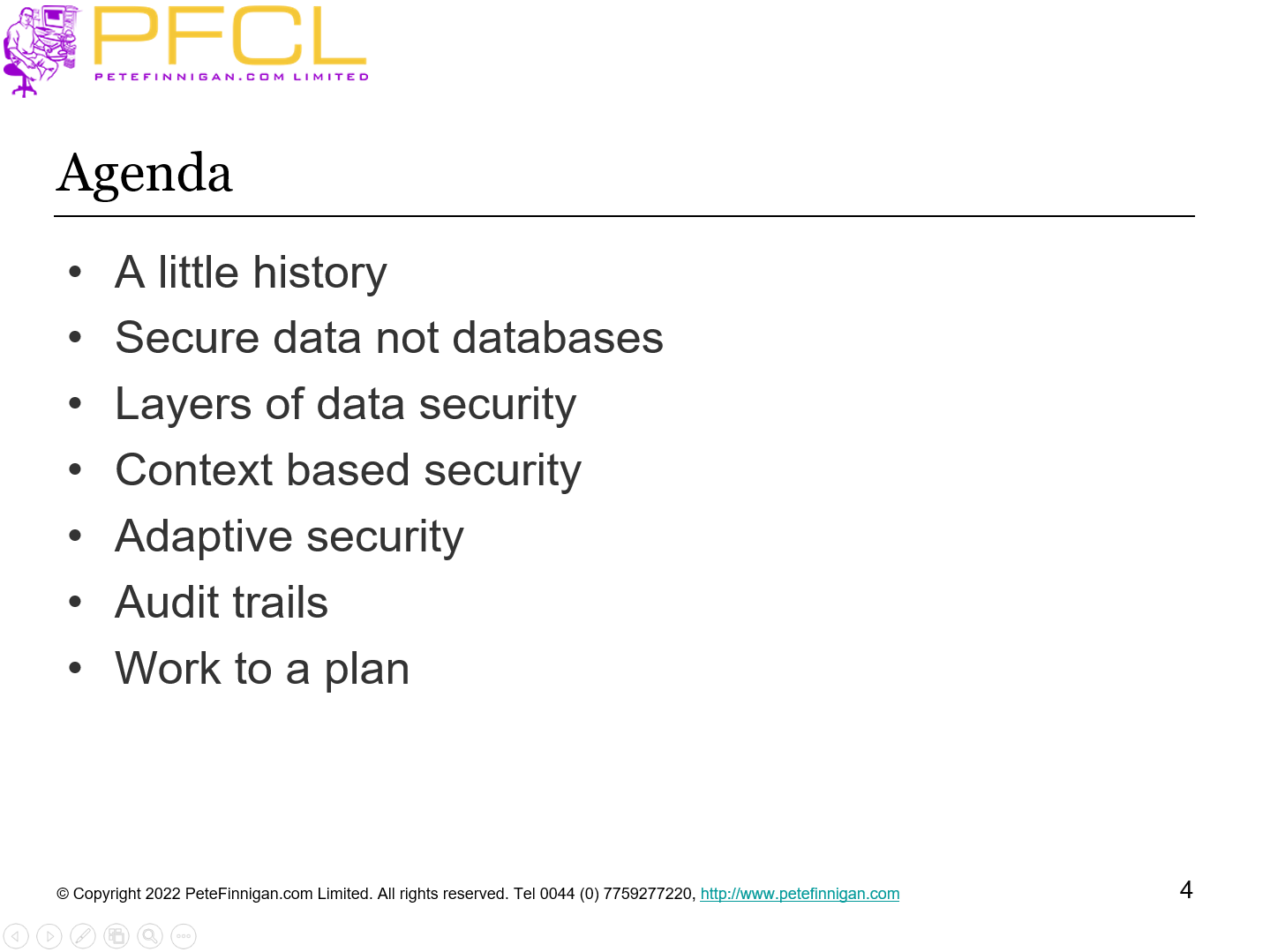

Slide 4 - Agenda

A little history
Secure data not databases
Layers of data security
Context based security
Adaptive security
Audit trails
Work to a plan

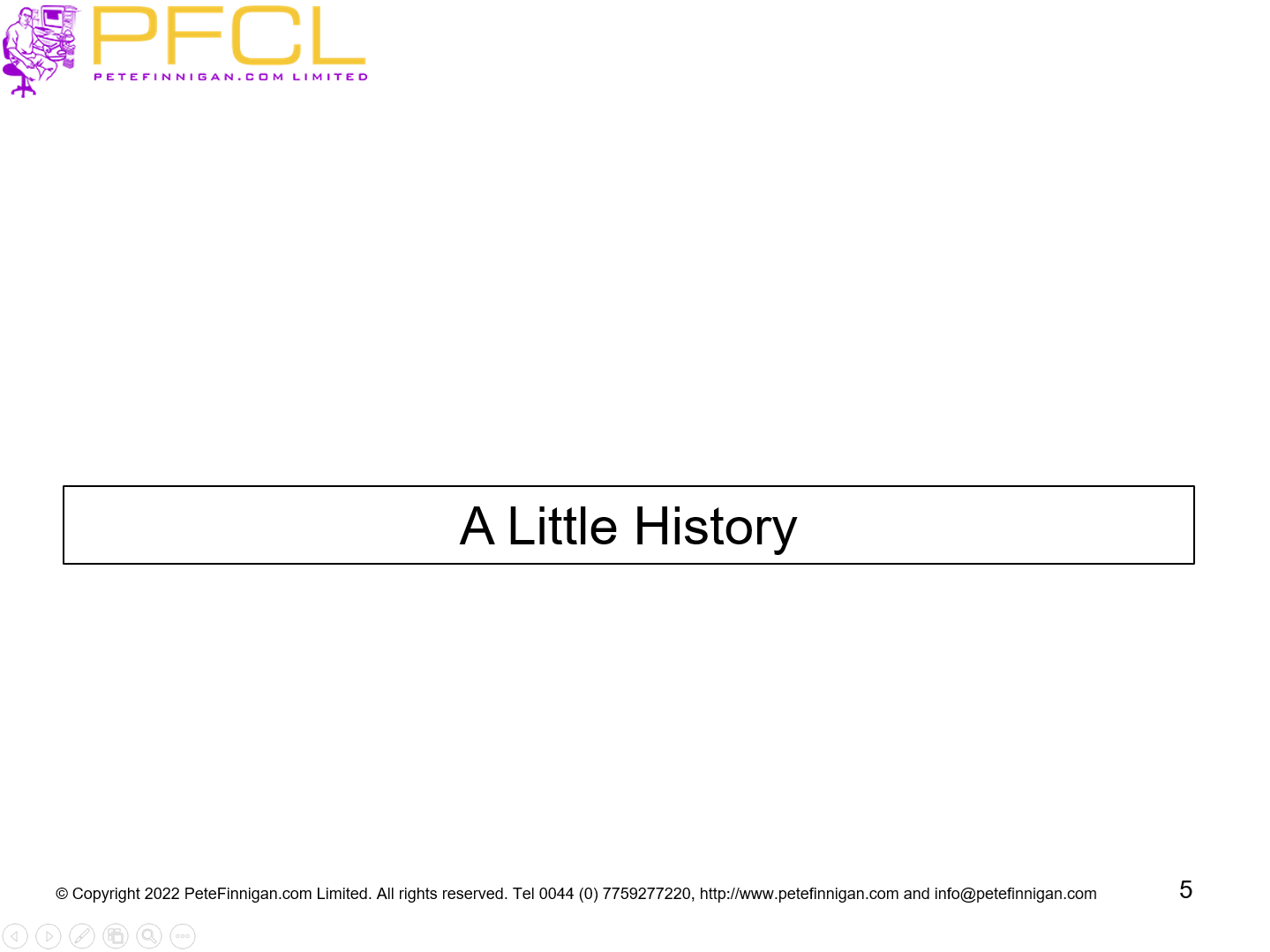

Slide 5 - A Little History

A Little History

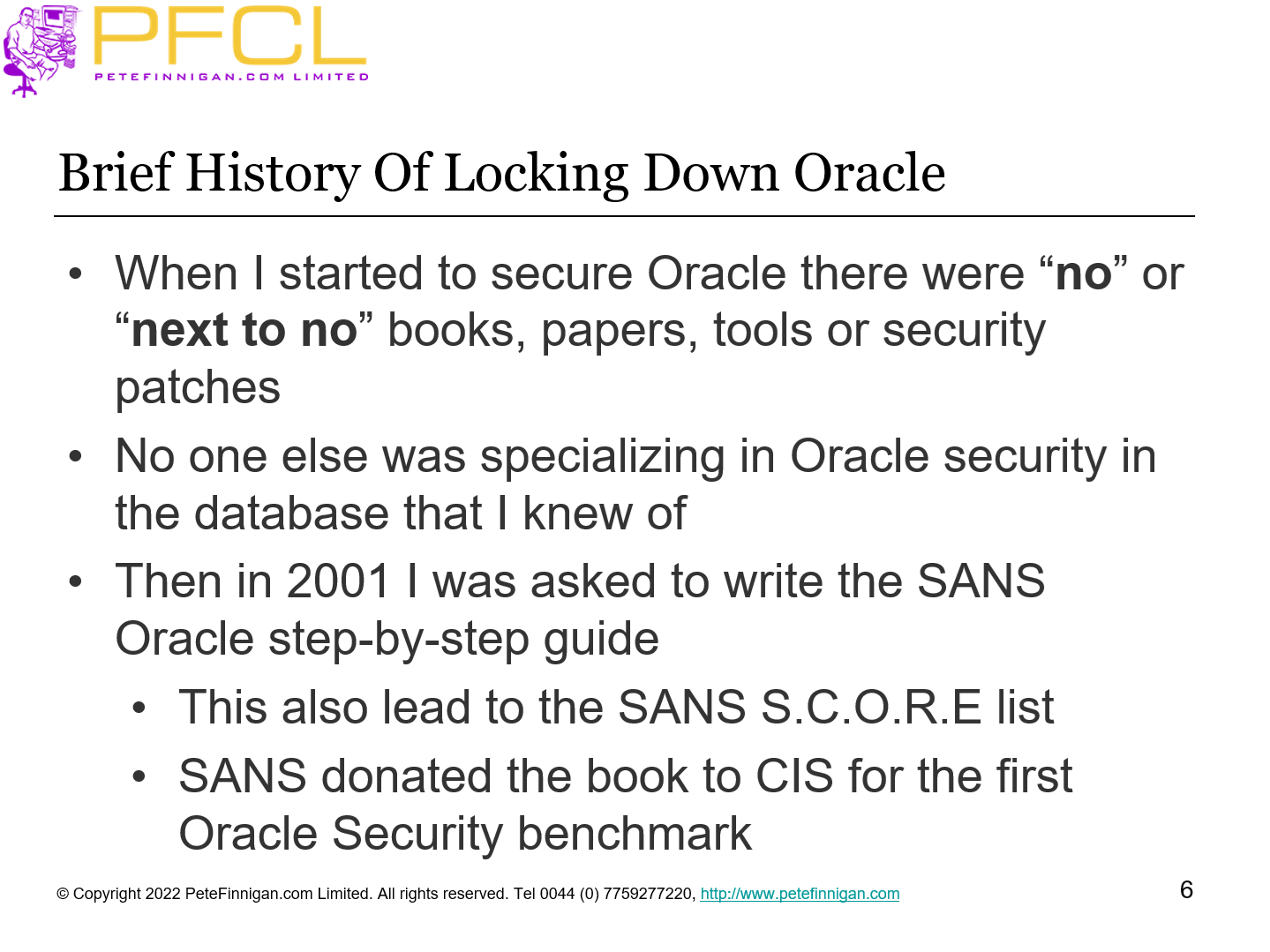

Slide 6 - Brief History Of Locking Down Oracle

When I started to secure Oracle there were “no” or “next to no” books, papers, tools or security patches
No one else was specializing in Oracle security in the database that I knew of
Then in 2001 I was asked to write the SANS Oracle step-by-step guide
This also lead to the SANS S.C.O.R.E list
SANS donated the book to CIS for the first Oracle Security benchmark

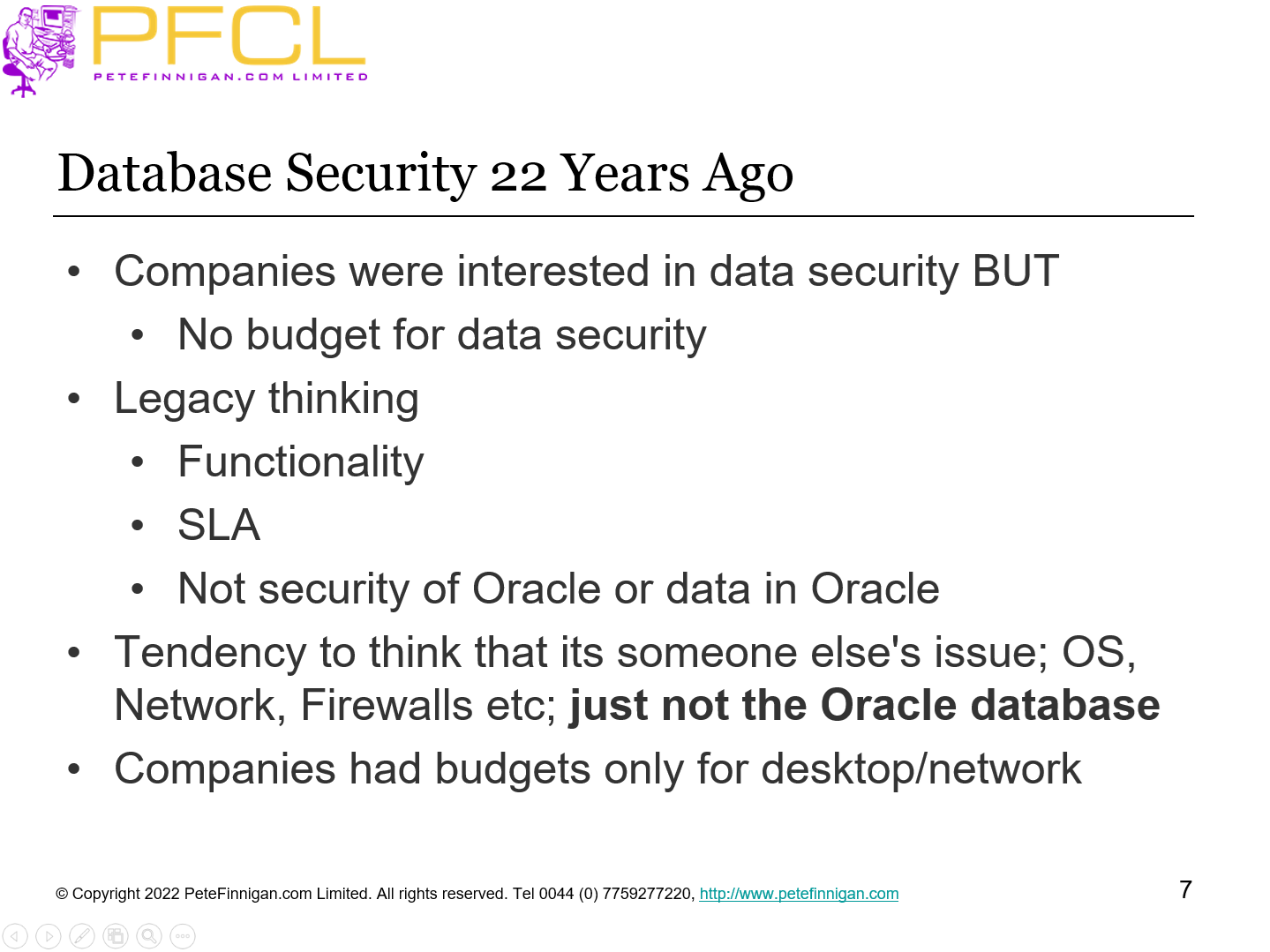

Slide 7 - Database Security 22 Years Ago

Companies were interested in data security BUT
No budget for data security
Legacy thinking
Functionality
SLA
Not security of Oracle or data in Oracle
Tendency to think that its someone else's issue; OS, Network, Firewalls etc; just not the Oracle database
Companies had budgets only for desktop/network

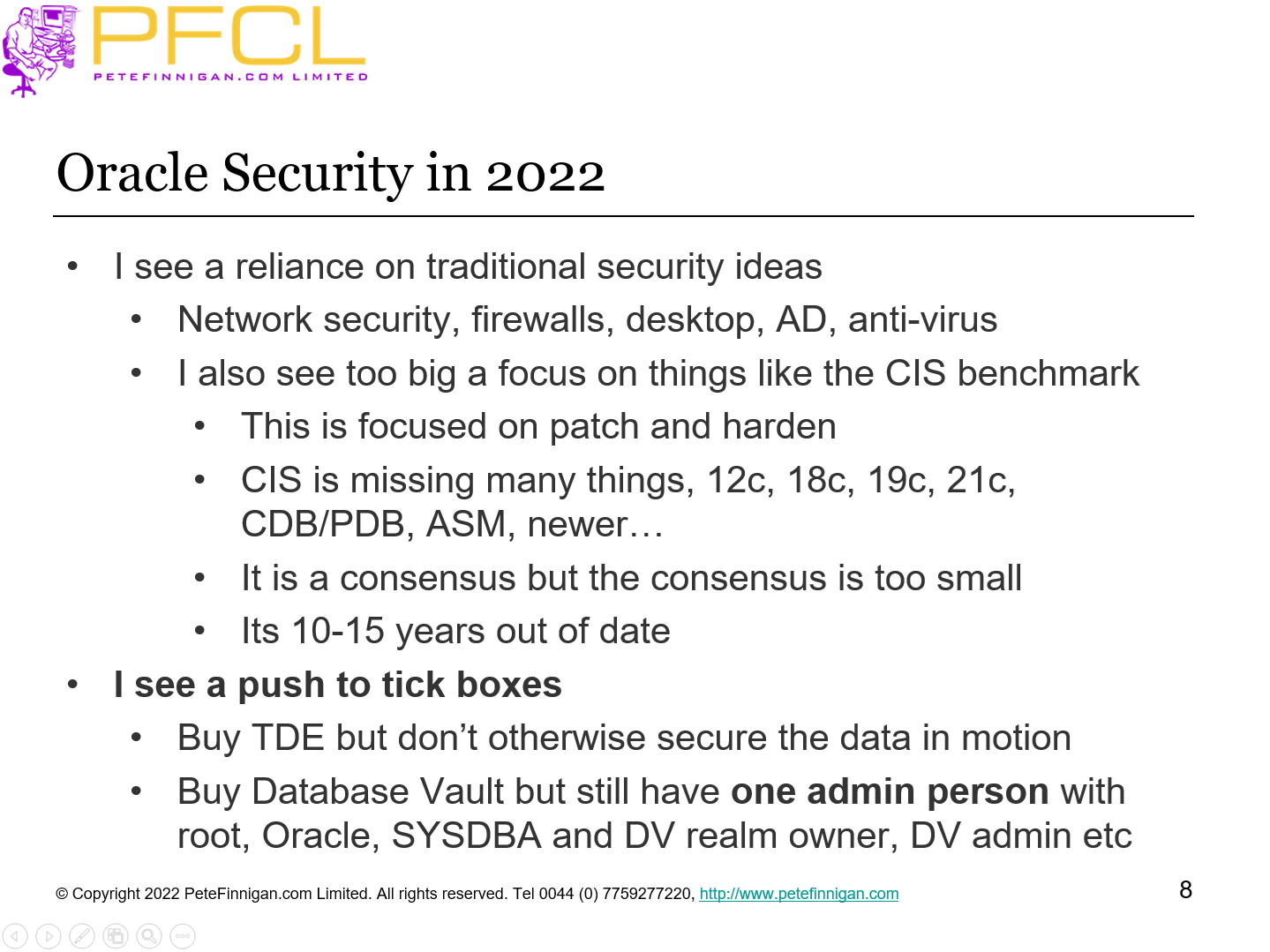

Slide 8 - Oracle Security in 2022

I see a reliance on traditional security ideas
Network security, firewalls, desktop, AD, anti-virus
I also see too big a focus on things like the CIS benchmark
This is focused on patch and harden
CIS is missing many things, 12c, 18c, 19c, 21c, CDB/PDB, ASM, newer…
It is a consensus but the consensus is too small
Its 10-15 years out of date
I see a push to tick boxes
Buy TDE but don’t otherwise secure the data in motion
Buy Database Vault but still have one admin person with root, Oracle, SYSDBA and DV realm owner, DV admin etc

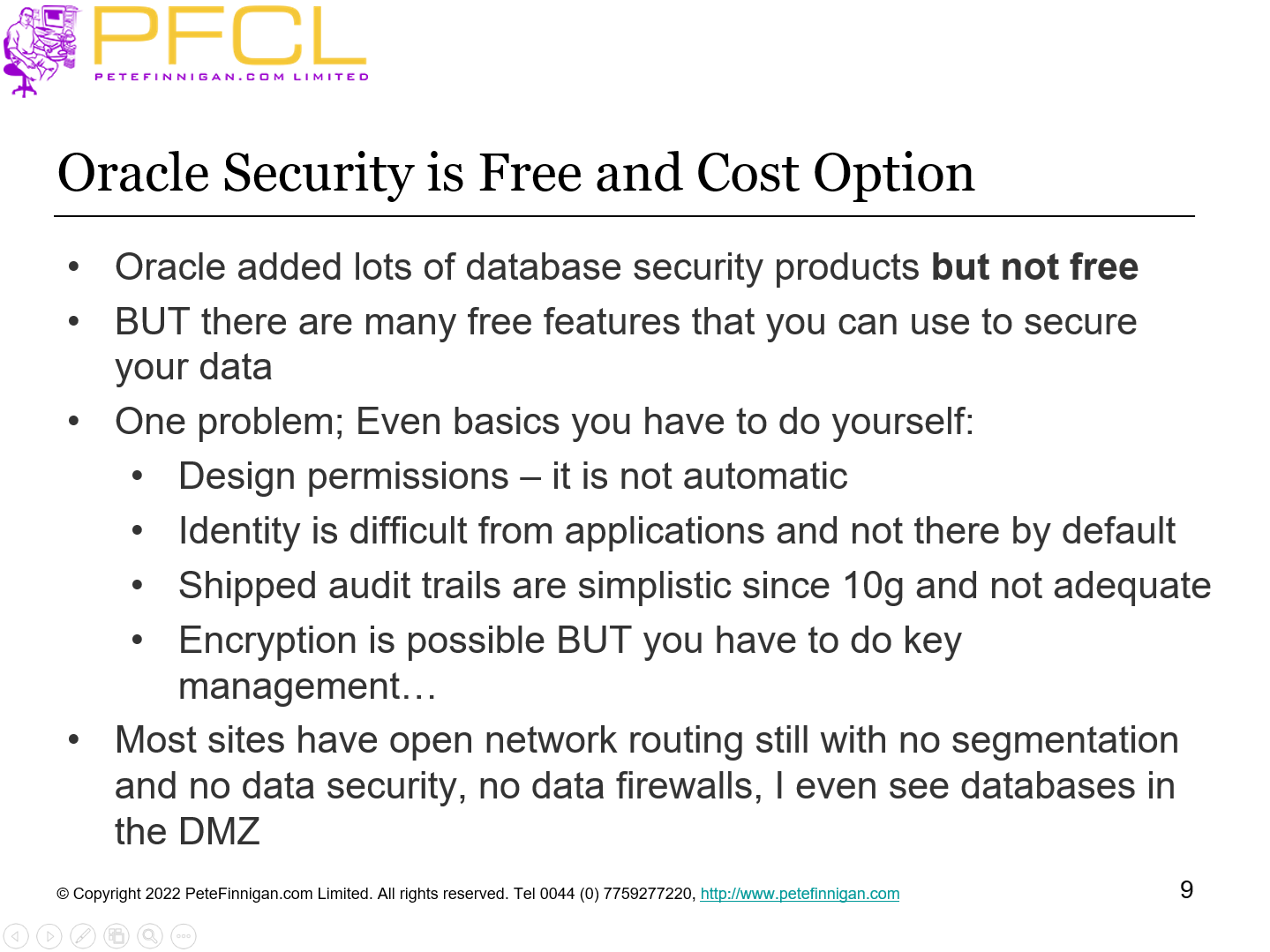

Slide 9 - Oracle Security is Free and Cost Option

Oracle added lots of database security products but not free
BUT there are many free features that you can use to secure your data
One problem; Even basics you have to do yourself:
Design permissions – it is not automatic
Identity is difficult from applications and not there by default
Shipped audit trails are simplistic since 10g and not adequate
Encryption is possible BUT you have to do key management…
Most sites have open network routing still with no segmentation and no data security, no data firewalls, I even see databases in the DMZ

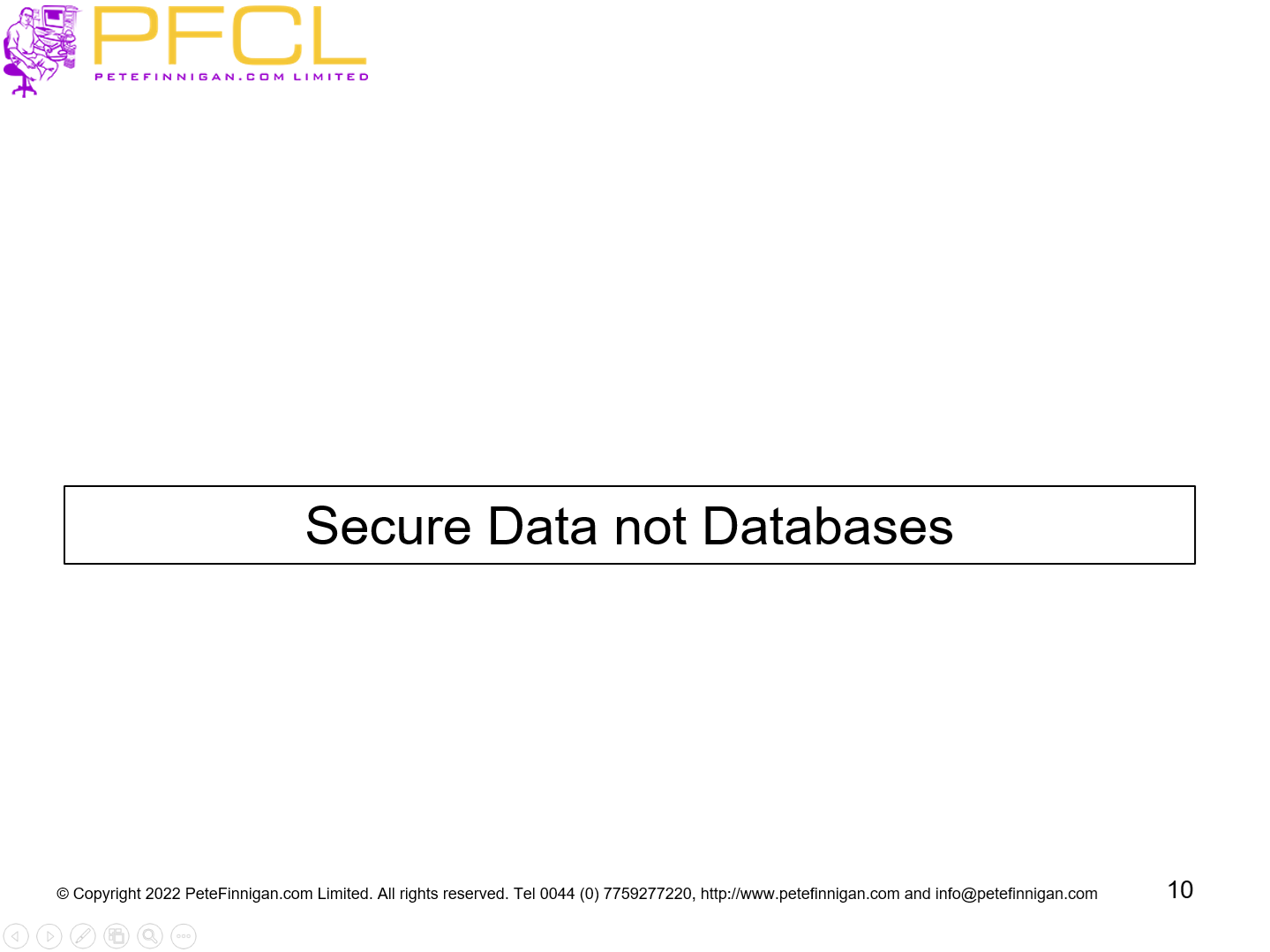

Slide 10 - Secure Data not Databases

Secure Data not Databases

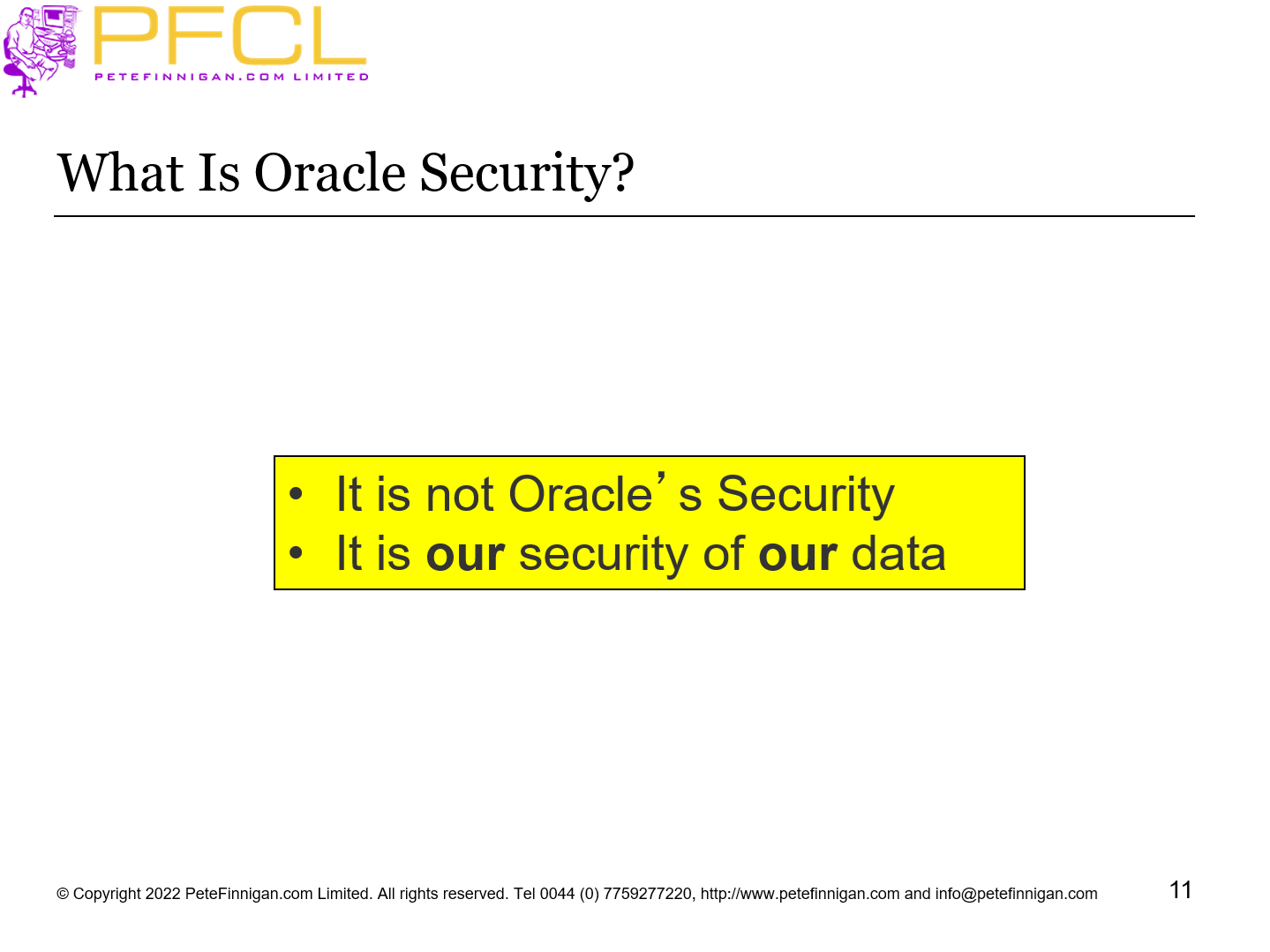

Slide 11 - What Is Oracle Security?

It is not Oracle’s Security
It is our security of our data

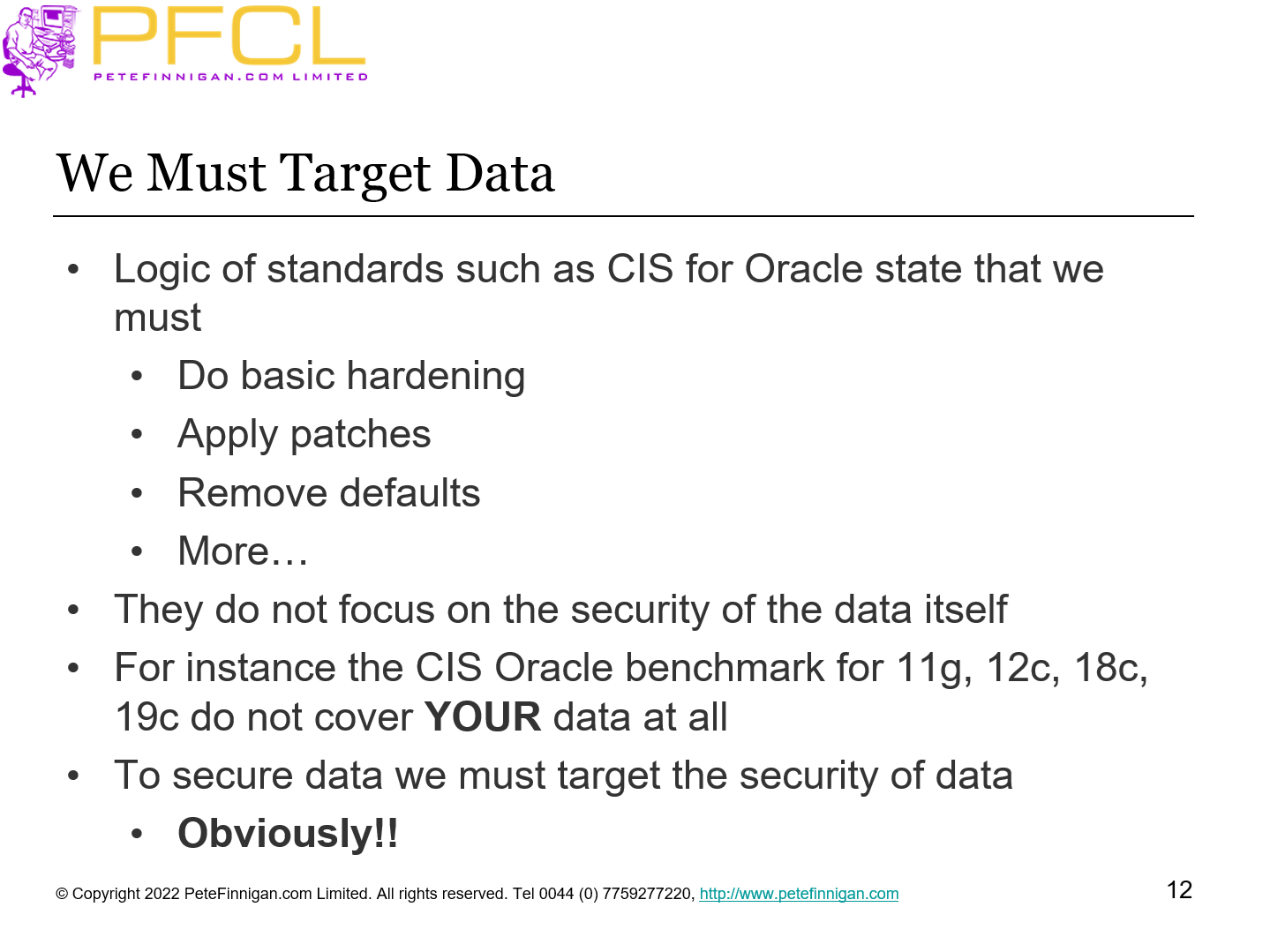

Slide 12 - We Must Target Data

Logic of standards such as CIS for Oracle state that we must
Do basic hardening
Apply patches
Remove defaults
More…
They do not focus on the security of the data itself
For instance the CIS Oracle benchmark for 11g, 12c, 18c, 19c do not cover YOUR data at all
To secure data we must target the security of data
Obviously!!

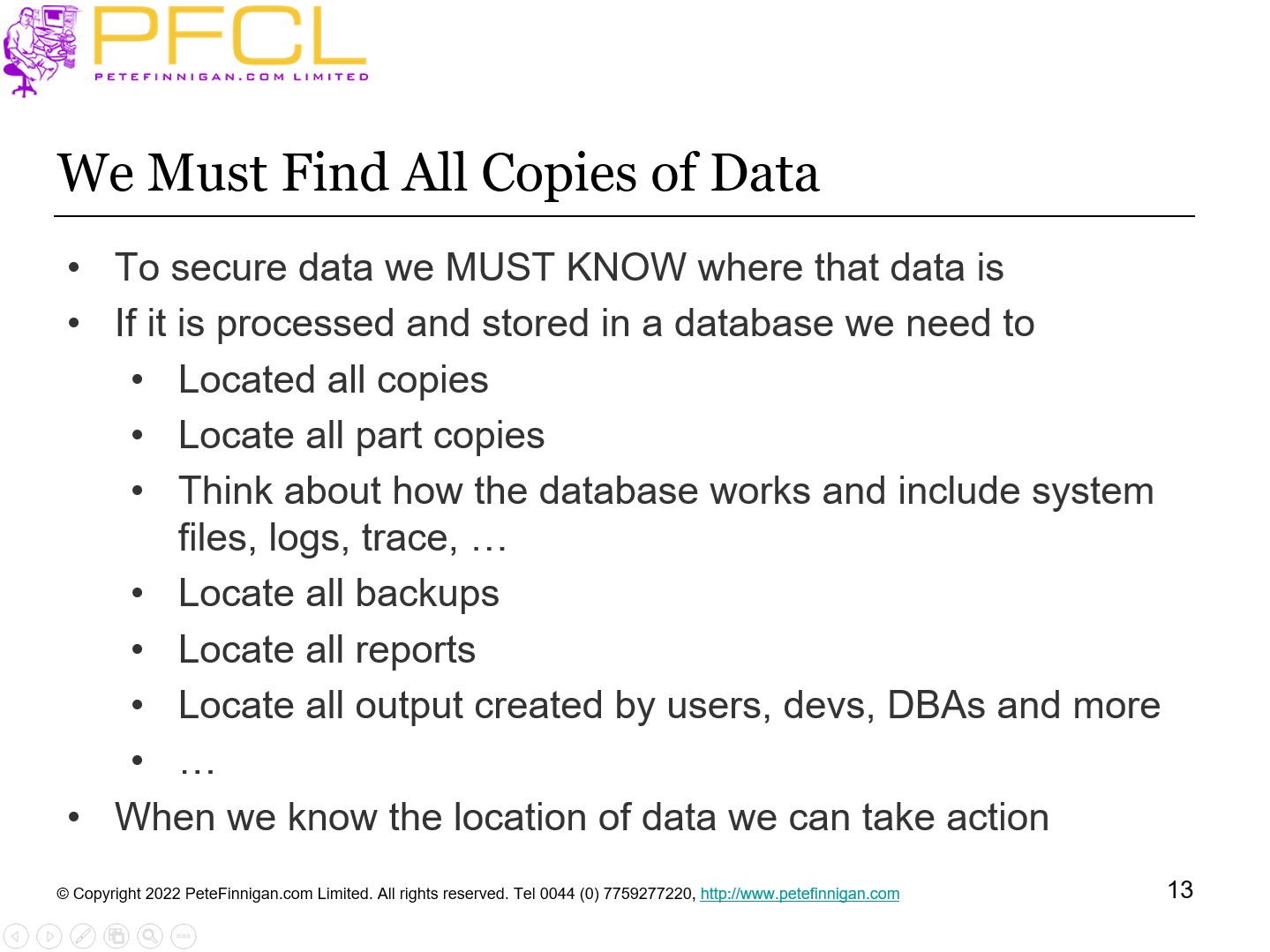

Slide 13 - We Must Find All Copies of Data

To secure data we MUST KNOW where that data is
If it is processed and stored in a database we need to
Located all copies
Locate all part copies
Think about how the database works and include system files, logs, trace, …
Locate all backups
Locate all reports
Locate all output created by users, devs, DBAs and more…
When we know the location of data we can take action

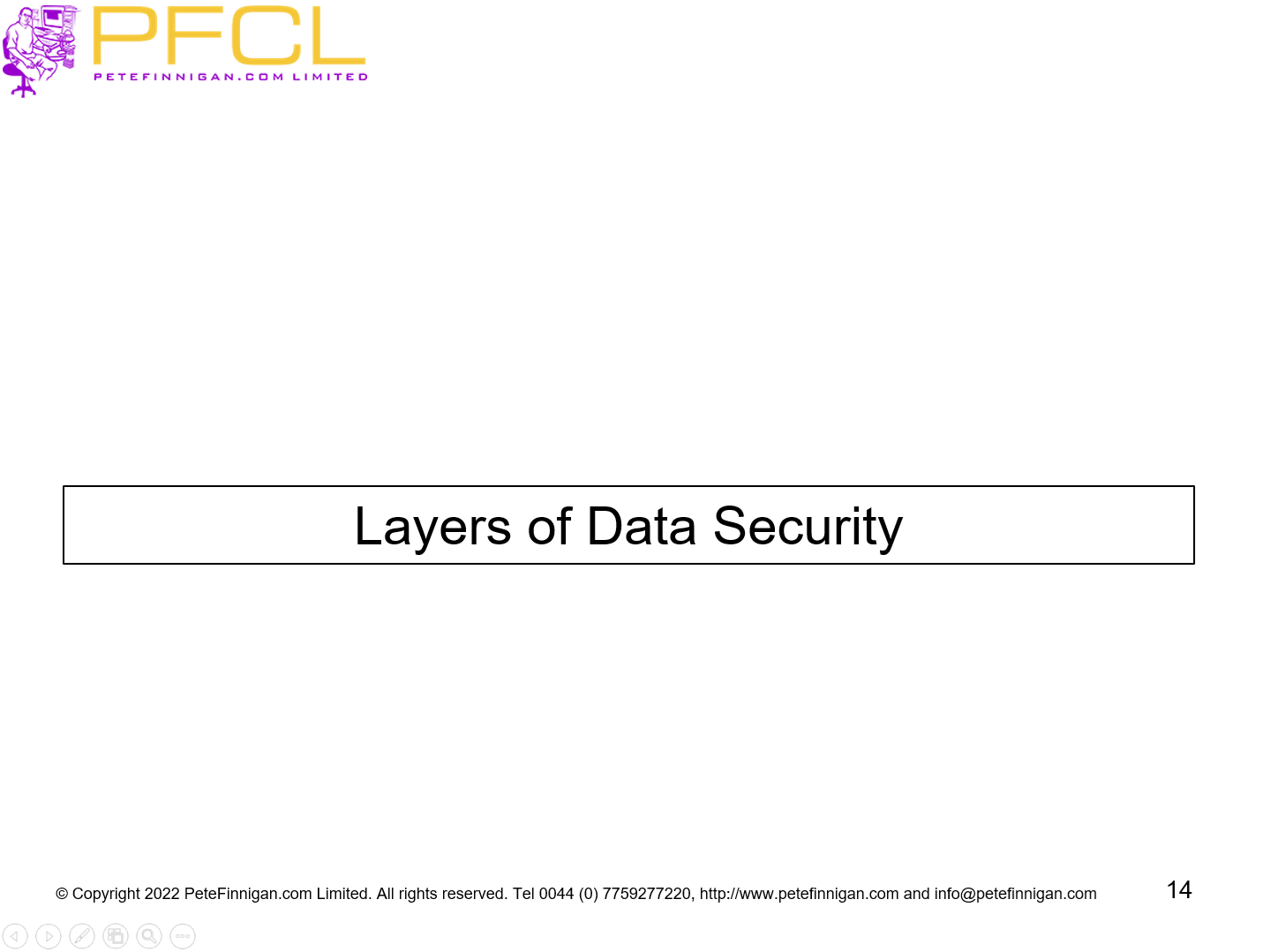

Slide 14 - Layers of Data Security

Layers of Data Security

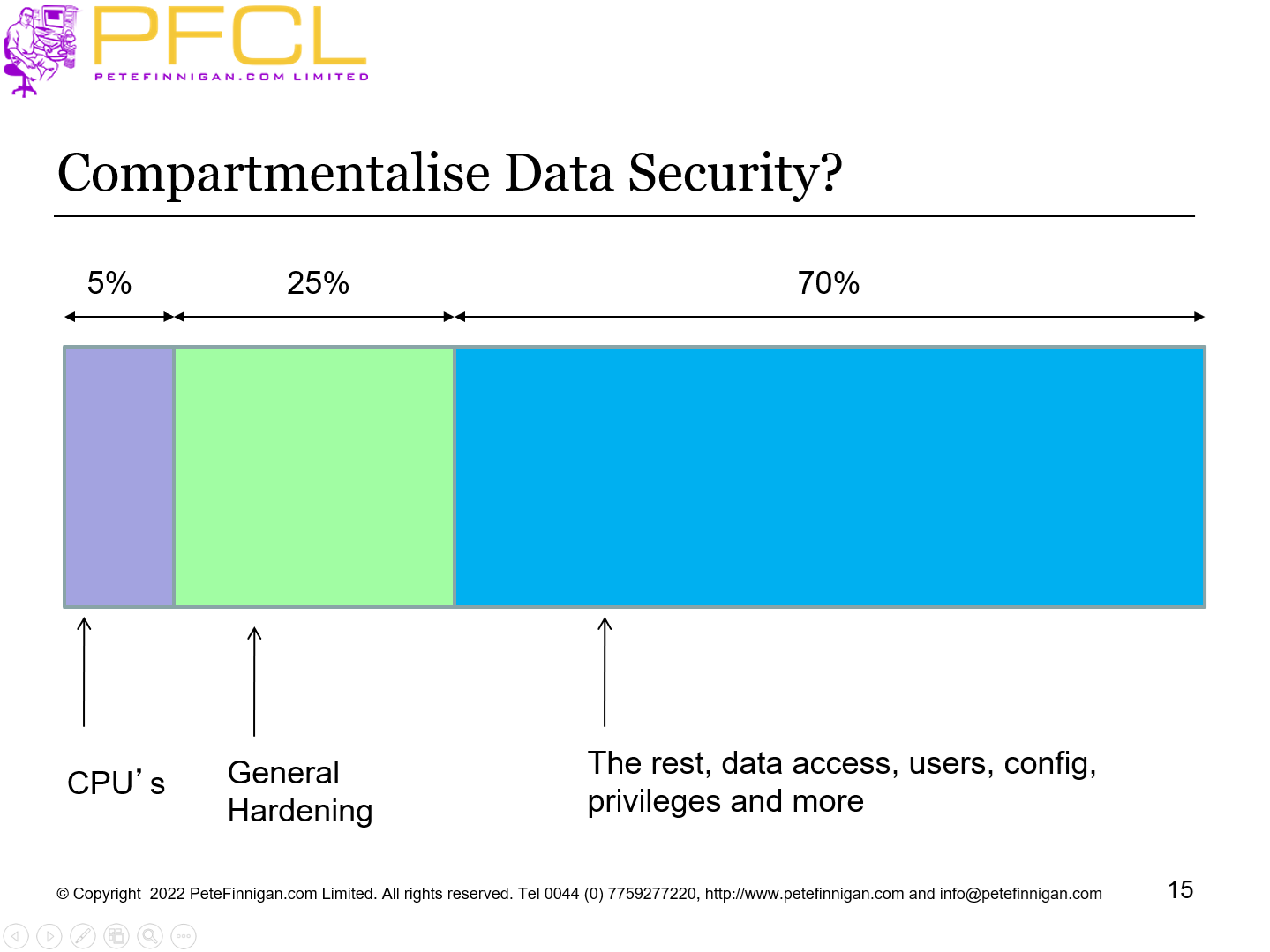

Slide 15 - Compartmentalise Data Security?

Compartmentalise Data Security?

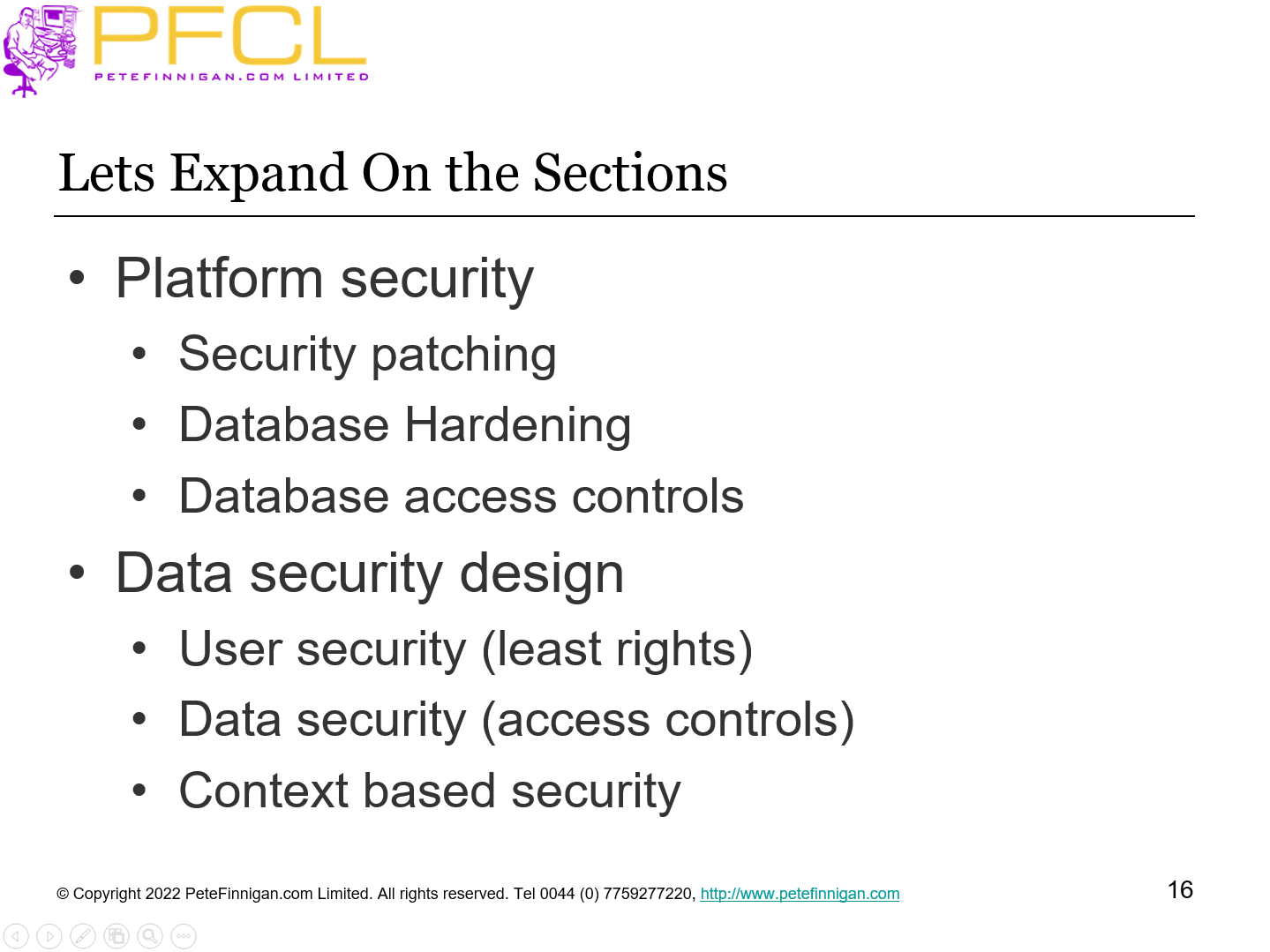

Slide 16 - Lets Expand On the Sections

Platform security
Security patching
Database Hardening
Database access controls
Data security design
User security (least rights)
Data security (access controls)
Context based security

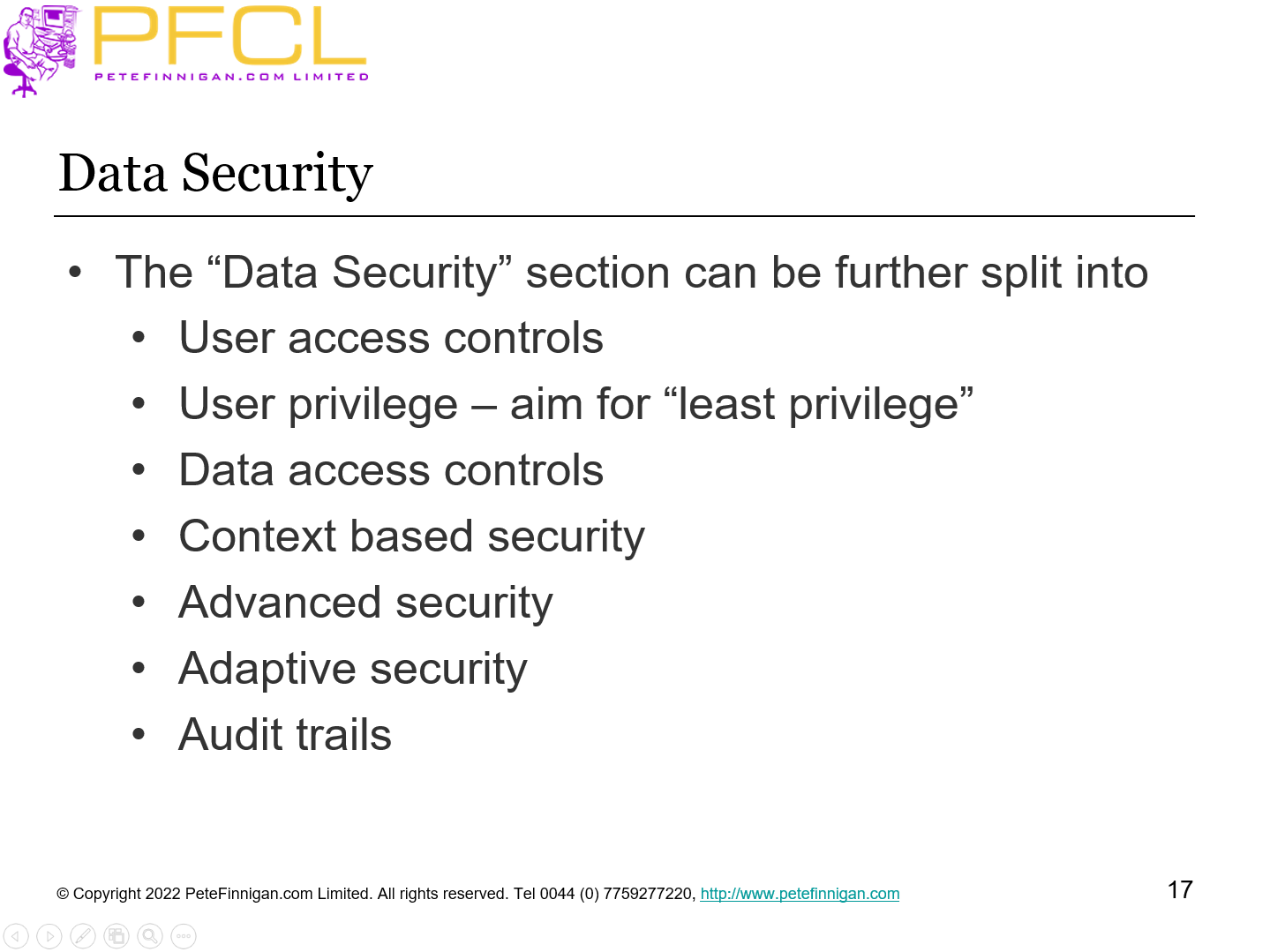

Slide 17 - Data Security

The “Data Security” section can be further split into
User access controls
User privilege – aim for “least privilege”
Data access controls
Context based security
Advanced security
Adaptive security
Audit trails

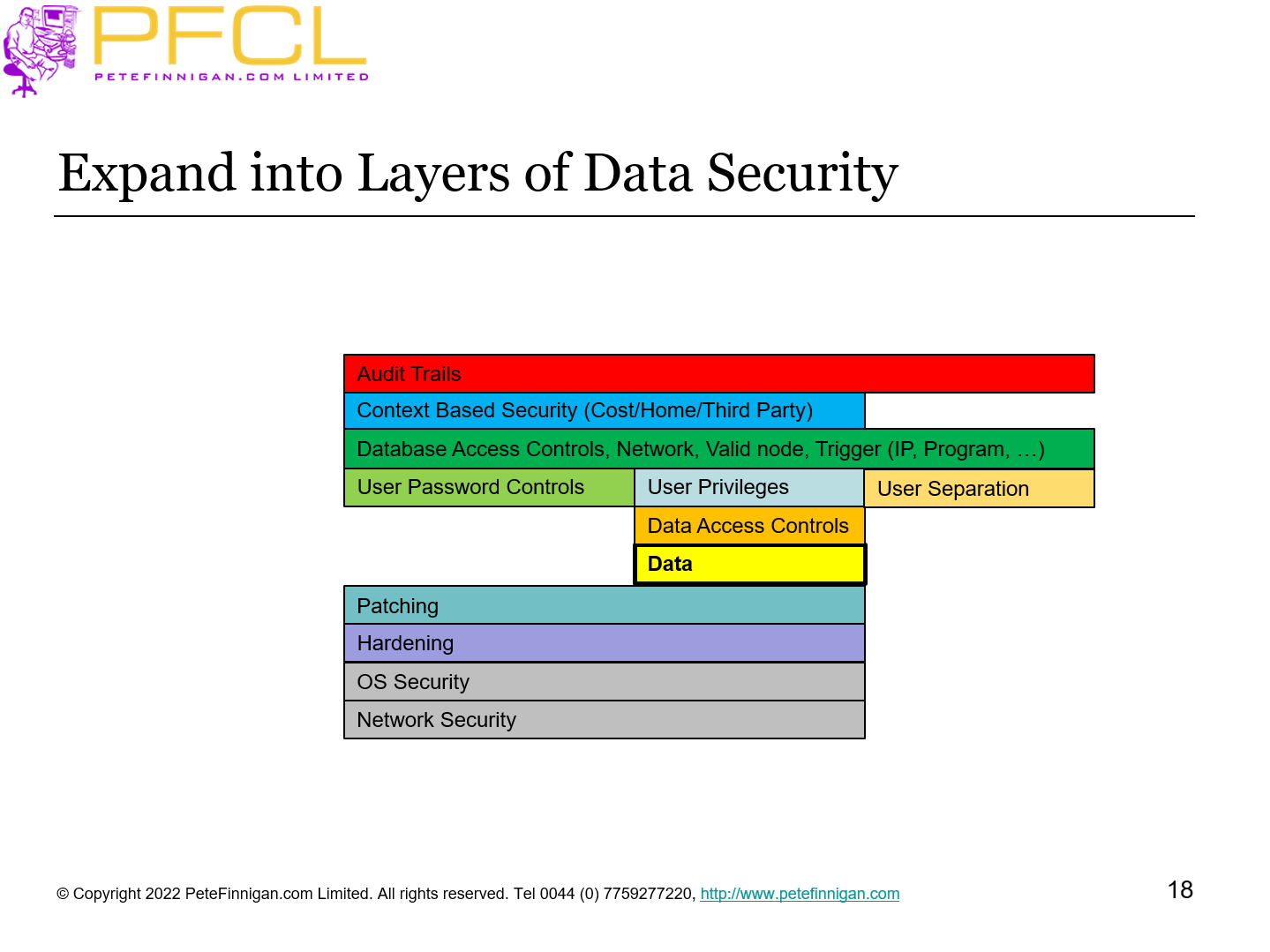

Slide 18 - Expand into Layers of Data Security

Expand into Layers of Data Security

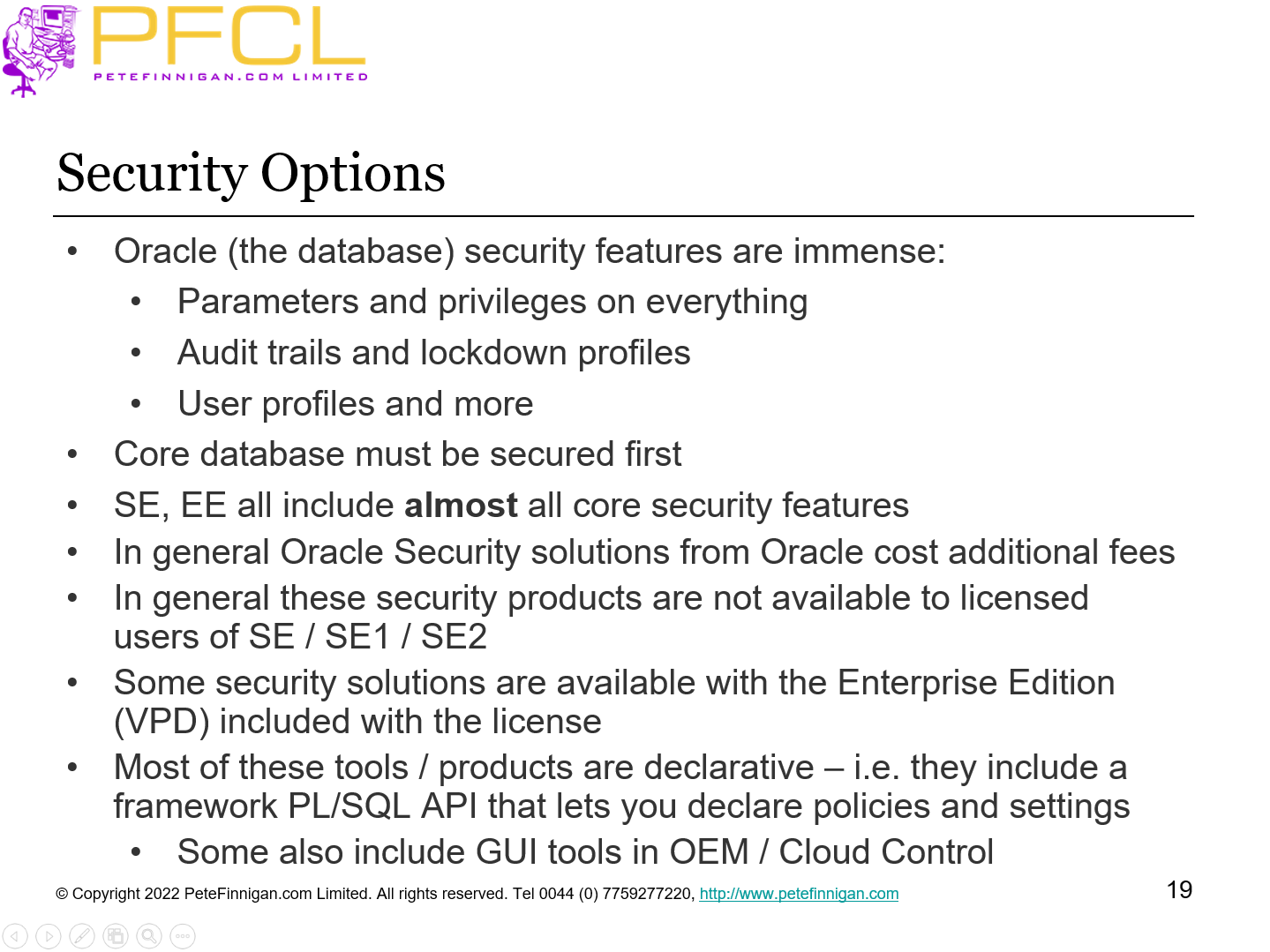

Slide 19 - Security Options

Oracle (the database) security features are immense:
Parameters and privileges on everything
Audit trails and lockdown profiles
User profiles and more
Core database must be secured first
SE, EE all include almost all core security features
In general Oracle Security solutions from Oracle cost additional fees
In general these security products are not available to licensed users of SE / SE1 / SE2
Some security solutions are available with the Enterprise Edition (VPD) included with the license
Most of these tools / products are declarative – i.e. they include a framework PL/SQL API that lets you declare policies and settings
Some also include GUI tools in OEM / Cloud Control

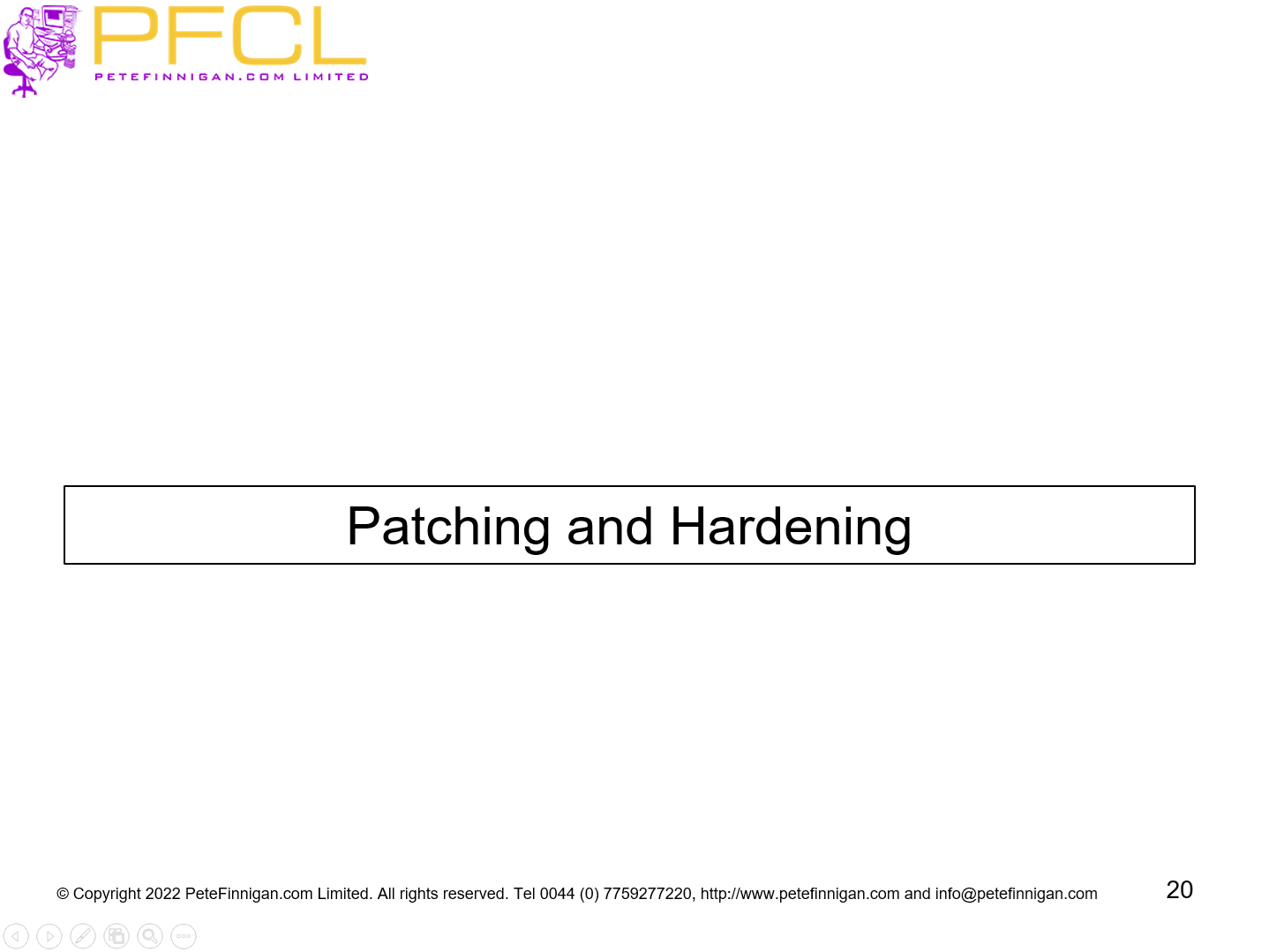

Slide 20 - Patching and Hardening

Patching and Hardening

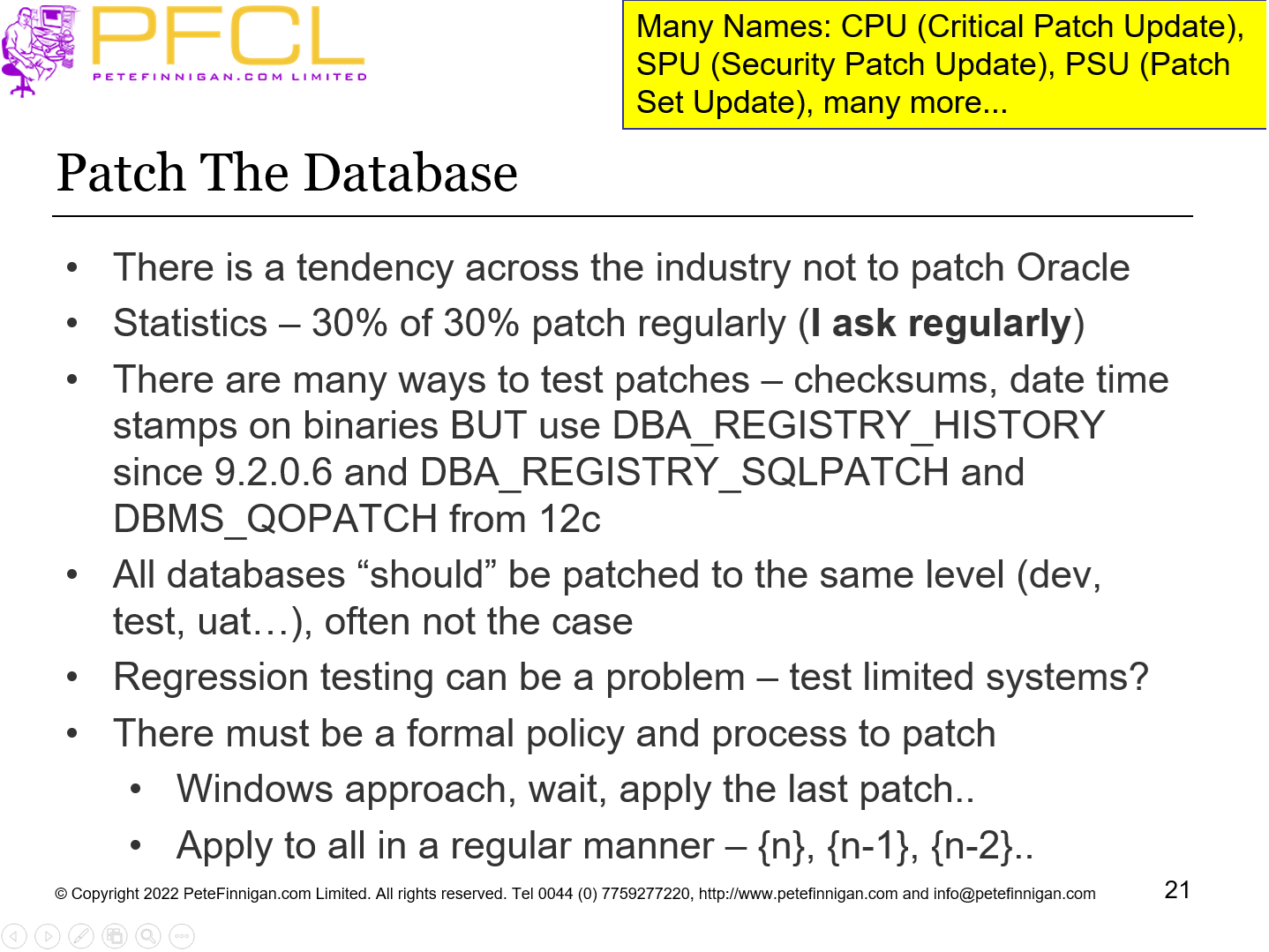

Slide 21 - Patch The Database

There is a tendency across the industry not to patch Oracle
Statistics – 30% of 30% patch regularly (I ask regularly)
There are many ways to test patches – checksums, date time stamps on binaries BUT use DBA_REGISTRY_HISTORY since 9.2.0.6 and DBA_REGISTRY_SQLPATCH and DBMS_QOPATCH from 12c
All databases “should” be patched to the same level (dev, test, uat…), often not the case
Regression testing can be a problem – test limited systems?
There must be a formal policy and process to patch
Windows approach, wait, apply the last patch..
Apply to all in a regular manner – {n}, {n-1}, {n-2}..

Many Names: CPU (Critical Patch Update), SPU (Security Patch Update), PSU (Patch Set Update), many more...

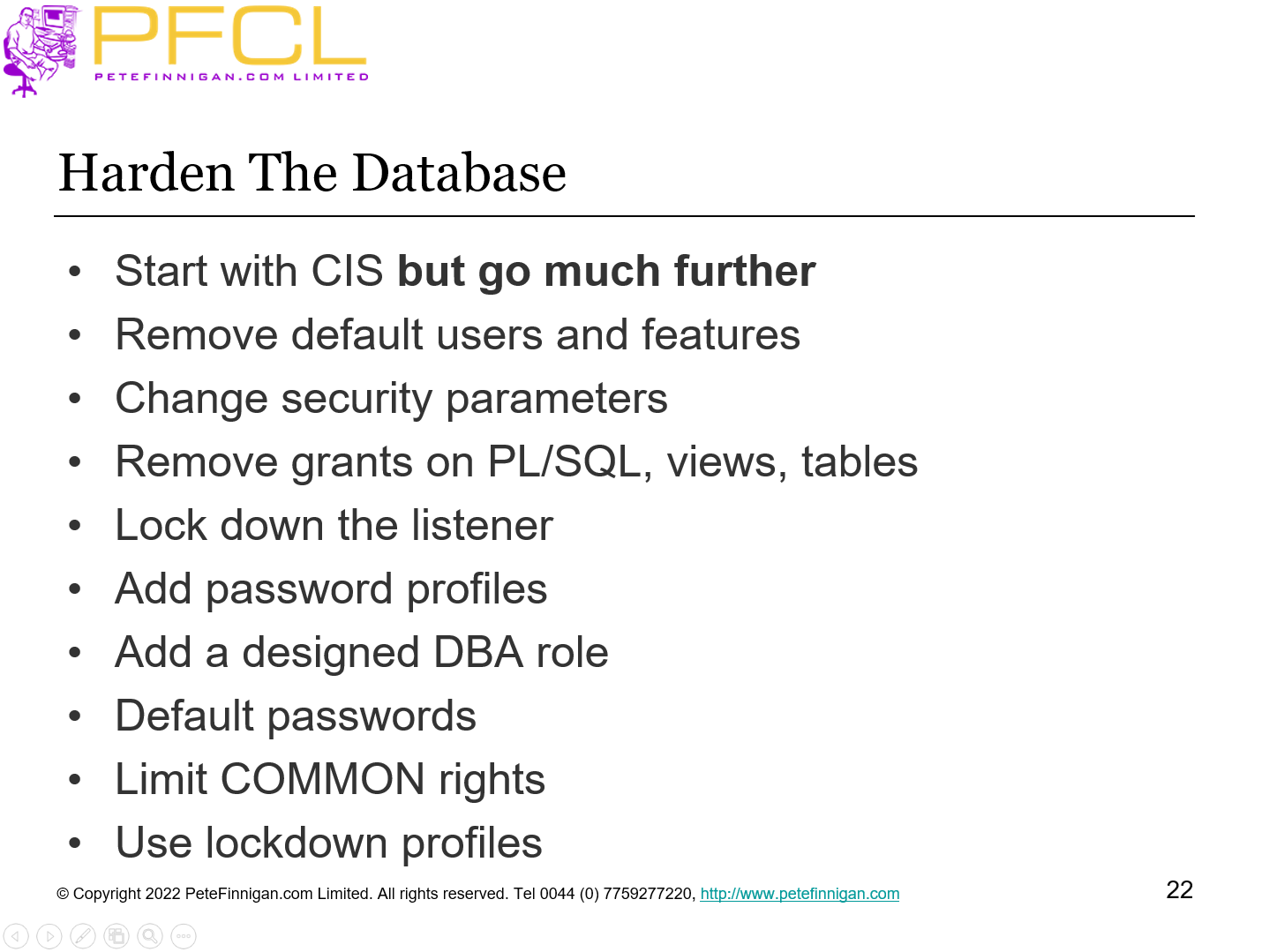

Slide 22 - Harden The Database

Start with CIS but go much further
Remove default users and features
Change security parameters
Remove grants on PL/SQL, views, tables
Lock down the listener
Add password profiles
Add a designed DBA role
Default passwords
Limit COMMON rights
Use lockdown profiles

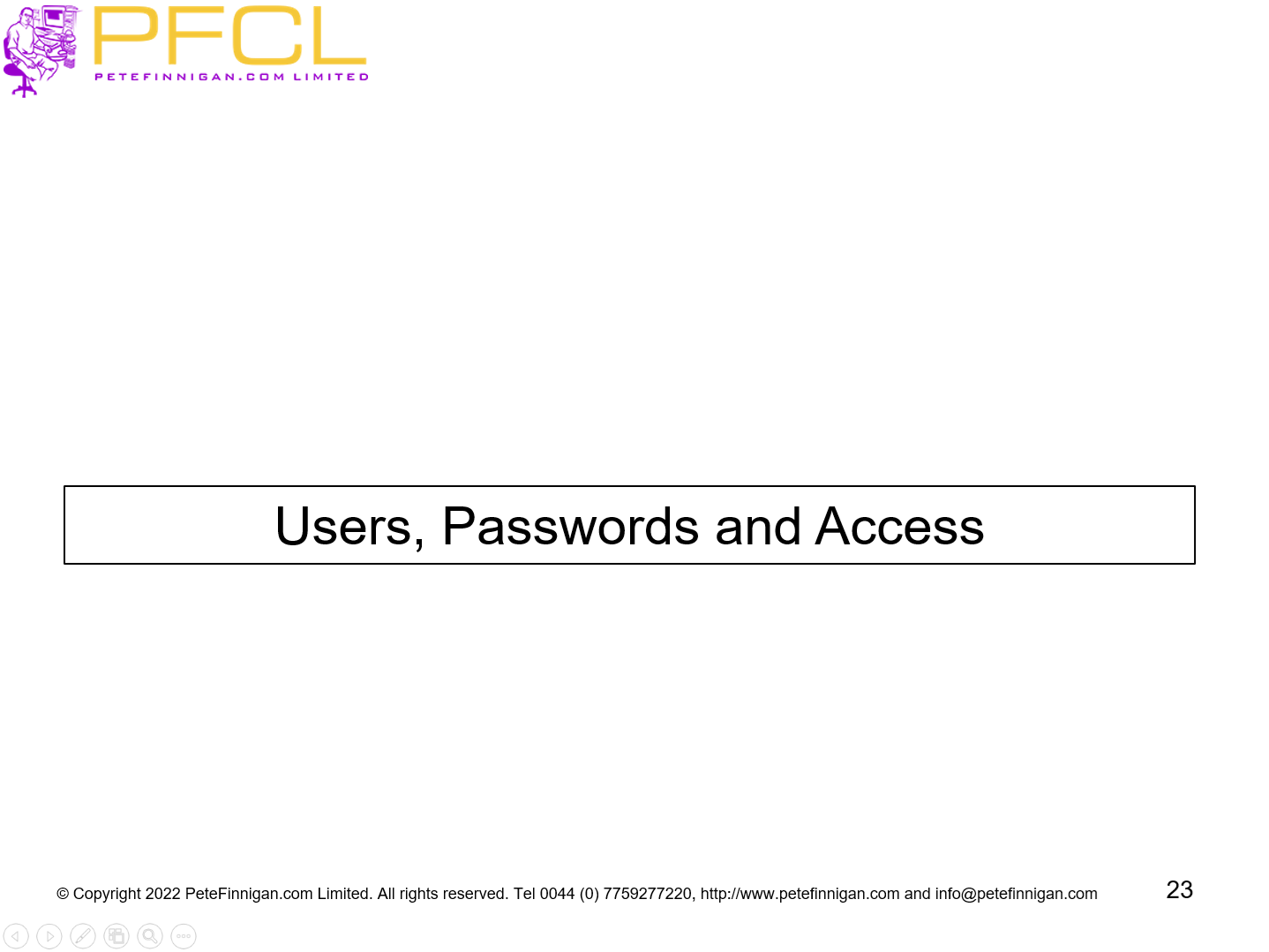

Slide 23 - Users, Passwords and Access

Users, Passwords and Access

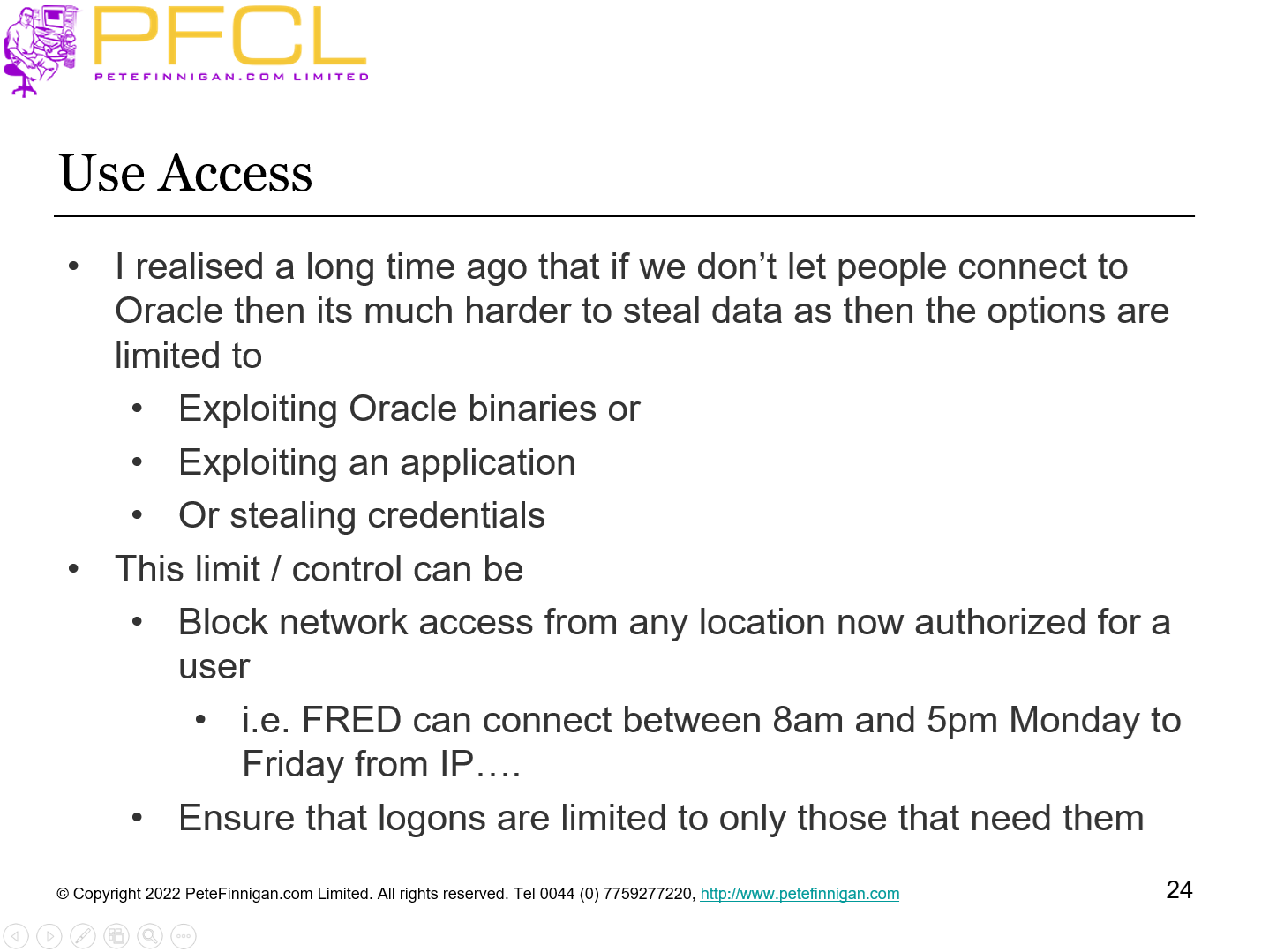

Slide 24 - Use Access

I realised a long time ago that if we don’t let people connect to Oracle then its much harder to steal data as then the options are limited to
Exploiting Oracle binaries or
Exploiting an application
Or stealing credentials
This limit / control can be
Block network access from any location now authorized for a user
i.e. FRED can connect between 8am and 5pm Monday to Friday from IP….
Ensure that logons are limited to only those that need them

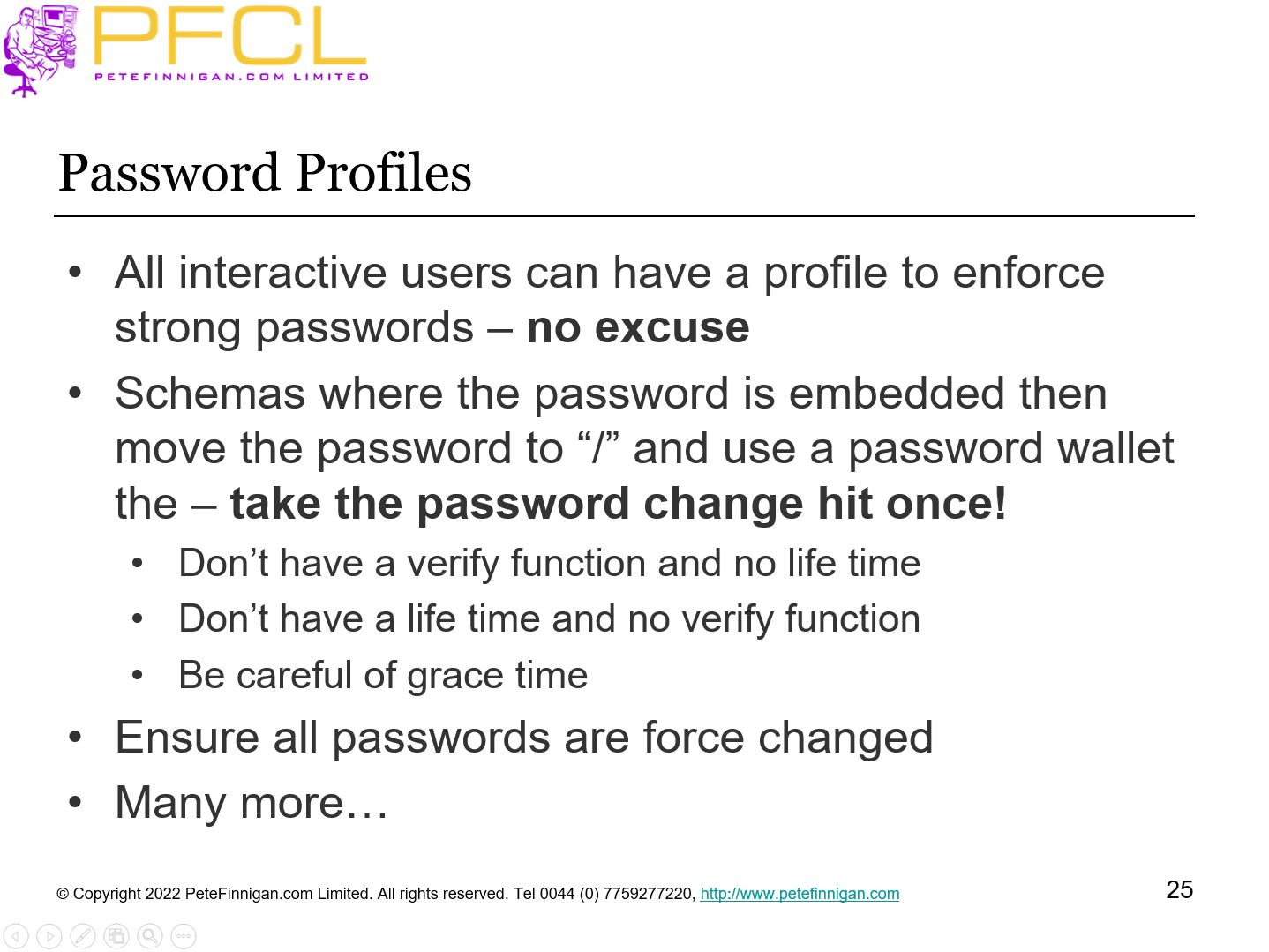

Slide 25 - Password Profiles

All interactive users can have a profile to enforce strong passwords – no excuse
Schemas where the password is embedded then move the password to “/” and use a password wallet the – take the password change hit once!
Don’t have a verify function and no life time
Don’t have a life time and no verify function
Be careful of grace time
Ensure all passwords are force changed
Many more…

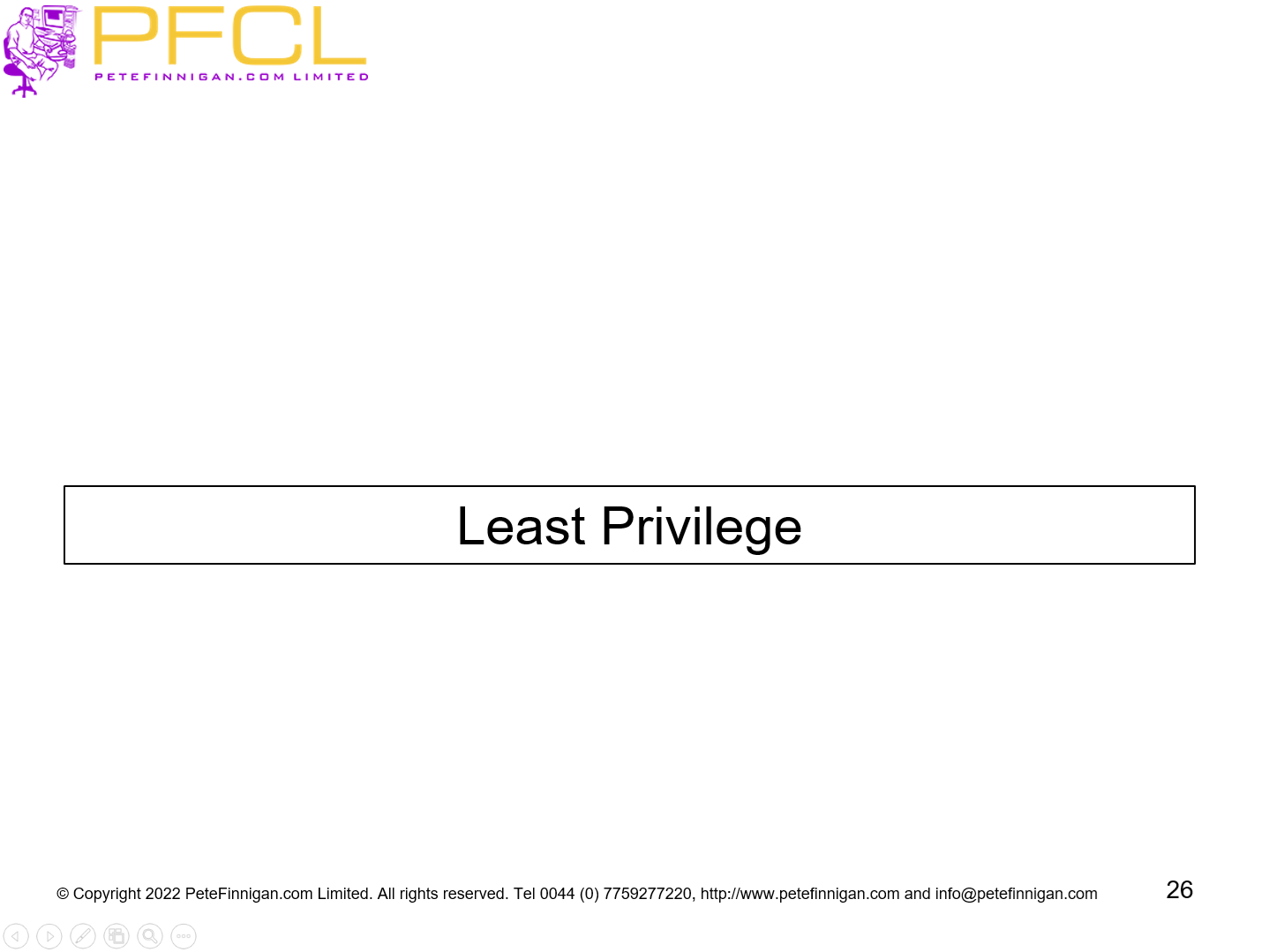

Slide 26 - Least Privilege

Least Privilege

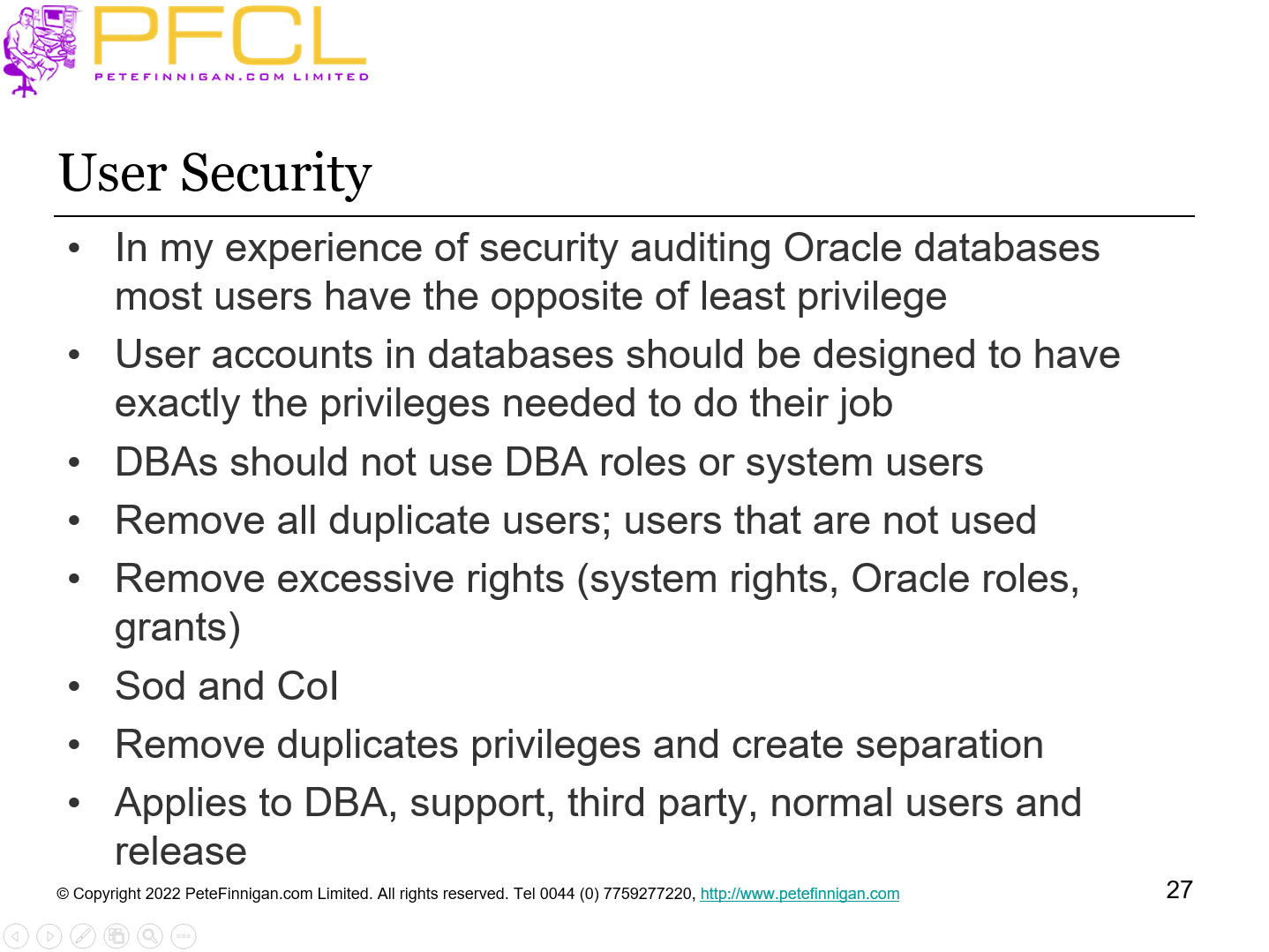

Slide 27 - User Security

In my experience of security auditing Oracle databases most users have the opposite of least privilege
User accounts in databases should be designed to have exactly the privileges needed to do their job
DBAs should not use DBA roles or system users
Remove all duplicate users; users that are not used
Remove excessive rights (system rights, Oracle roles, grants)
Sod and CoI
Remove duplicates privileges and create separation
Applies to DBA, support, third party, normal users and release

Slide 28 - Data Access Controls

Data Access Controls

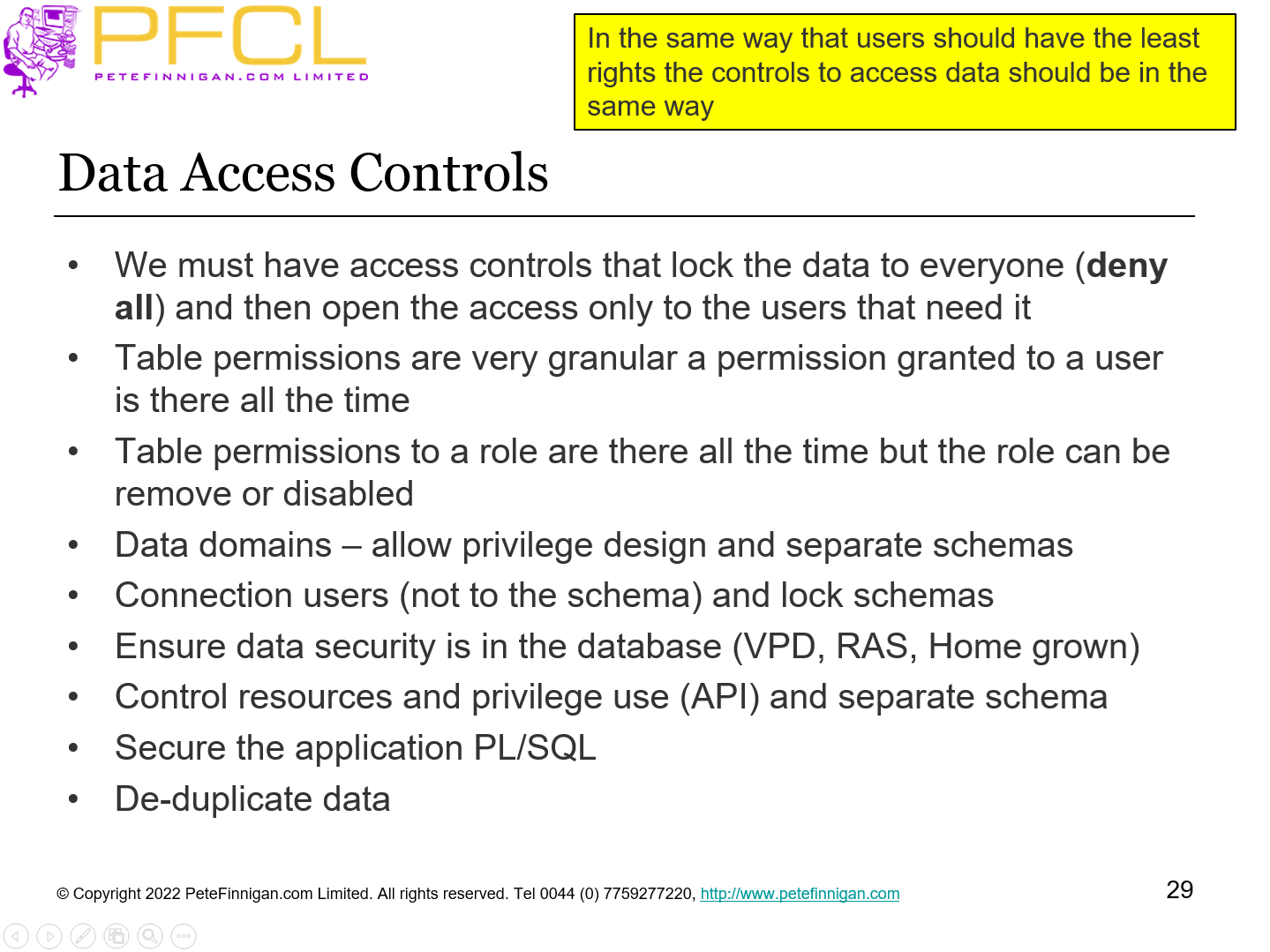

Slide 29 - Data Access Controls

We must have access controls that lock the data to everyone (deny all) and then open the access only to the users that need it
Table permissions are very granular a permission granted to a user is there all the time
Table permissions to a role are there all the time but the role can be remove or disabled
Data domains – allow privilege design and separate schemas
Connection users (not to the schema) and lock schemas
Ensure data security is in the database (VPD, RAS, Home grown)
Control resources and privilege use (API) and separate schema
Secure the application PL/SQL
De-duplicate data

In the same way that users should have the least rights the controls to access data should be in the same way

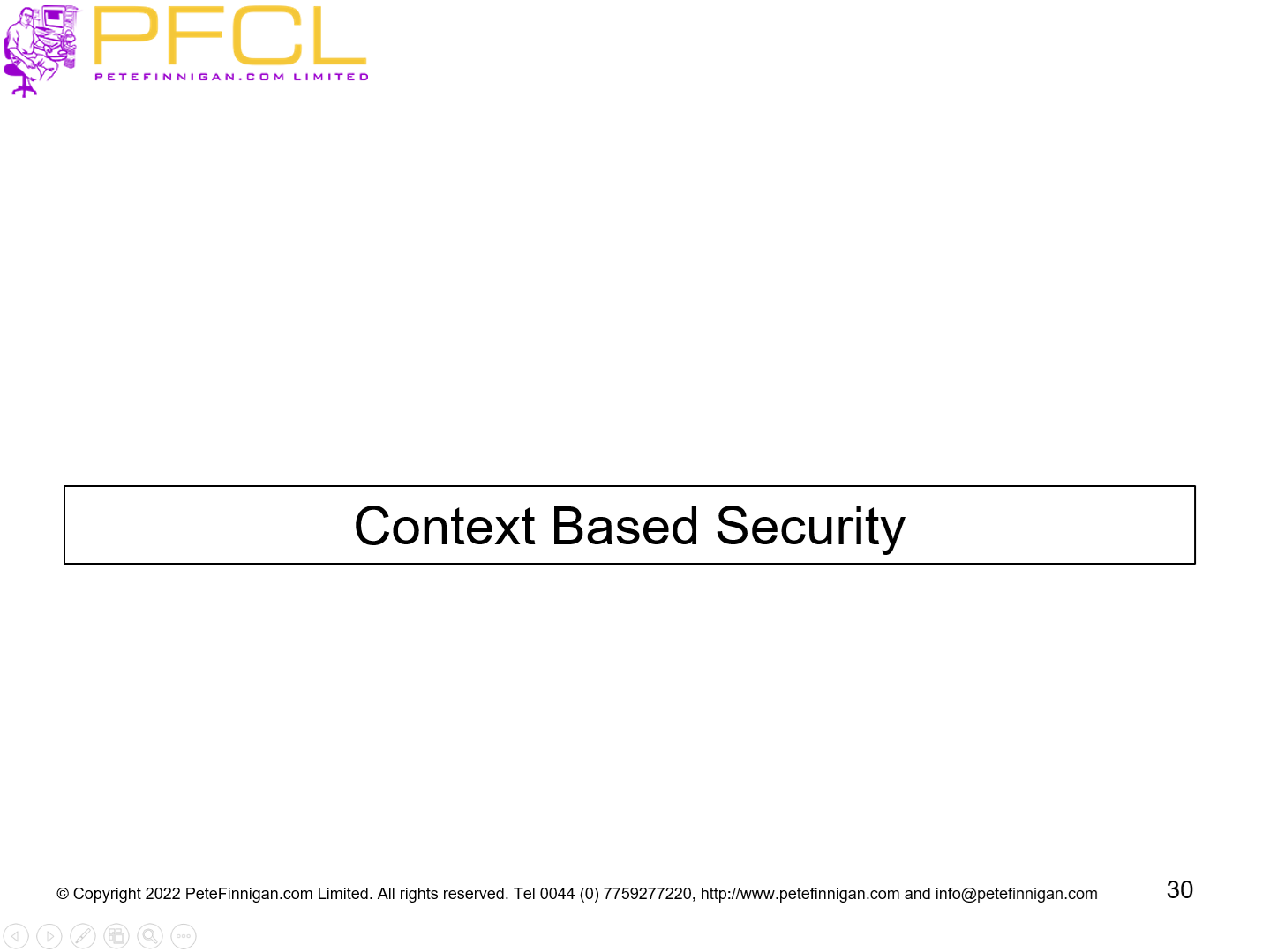

Slide 30 - Context Based Security

Context Based Security

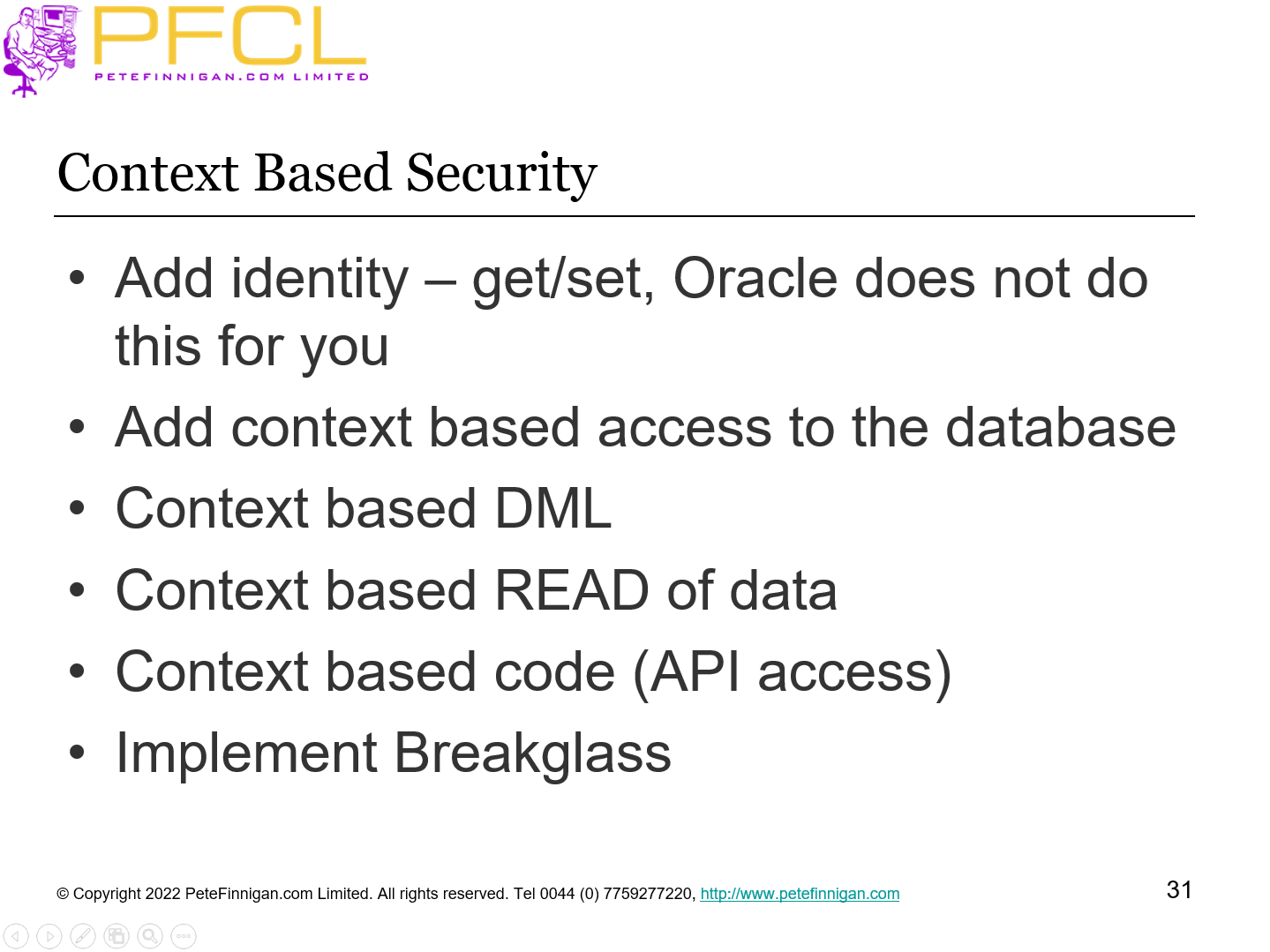

Slide 31 - Context Based Security

Add identity – get/set, Oracle does not do this for you
Add context based access to the database
Context based DML
Context based READ of data
Context based code (API access)
Implement Breakglass

Slide 32 - What Do Cost Options Do?

In general the cost options can provide deeper security or granularity or both
Most cost options can be simulated to some level
DV (don’t use the DBA role, use triggers and functions and more ) for realms
Some cannot as easily be simulated
TDE, ASO native encryption
If we do for free there are gaps but it’s the only option in SE for instance

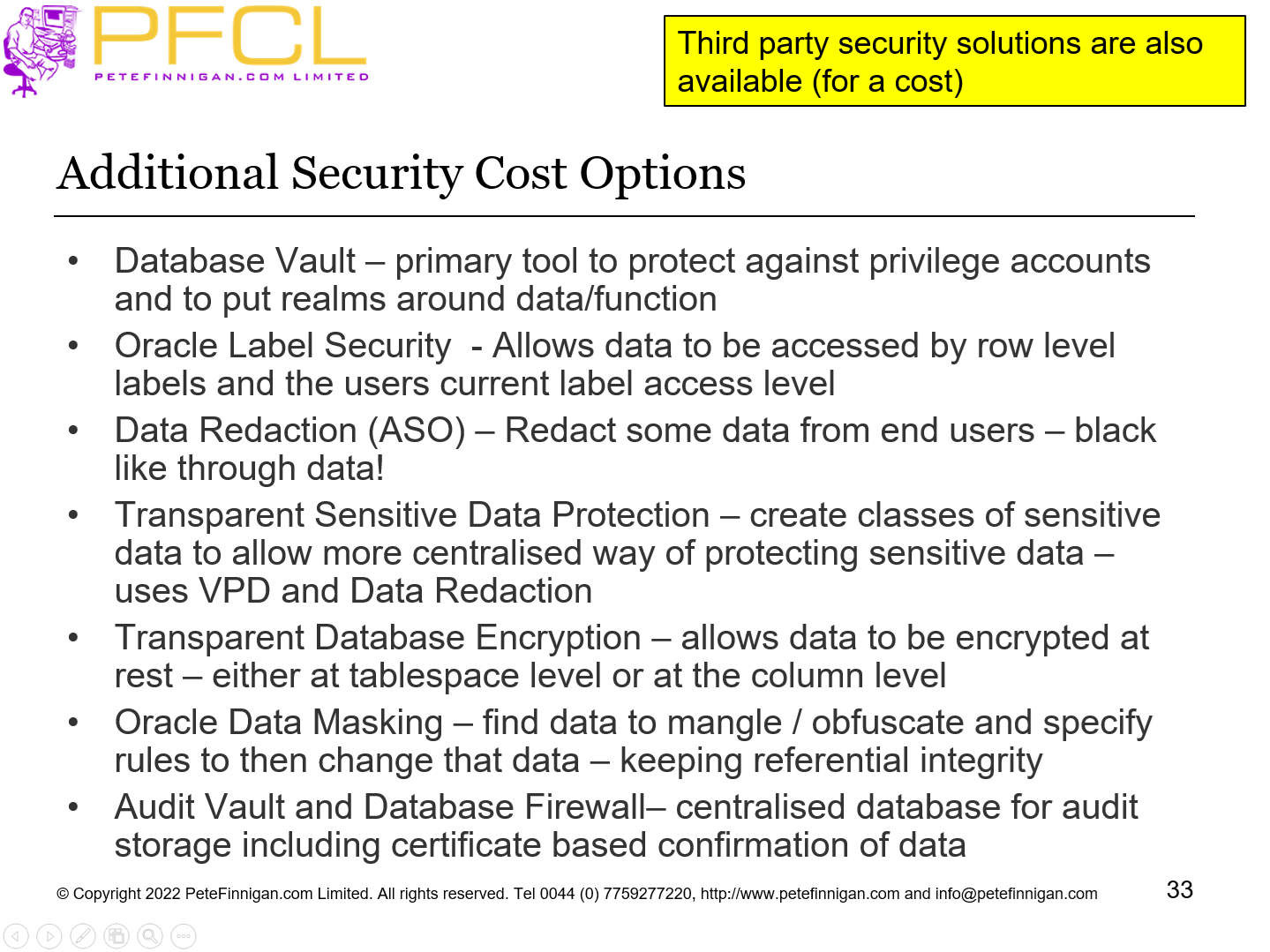

Slide 33 - Additional Security Cost Options

Database Vault – primary tool to protect against privilege accounts and to put realms around data/function
Oracle Label Security - Allows data to be accessed by row level labels and the users current label access level
Data Redaction (ASO) – Redact some data from end users – black like through data!
Transparent Sensitive Data Protection – create classes of sensitive data to allow more centralised way of protecting sensitive data – uses VPD and Data Redaction
Transparent Database Encryption – allows data to be encrypted at rest – either at tablespace level or at the column level
Oracle Data Masking – find data to mangle / obfuscate and specify rules to then change that data – keeping referential integrity
Audit Vault and Database Firewall– centralised database for audit storage including certificate based confirmation of data

Third party security solutions are also available (for a cost)

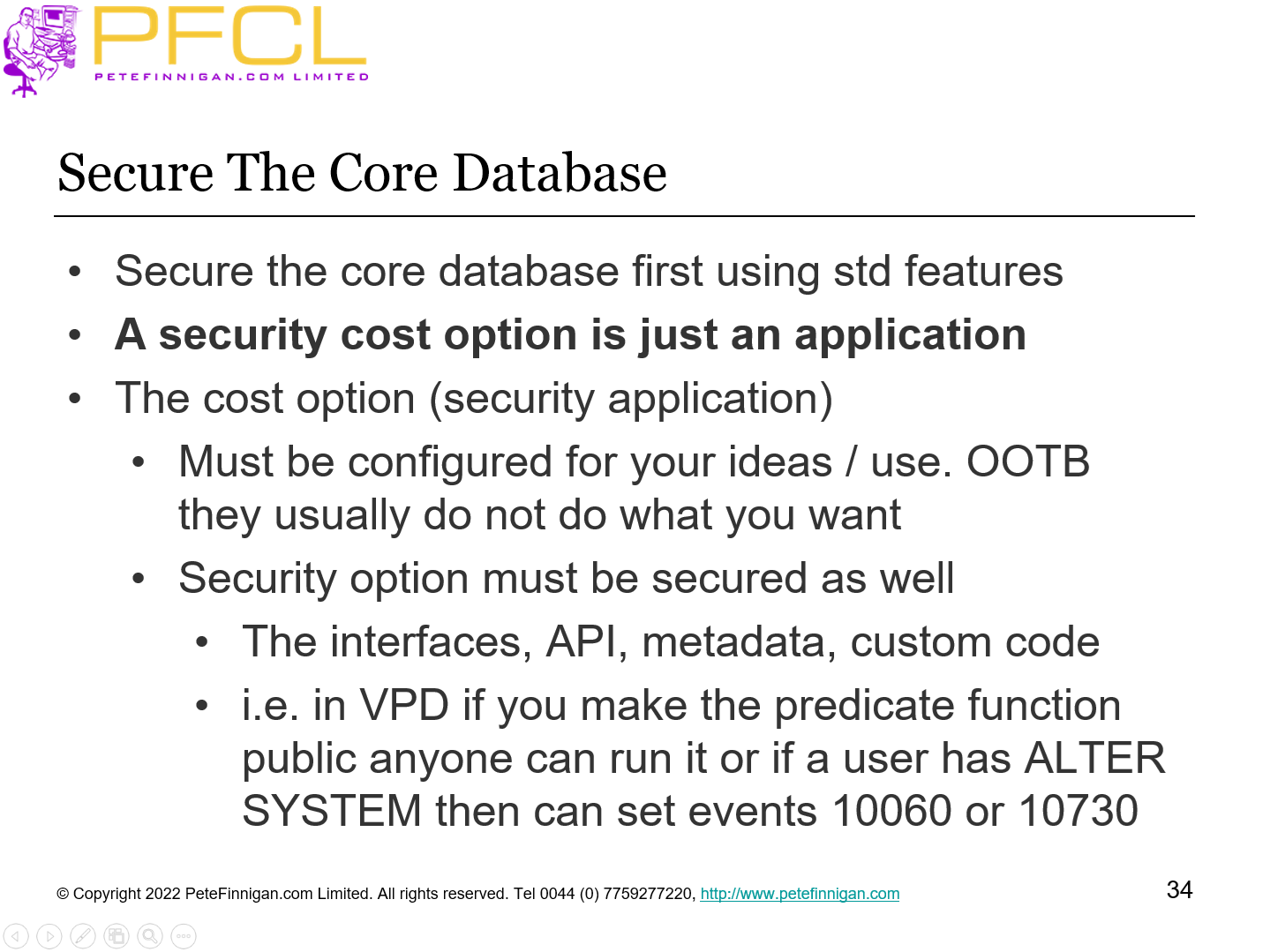

Slide 34 - Secure The Core Database

Secure the core database first using std features
A security cost option is just an application
The cost option (security application)
Must be configured for your ideas / use. OOTB they usually do not do what you want
Security option must be secured as well
The interfaces, API, metadata, custom code
i.e. in VPD if you make the predicate function public anyone can run it or if a user has ALTER SYSTEM then can set events 10060 or 10730

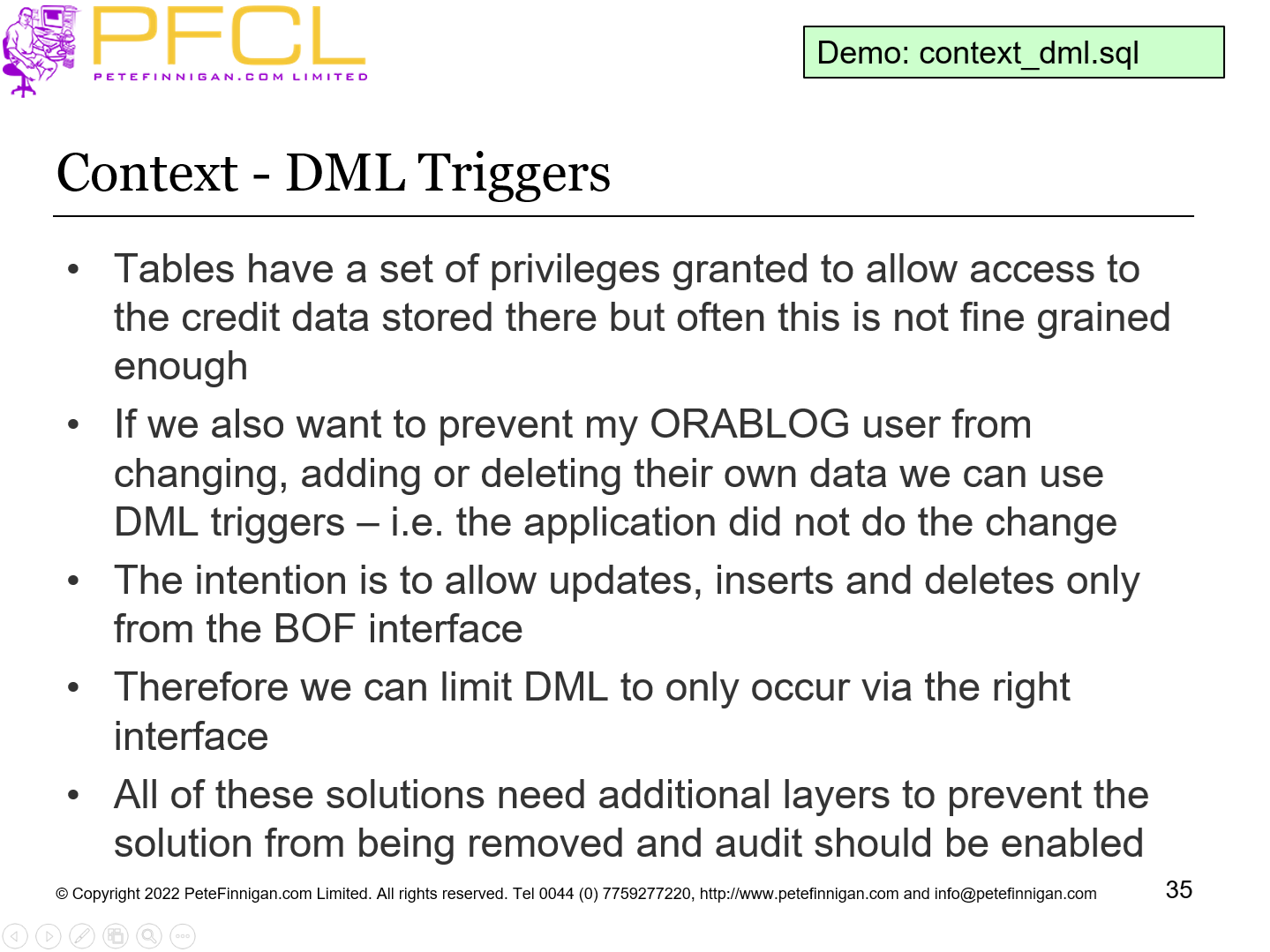

Slide 35 - Context - DML Triggers

Tables have a set of privileges granted to allow access to the credit data stored there but often this is not fine grained enough
If we also want to prevent my ORABLOG user from changing, adding or deleting their own data we can use DML triggers – i.e. the application did not do the change
The intention is to allow updates, inserts and deletes only from the BOF interface
Therefore we can limit DML to only occur via the right interface
All of these solutions need additional layers to prevent the solution from being removed and audit should be enabled

Demo: context_dml.sql

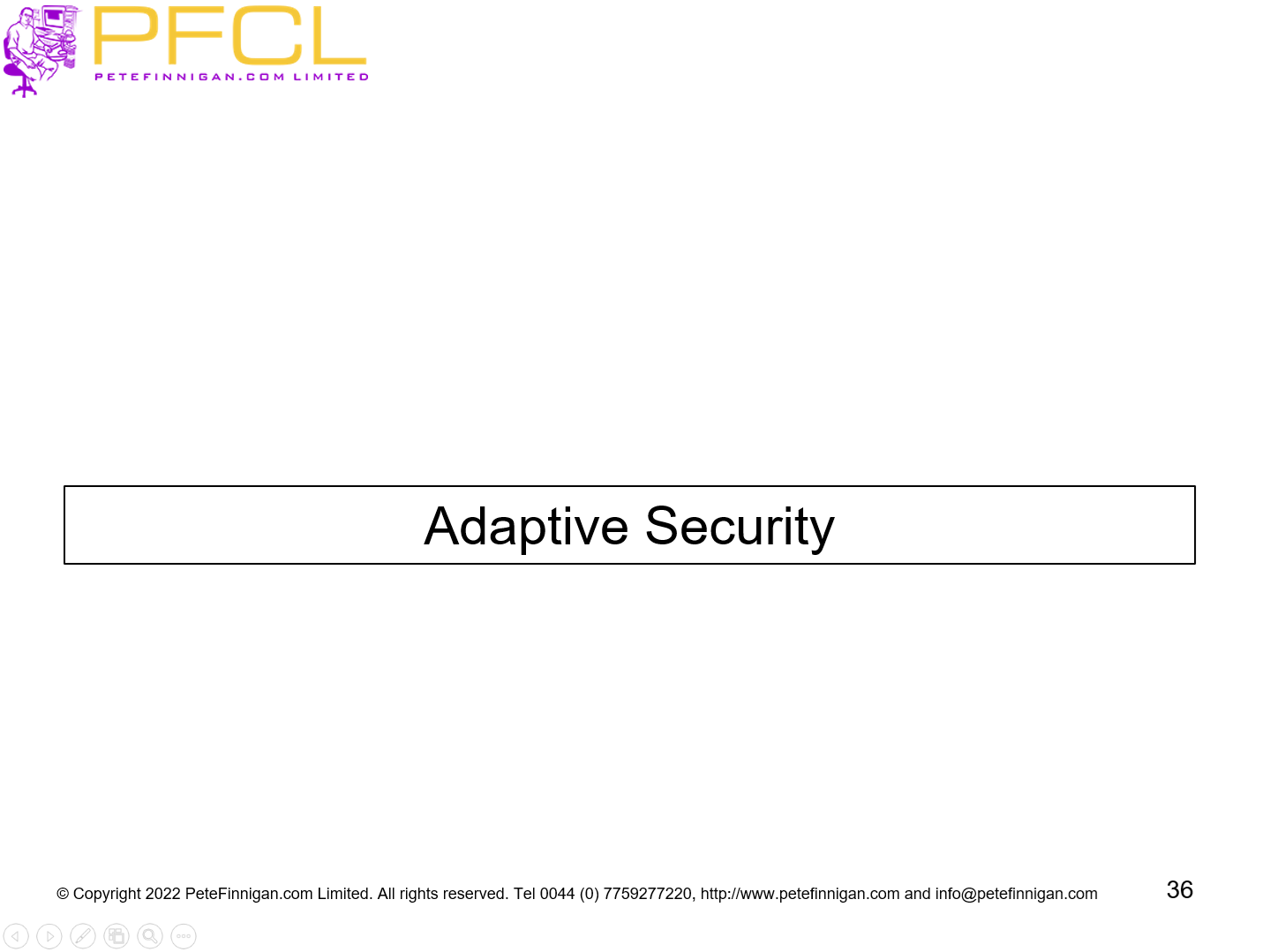

Slide 36 - Adaptive Security

Adaptive Security

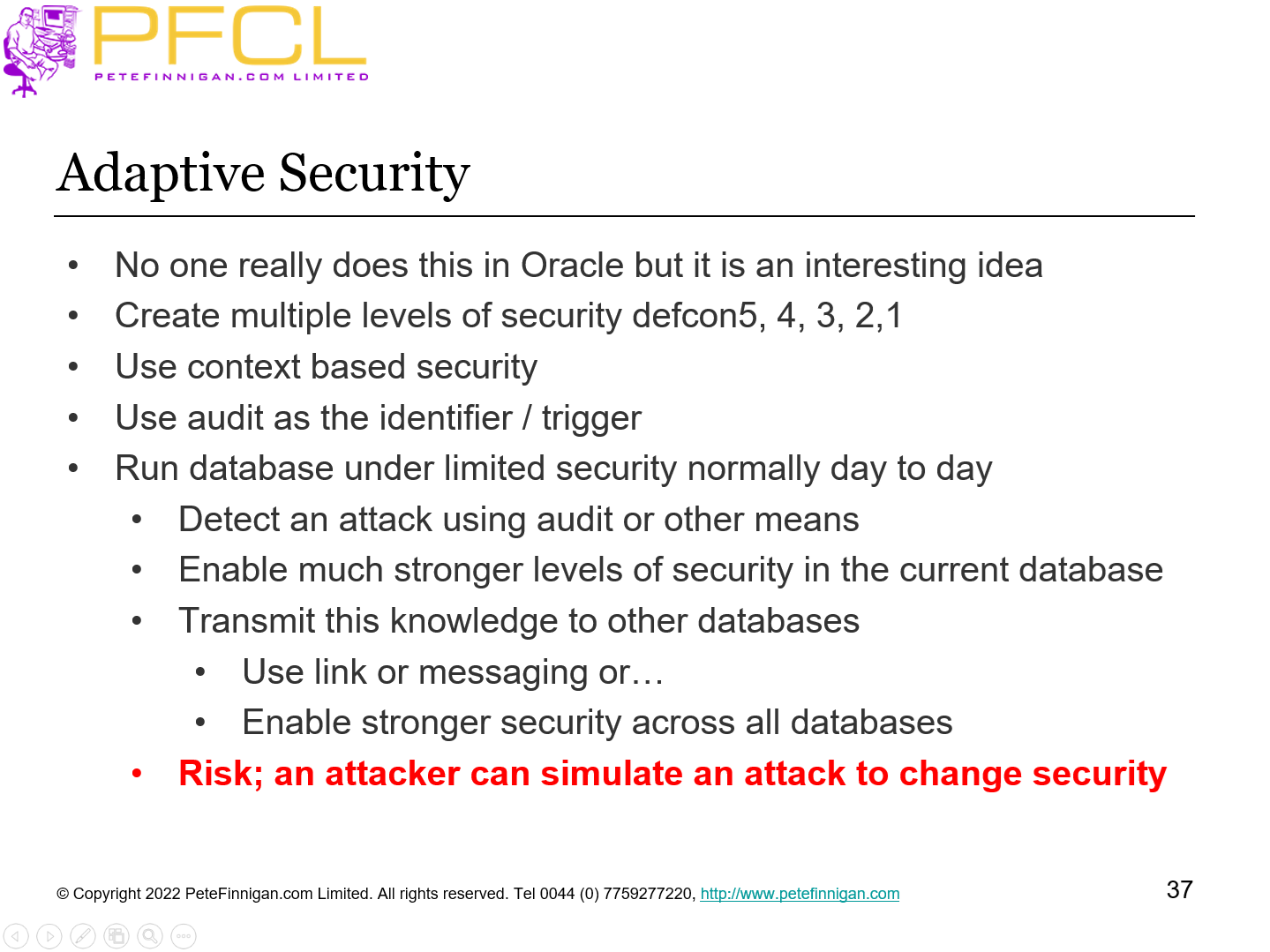

Slide 37 - Adaptive Security

No one really does this in Oracle but it is an interesting idea
Create multiple levels of security defcon5, 4, 3, 2,1
Use context based security
Use audit as the identifier / trigger
Run database under limited security normally day to day
Detect an attack using audit or other means
Enable much stronger levels of security in the current database
Transmit this knowledge to other databases
Use link or messaging or…
Enable stronger security across all databases
Risk; an attacker can simulate an attack to change security

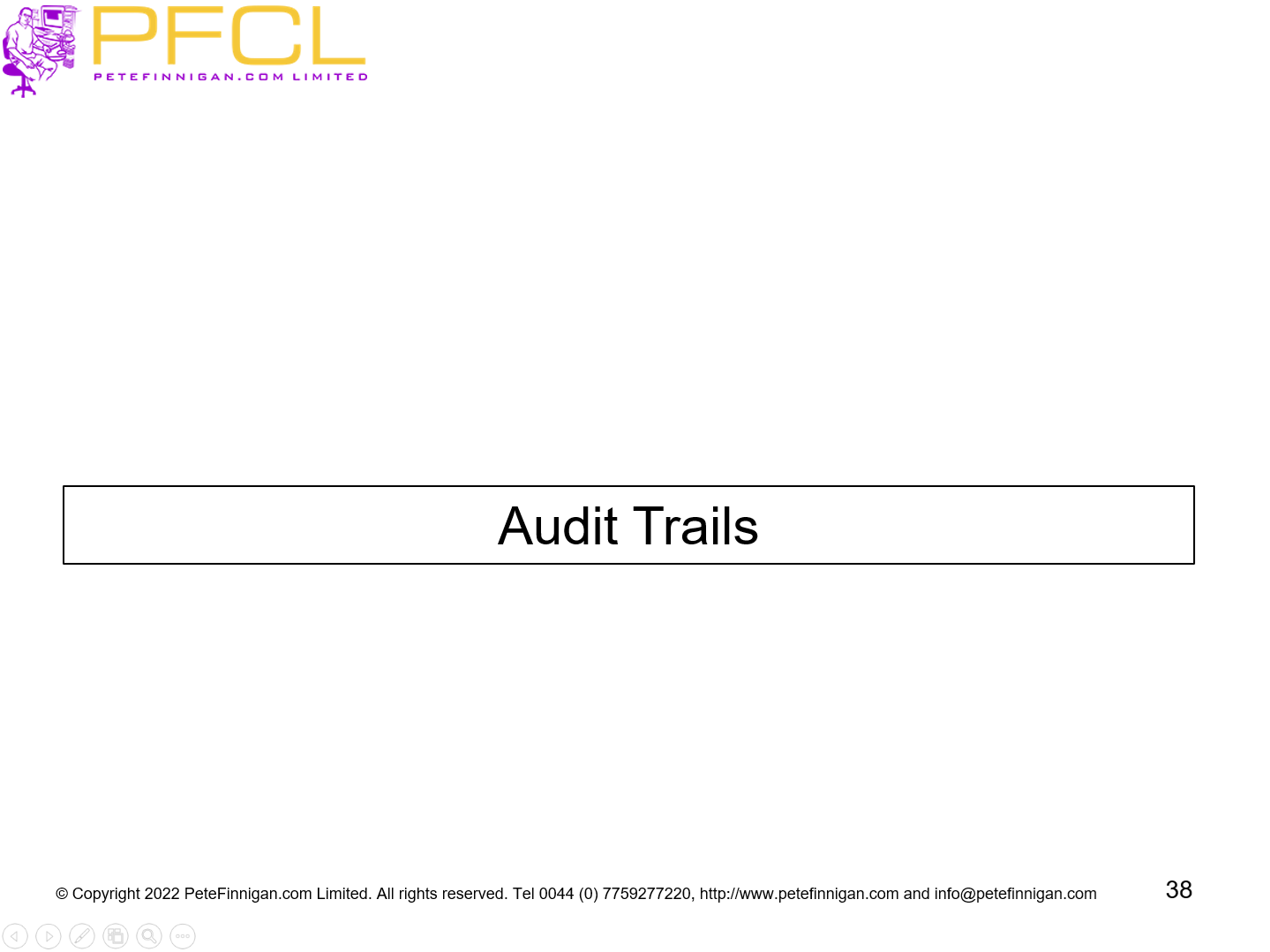

Slide 38 - Audit Trails

Audit Trails

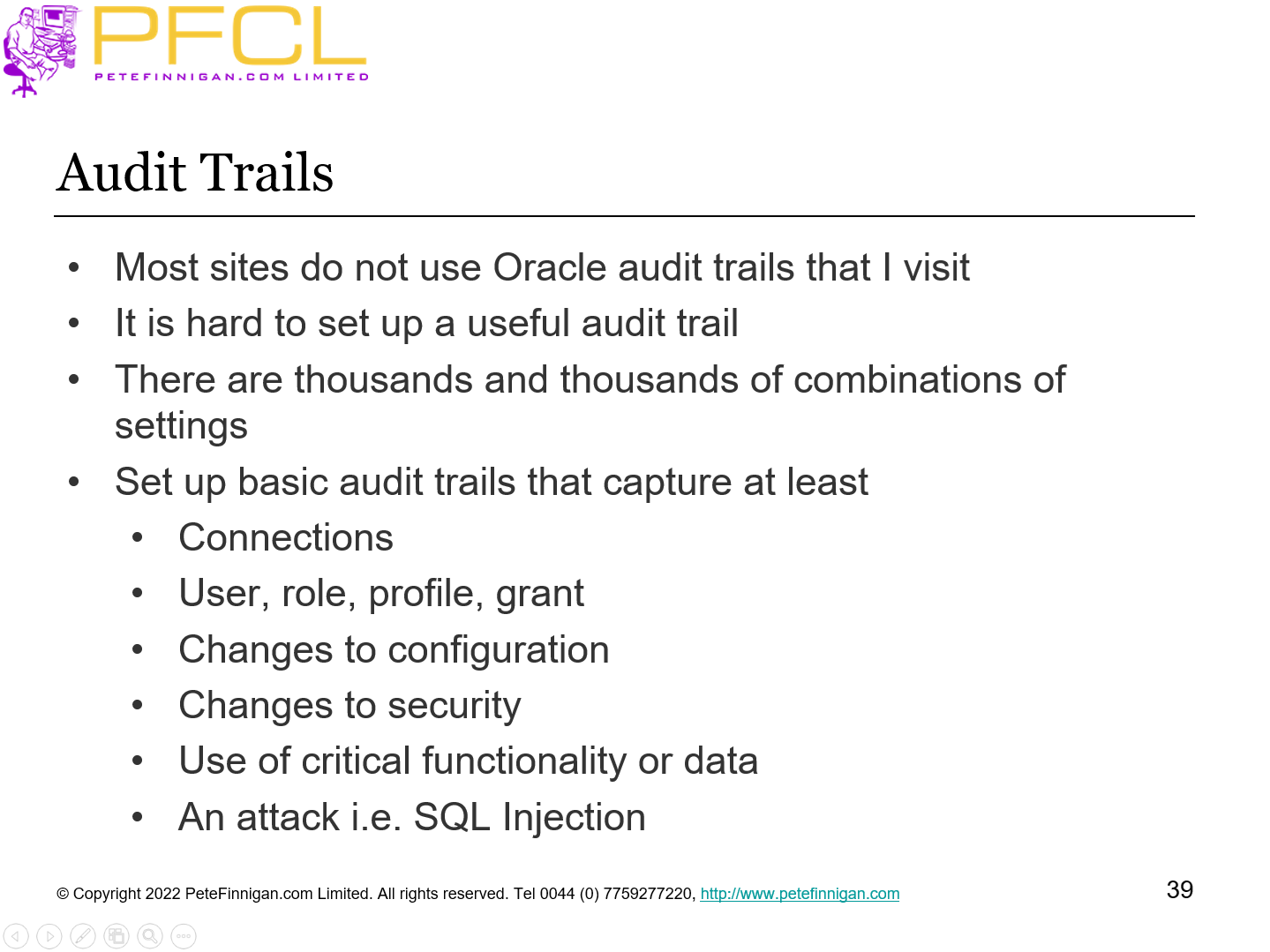

Slide 39 - Audit Trails

Most sites do not use Oracle audit trails that I visit
It is hard to set up a useful audit trail
There are thousands and thousands of combinations of settings
Set up basic audit trails that capture at least
Connections
User, role, profile, grant
Changes to configuration
Changes to security
Use of critical functionality or data
An attack i.e. SQL Injection

Slide 40 - Work to a Plan

Work to a Plan

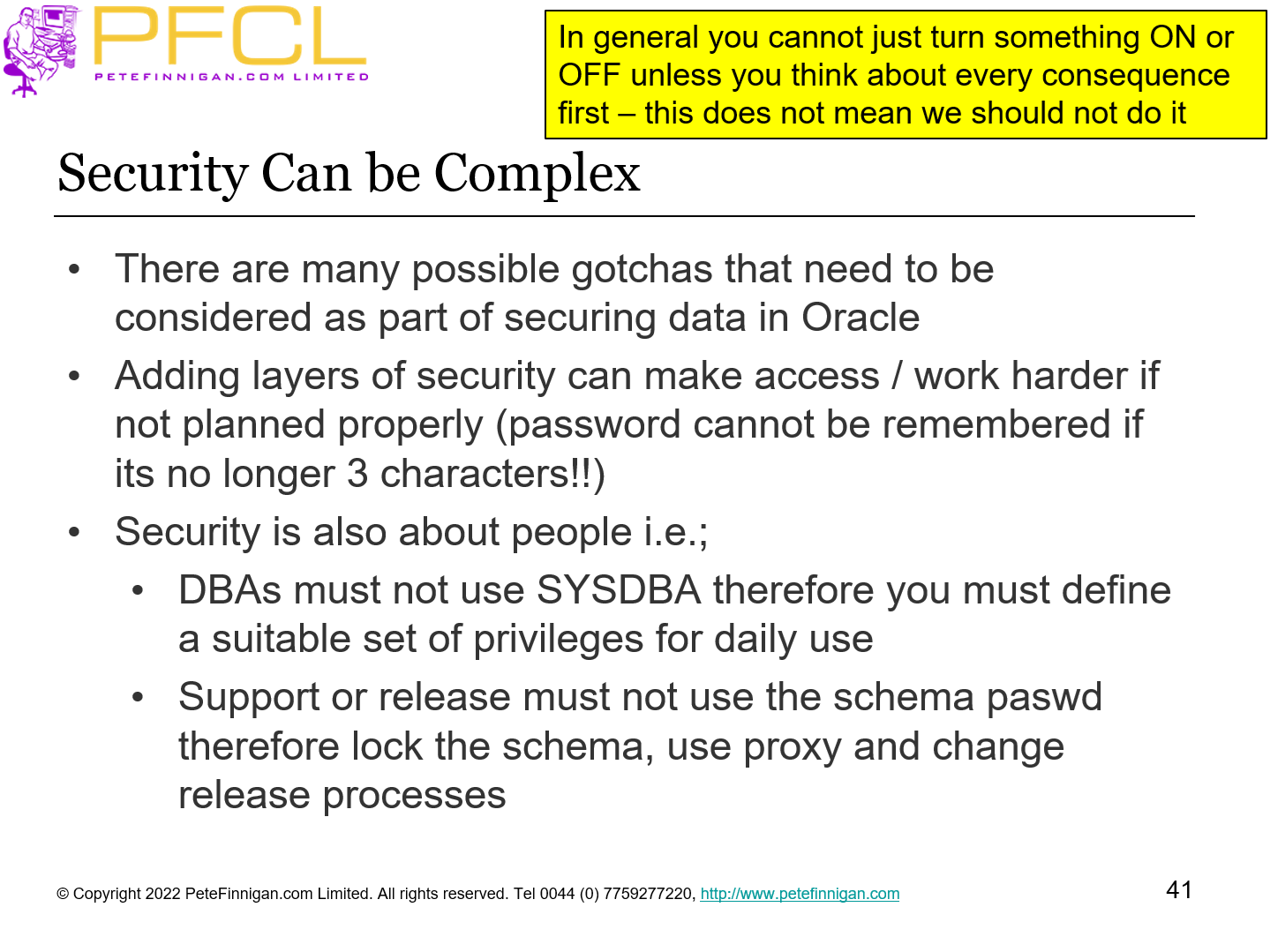

Slide 41 - Security Can be Complex

There are many possible gotchas that need to be considered as part of securing data in Oracle
Adding layers of security can make access / work harder if not planned properly (password cannot be remembered if its no longer 3 characters!!)
Security is also about people i.e.;
DBAs must not use SYSDBA therefore you must define a suitable set of privileges for daily use
Support or release must not use the schema paswd therefore lock the schema, use proxy and change release processes

In general you cannot just turn something ON or OFF unless you think about every consequence first – this does not mean we should not do it

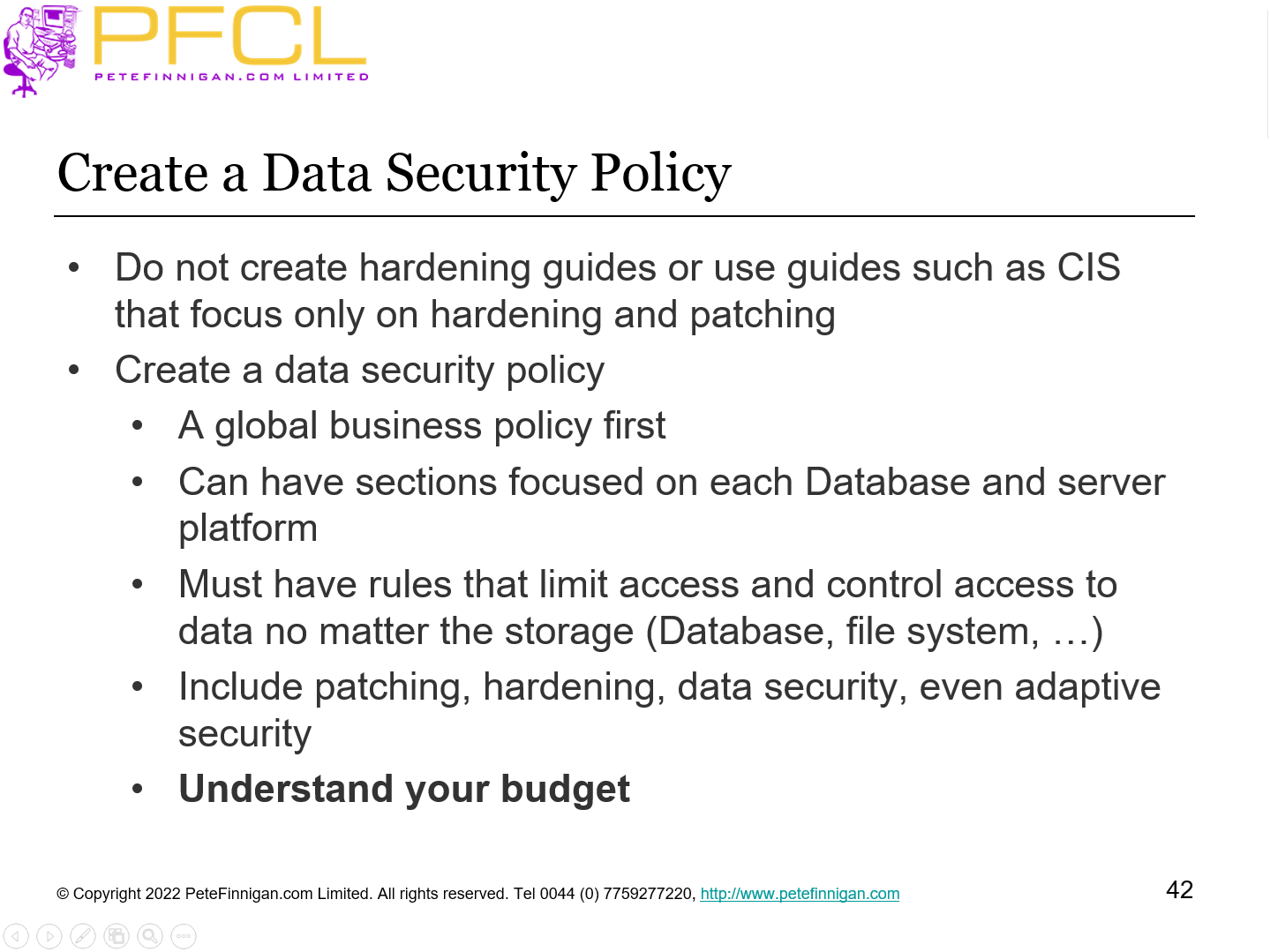

Slide 42 - Create a Data Security Policy

Do not create hardening guides or use guides such as CIS that focus only on hardening and patching
Create a data security policy
A global business policy first
Can have sections focused on each Database and server platform
Must have rules that limit access and control access to data no matter the storage (Database, file system, …)
Include patching, hardening, data security, even adaptive security
Understand your budget

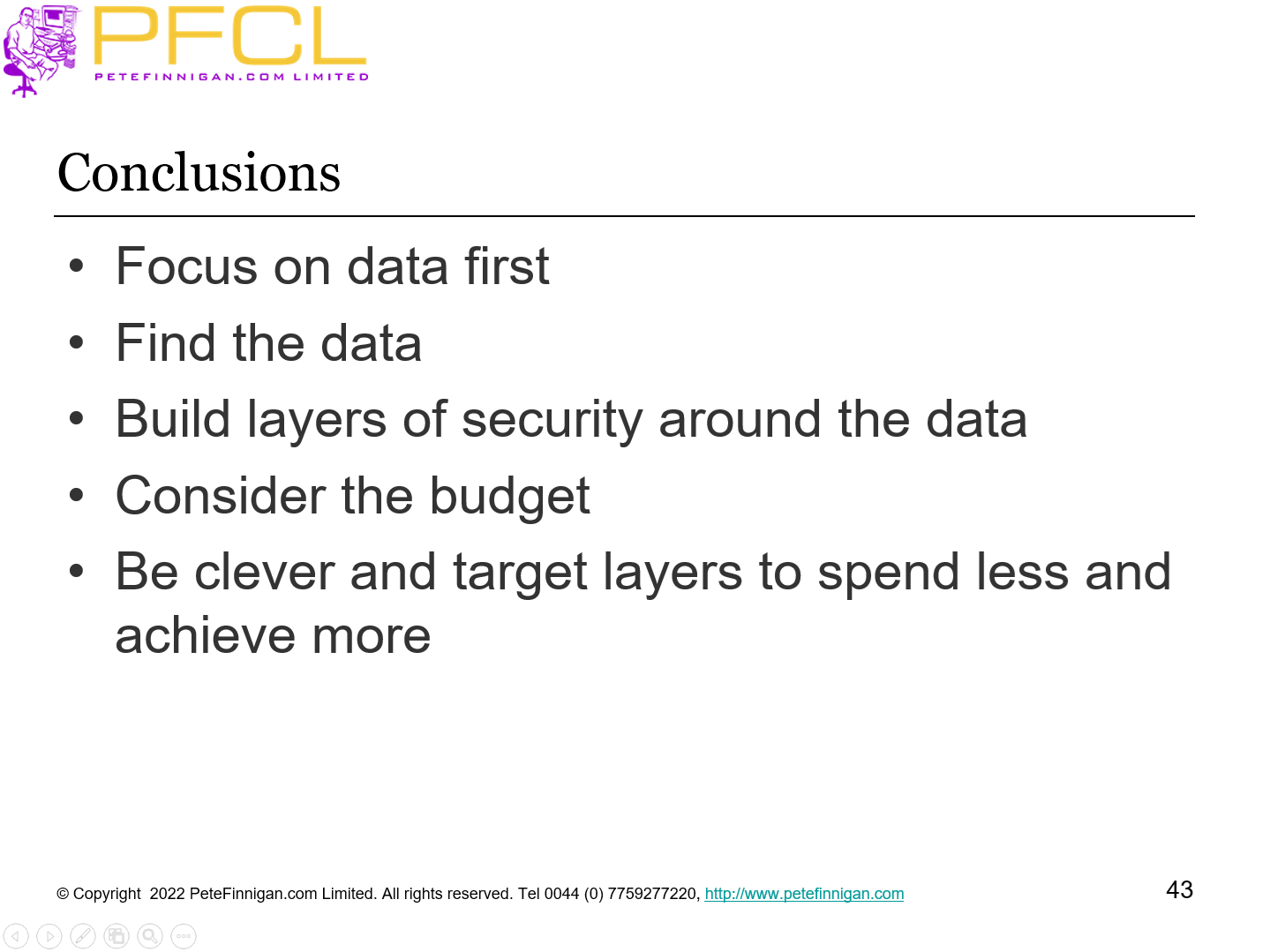

Slide 43 - Conclusions
