Designing a Good Database Audit Trail

This is my presentation to the UKOUG last December on Designing a Good Database Audit Trail.

Slide 1 - Designing a Good Database Audit Trail

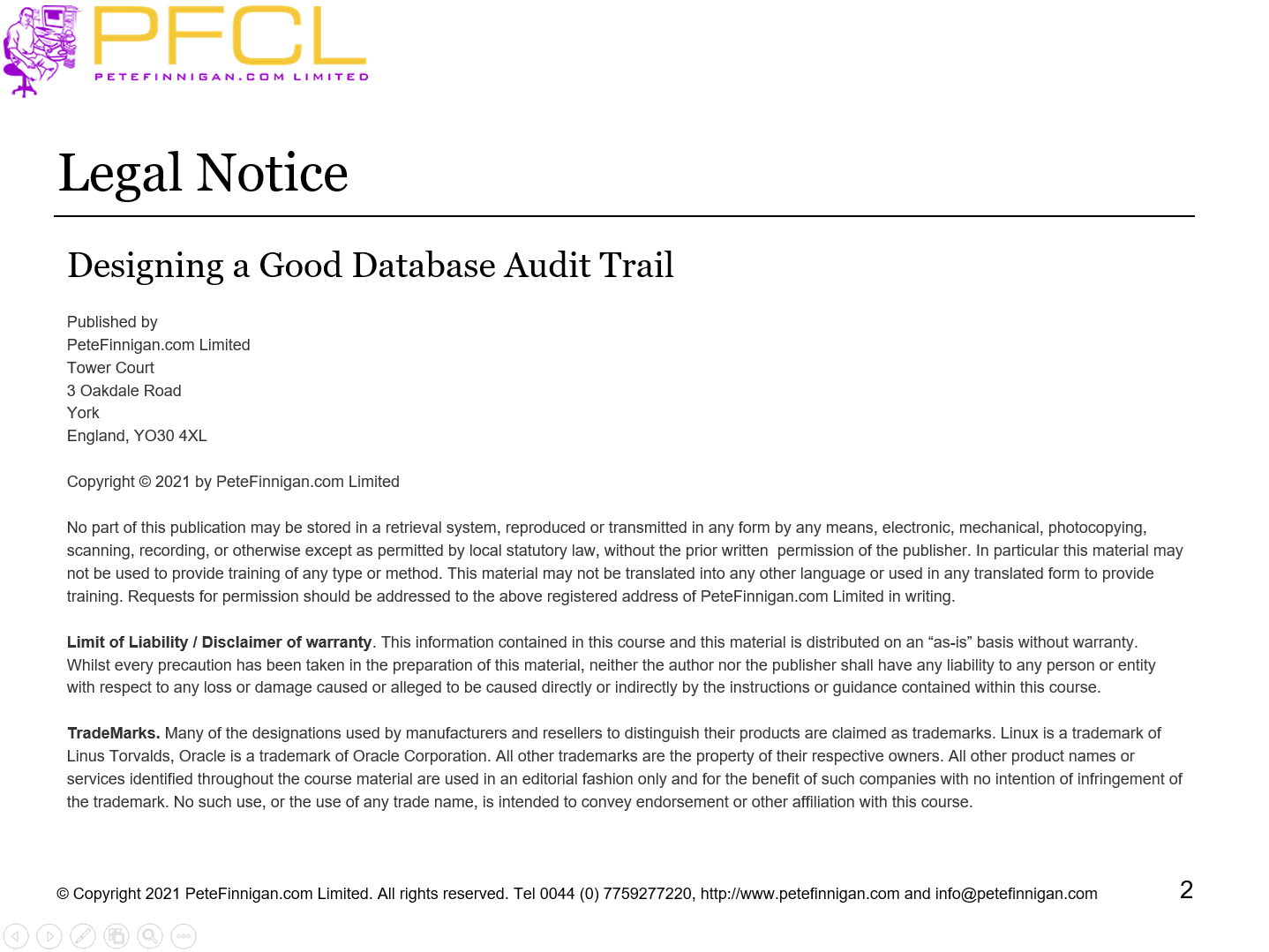

Slide 2 - Legal notice

Designing a Good Database Audit Trail

Published by
PeteFinnigan.com Limited
Tower Court
3 Oakdale Road
York
England, YO30 4XL

Copyright © 2025 by PeteFinnigan.com Limited

No part of this publication may be stored in a retrieval system, reproduced or transmitted in any form by any means, electronic, mechanical, photocopying, scanning, recording, or otherwise except as permitted by local statutory law, without the prior written permission of the publisher. In particular this material may not be used to provide training of any type or method. This material may not be translated into any other language or used in any translated form to provide training. Requests for permission should be addressed to the above registered address of PeteFinnigan.com Limited in writing.

Limit of Liability / Disclaimer of warranty. This information contained in this course and this material is distributed on an “as-is” basis without warranty. Whilst every precaution has been taken in the preparation of this material, neither the author nor the publisher shall have any liability to any person or entity with respect to any loss or damage caused or alleged to be caused directly or indirectly by the instructions or guidance contained within this course.

TradeMarks. Many of the designations used by manufacturers and resellers to distinguish their products are claimed as trademarks. Linux is a trademark of Linus Torvalds, Oracle is a trademark of Oracle Corporation. All other trademarks are the property of their respective owners. All other product names or services identified throughout the course material are used in an editorial fashion only and for the benefit of such companies with no intention of infringement of the trademark. No such use, or the use of any trade name, is intended to convey endorsement or other affiliation with this course.

Slide 3 - Background

Pete Finnigan – Background, Who Am I?

Oracle Security specialist and researcher
CEO and founder of PeteFinnigan.com Limited in February 2003
Writer of the longest running Oracle security blog
Author of the Oracle Security step-by-step guide and “Oracle Expert Practices”, “Oracle Incident Response and Forensics” books
Oracle ACE for security
Member of the OakTable, SYM 42
Speaker at various conferences UKOUG, PSOUG, BlackHat, more..
Published many times, see http://www.petefinnigan.com for links

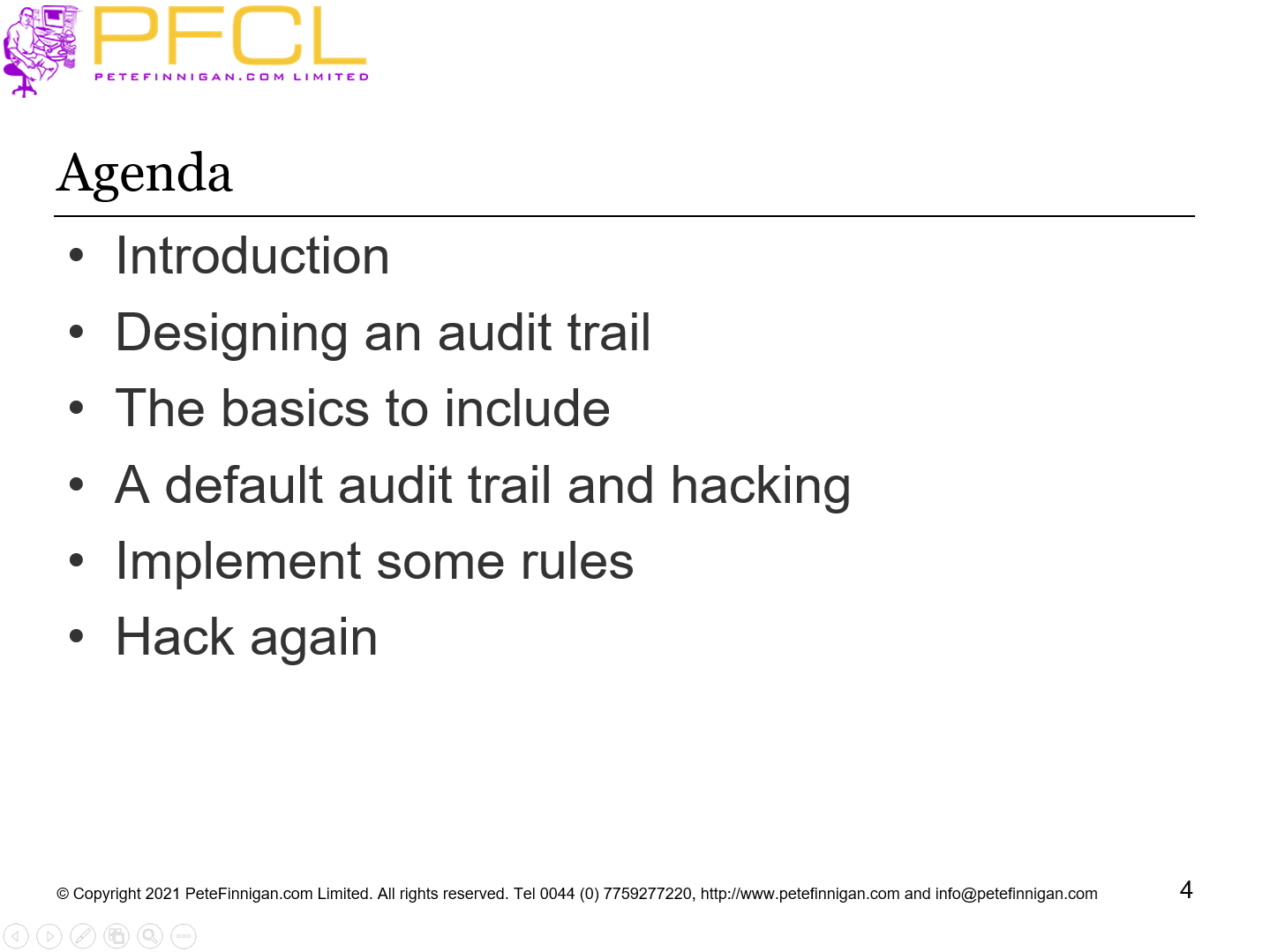

Slide 4 - Agenda

Introduction
Designing an audit trail
The basics to include
A default audit trail and hacking
Implement some rules
Hack again

Slide 5 - Introduction

Introduction

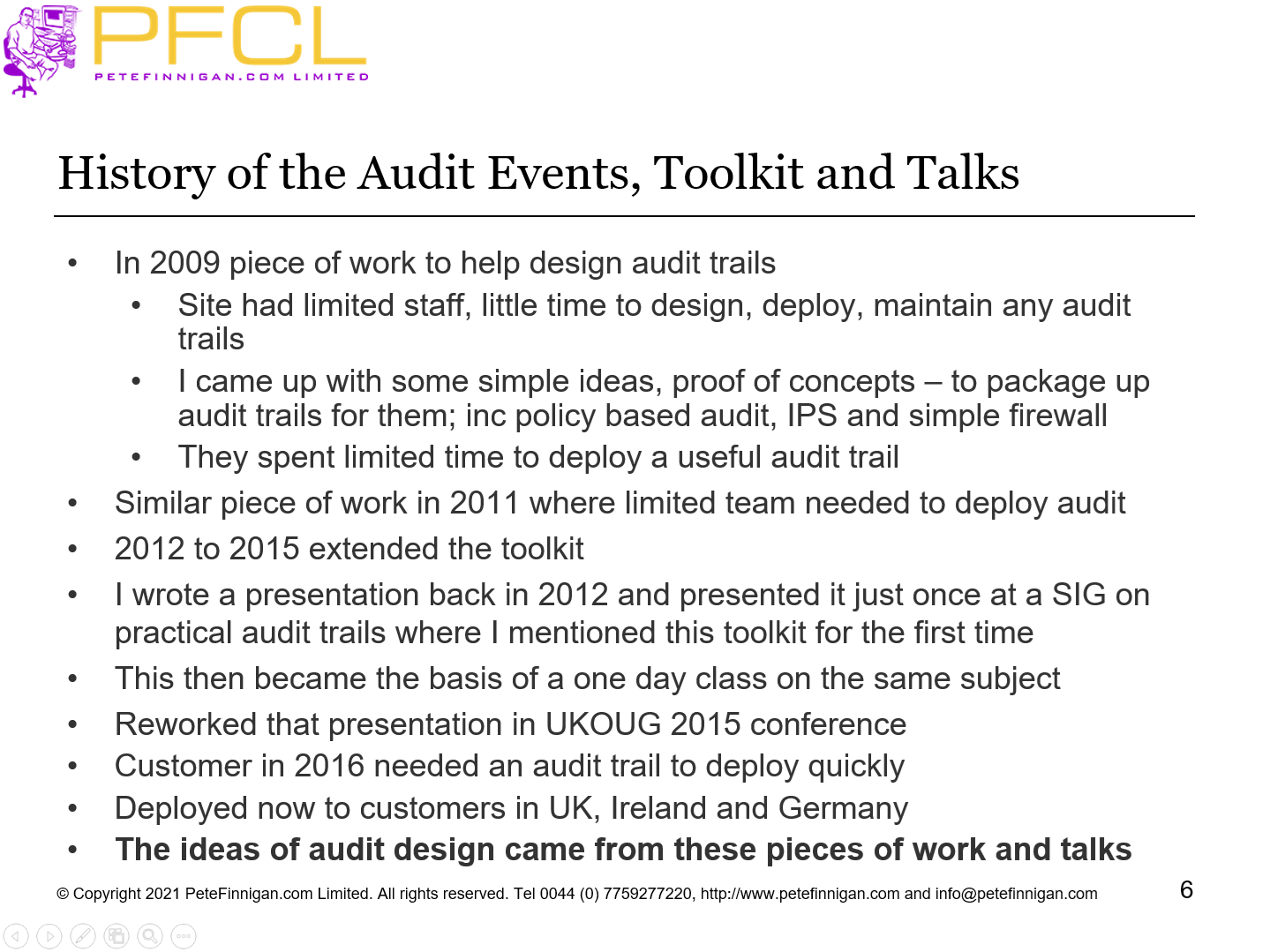

Slide 6 - History of the Audit Events, Toolkit and Talks

In 2009 piece of work to help design audit trails
Site had limited staff, little time to design, deploy, maintain any audit trails
I came up with some simple ideas, proof of concepts – to package up audit trails for them; inc policy based audit, IPS and simple firewall
They spent limited time to deploy a useful audit trail
Similar piece of work in 2011 where limited team needed to deploy audit
2012 to 2015 extended the toolkit
I wrote a presentation back in 2012 and presented it just once at a SIG on practical audit trails where I mentioned this toolkit for the first time
This then became the basis of a one day class on the same subject
Reworked that presentation in UKOUG 2015 conference
Customer in 2016 needed an audit trail to deploy quickly
Deployed now to customers in UK, Ireland and Germany
The ideas of audit design came from these pieces of work and talks

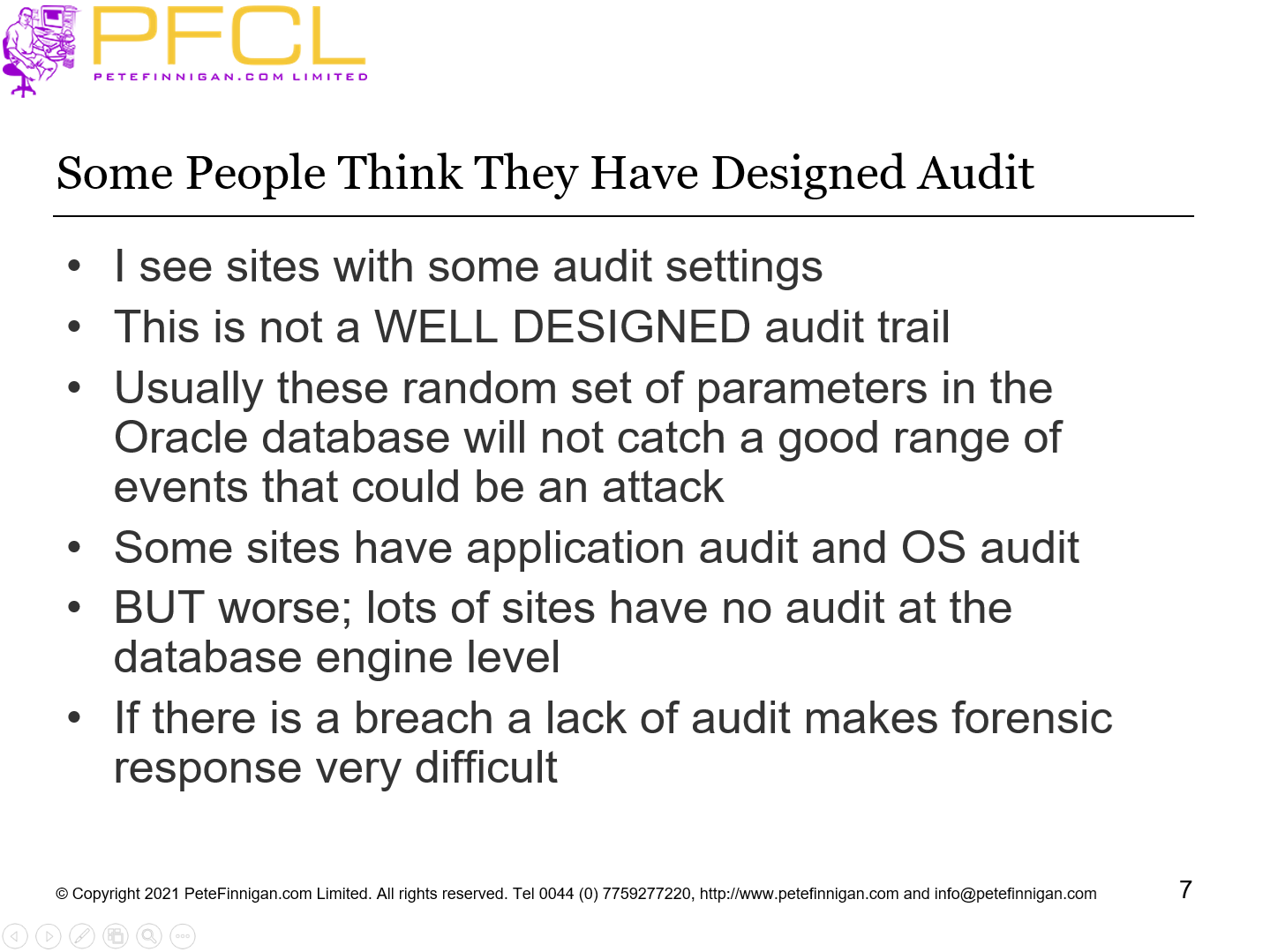

Slide 7 - Some People Think They Have Designed Audit

I see sites with some audit settings
This is not a WELL DESIGNED audit trail
Usually these random set of parameters in the Oracle database will not catch a good range of events that could be an attack
Some sites have application audit and OS audit
BUT worse; lots of sites have no audit at the database engine level
If there is a breach a lack of audit makes forensic response very difficult

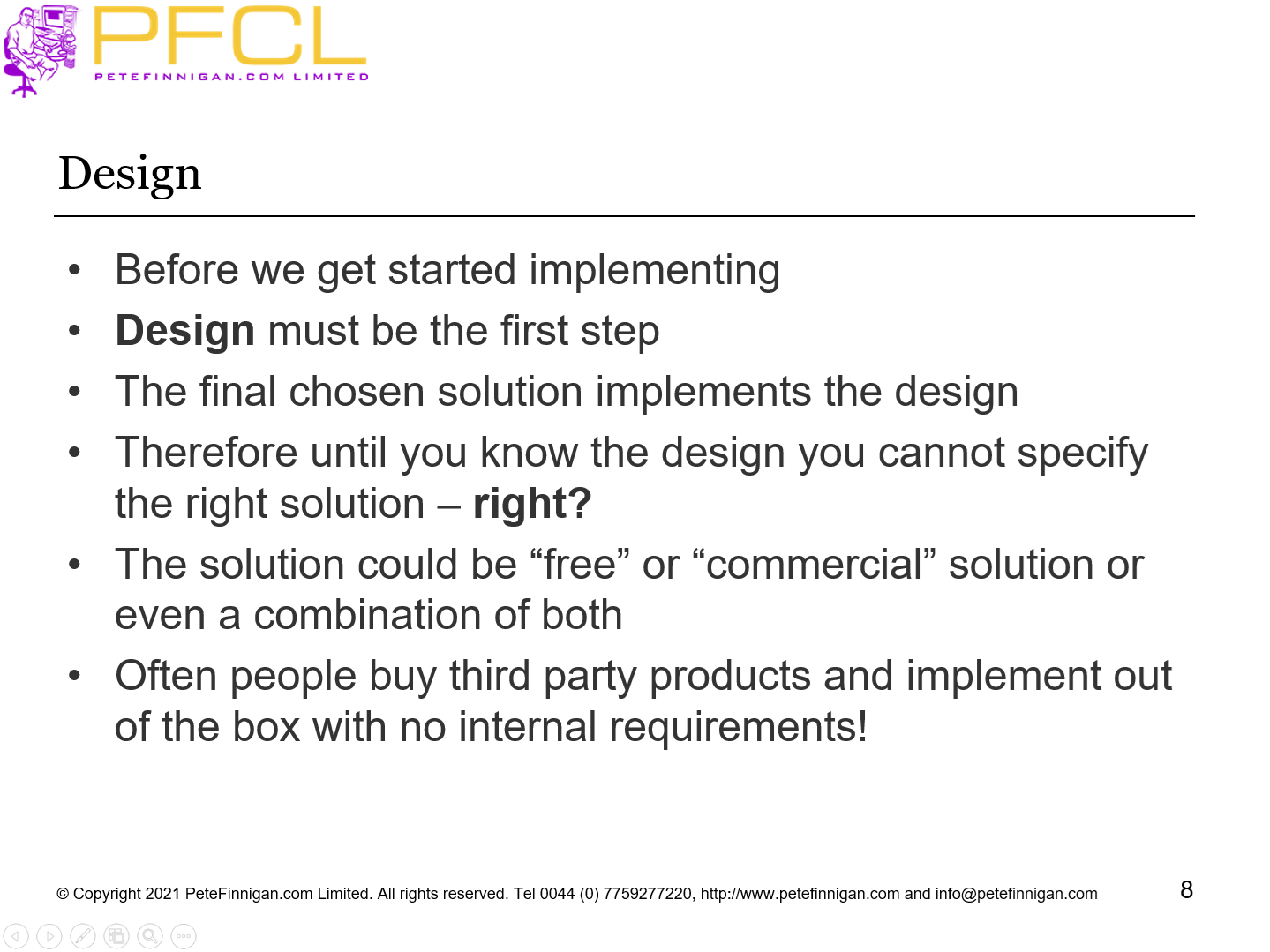

Slide 8 - Design

Before we get started implementing
Design must be the first step
The final chosen solution implements the design
Therefore until you know the design you cannot specify the right solution – right?
The solution could be “free” or “commercial” solution or even a combination of both
Often people buy third party products and implement out of the box with no internal requirements!

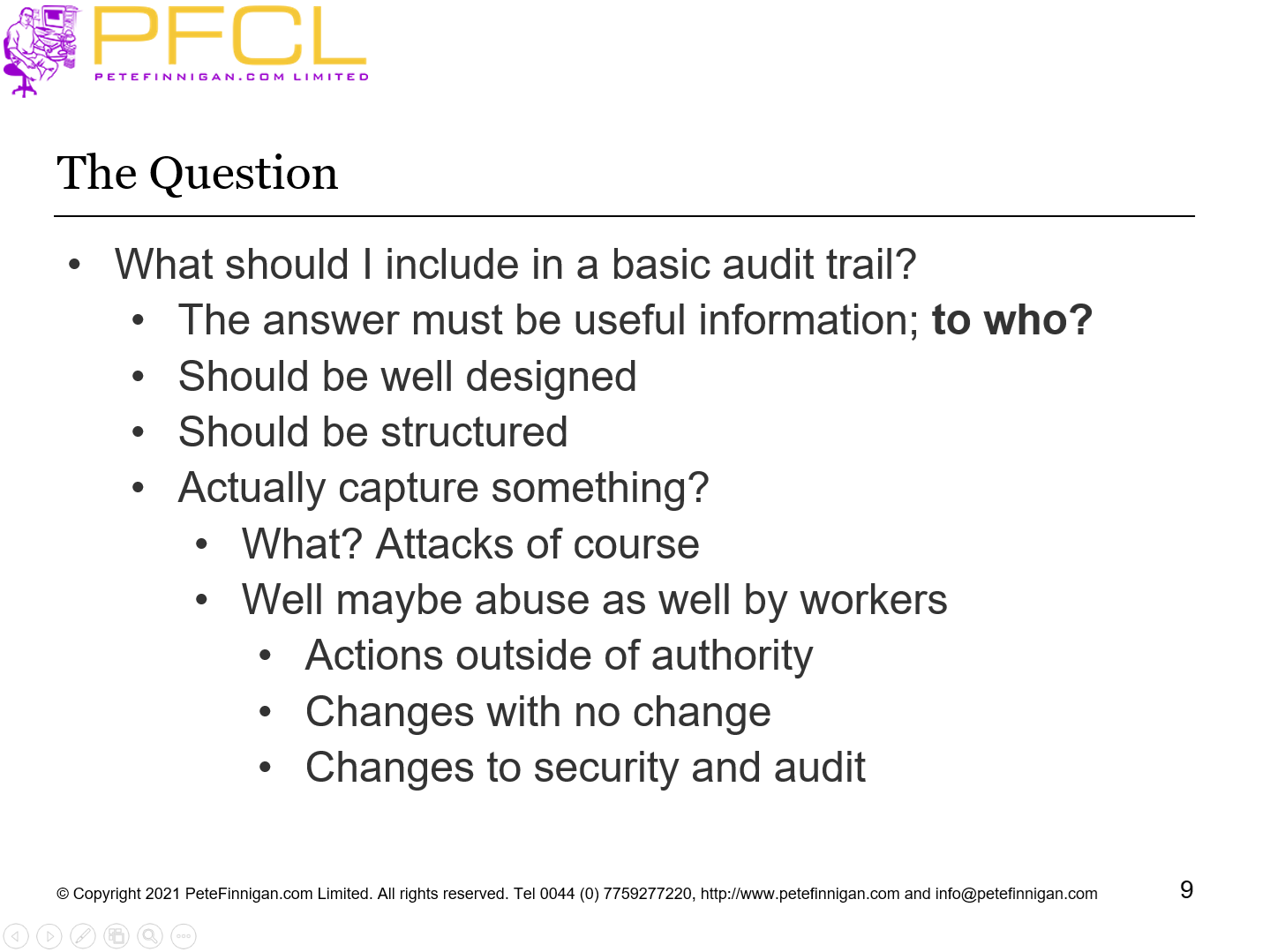

Slide 9 - The Question

What should I include in a basic audit trail?
The answer must be useful information; to who?
Should be well designed
Should be structured
Actually capture something?
What? Attacks of course
Well maybe abuse as well by workers
Actions outside of authority
Changes with no change
Changes to security and audit

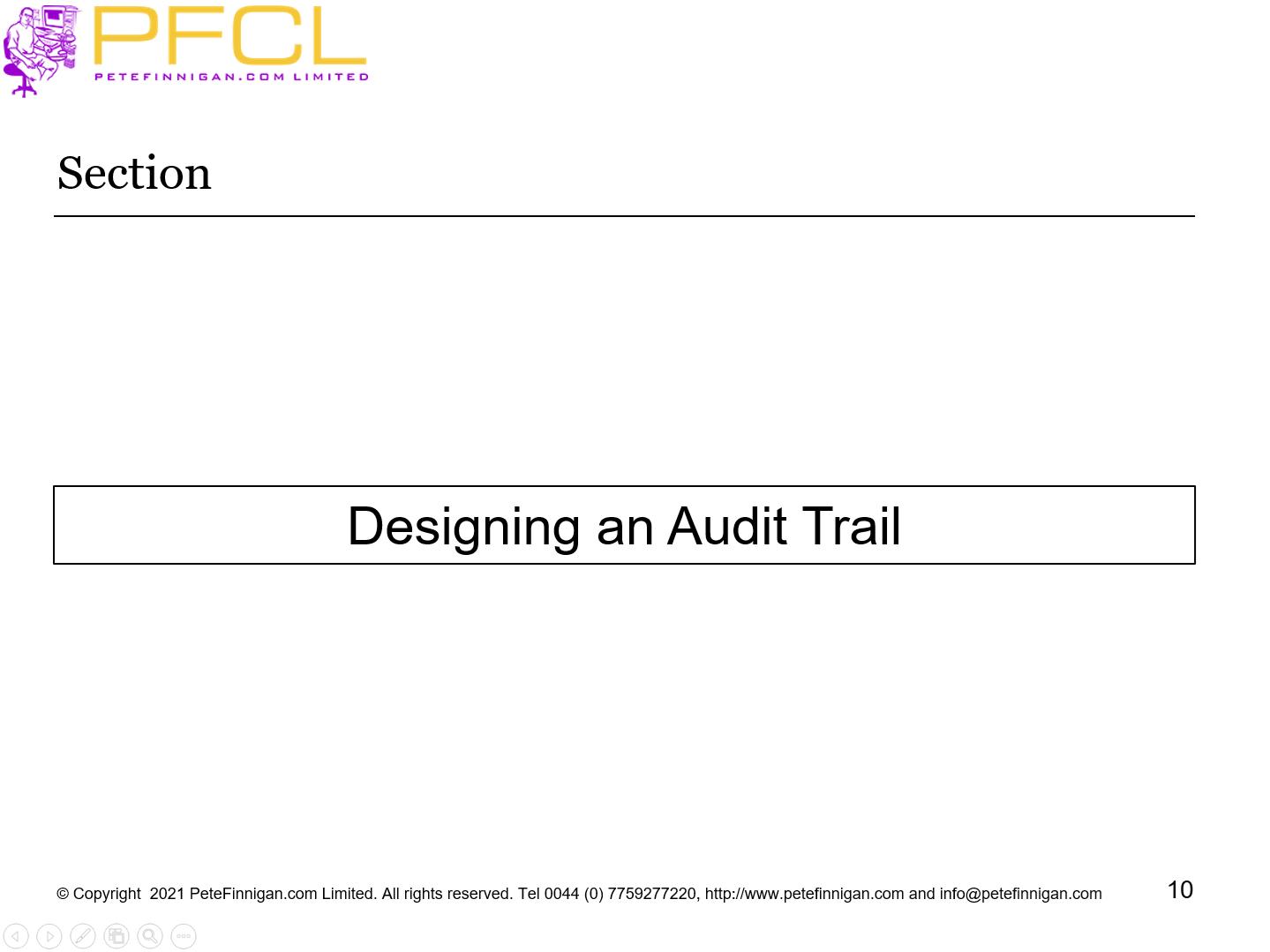

Slide 10 - Designing an Audit Trail

Designing an Audit Trail

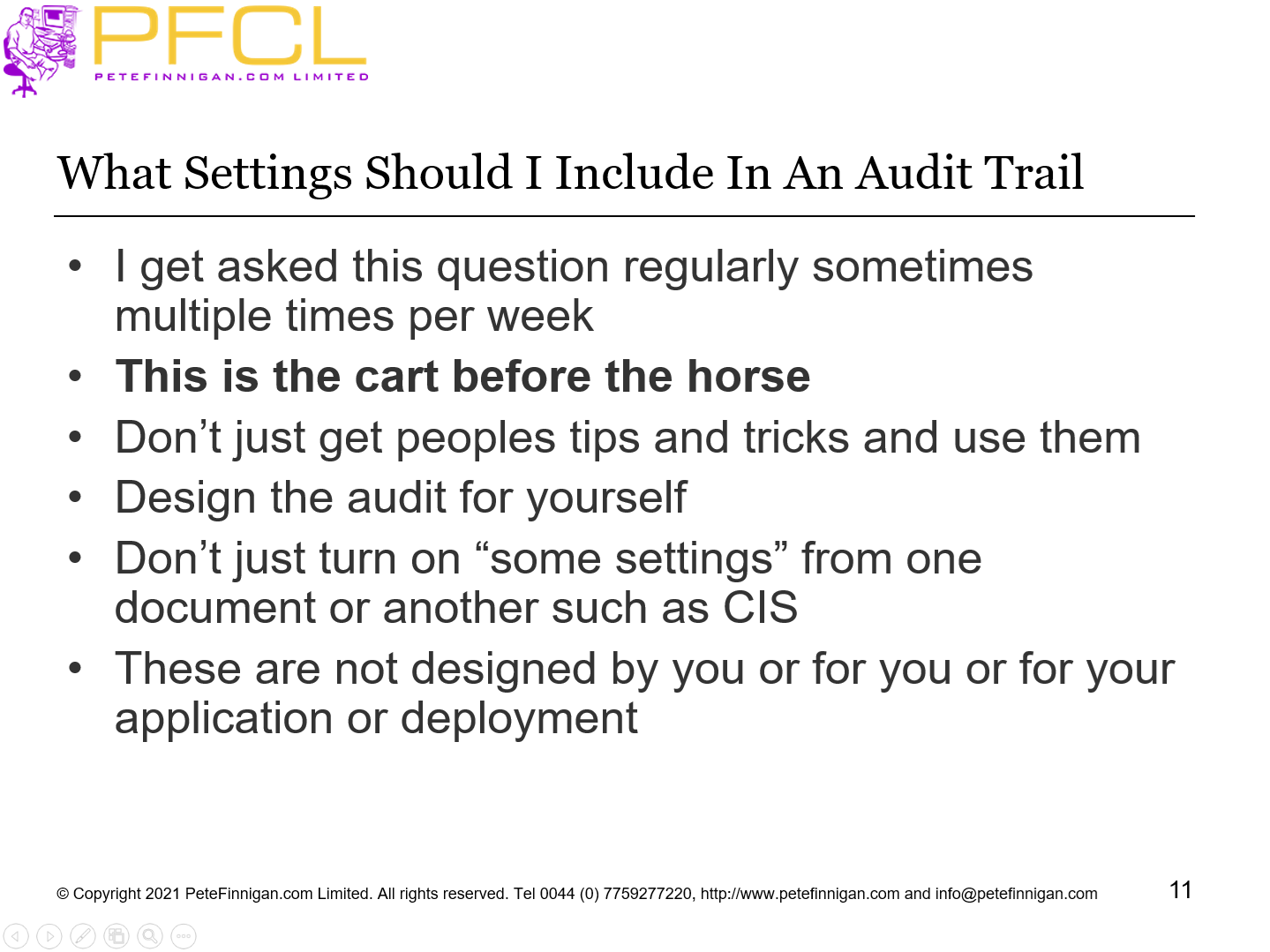

Slide 11 - What Settings Should I Include In An Audit Trail

I get asked this question regularly sometimes multiple times per week
This is the cart before the horse
Don’t just get peoples tips and tricks and use them
Design the audit for yourself
Don’t just turn on “some settings” from one document or another such as CIS
These are not designed by you or for you or for your application or deployment

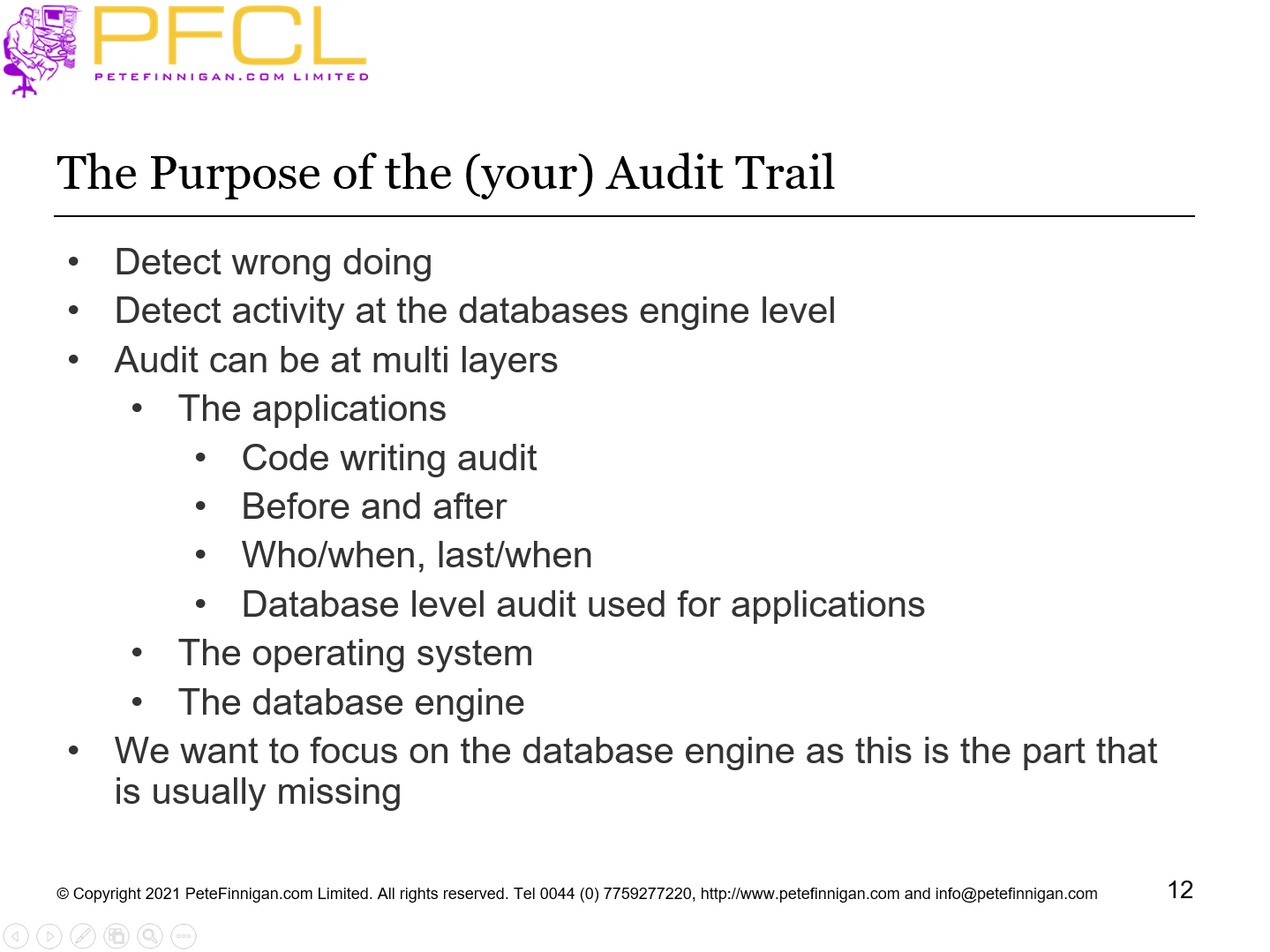

Slide 12 - The Purpose of the (your) Audit Trail

Detect wrong doing
Detect activity at the databases engine level
Audit can be at multi layers
The applications
Code writing audit
Before and after
Who/when, last/when
Database level audit used for applications
The operating system
The database engine
We want to focus on the database engine as this is the part that is usually missing

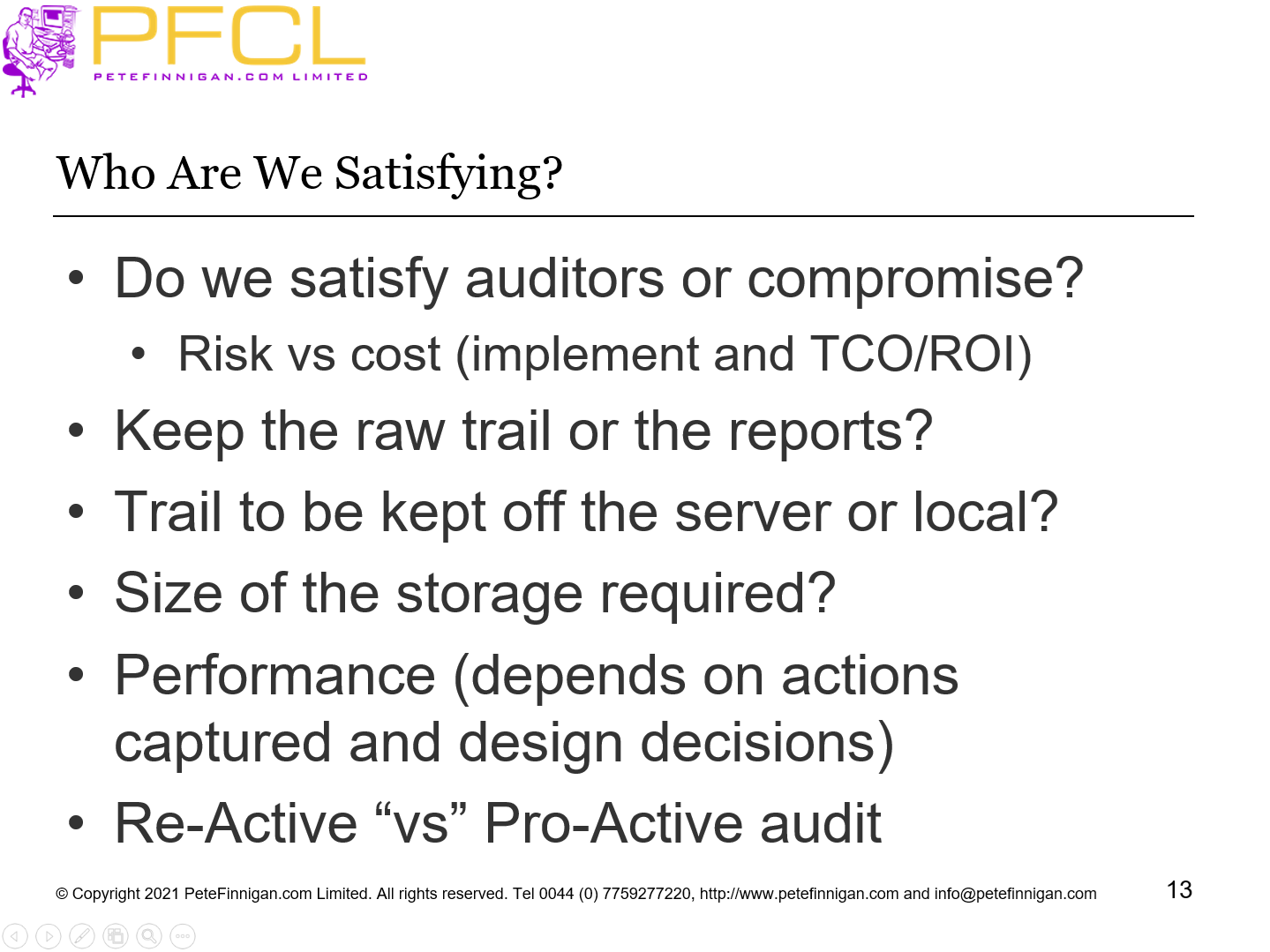

Slide 13 - Who Are We Satisfying?

Do we satisfy auditors or compromise?
Risk vs cost (implement and TCO/ROI)
Keep the raw trail or the reports?
Trail to be kept off the server or local?
Size of the storage required?
Performance (depends on actions captured and design decisions)
Re-Active “vs” Pro-Active audit

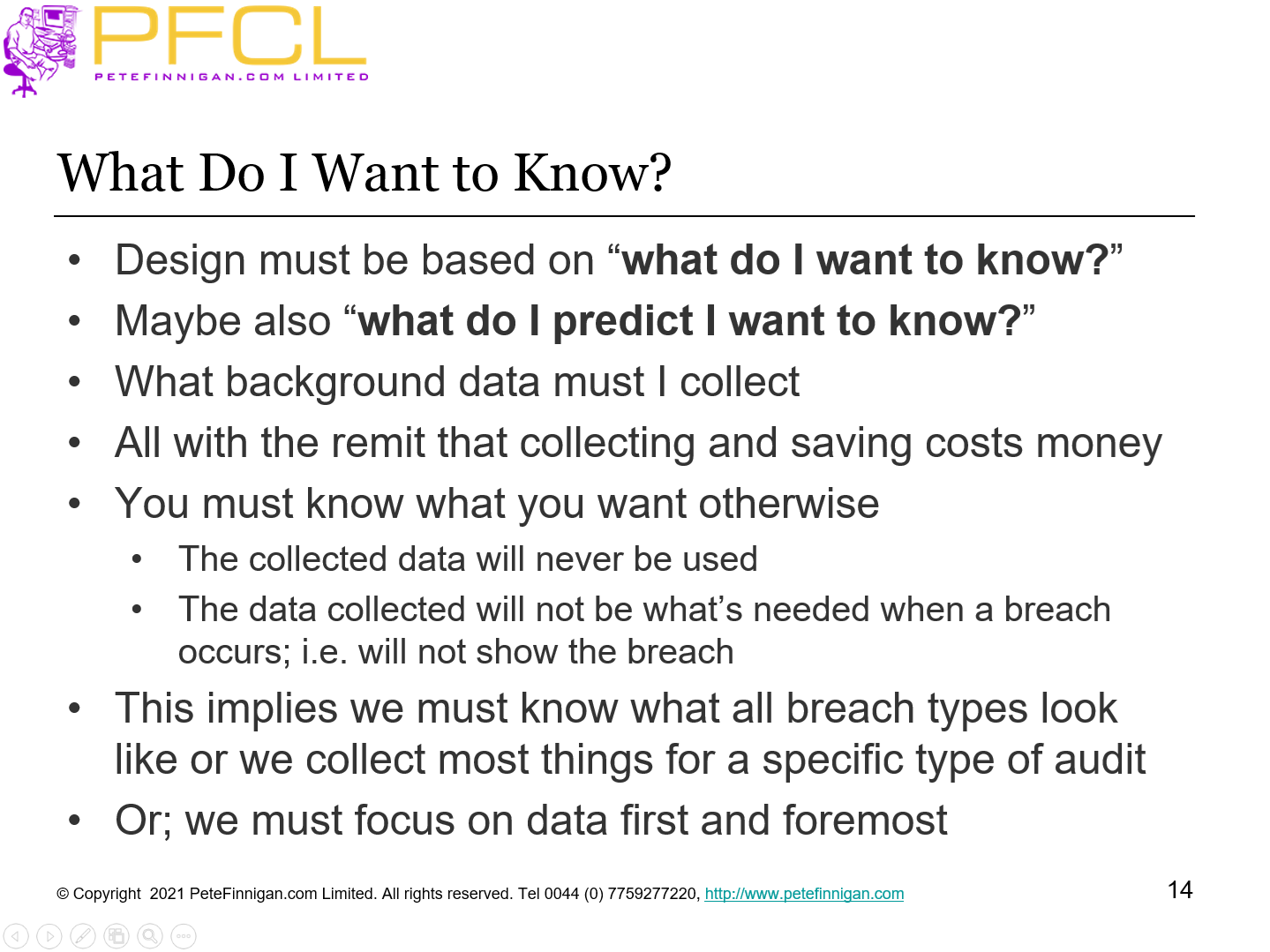

Slide 14 - What Do I Want to Know?

Design must be based on “what do I want to know?”
Maybe also “what do I predict I want to know?”
What background data must I collect
All with the remit that collecting and saving costs money
You must know what you want otherwise
The collected data will never be used
The data collected will not be what’s needed when a breach occurs; i.e. will not show the breach
This implies we must know what all breach types look like or we collect most things for a specific type of audit
Or; we must focus on data first and foremost

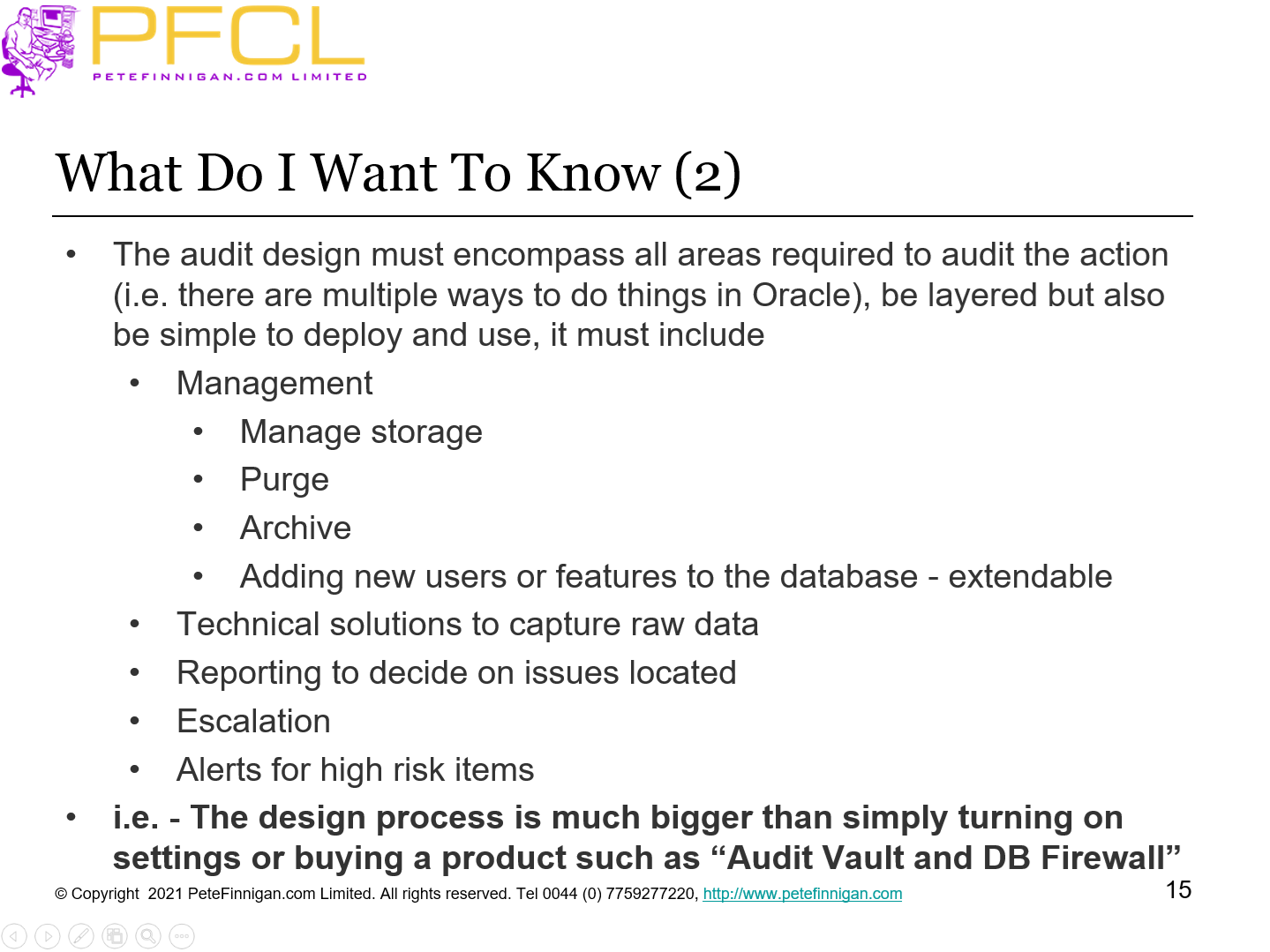

Slide 15 - What Do I Want To Know (2)

The audit design must encompass all areas required to audit the action (i.e. there are multiple ways to do things in Oracle), be layered but also be simple to deploy and use, it must include
Management
Manage storage
Purge
Archive
Adding new users or features to the database - extendable
Technical solutions to capture raw data
Reporting to decide on issues located
Escalation
Alerts for high risk items
i.e. - The design process is much bigger than simply turning on settings or buying a product such as “Audit Vault and DB Firewall”

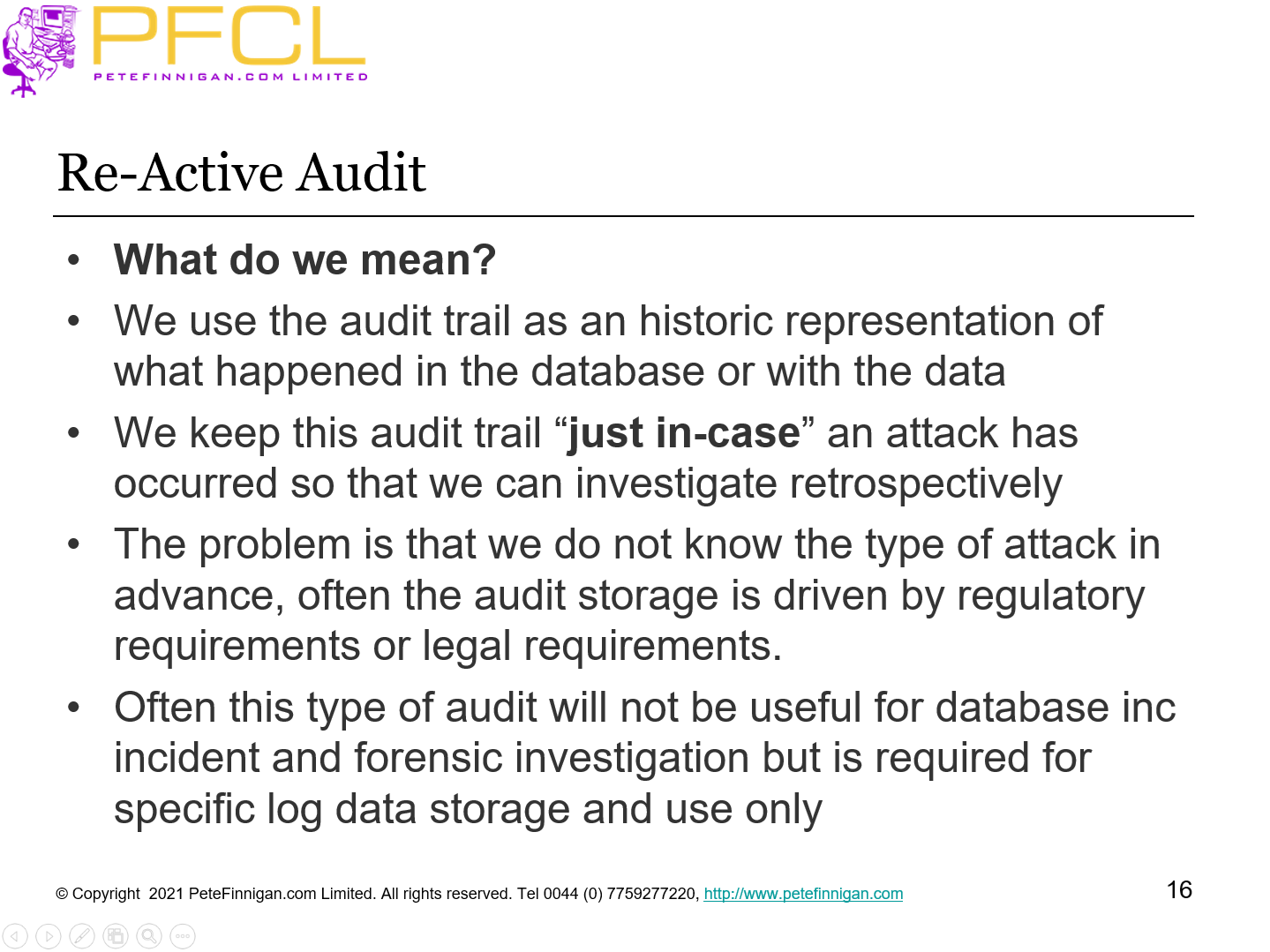

Slide 16 - Re-Active Audit

What do we mean?
We use the audit trail as an historic representation of what happened in the database or with the data
We keep this audit trail “just in-case” an attack has occurred so that we can investigate retrospectively
The problem is that we do not know the type of attack in advance, often the audit storage is driven by regulatory requirements or legal requirements.
Often this type of audit will not be useful for database inc incident and forensic investigation but is required for specific log data storage and use only

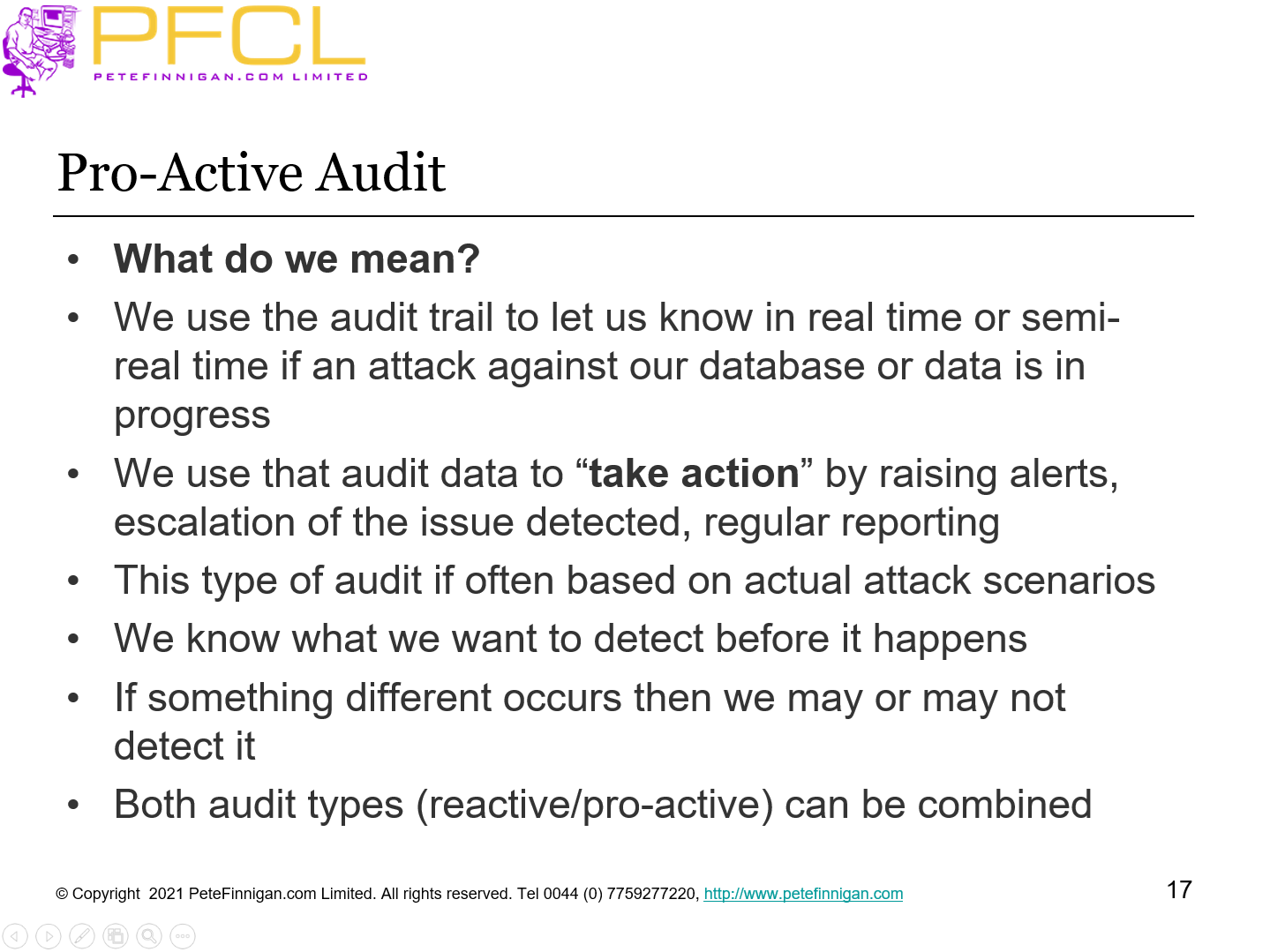

Slide 17 - Pro-Active Audit

What do we mean?
We use the audit trail to let us know in real time or semi-real time if an attack against our database or data is in progress
We use that audit data to “take action” by raising alerts, escalation of the issue detected, regular reporting
This type of audit if often based on actual attack scenarios
We know what we want to detect before it happens
If something different occurs then we may or may not detect it
Both audit types (reactive/pro-active) can be combined

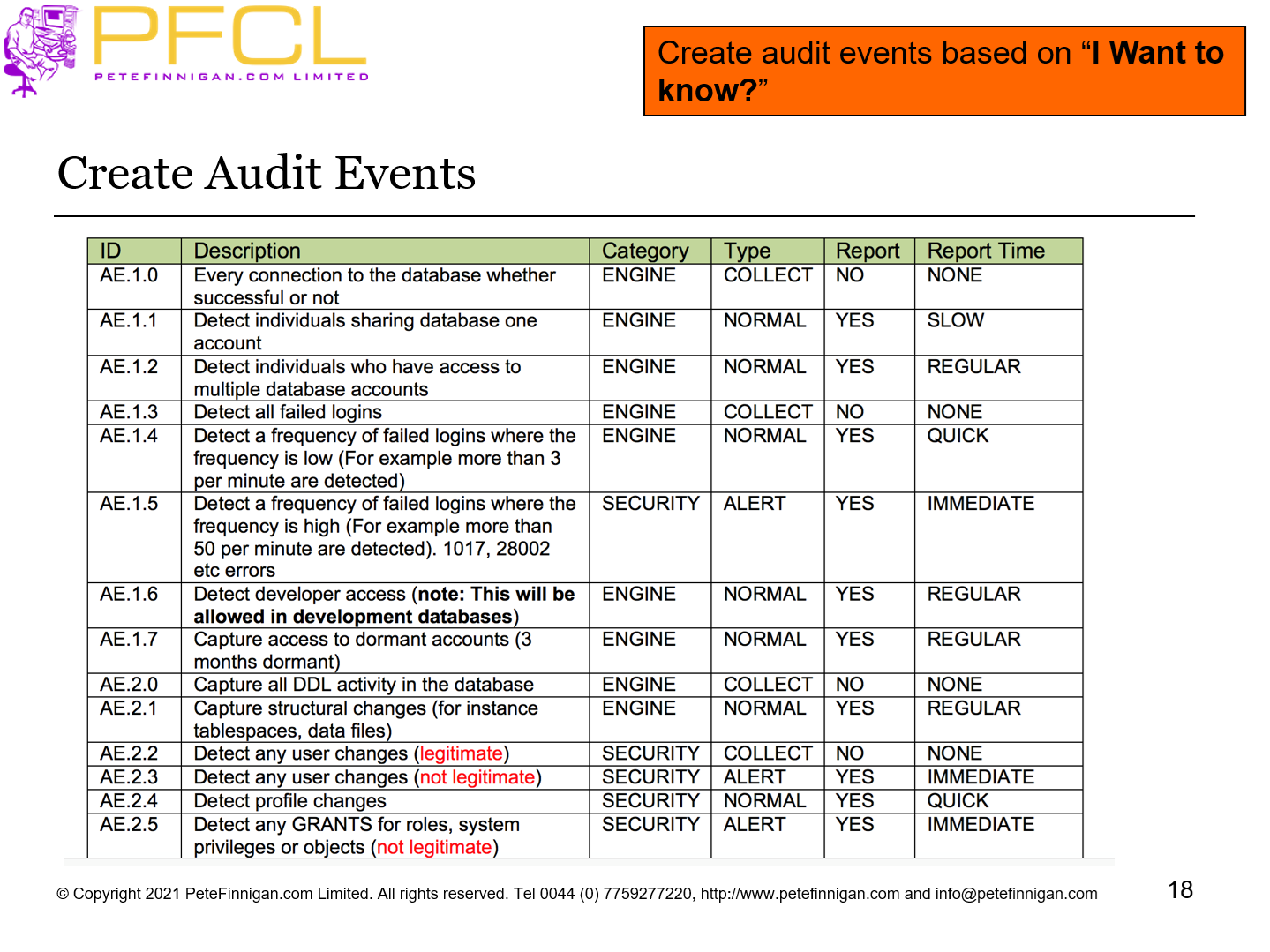

Slide 18 - Create Audit Events

Create audit events based on “I Want to know?”

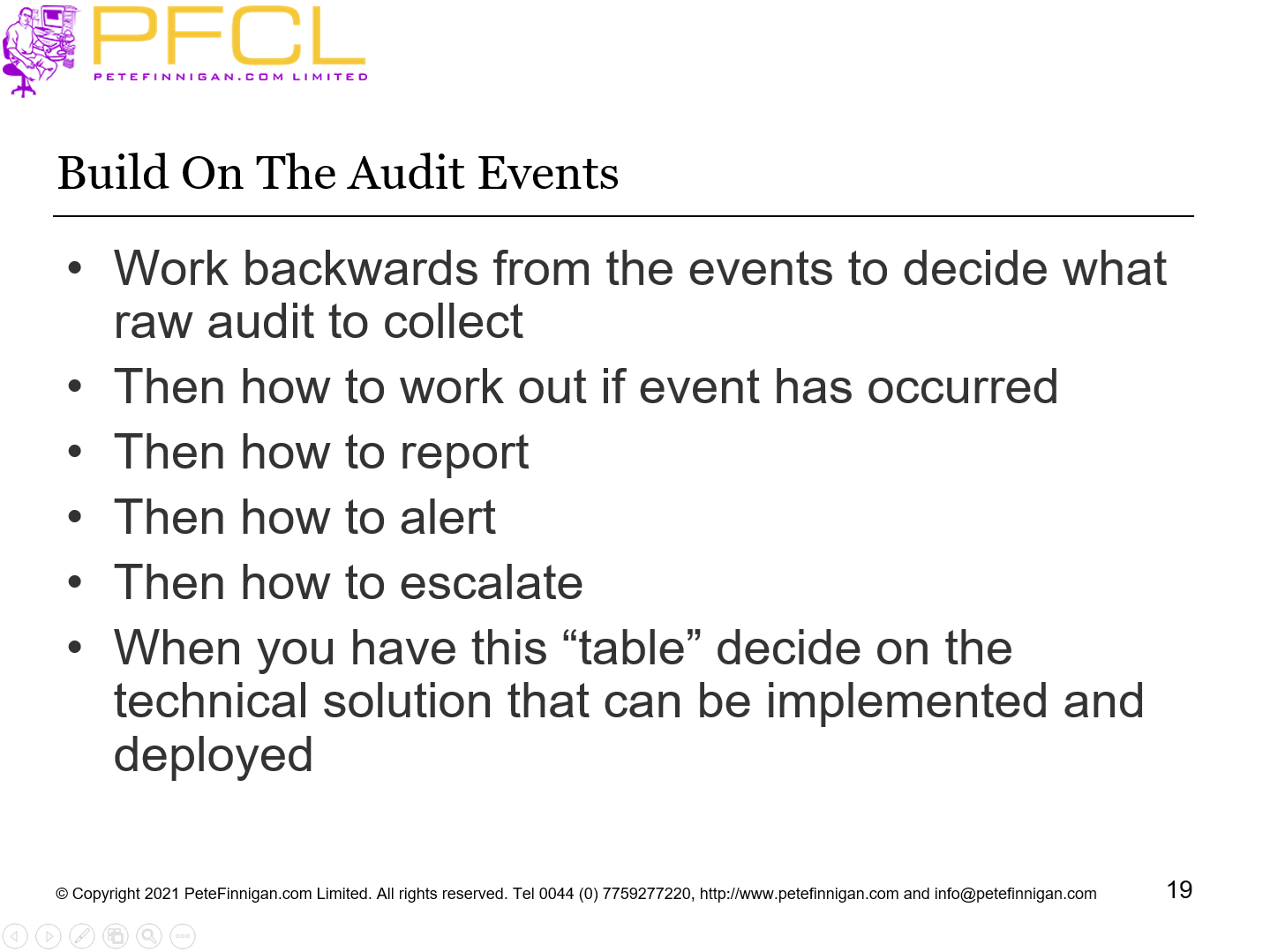

Slide 19 - Build On The Audit Events

Work backwards from the events to decide what raw audit to collect
Then how to work out if event has occurred
Then how to report
Then how to alert
Then how to escalate
When you have this “table” decide on the technical solution that can be implemented and deployed

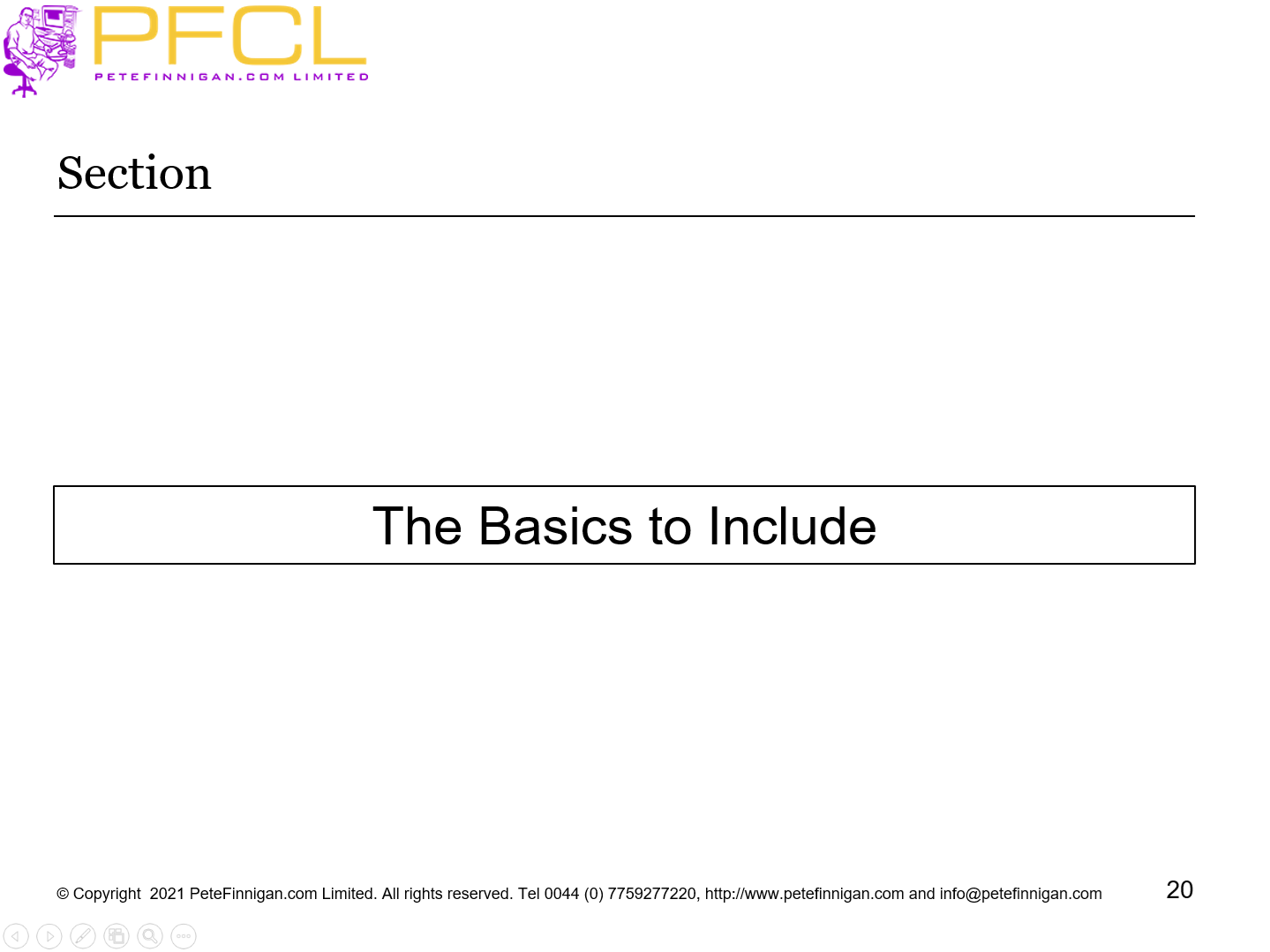

Slide 20 - The Basics to Include

The Basics to Include

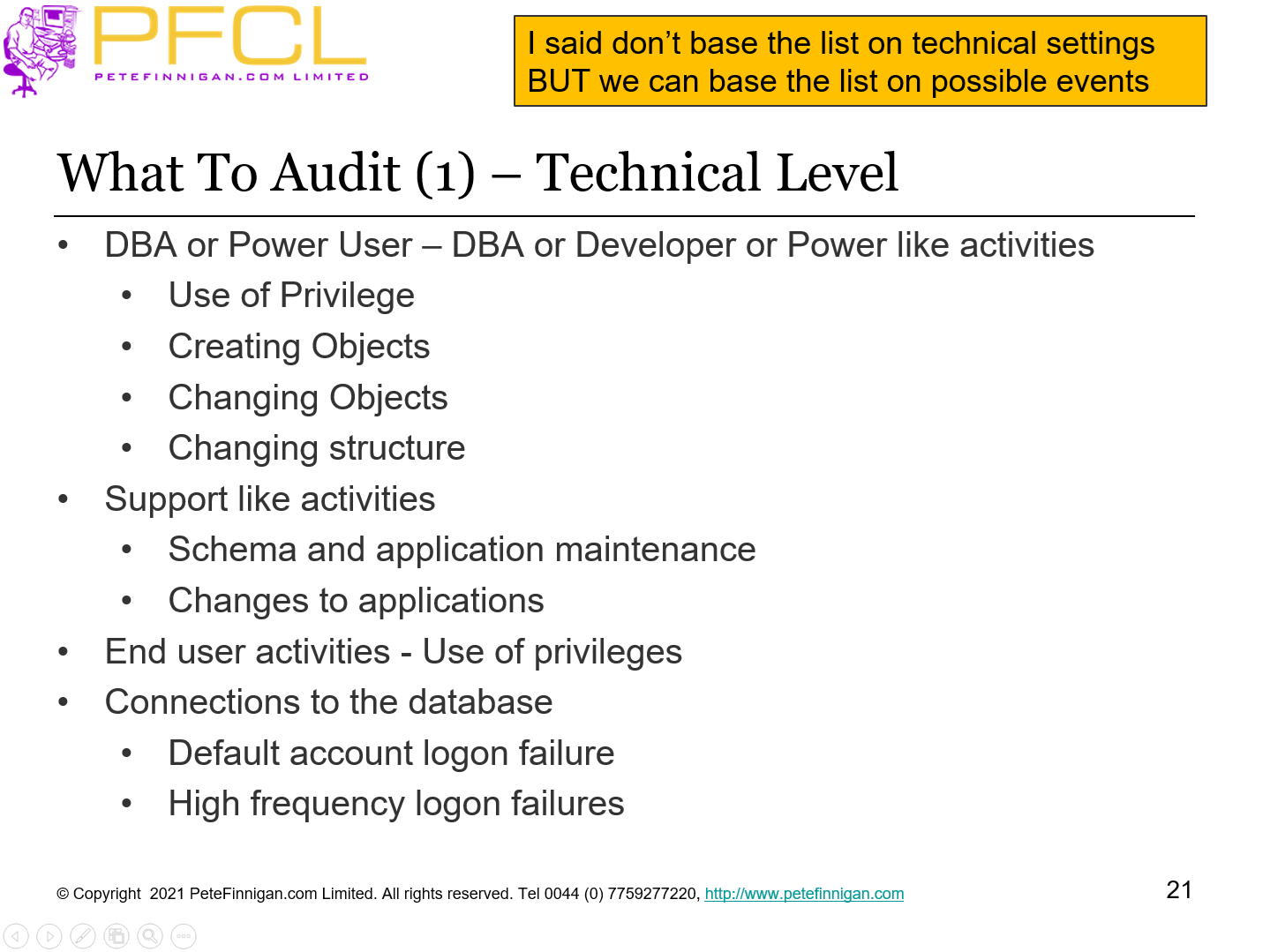

Slide 21 - What To Audit (1) – Technical Level

DBA or Power User – DBA or Developer or Power like activities
Use of Privilege
Creating Objects
Changing Objects
Changing structure
Support like activities
Schema and application maintenance
Changes to applications
End user activities - Use of privileges
Connections to the database
Default account logon failure
High frequency logon failures

I said don’t base the list on technical settings BUT we can base the list on possible events

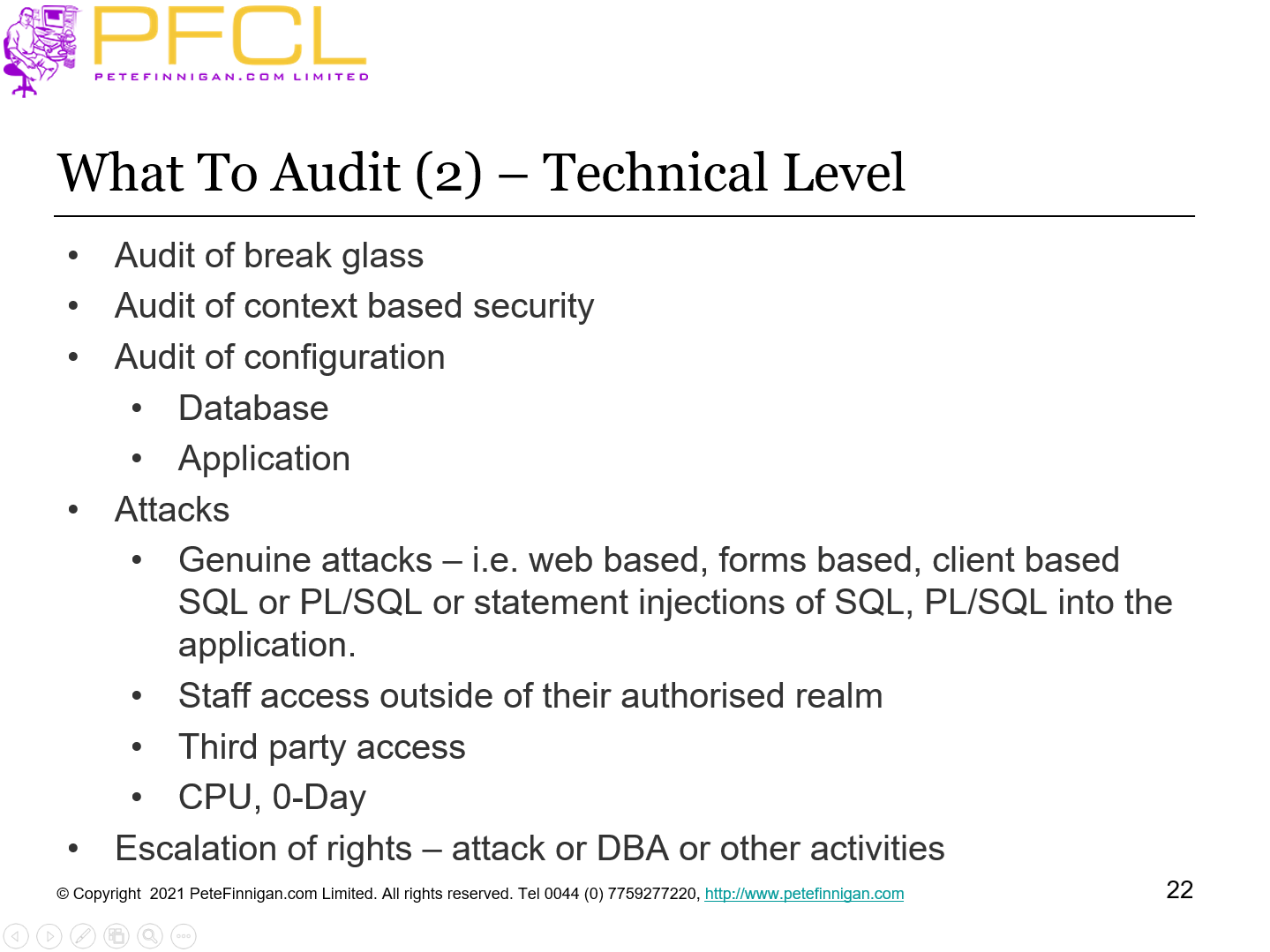

Slide 22 - What To Audit (2) – Technical Level

Audit of break glass
Audit of context based security
Audit of configuration
Database
Application
Attacks
Genuine attacks – i.e. web based, forms based, client based SQL or PL/SQL or statement injections of SQL, PL/SQL into the application.
Staff access outside of their authorised realm
Third party access
CPU, 0-Day
Escalation of rights – attack or DBA or other activities

Slide 23 - Default Audit Trail and Hacking

Default Audit Trail and Hacking

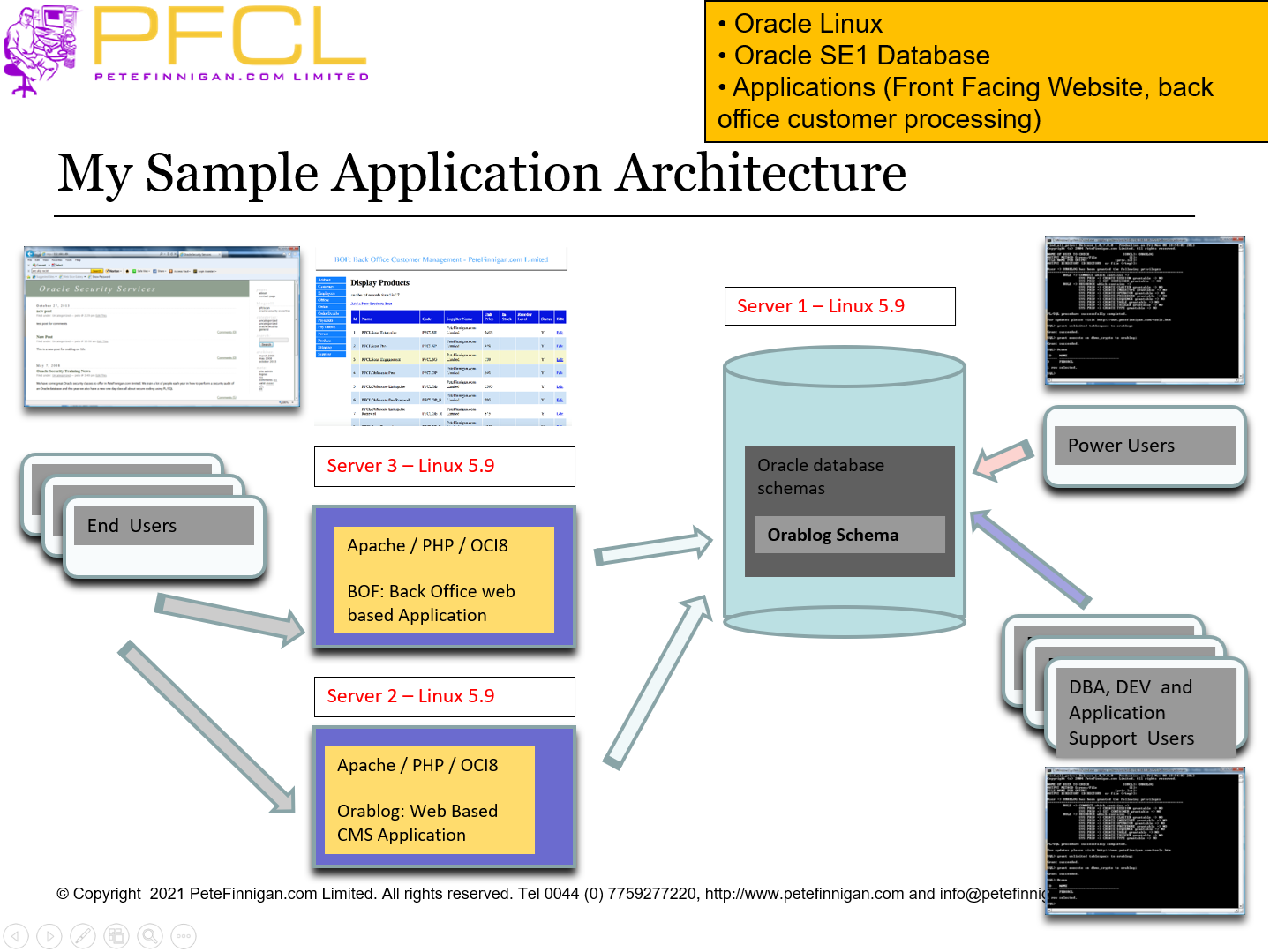

Slide 24 - My Sample Application Architecture

Oracle Linux
Oracle SE1 Database
Applications (Front Facing Website, back office customer processing)

Slide 25 - Some of the Hacks

Some of the Hacks

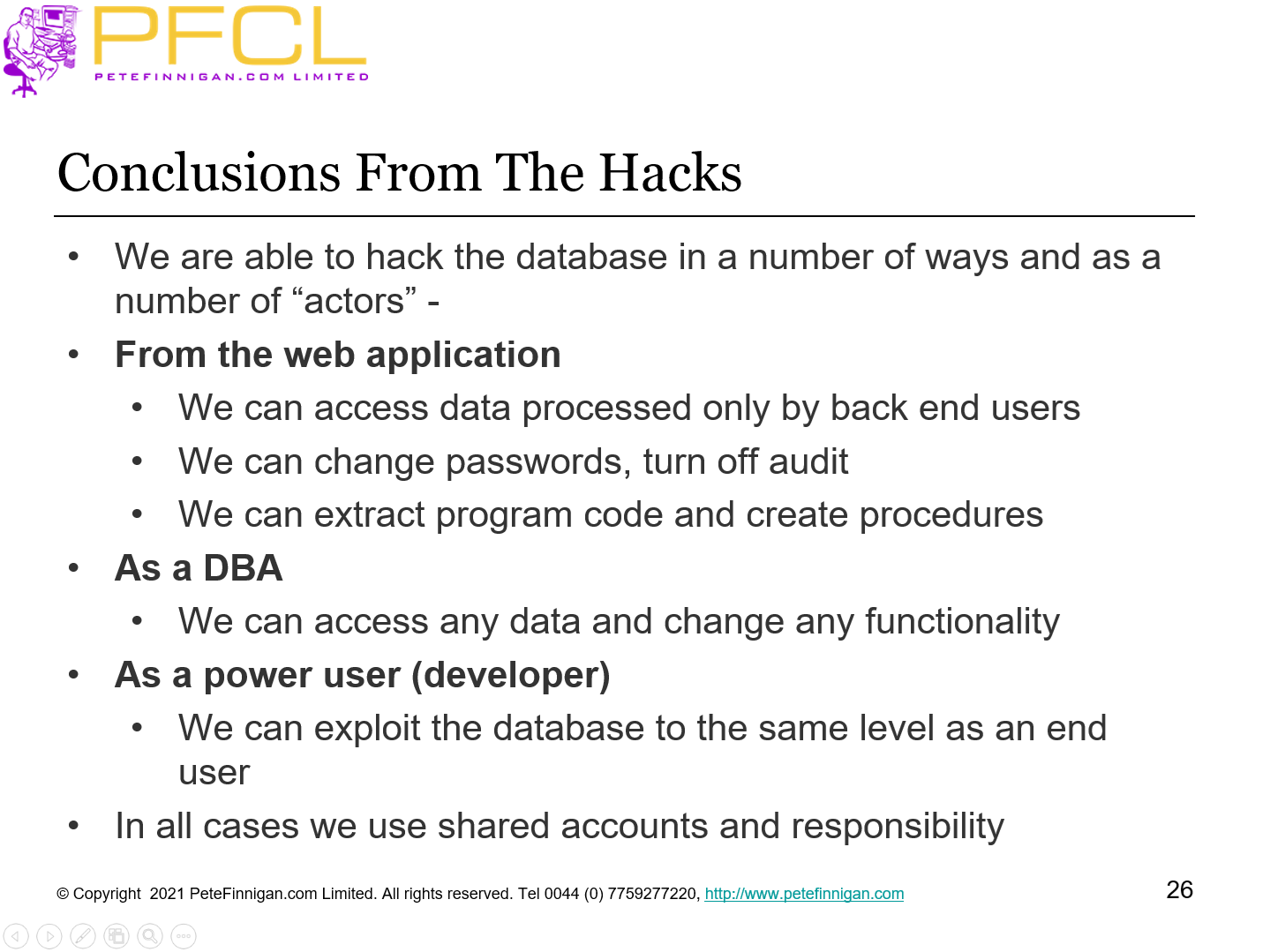

Slide 26 - Conclusions From The Hacks

We are able to hack the database in a number of ways and as a number of “actors” -
From the web application
We can access data processed only by back end users
We can change passwords, turn off audit
We can extract program code and create procedures
As a DBA
We can access any data and change any functionality
As a power user (developer)
We can exploit the database to the same level as an end user
In all cases we use shared accounts and responsibility

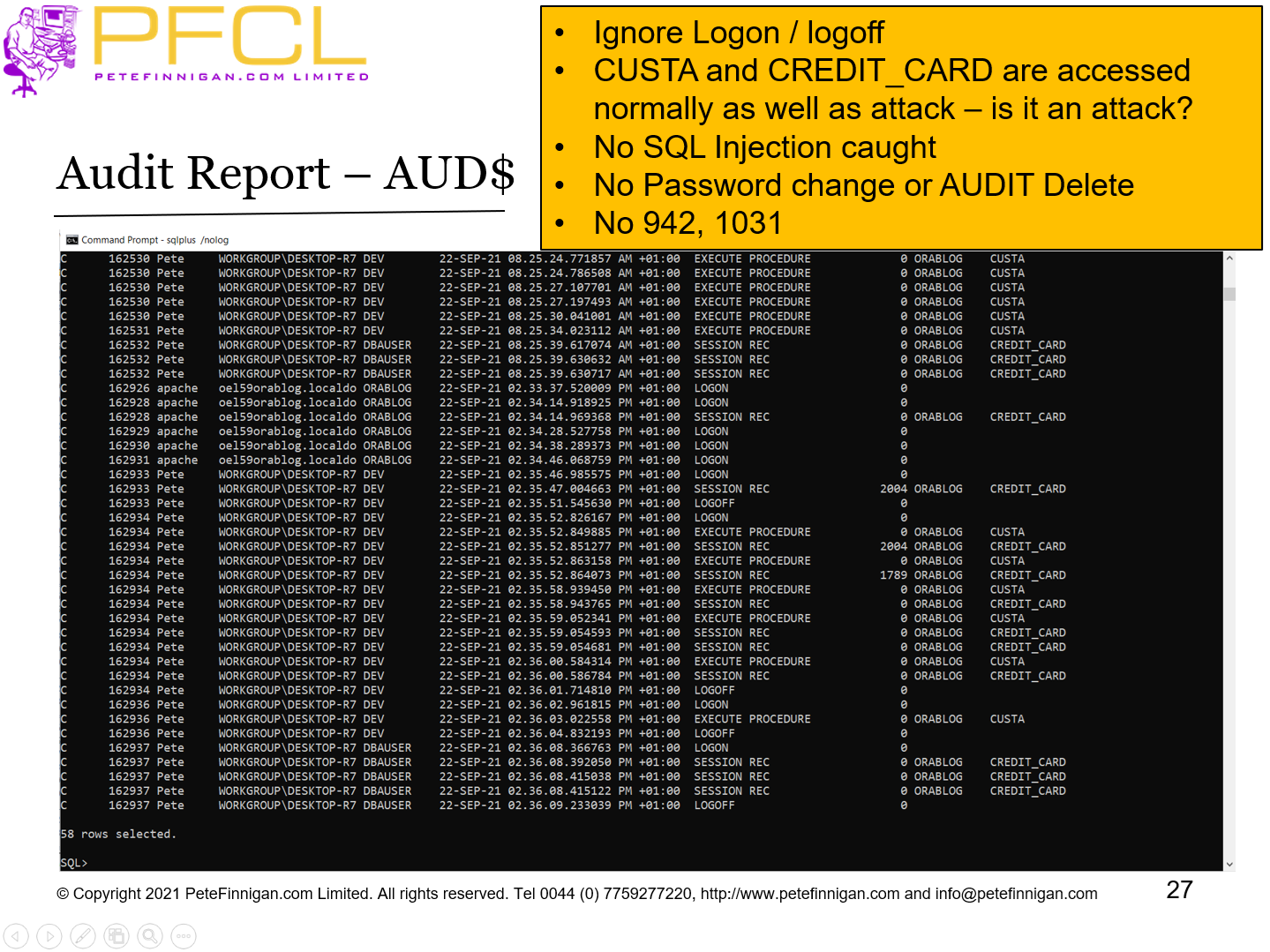

Slide 27 - Audit Report – AUD$

Ignore Logon / logoff
CUSTA and CREDIT_CARD are accessed normally as well as attack – is it an attack?
No SQL Injection caught
No Password change or AUDIT Delete
No 942, 1031

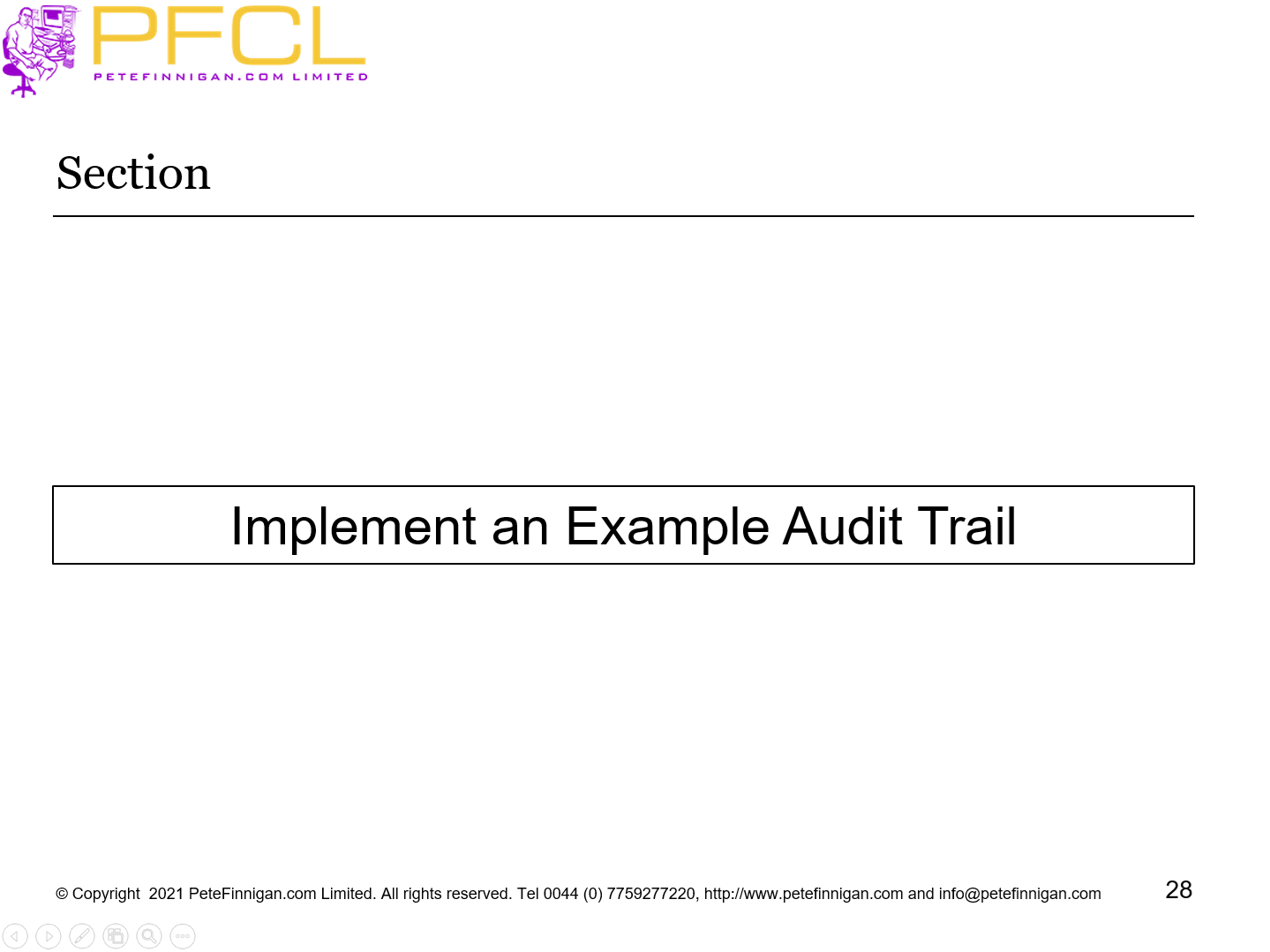

Slide 28 - Implement an Example Audit Trail

Implement an Example Audit Trail

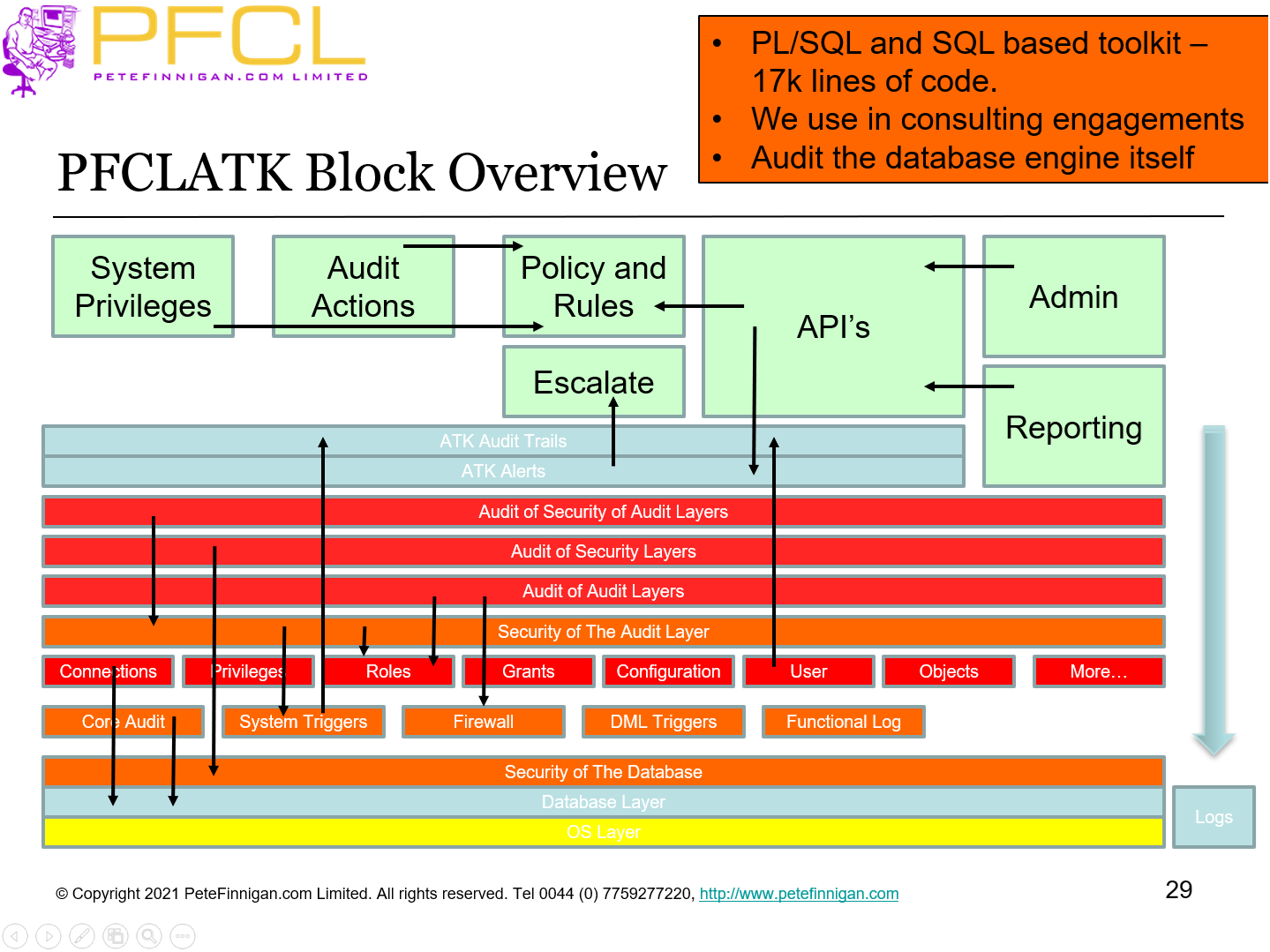

Slide 29 - PFCLATK Block Overview

PL/SQL and SQL based toolkit – 17k lines of code.
We use in consulting engagements
Audit the database engine itself

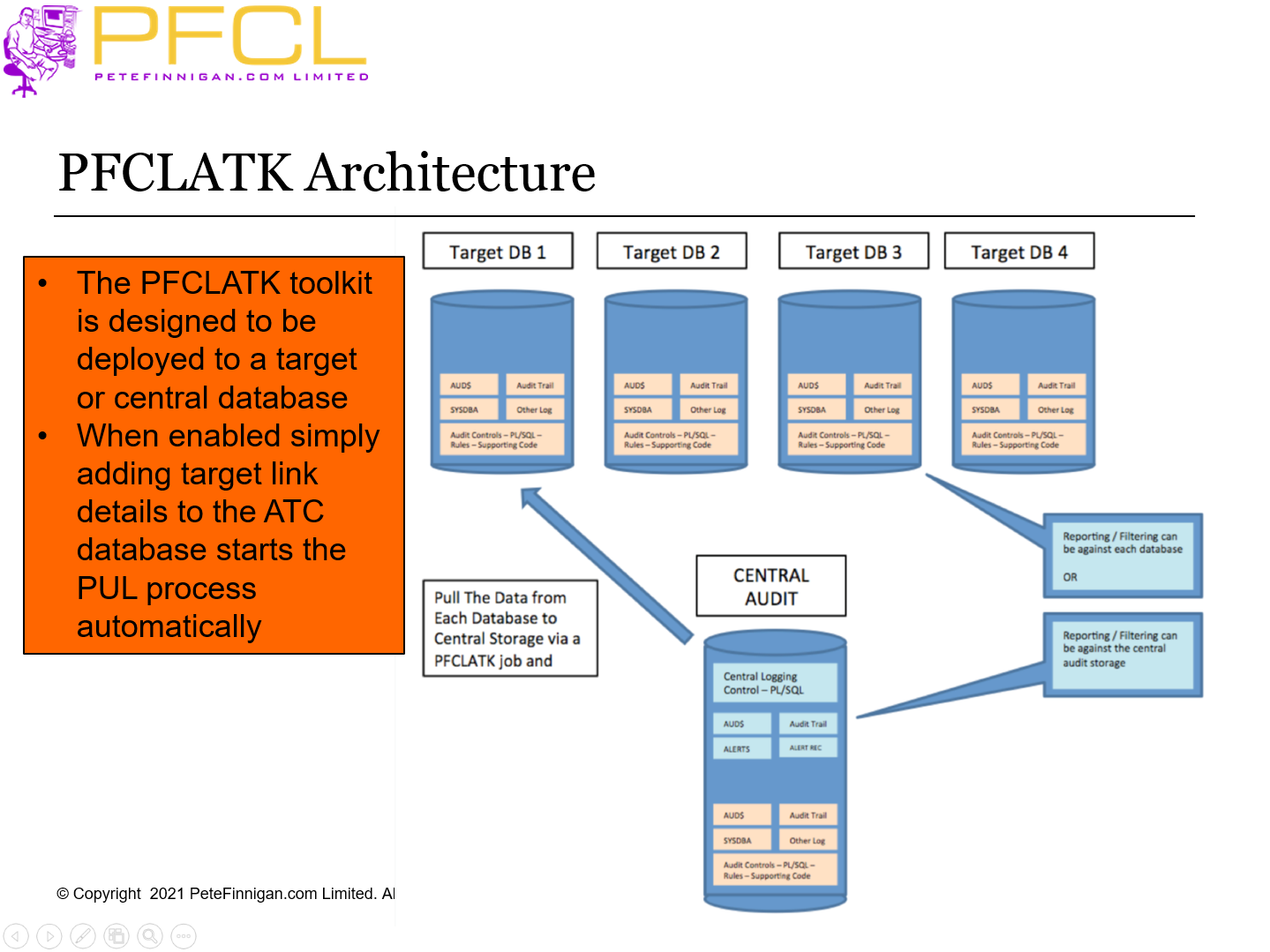

Slide 30 - PFCLATK Architecture

The PFCLATK toolkit is designed to be deployed to a target or central database
When enabled simply adding target link details to the ATC database starts the PUL process automatically

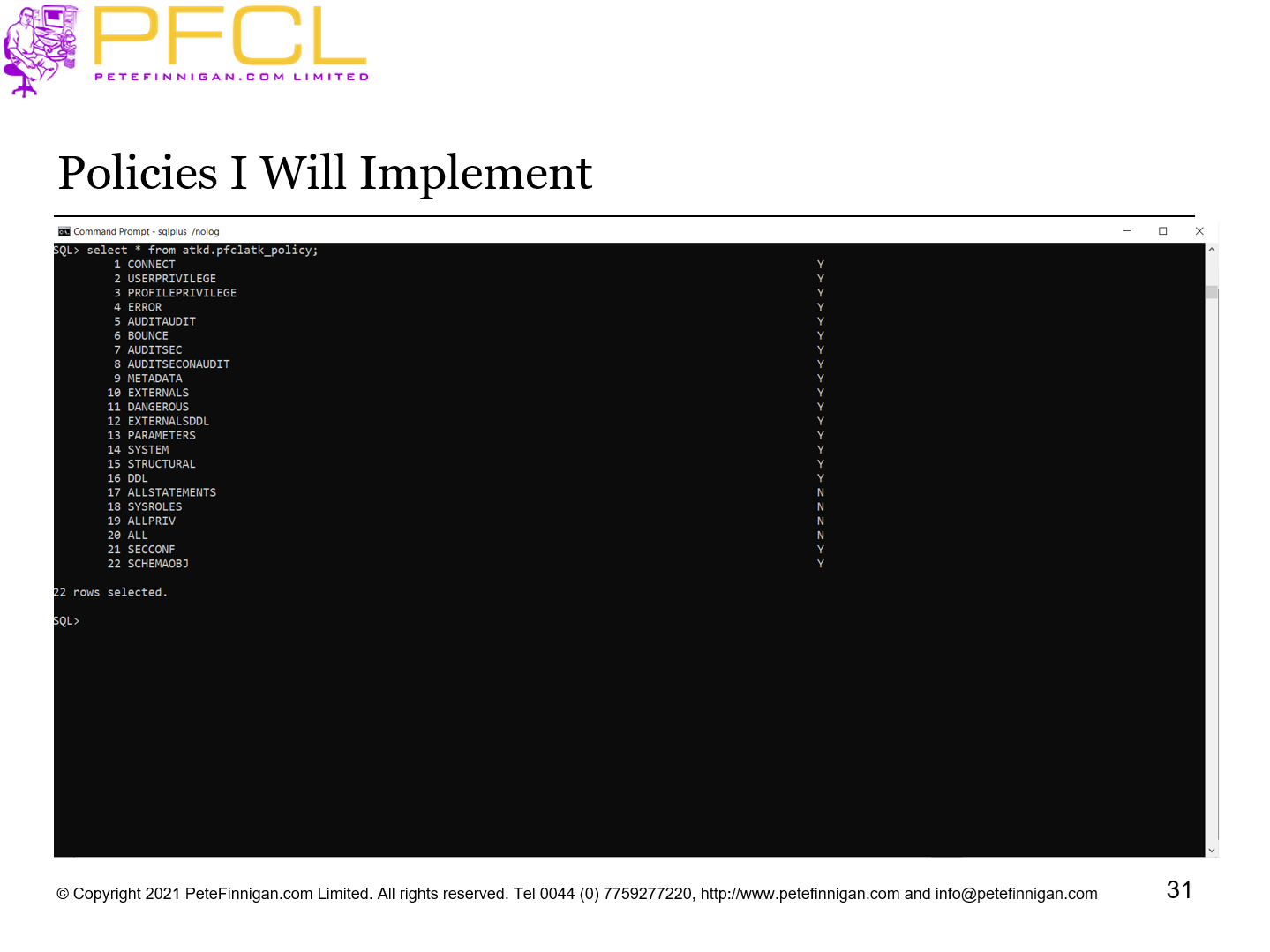

Slide 31 - Policies I Will Implement

Policies I Will Implement

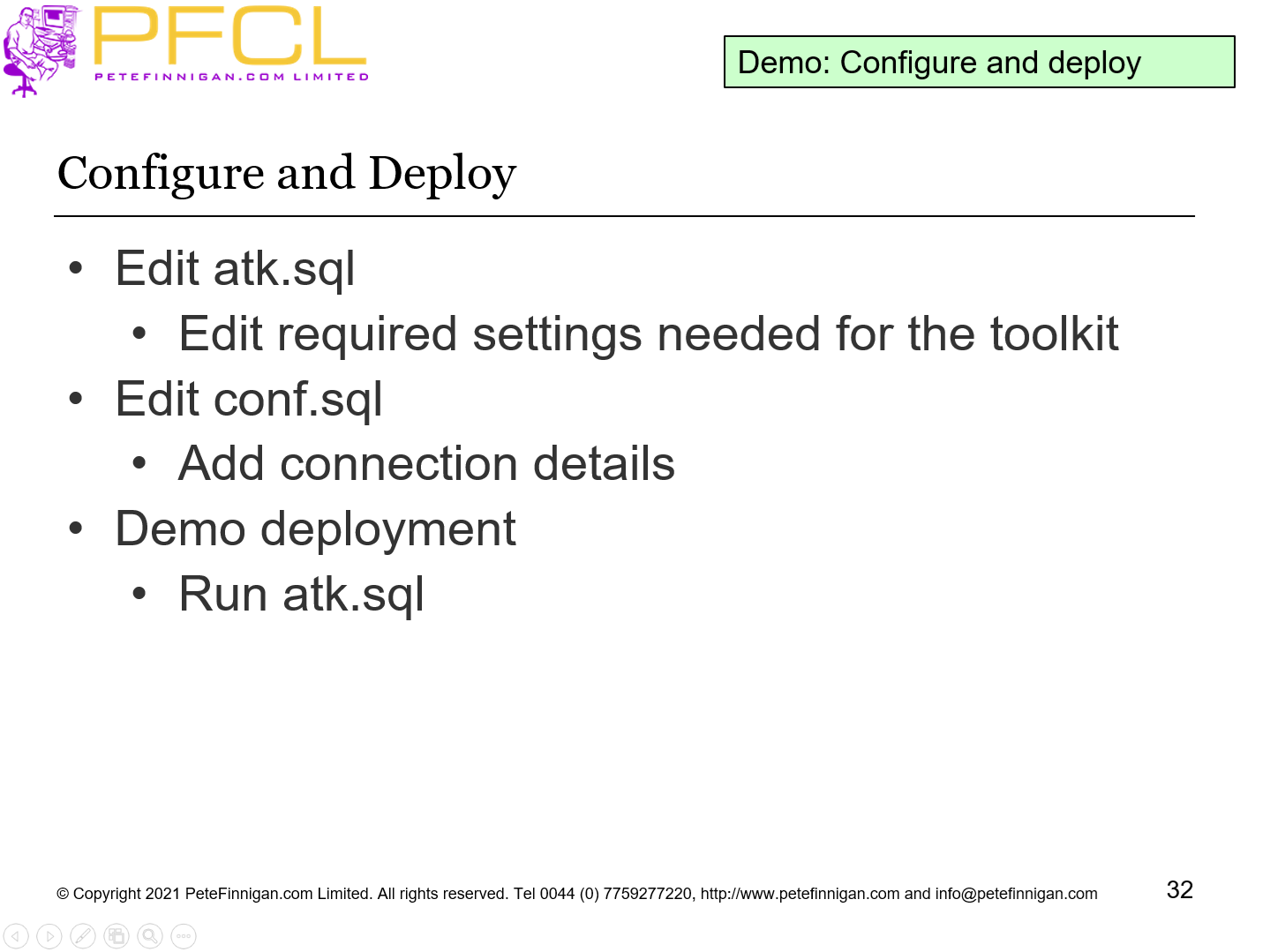

Slide 32 - Configure and Deploy

Edit atk.sql
Edit required settings needed for the toolkit
Edit conf.sql
Add connection details
Demo deployment
Run atk.sql

Demo: Configure and deploy

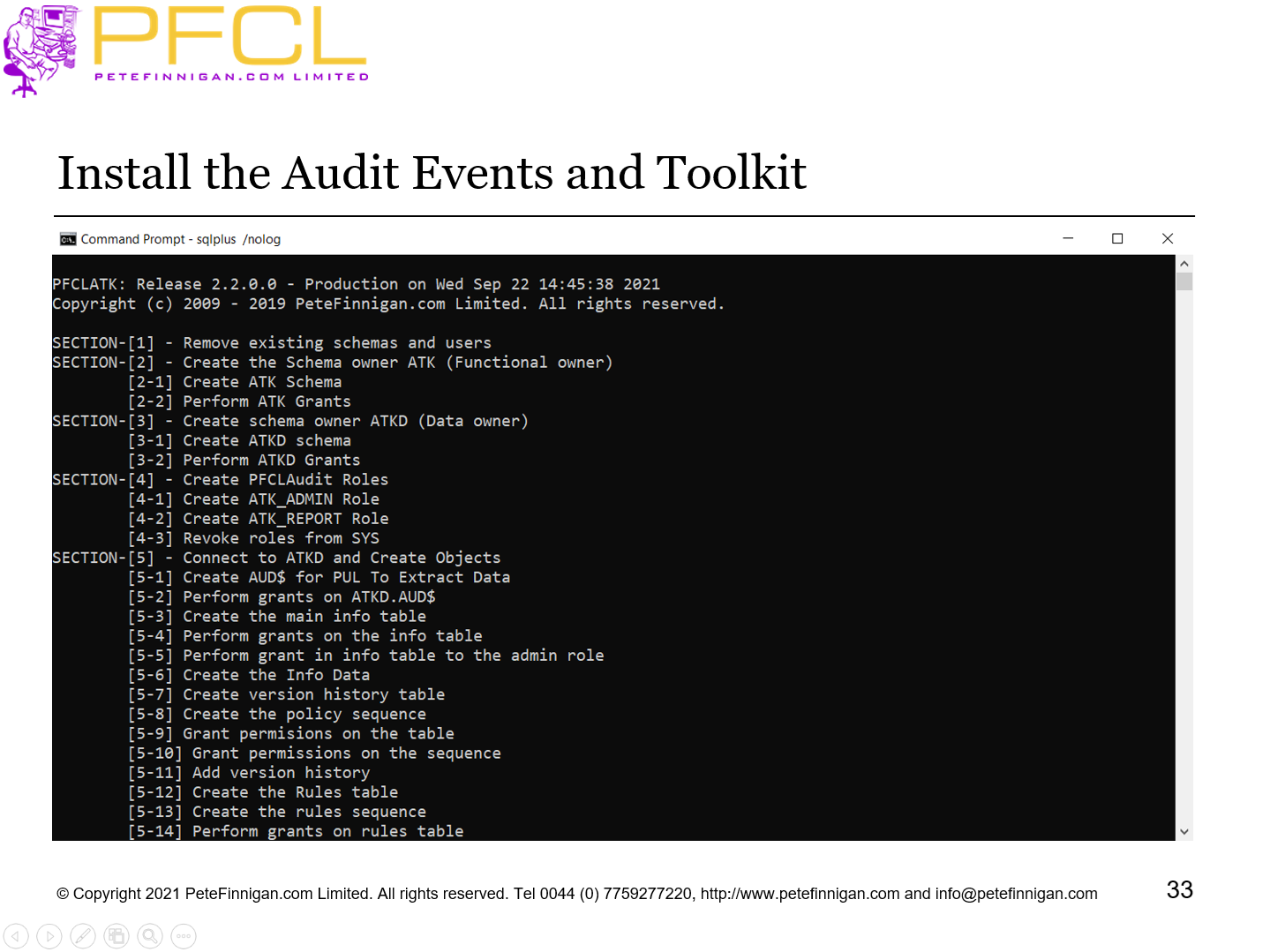

Slide 33 - Install the Audit Events and Toolkit

Install the Audit Events and Toolkit

Slide 34 - Hacking Again

Hacking Again

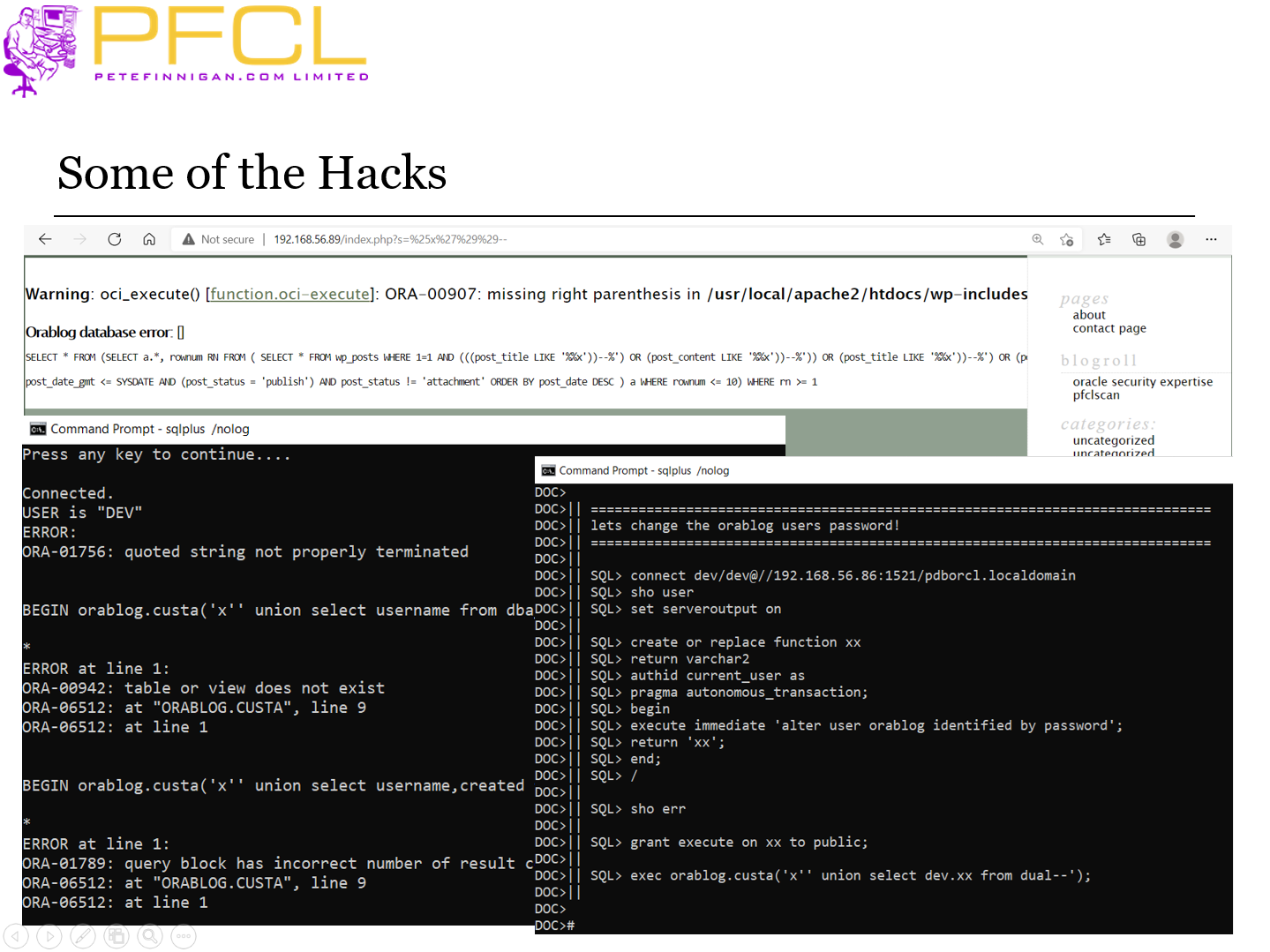

Slide 35 - Some of the Hacks

Some of the Hacks

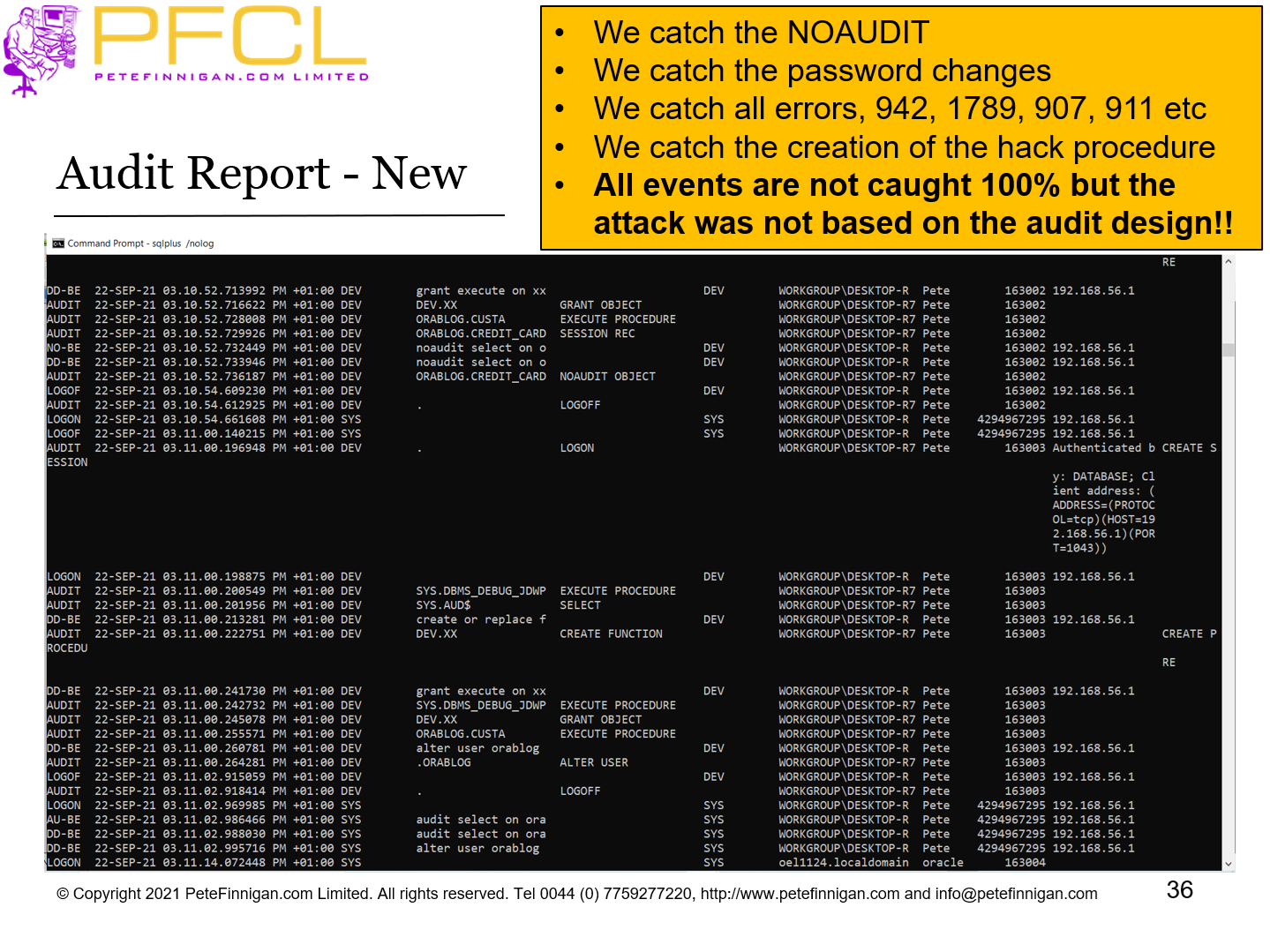

Slide 36 - Audit Report - New

We catch the NOAUDIT
We catch the password changes
We catch all errors, 942, 1789, 907, 911 etc
We catch the creation of the hack procedure
All events are not caught 100% but the attack was not based on the audit design!!

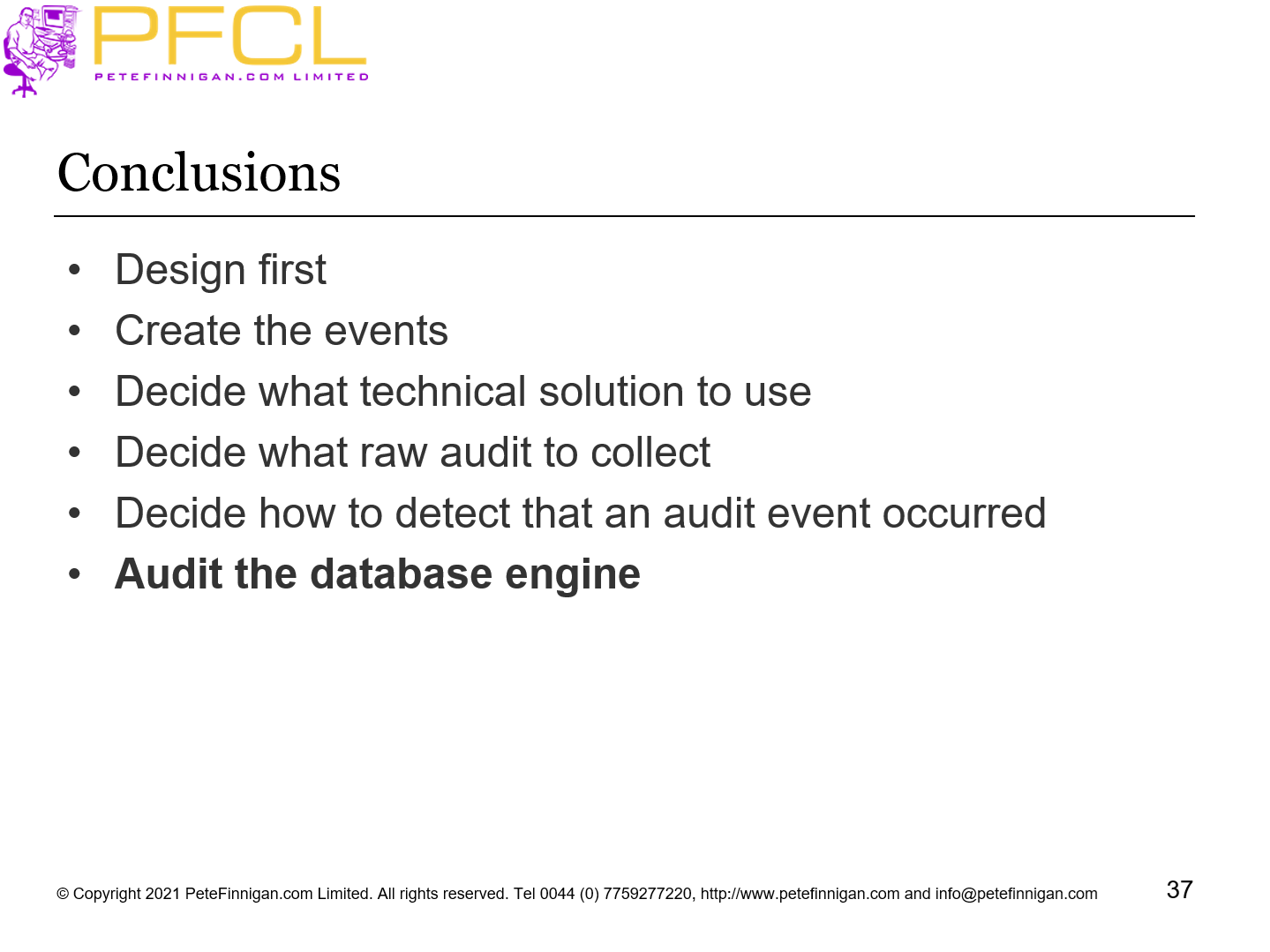

Slide 37 - Conclusions
