This is my presentation to the UKOUG last December on how to protect your Database with SQL Firewall in 23c

Protect your Database with SQL Firewall in 23c

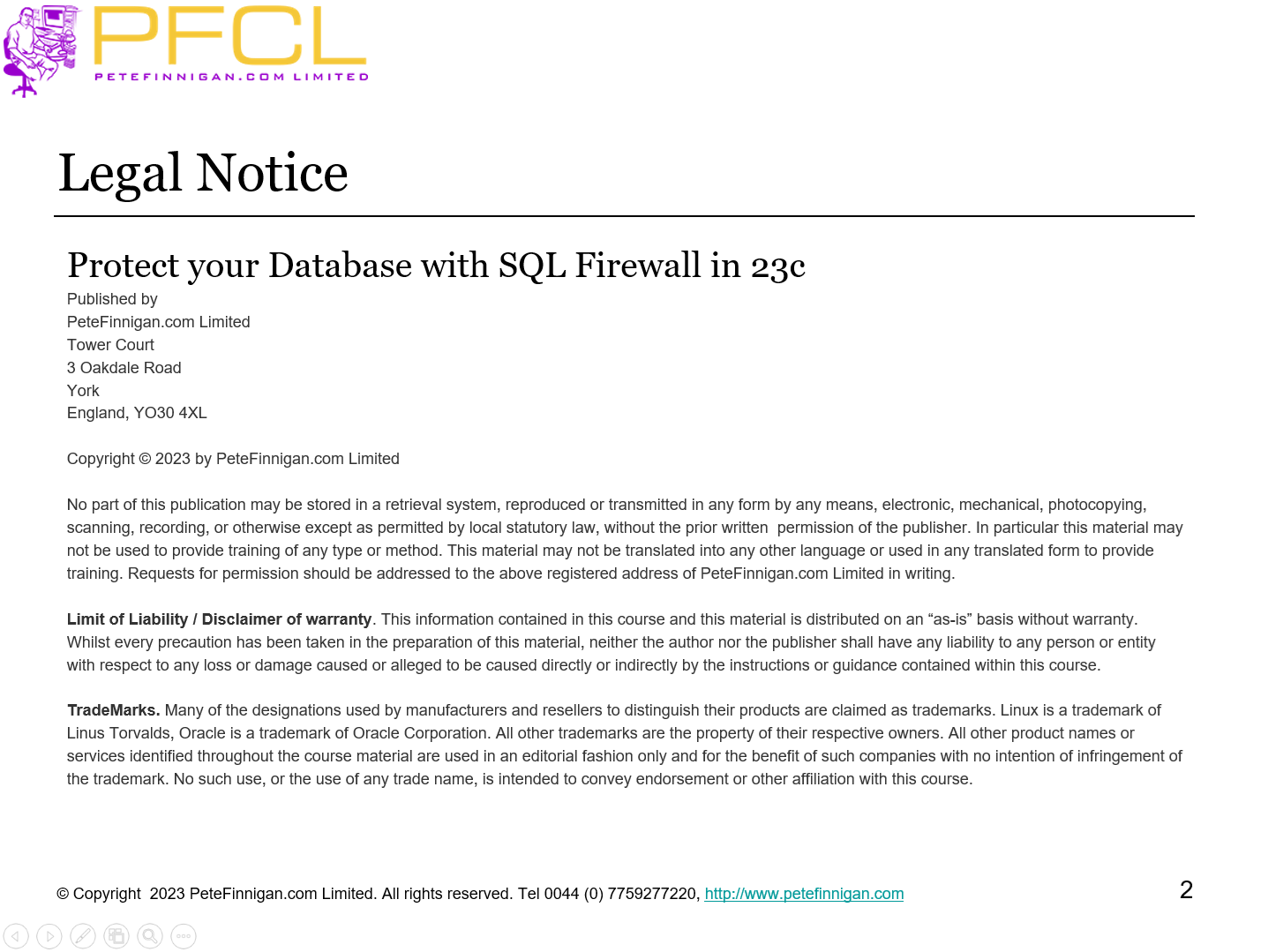

Slide 2 - Legal notice

Protect your Database with SQL Firewall in 23c

Published by
PeteFinnigan.com Limited
Tower Court
3 Oakdale Road
York
England, YO30 4XL

Copyright © 2025 by PeteFinnigan.com Limited

No part of this publication may be stored in a retrieval system, reproduced or transmitted in any form by any means, electronic, mechanical, photocopying, scanning, recording, or otherwise except as permitted by local statutory law, without the prior written permission of the publisher. In particular this material may not be used to provide training of any type or method. This material may not be translated into any other language or used in any translated form to provide training. Requests for permission should be addressed to the above registered address of PeteFinnigan.com Limited in writing.

Limit of Liability / Disclaimer of warranty. This information contained in this course and this material is distributed on an “as-is” basis without warranty. Whilst every precaution has been taken in the preparation of this material, neither the author nor the publisher shall have any liability to any person or entity with respect to any loss or damage caused or alleged to be caused directly or indirectly by the instructions or guidance contained within this course.

TradeMarks. Many of the designations used by manufacturers and resellers to distinguish their products are claimed as trademarks. Linux is a trademark of Linus Torvalds, Oracle is a trademark of Oracle Corporation. All other trademarks are the property of their respective owners. All other product names or services identified throughout the course material are used in an editorial fashion only and for the benefit of such companies with no intention of infringement of the trademark. No such use, or the use of any trade name, is intended to convey endorsement or other affiliation with this course.

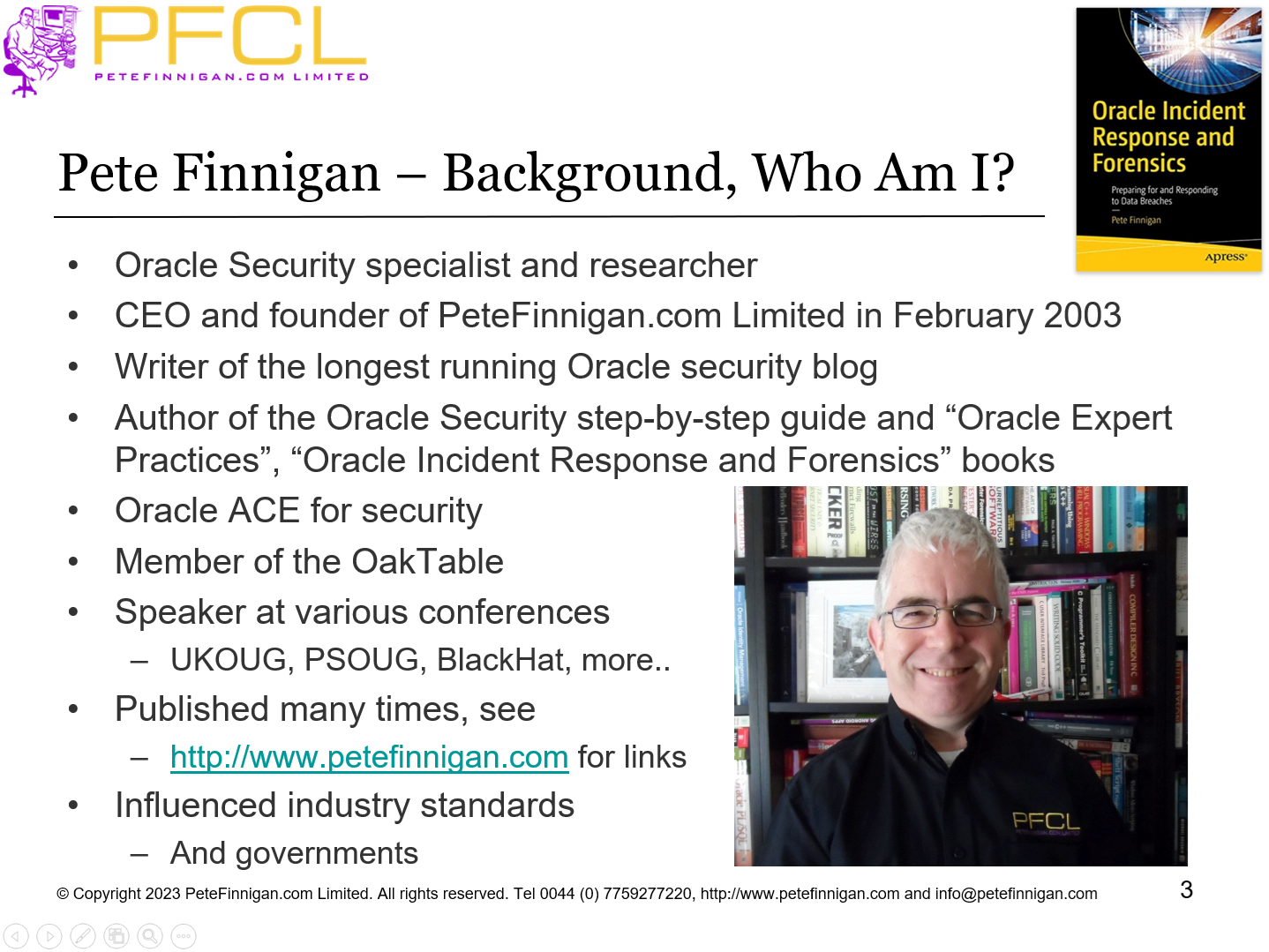

Slide 3 - Background

Pete Finnigan – Background, Who Am I?

Oracle Security specialist and researcher
CEO and founder of PeteFinnigan.com Limited in February 2003
Writer of the longest running Oracle security blog
Author of the Oracle Security step-by-step guide and “Oracle Expert Practices”, “Oracle Incident Response and Forensics” books
Oracle ACE for security
Member of the OakTable, SYM 42
Speaker at various conferences UKOUG, PSOUG, BlackHat, more..
Published many times, see http://www.petefinnigan.com for links

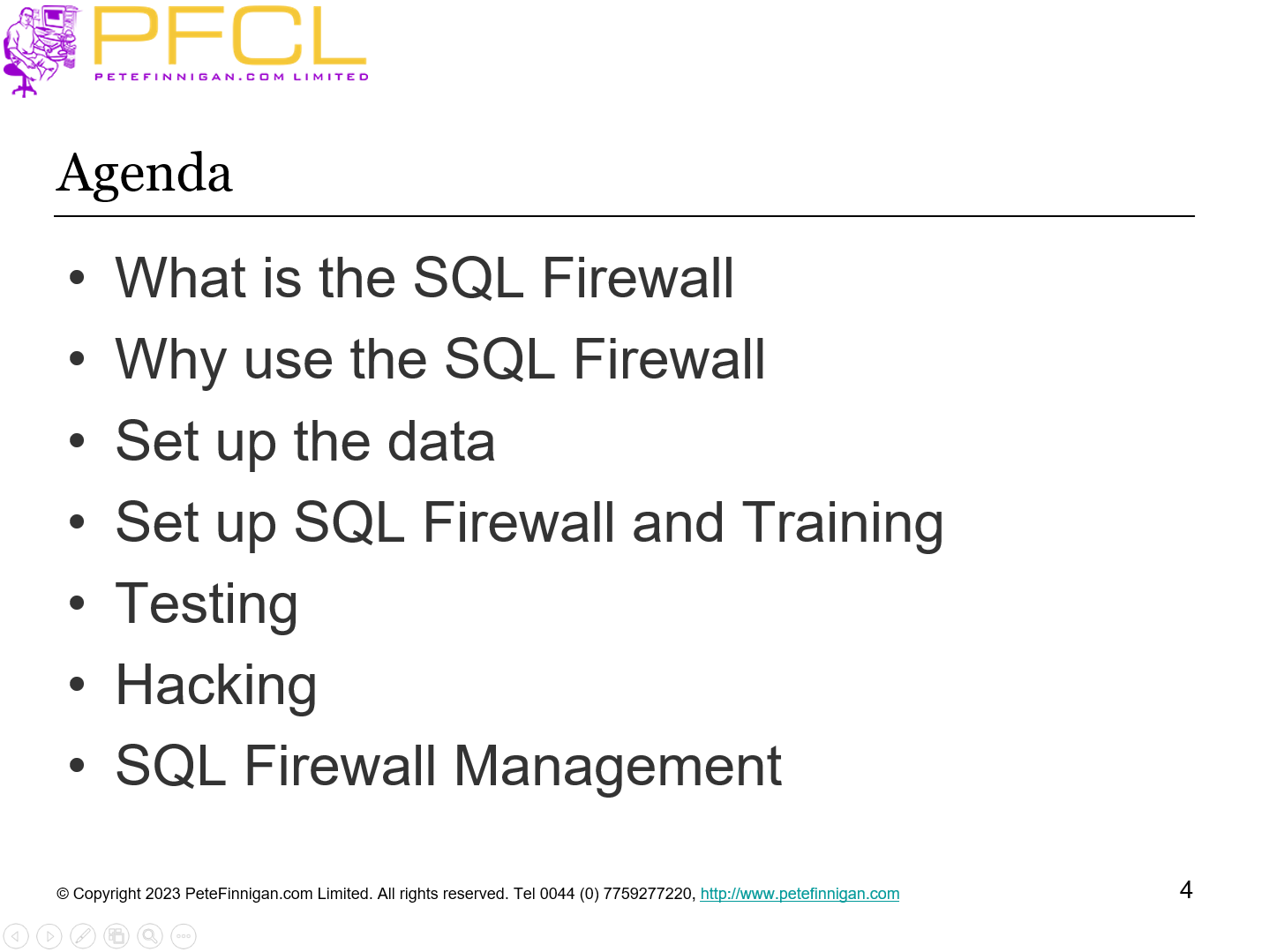

Slide 4 - Agenda

What is the SQL Firewall
Why use the SQL Firewall
Set up the data
Set up SQL Firewall and Training
Testing
Hacking
SQL Firewall Management

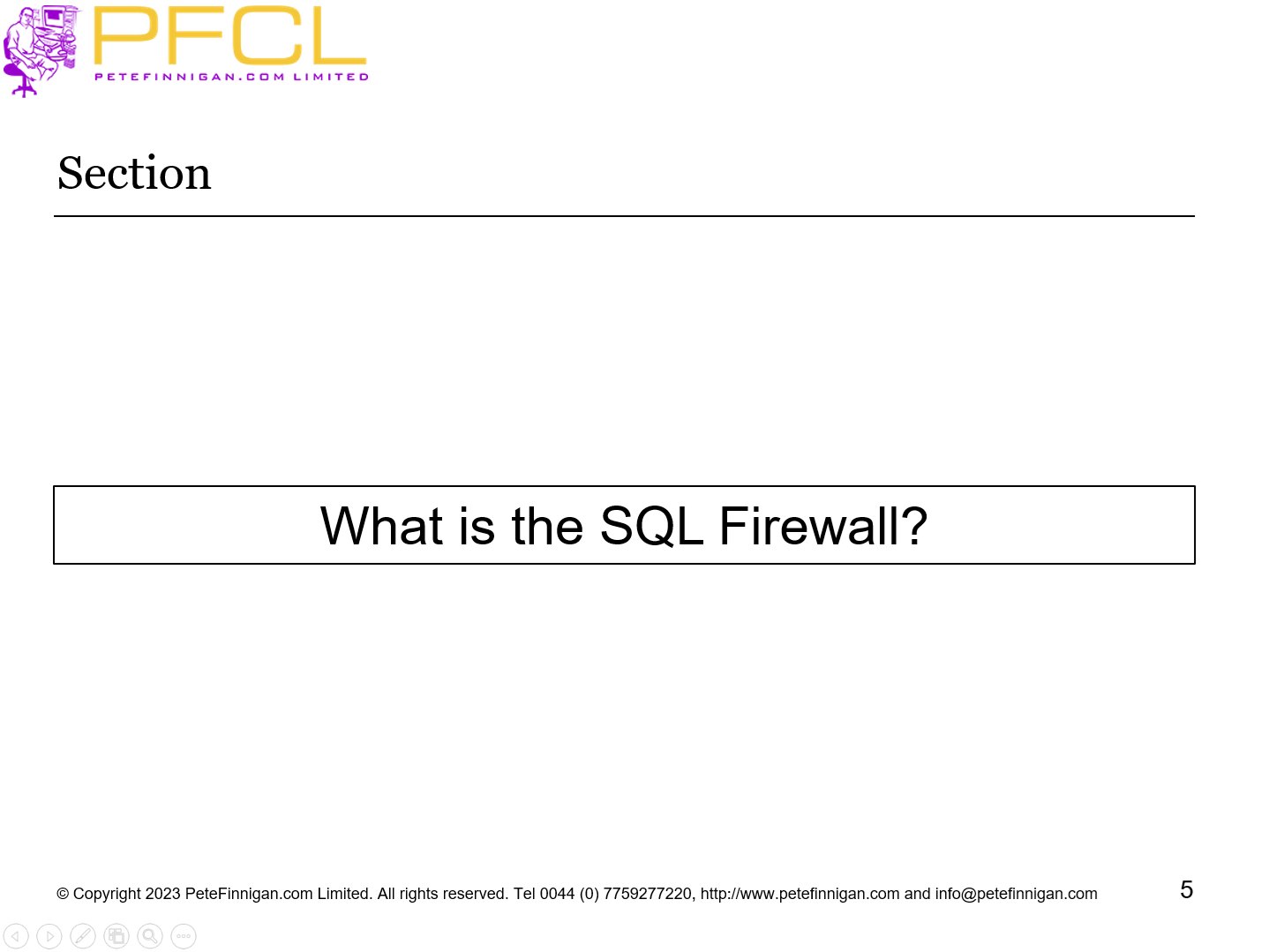

Slide 5 - What is the SQL Firewall?

What is the SQL Firewall?

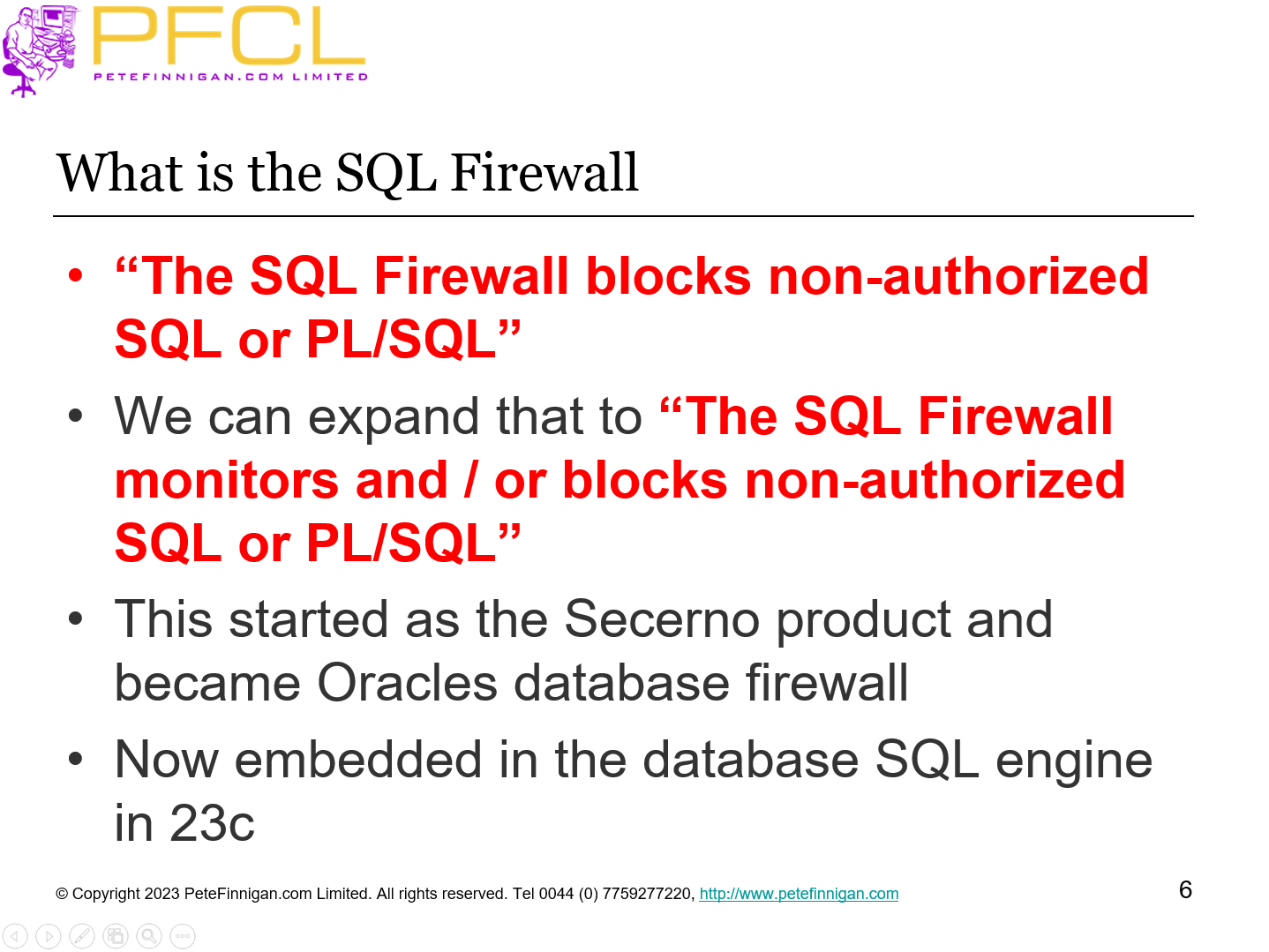

Slide 6 - What is the SQL Firewall

“The SQL Firewall blocks non-authorized SQL or PL/SQL”
We can expand that to “The SQL Firewall monitors and / or blocks non-authorized SQL or PL/SQL”
This started as the Secerno product and became Oracles database firewall
Now embedded in the database SQL engine in 23c

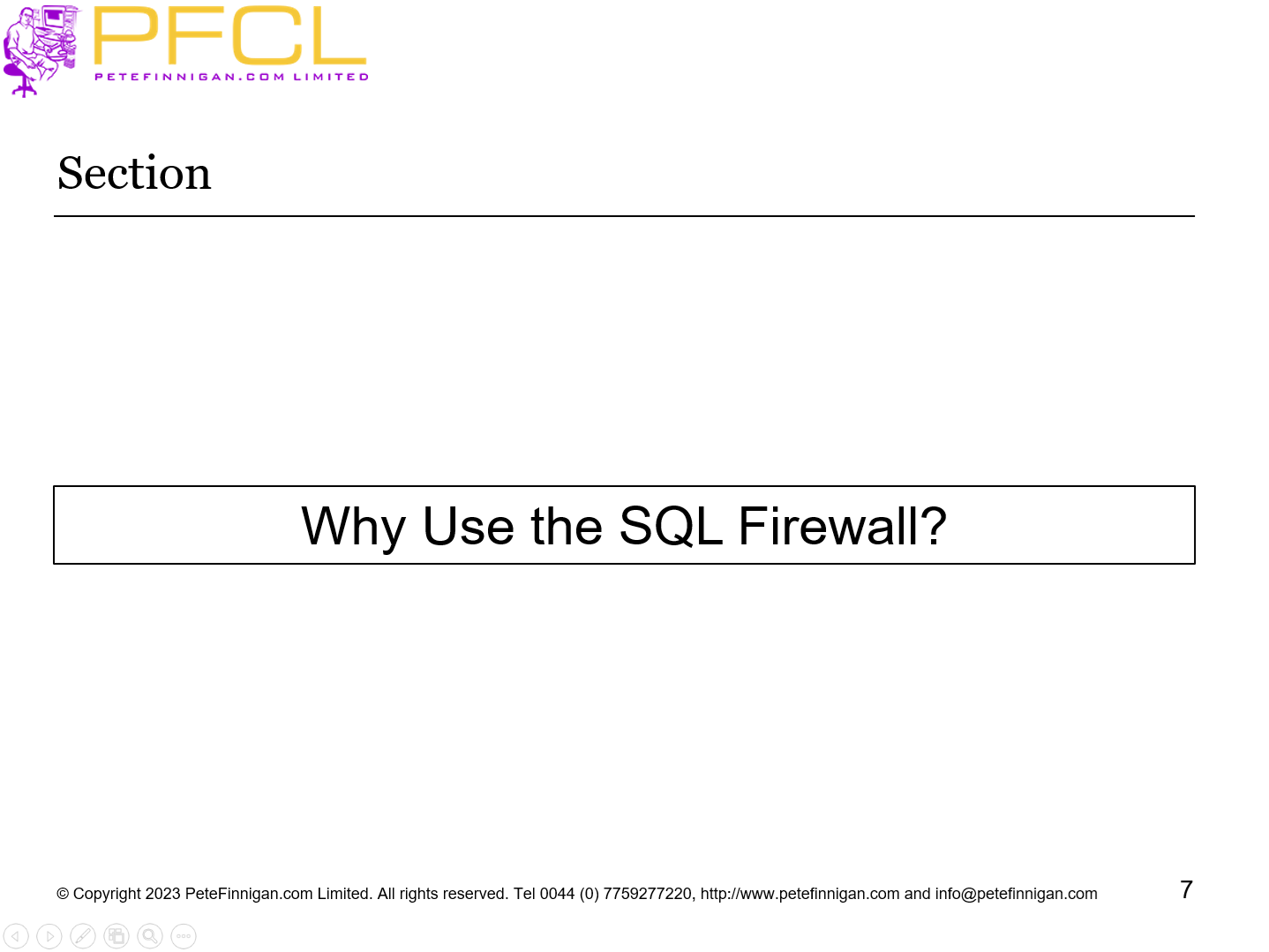

Slide 7 - Why Use the SQL Firewall?

Why Use the SQL Firewall?

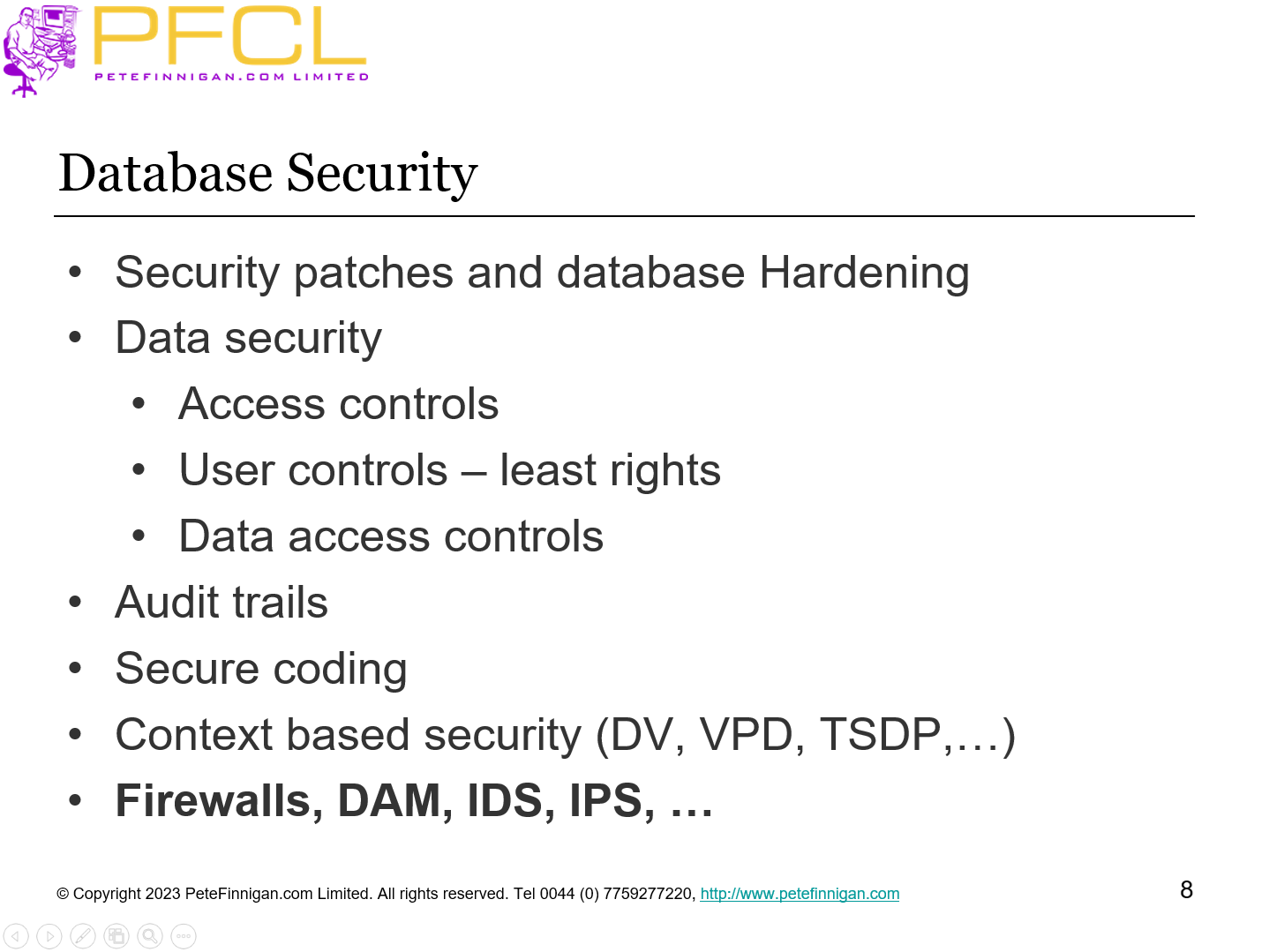

Slide 8 - Database Security

Security patches and database Hardening
Data security
Access controls
User controls – least rights
Data access controls
Audit trails
Secure coding
Context based security (DV, VPD, TSDP,…)
Firewalls, DAM, IDS, IPS, …

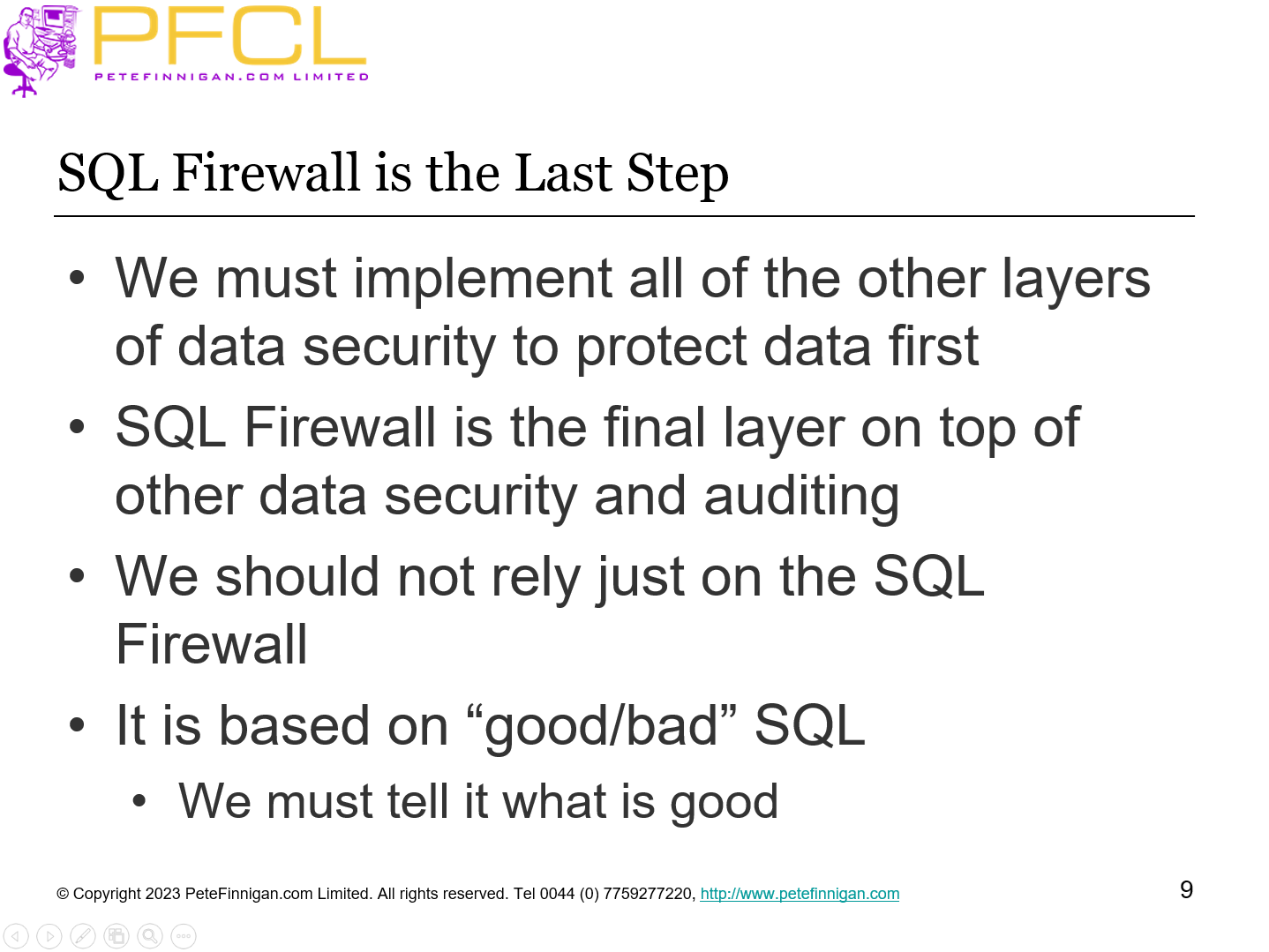

Slide 9 - SQL Firewall is the Last Step

We must implement all of the other layers of data security to protect data first
SQL Firewall is the final layer on top of other data security and auditing
We should not rely just on the SQL Firewall
It is based on “good/bad” SQL
We must tell it what is good

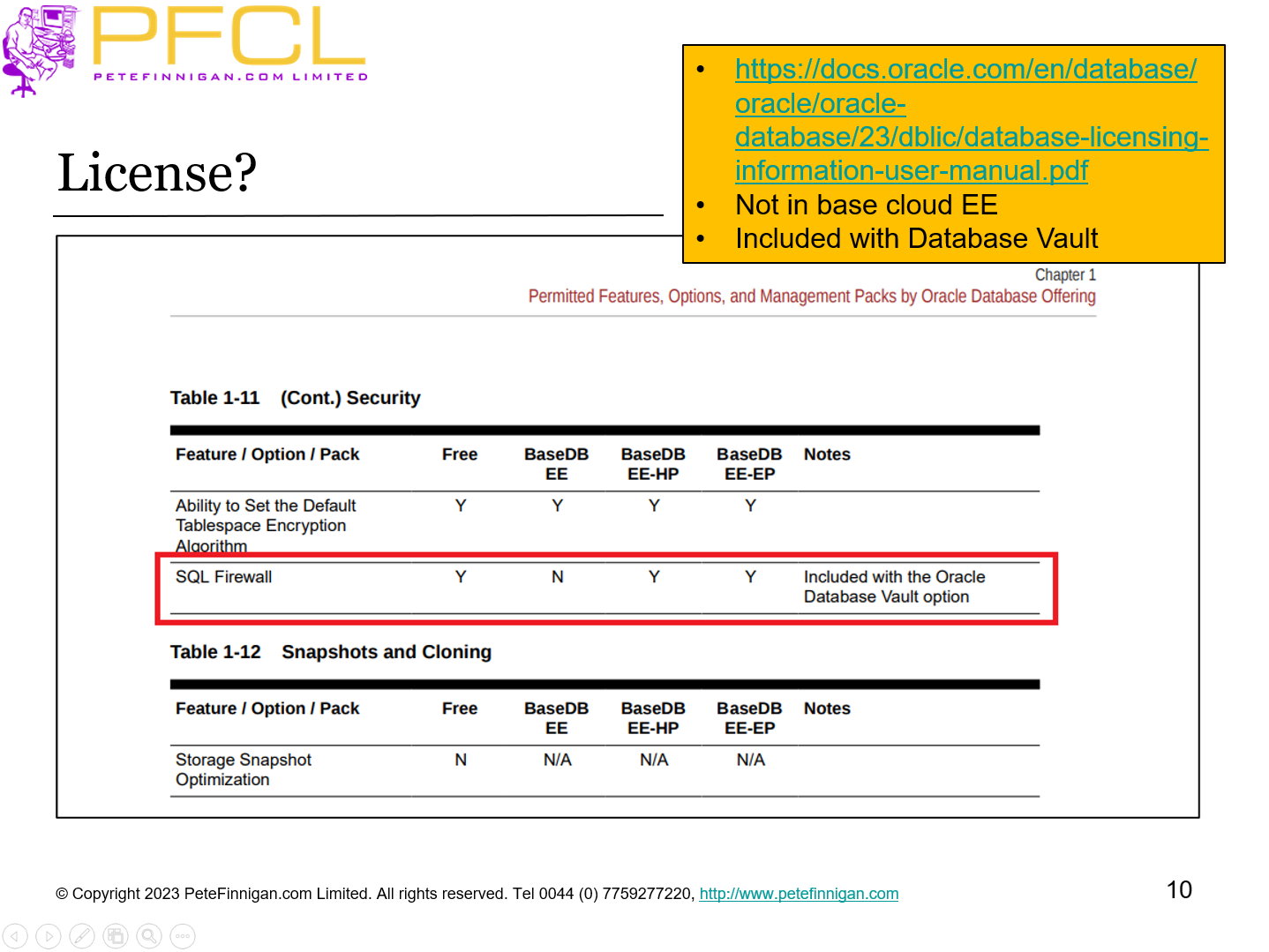

Slide 10 - License?

https://docs.oracle.com/en/database/oracle/oracle-database/23/dblic/database-licensing-information-user-manual.pdf
Not in base cloud EE
Included with Database Vault

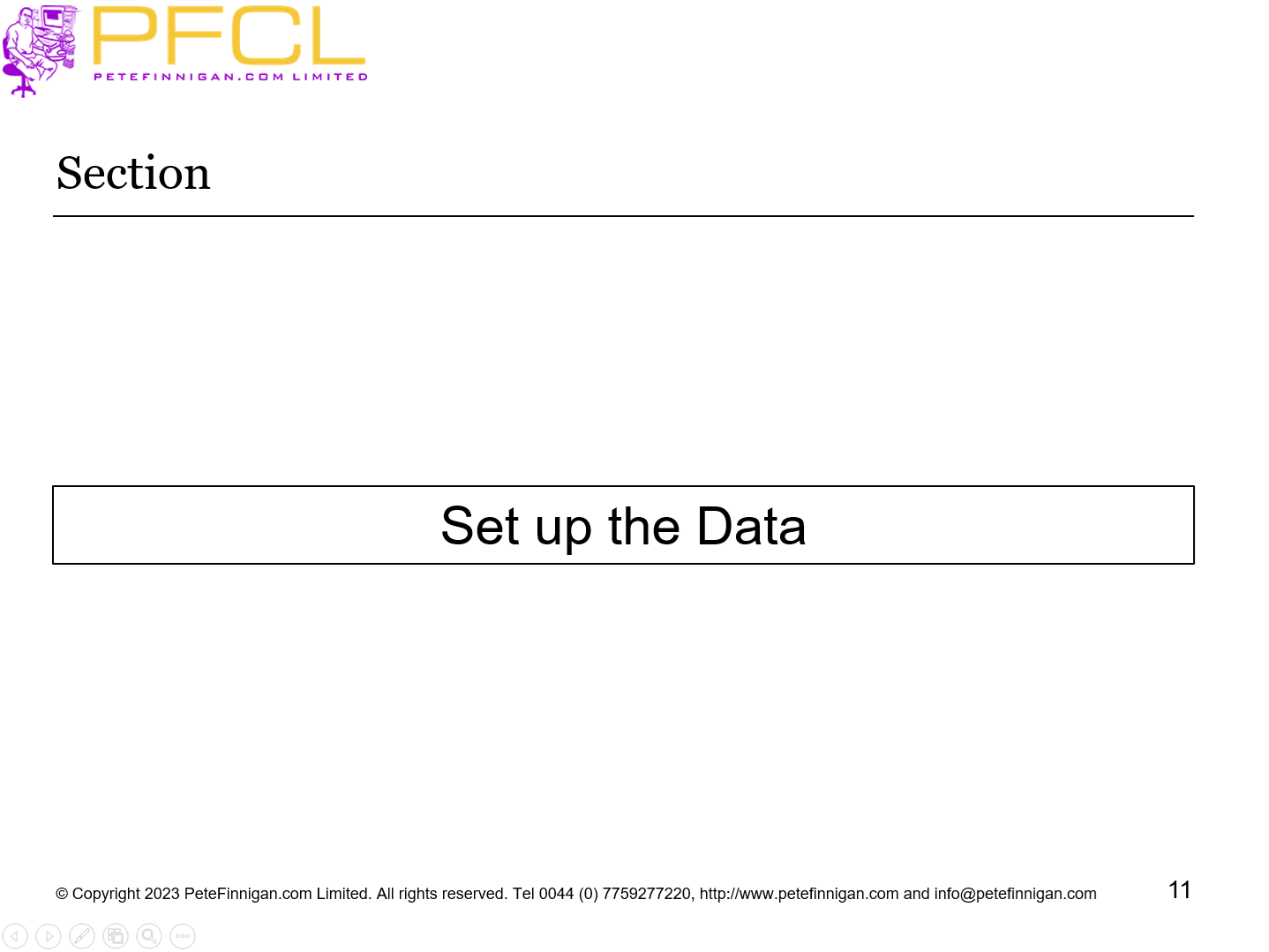

Slide 11 - Set up the Data

Set up the Data

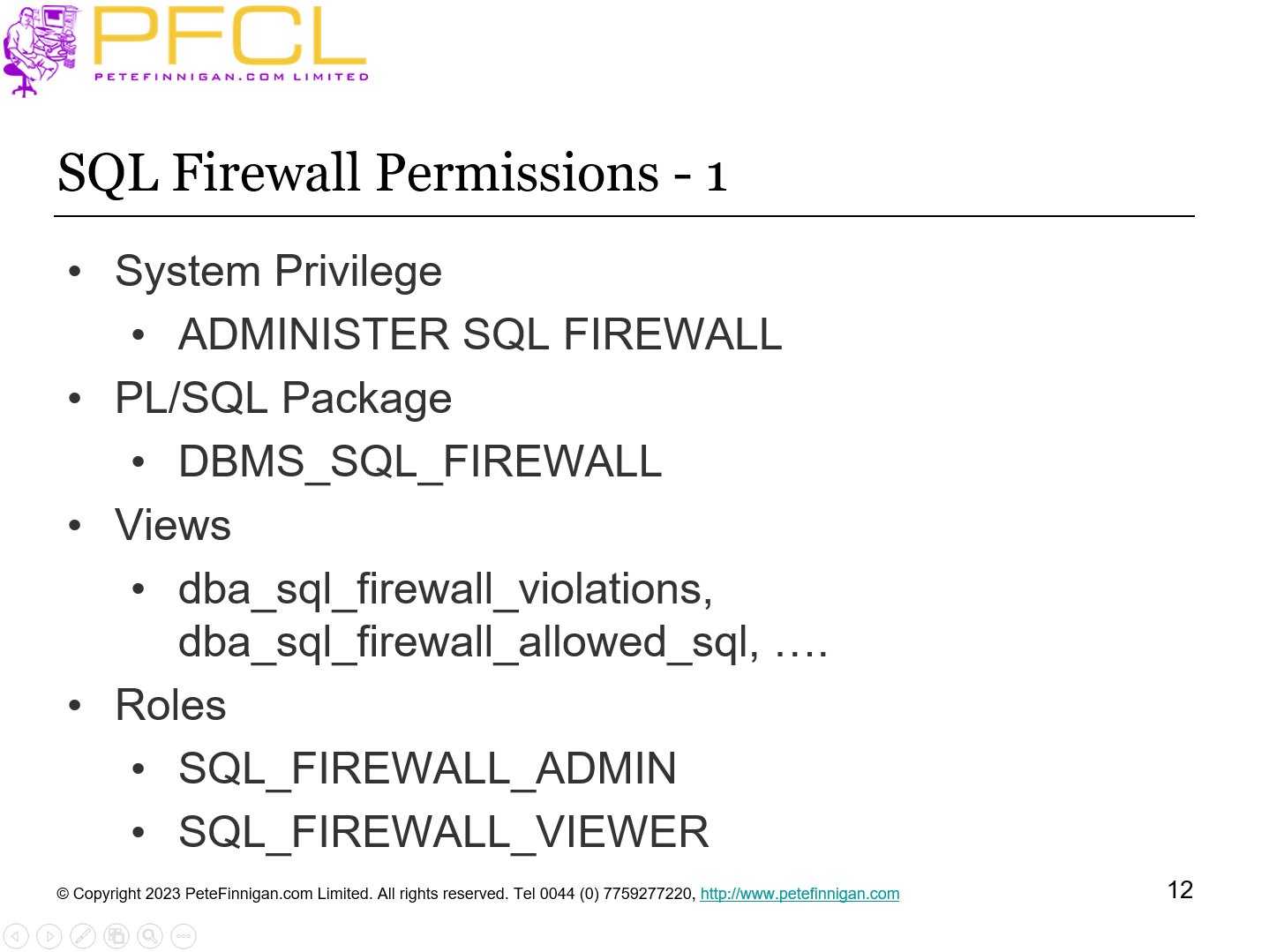

Slide 12 - SQL Firewall Permissions - 1

System Privilege
ADMINISTER SQL FIREWALL
PL/SQL Package
DBMS_SQL_FIREWALL
Views
dba_sql_firewall_violations, dba_sql_firewall_allowed_sql, ….
Roles
SQL_FIREWALL_ADMIN
SQL_FIREWALL_VIEWER

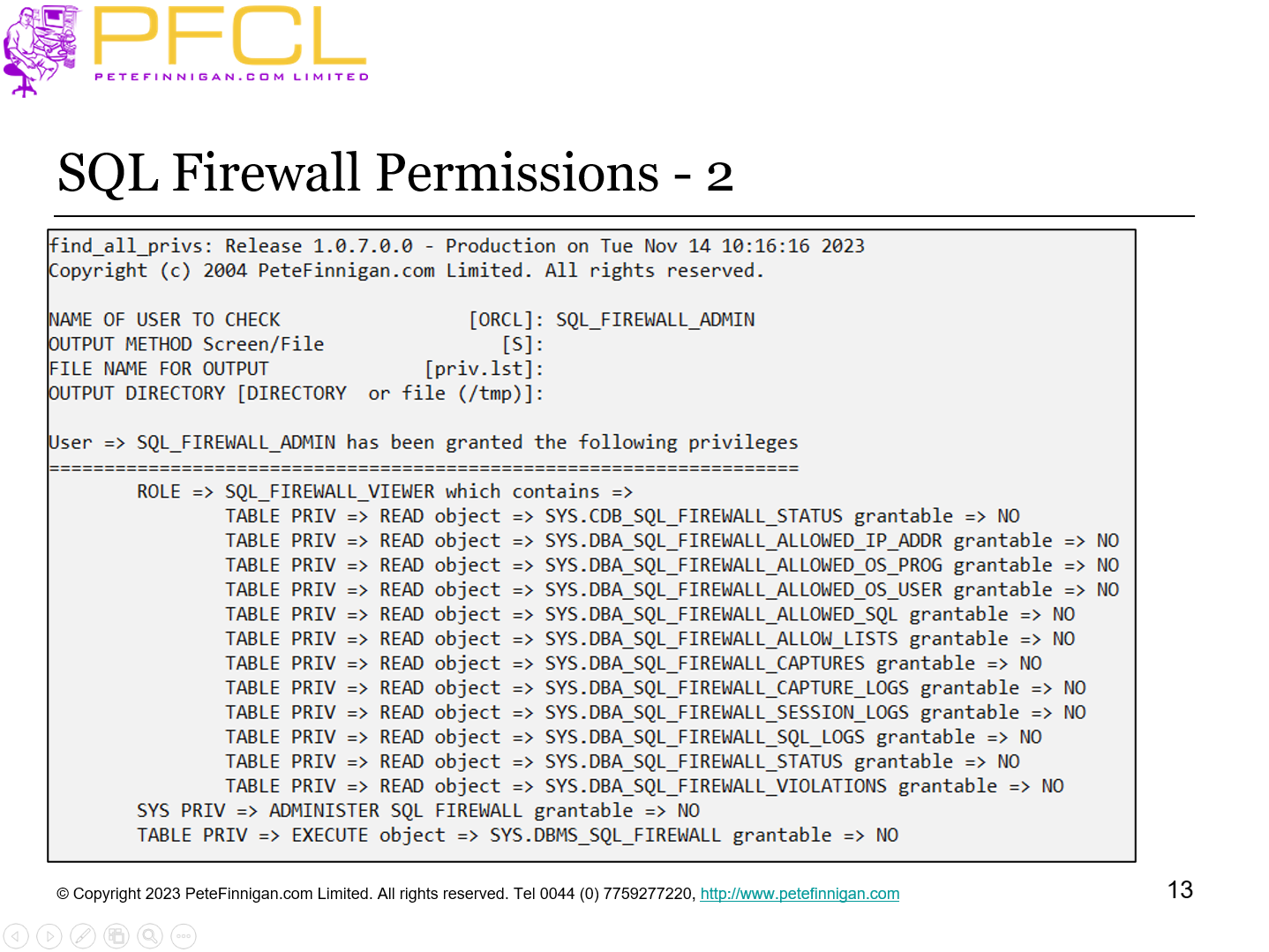

Slide 13 - SQL Firewall Permissions - 2

SQL Firewall Permissions - 2

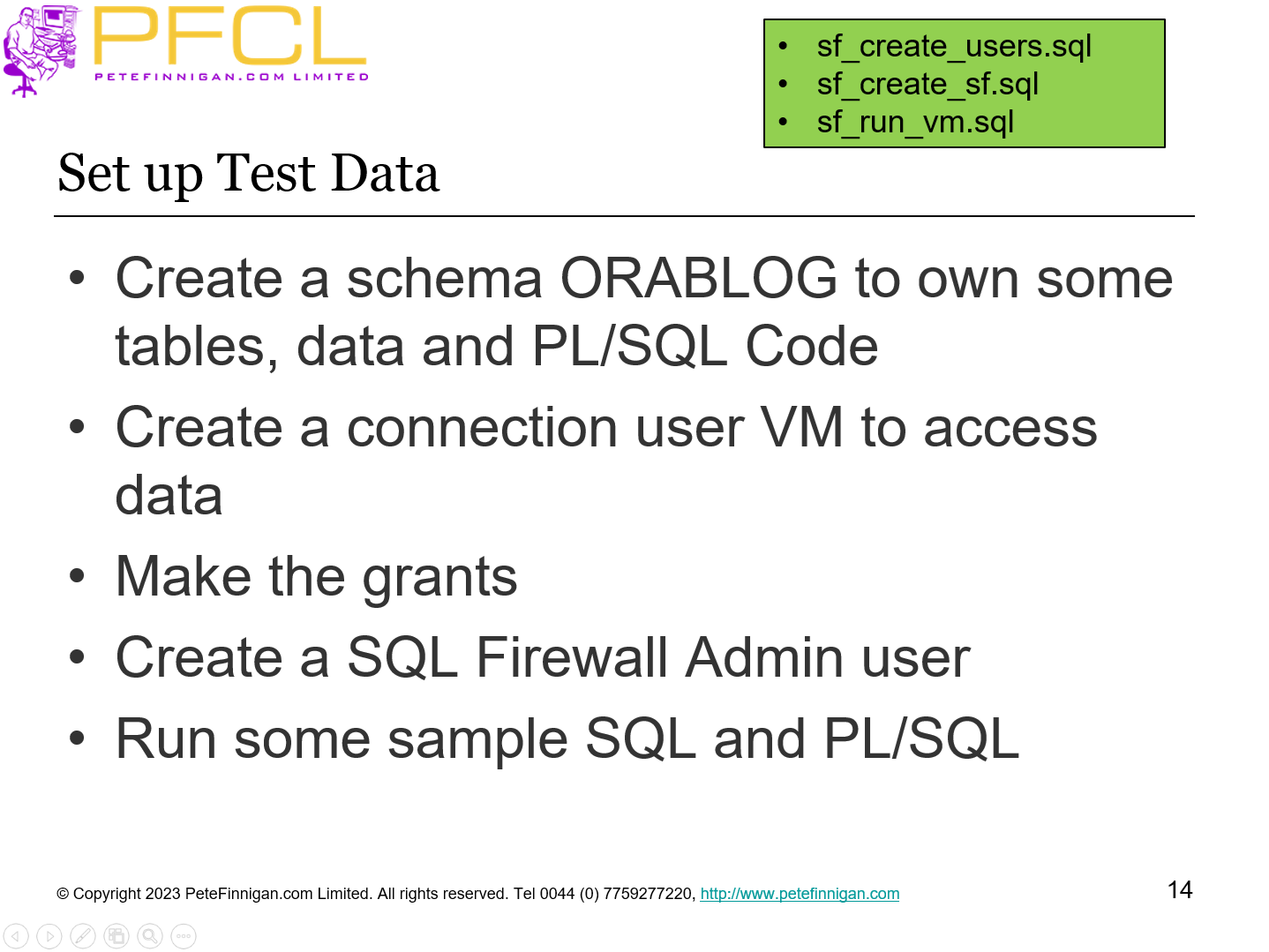

Slide 14 - Set up Test Data

Create a schema ORABLOG to own some tables, data and PL/SQL Code
Create a connection user VM to access data
Make the grants
Create a SQL Firewall Admin user
Run some sample SQL and PL/SQL

sf_create_users.sql
sf_create_sf.sql
sf_run_vm.sql

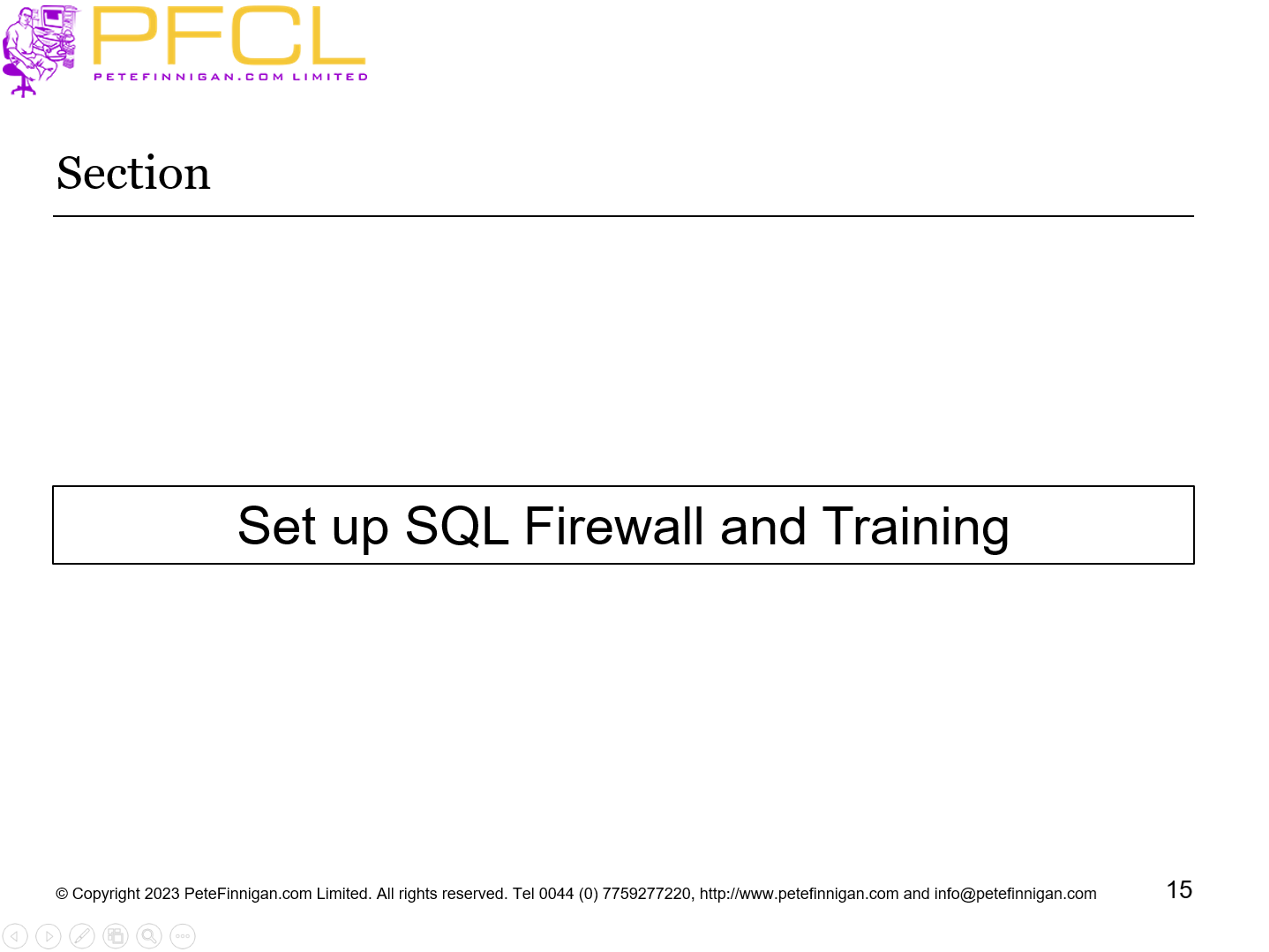

Slide 15 - Set up SQL Firewall and Training

Set up SQL Firewall and Training

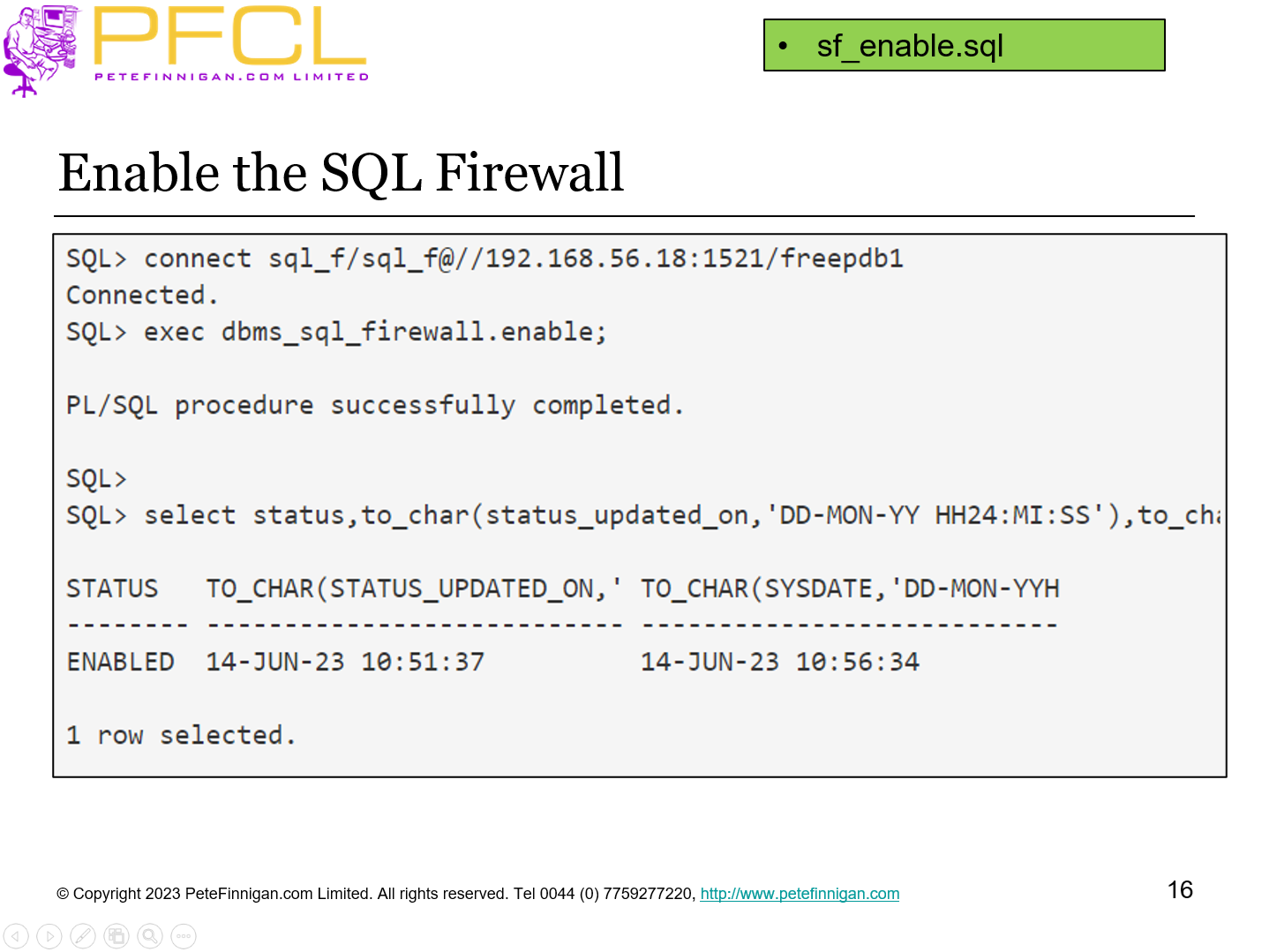

Slide 16 - Enable the SQL Firewall

sf_enable.sql

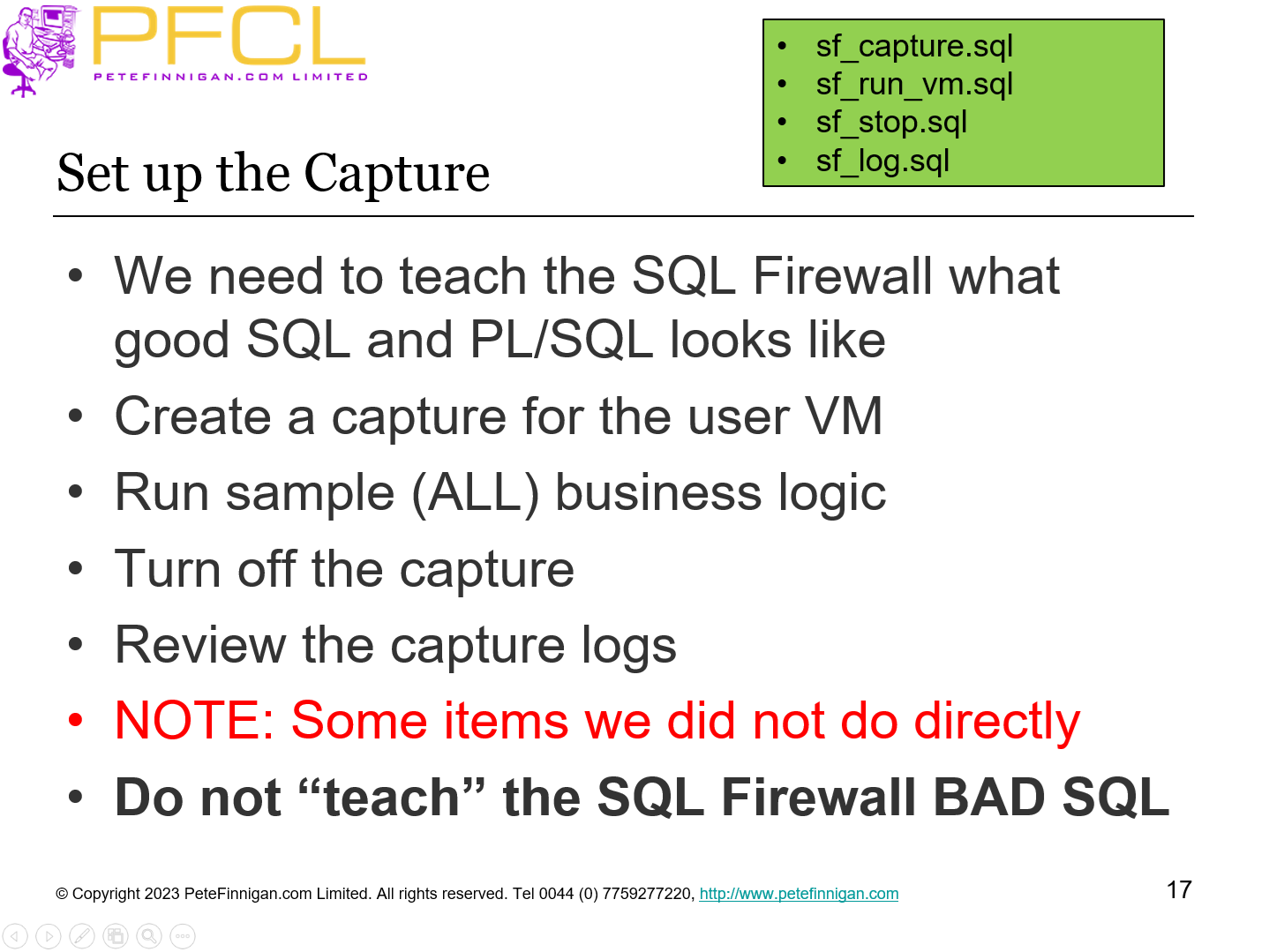

Slide 17 - Set up the Capture

We need to teach the SQL Firewall what good SQL and PL/SQL looks like
Create a capture for the user VM
Run sample (ALL) business logic
Turn off the capture
Review the capture logs
NOTE: Some items we did not do directly
Do not “teach” the SQL Firewall BAD SQL

sf_capture.sql
sf_run_vm.sql
sf_stop.sql
sf_log.sql

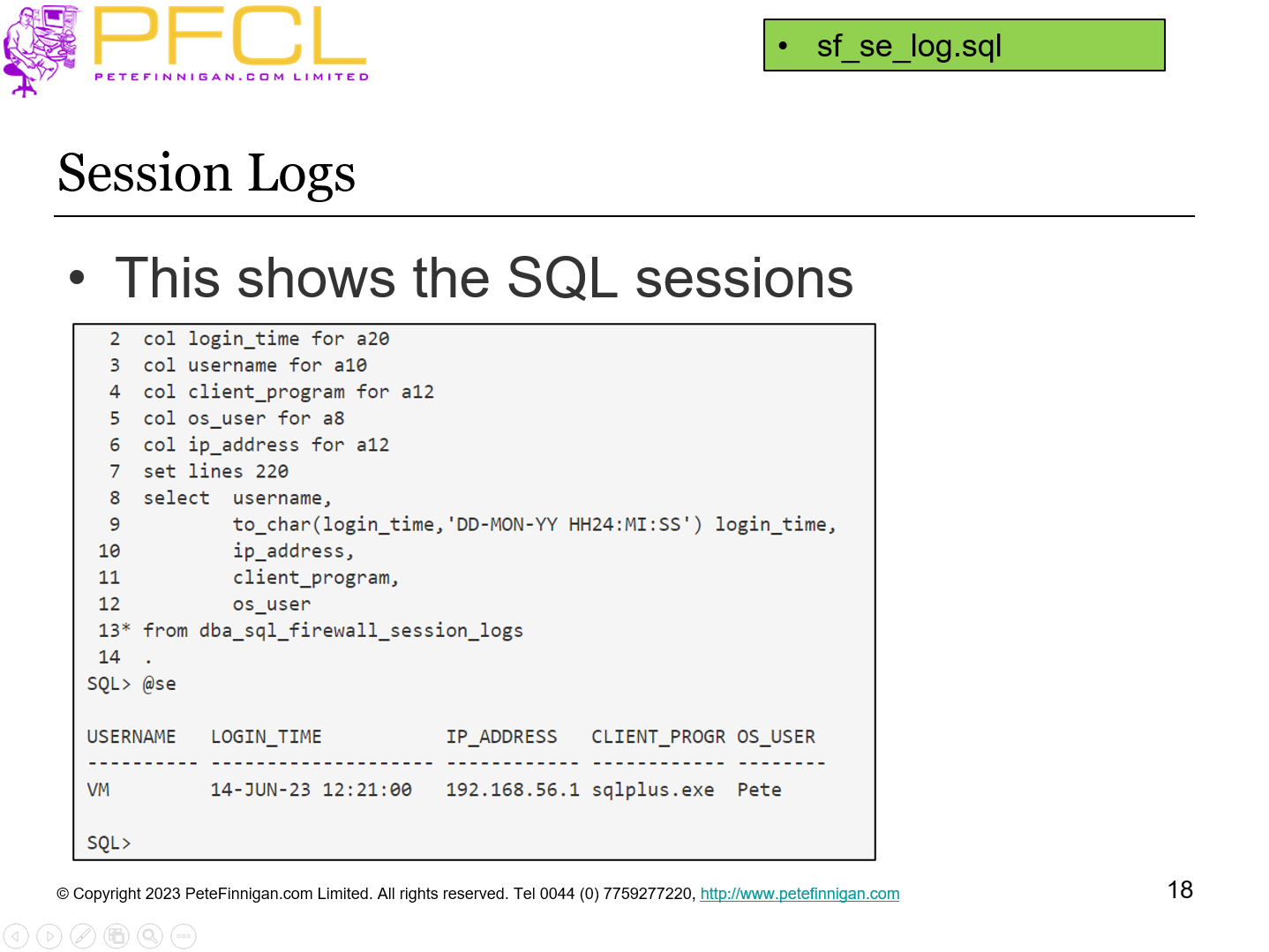

Slide 18 - Session Logs

This shows the SQL sessions

sf_se_log.sql

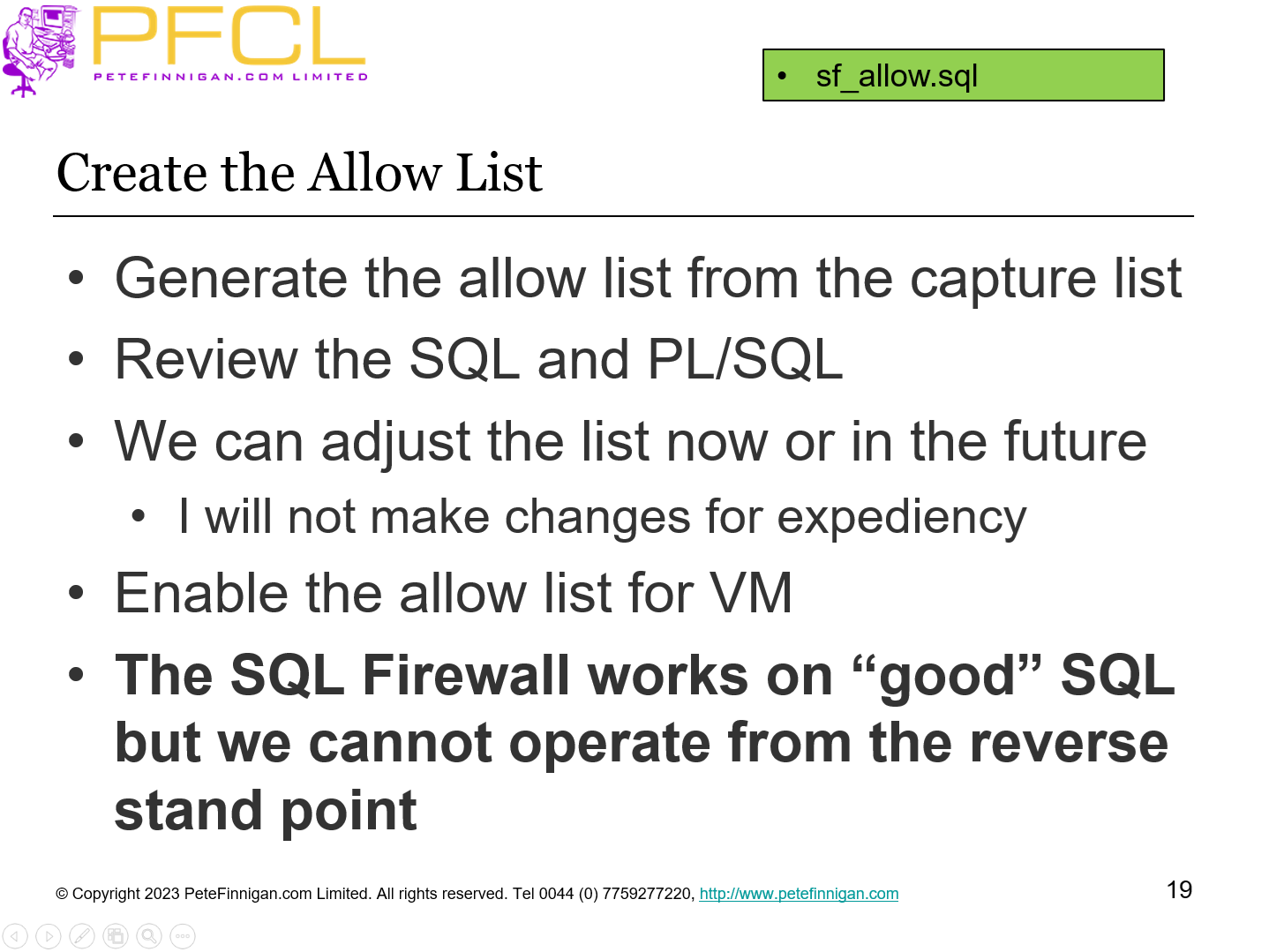

Slide 19 - Create the Allow List

Generate the allow list from the capture list
Review the SQL and PL/SQL
We can adjust the list now or in the future
I will not make changes for expediency
Enable the allow list for VM
The SQL Firewall works on “good” SQL but we cannot operate from the reverse stand point

sf_allow.sql

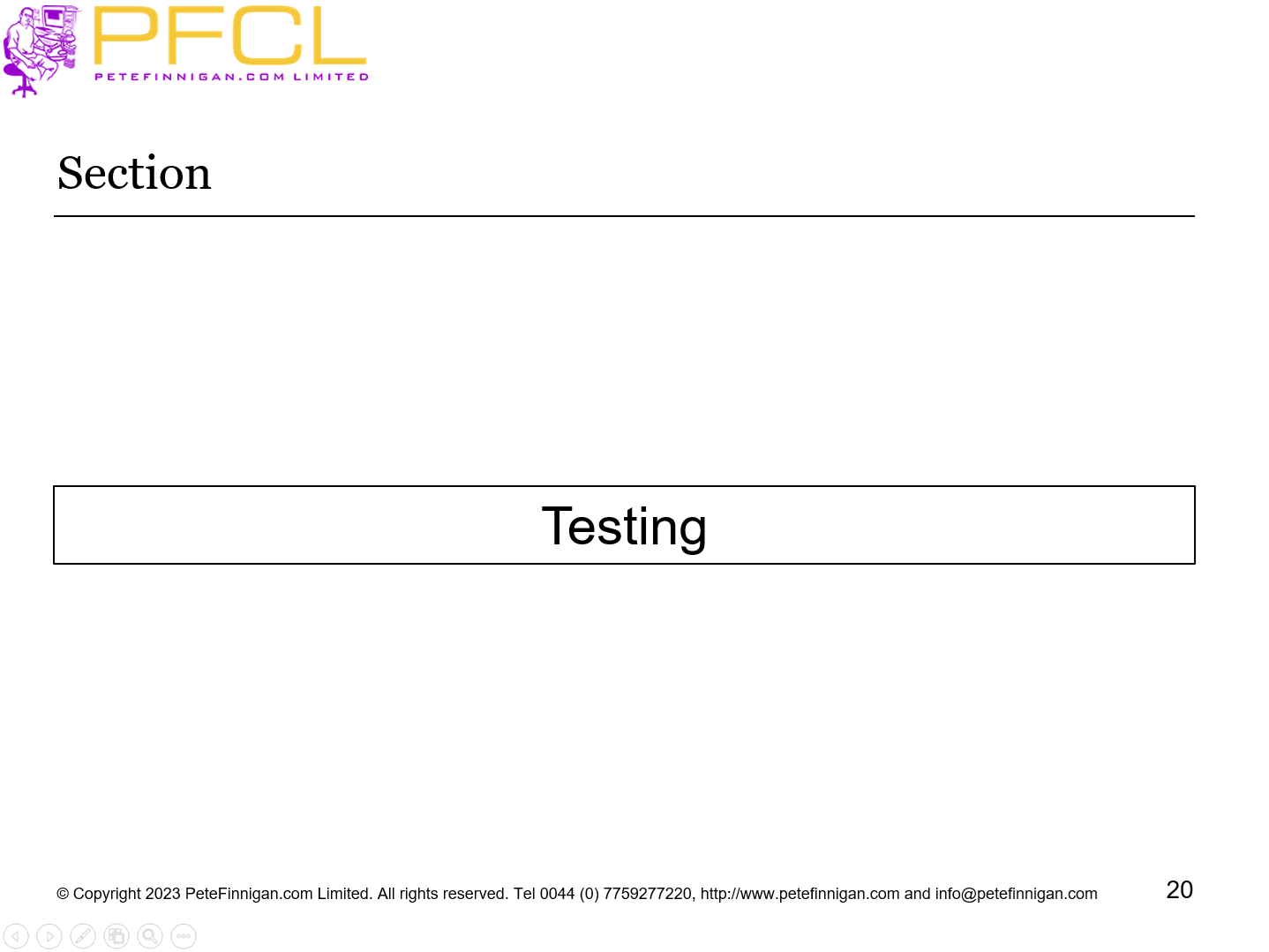

Slide 20 - Testing

Testing

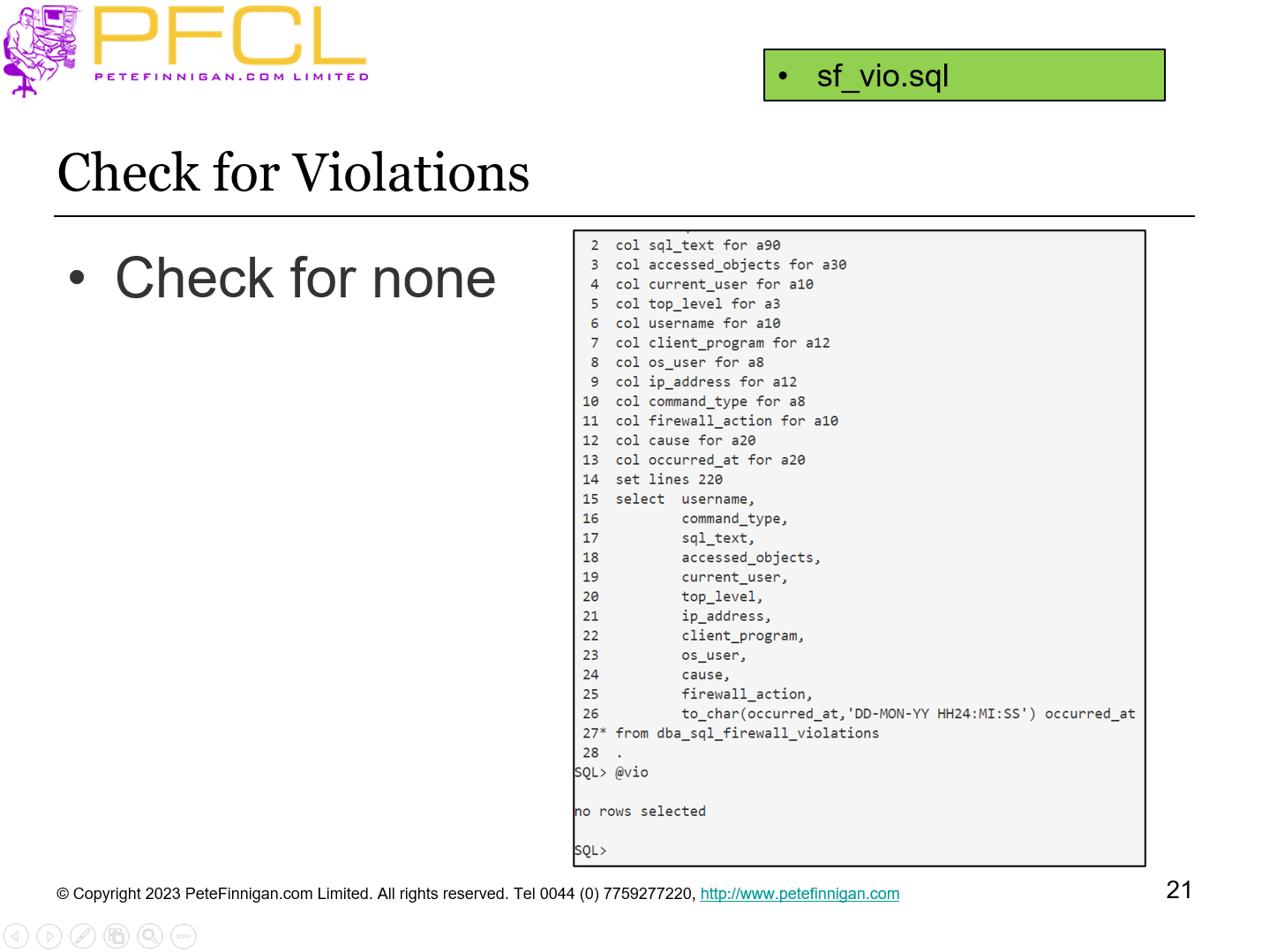

Slide 21 - Check for Violations

Check for none

sf_vio.sql

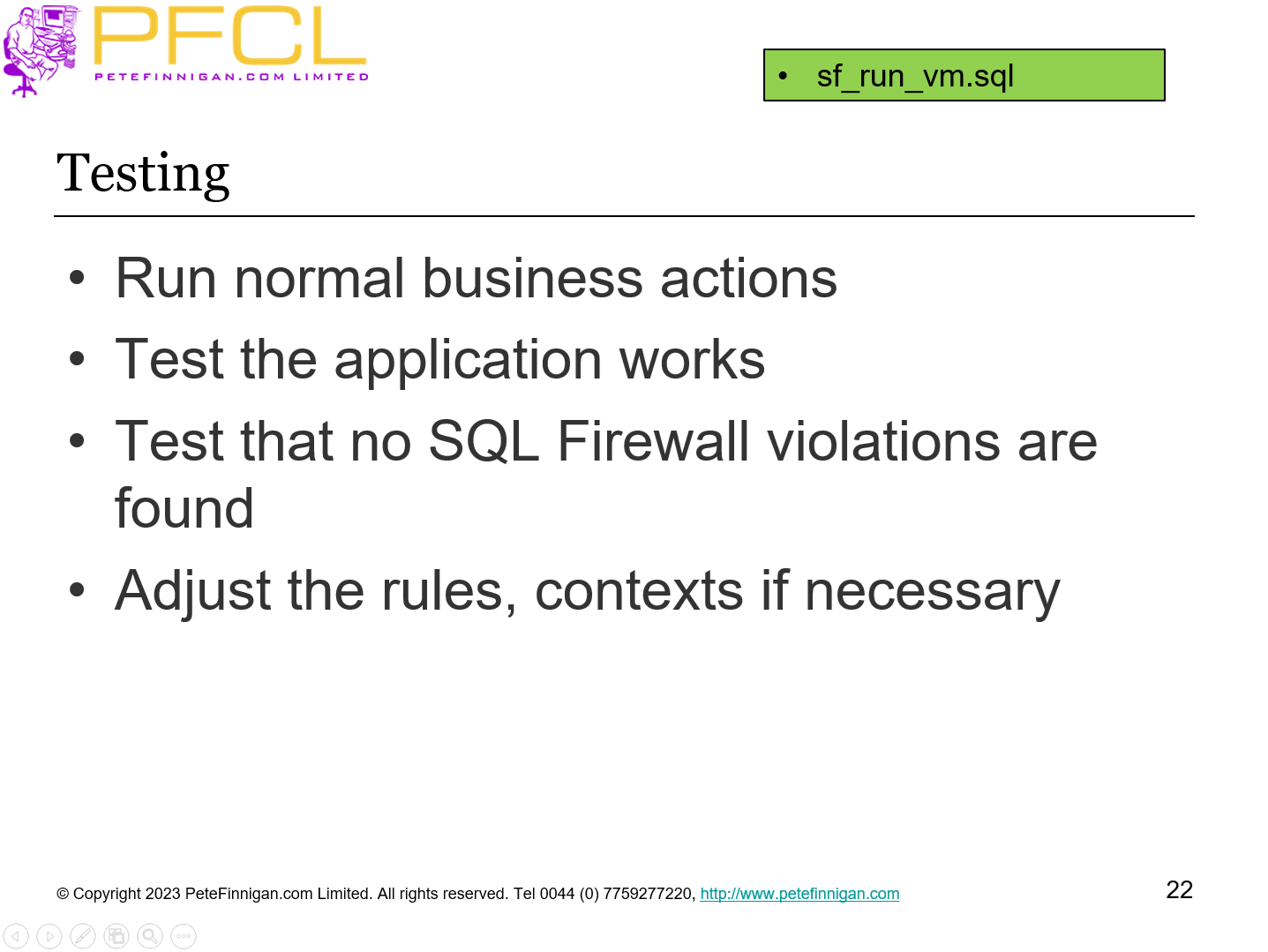

Slide 22 - Testing

Run normal business actions
Test the application works
Test that no SQL Firewall violations are found
Adjust the rules, contexts if necessary

sf_run_vm.sql

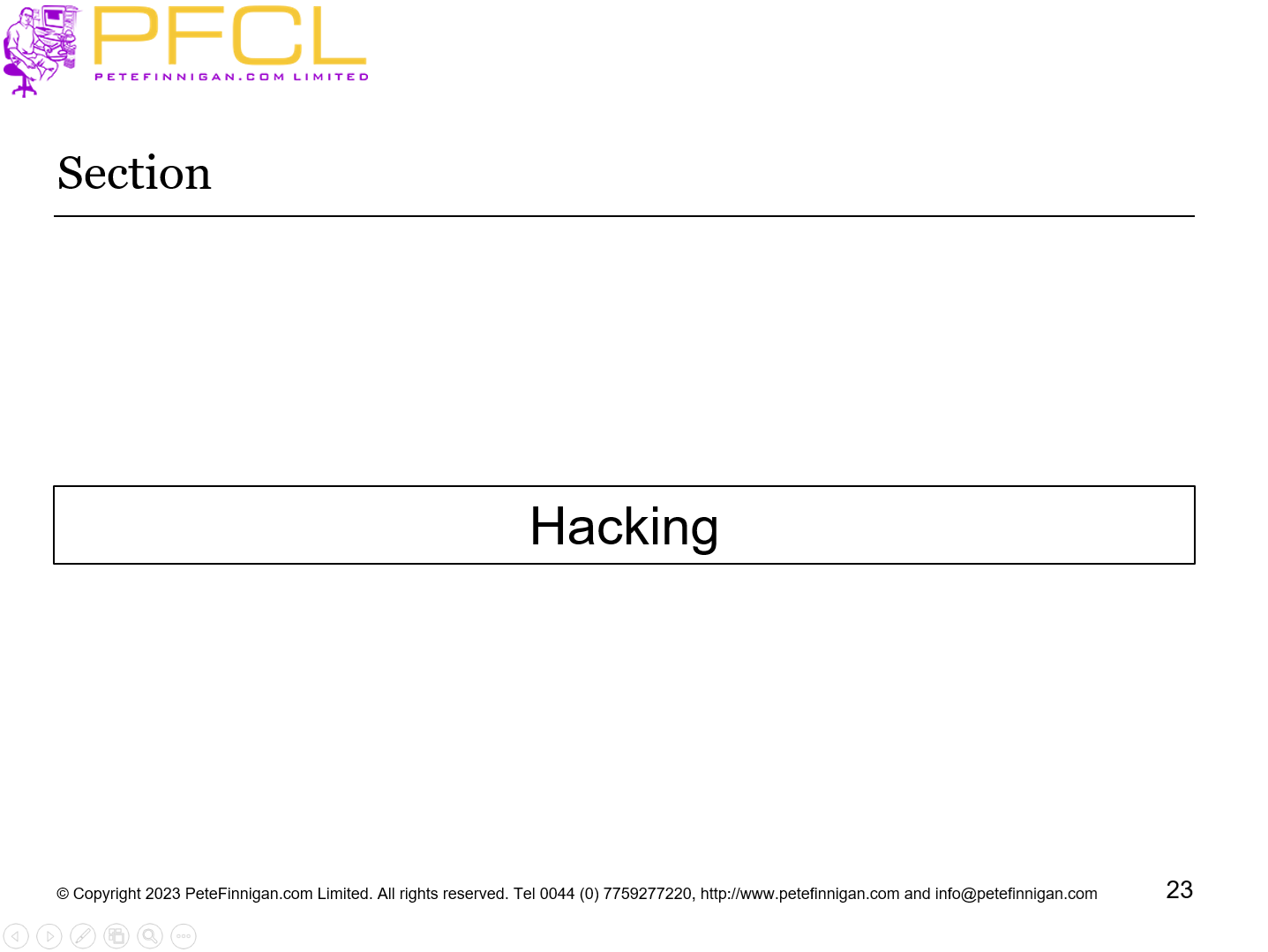

Slide 23 - Hacking

Hacking

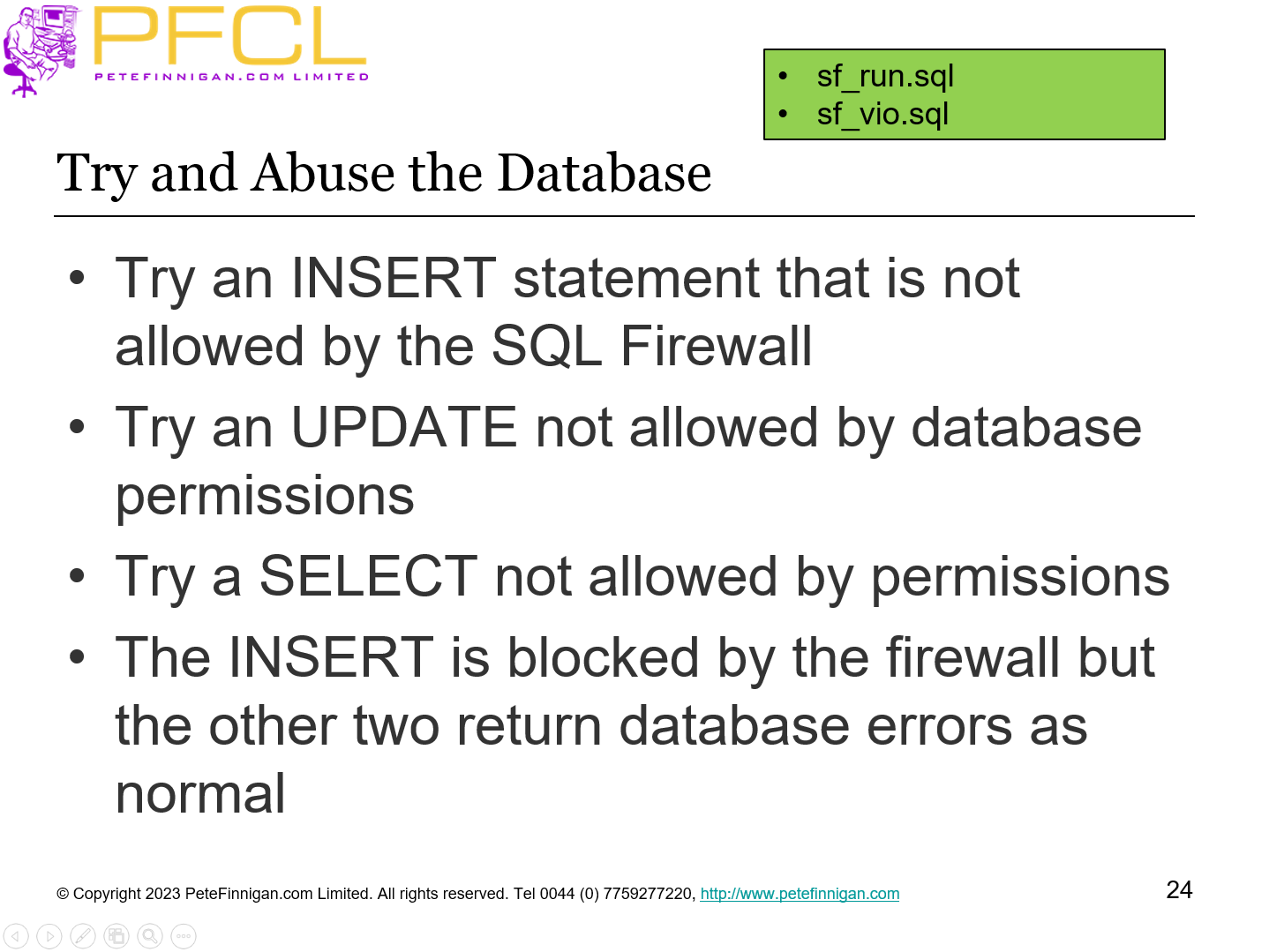

Slide 24 - Try and Abuse the Database

Try an INSERT statement that is not allowed by the SQL Firewall
Try an UPDATE not allowed by database permissions
Try a SELECT not allowed by permissions
The INSERT is blocked by the firewall but the other two return database errors as normal

sf_run.sql
sf_vio.sql

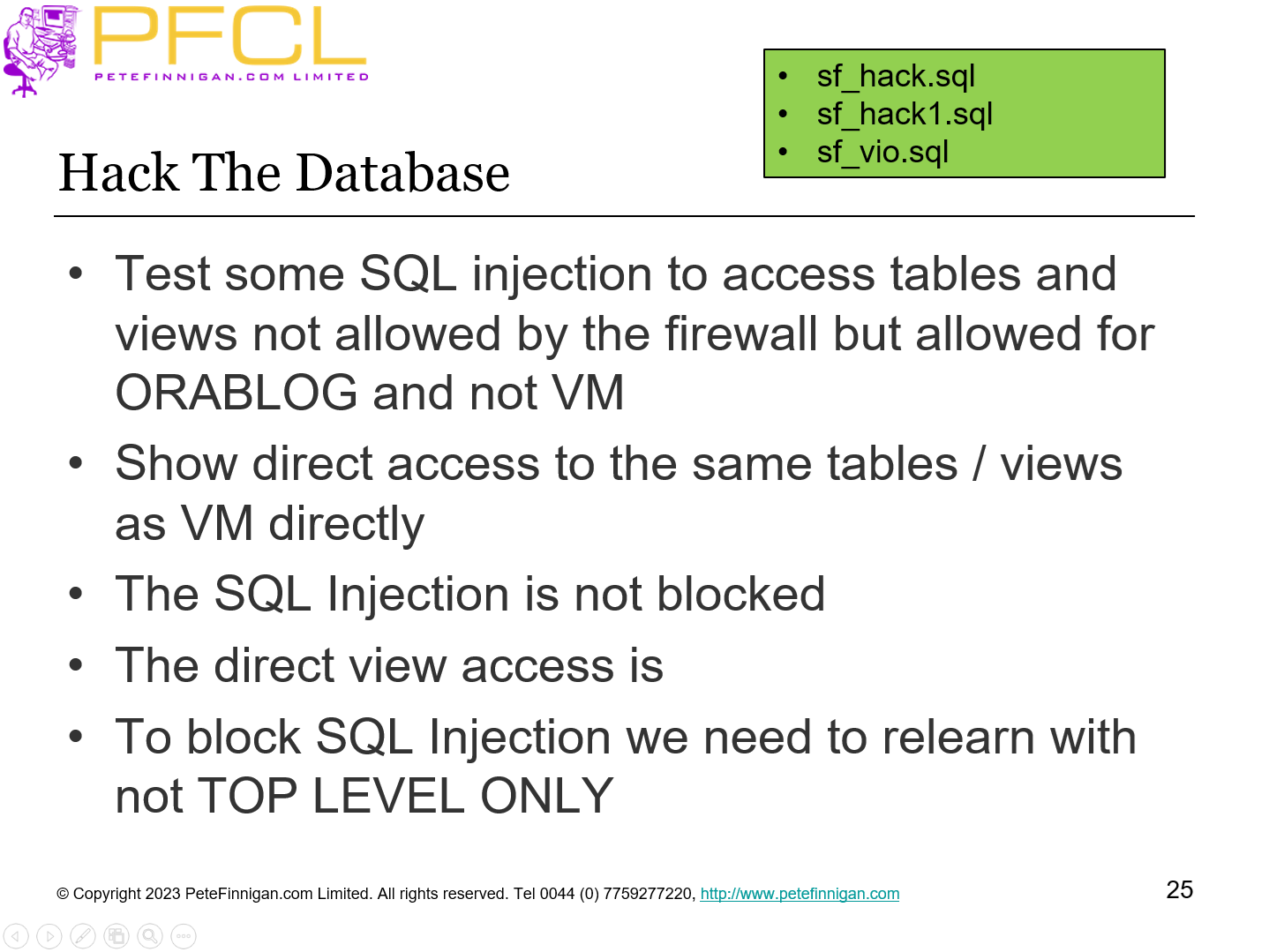

Slide 25 - Hack The Database

Test some SQL injection to access tables and views not allowed by the firewall but allowed for ORABLOG and not VM
Show direct access to the same tables / views as VM directly
The SQL Injection is not blocked
The direct view access is
To block SQL Injection we need to relearn with not TOP LEVEL ONLY

sf_hack.sql
sf_hack1.sql
sf_vio.sql

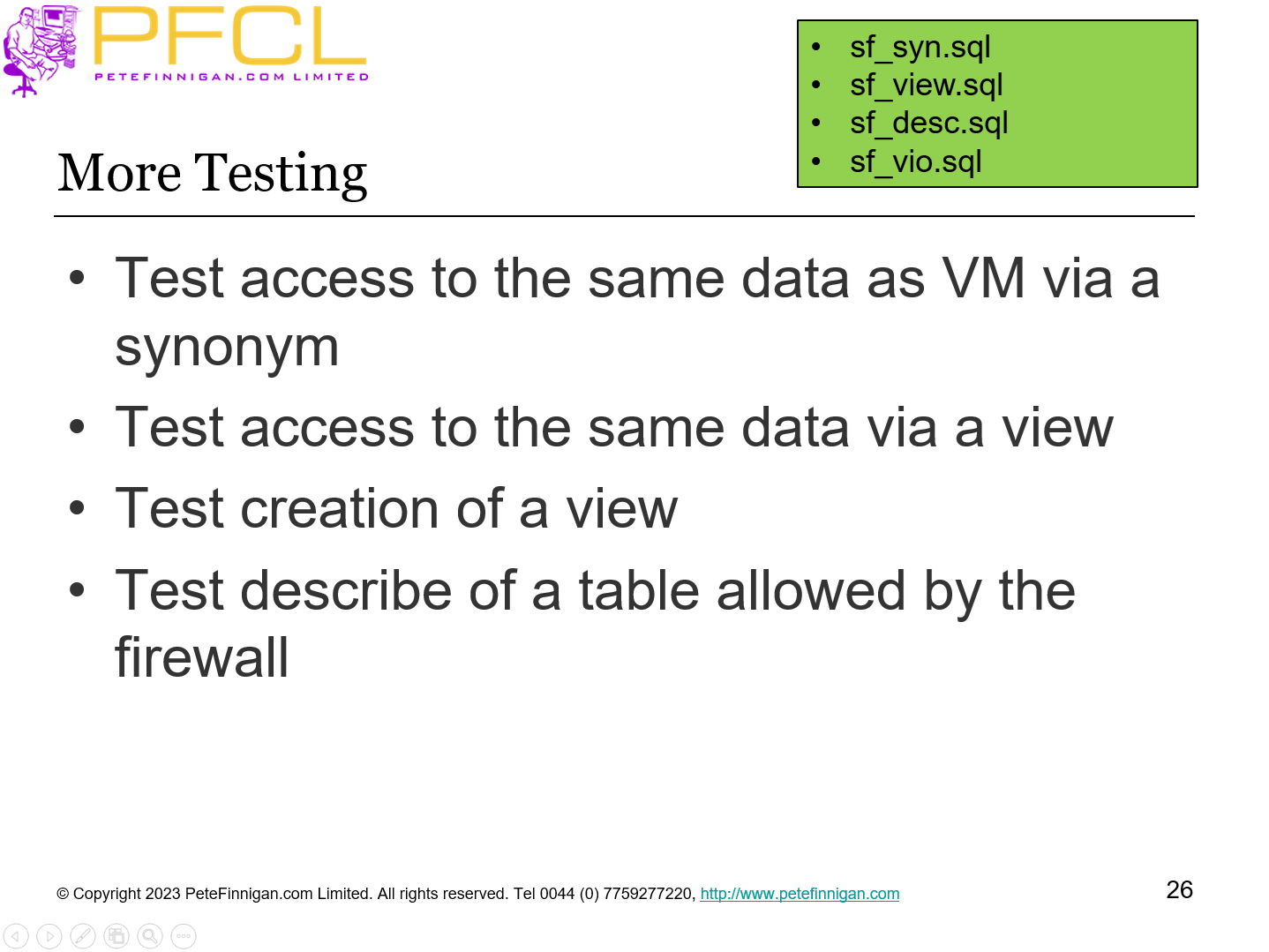

Slide 26 - More Testing

Test access to the same data as VM via a synonym
Test access to the same data via a view
Test creation of a view
Test describe of a table allowed by the firewall

sf_syn.sql
sf_view.sql
sf_desc.sql
sf_vio.sql

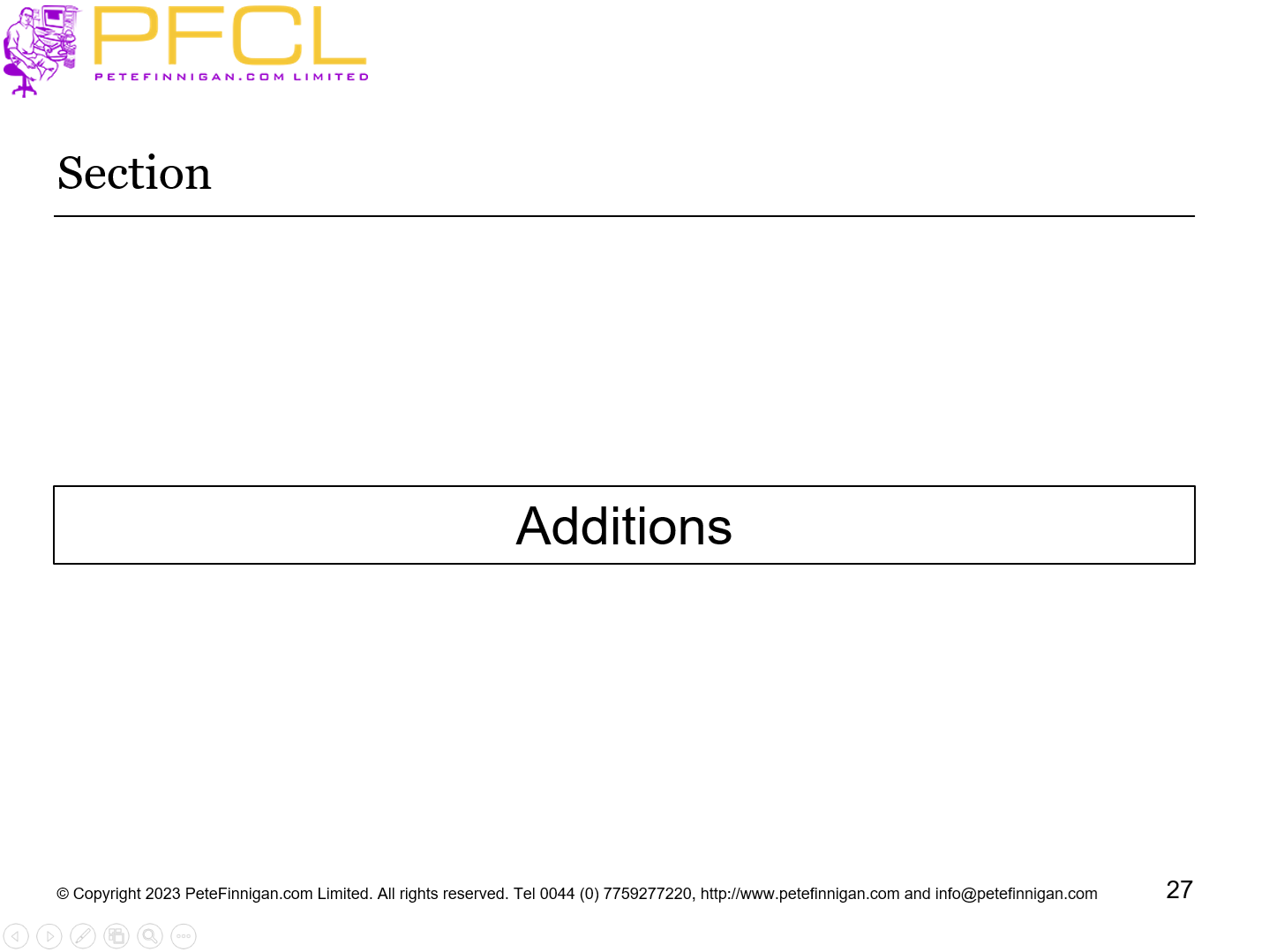

Slide 27 - Additions

Additions

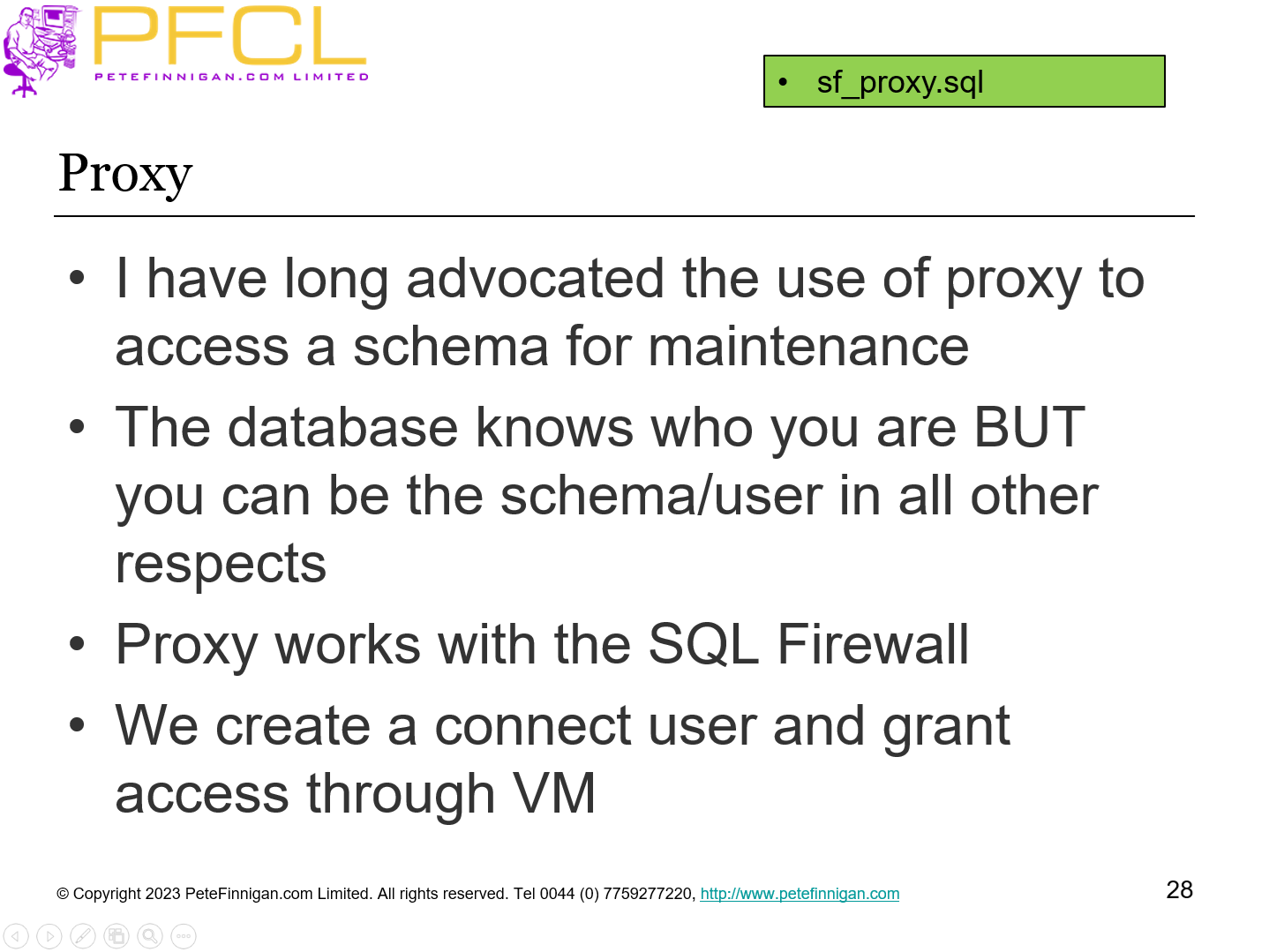

Slide 28 - Proxy

I have long advocated the use of proxy to access a schema for maintenance
The database knows who you are BUT you can be the schema/user in all other respects
Proxy works with the SQL Firewall
We create a connect user and grant access through VM

sf_proxy.sql

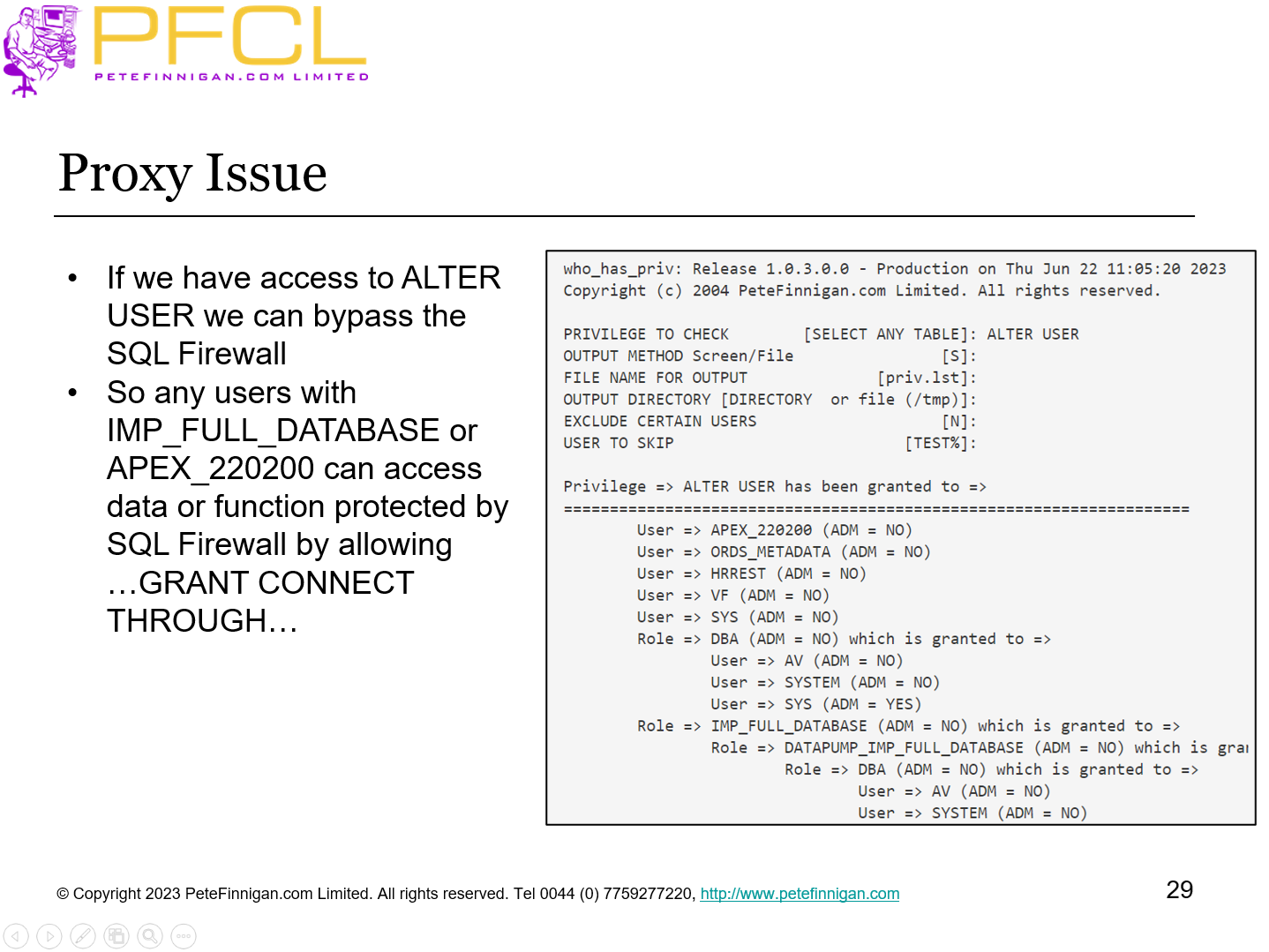

Slide 29 - Proxy Issue

If we have access to ALTER USER we can bypass the SQL Firewall
So any users with IMP_FULL_DATABASE or APEX_220200 can access data or function protected by SQL Firewall by allowing …GRANT CONNECT THROUGH…

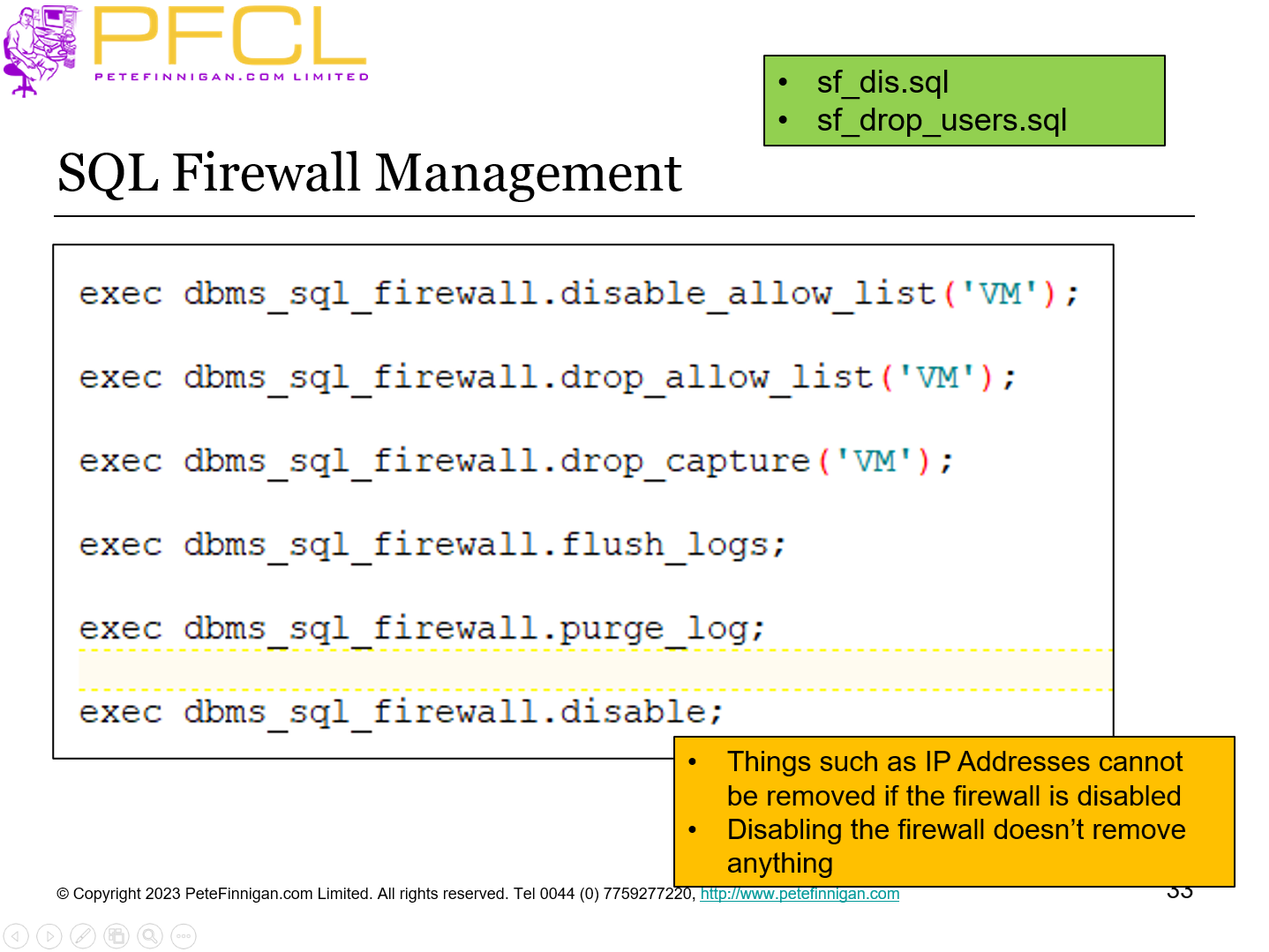

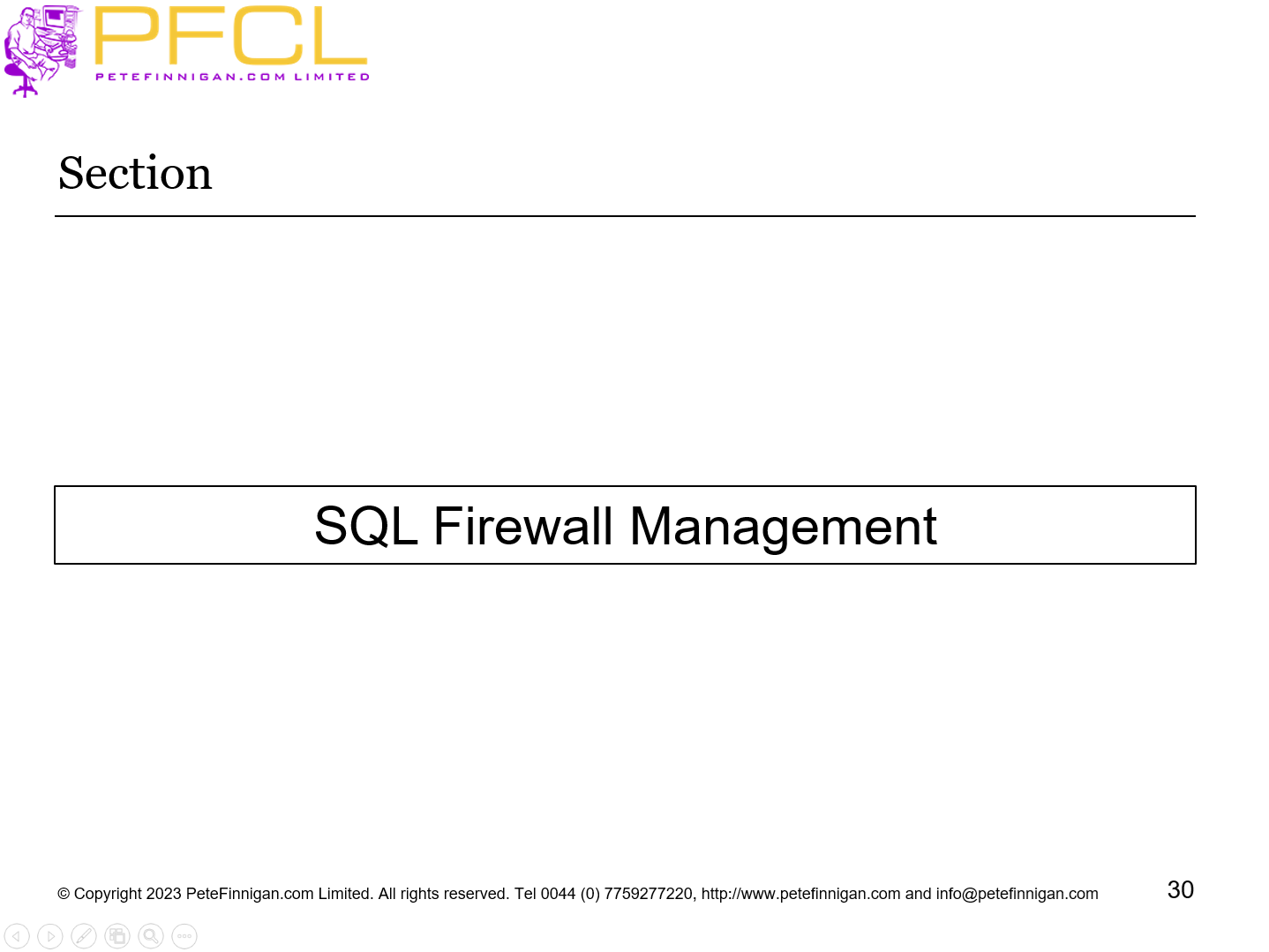

Slide 30 - SQL Firewall Management
