Top 10 Things to Security Review in an Oracle Database

This is my presentation to the UKOUG in december 2024 on the Top 10 Things to Security Review in an Oracle Database.

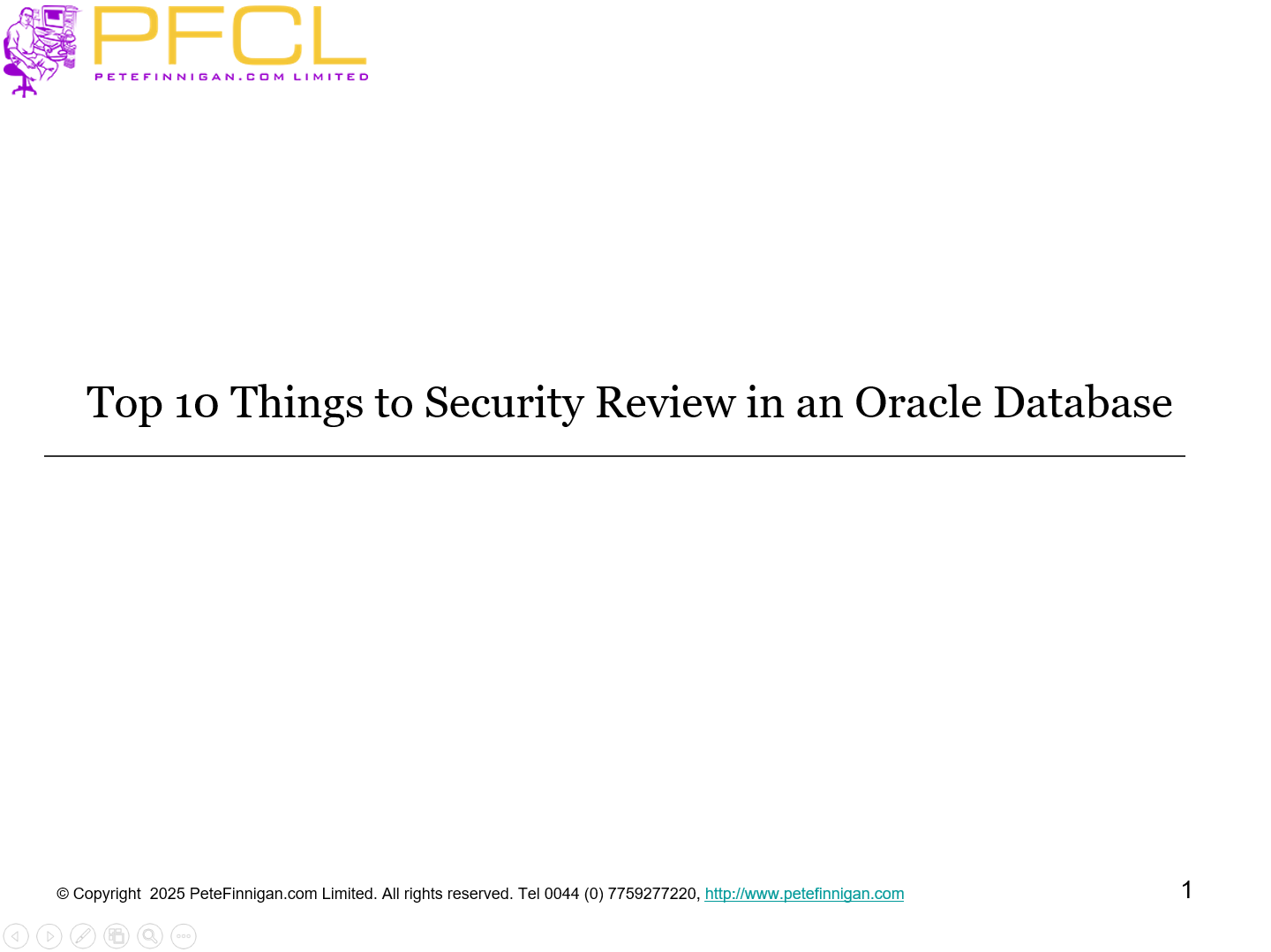

Slide 1 - Top 10 Things to Security Review in an Oracle Database

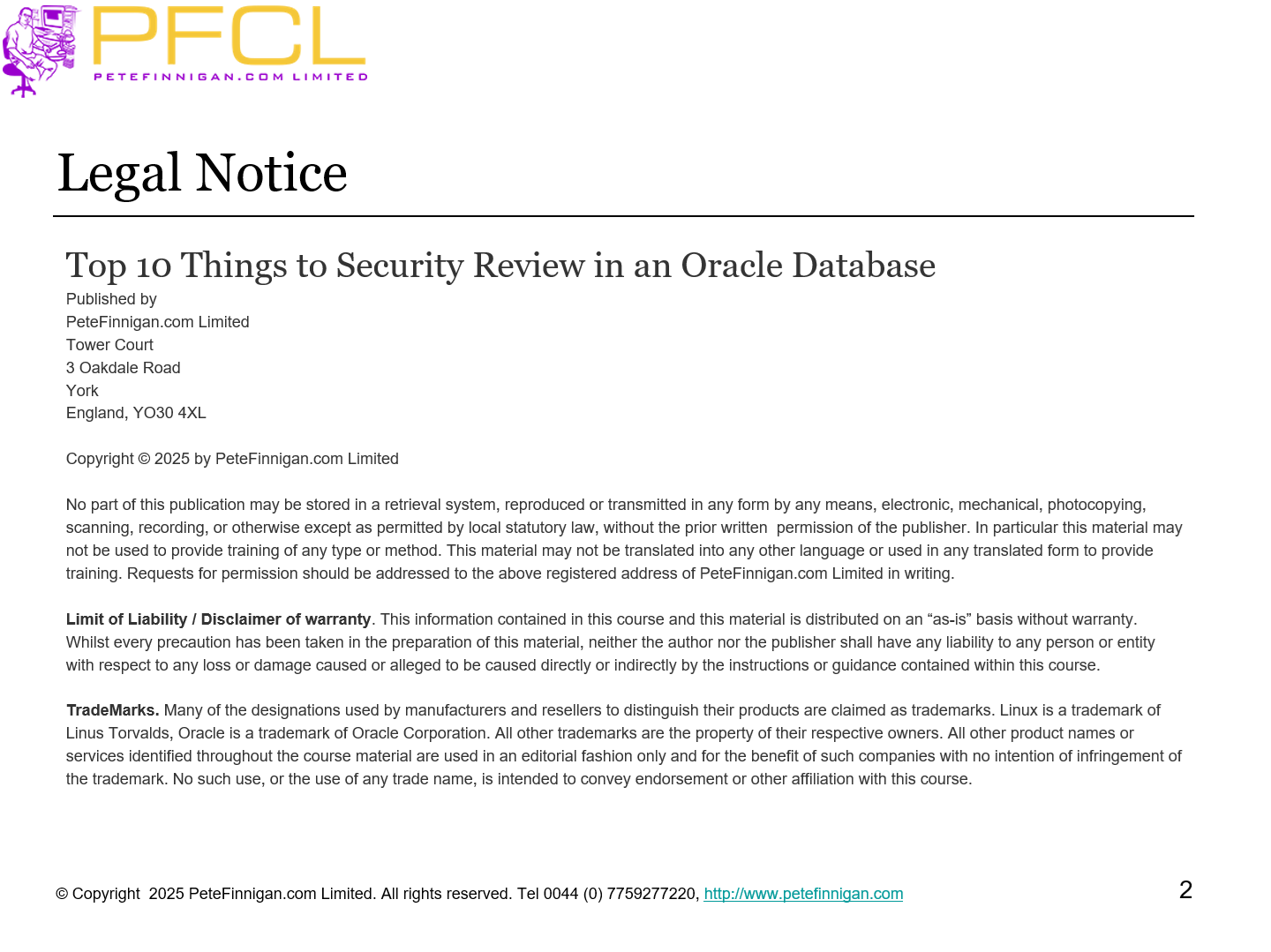

Slide 2 - Legal notice

Top 10 Things to Security Review in an Oracle Database

Published by
PeteFinnigan.com Limited
Tower Court
3 Oakdale Road
York
England, YO30 4XL

Copyright © 2025 by PeteFinnigan.com Limited

No part of this publication may be stored in a retrieval system, reproduced or transmitted in any form by any means, electronic, mechanical, photocopying, scanning, recording, or otherwise except as permitted by local statutory law, without the prior written permission of the publisher. In particular this material may not be used to provide training of any type or method. This material may not be translated into any other language or used in any translated form to provide training. Requests for permission should be addressed to the above registered address of PeteFinnigan.com Limited in writing.

Limit of Liability / Disclaimer of warranty. This information contained in this course and this material is distributed on an “as-is” basis without warranty. Whilst every precaution has been taken in the preparation of this material, neither the author nor the publisher shall have any liability to any person or entity with respect to any loss or damage caused or alleged to be caused directly or indirectly by the instructions or guidance contained within this course.

TradeMarks. Many of the designations used by manufacturers and resellers to distinguish their products are claimed as trademarks. Linux is a trademark of Linus Torvalds, Oracle is a trademark of Oracle Corporation. All other trademarks are the property of their respective owners. All other product names or services identified throughout the course material are used in an editorial fashion only and for the benefit of such companies with no intention of infringement of the trademark. No such use, or the use of any trade name, is intended to convey endorsement or other affiliation with this course.

Slide 3 - Background

Pete Finnigan – Background, Who Am I?

Oracle Security specialist and researcher
CEO and founder of PeteFinnigan.com Limited in February 2003
Writer of the longest running Oracle security blog
Author of the Oracle Security step-by-step guide and “Oracle Expert Practices”, “Oracle Incident Response and Forensics” books
Oracle ACE for security
Member of the OakTable, SYM 42
Speaker at various conferences UKOUG, PSOUG, BlackHat, more..
Published many times, see http://www.petefinnigan.com for links

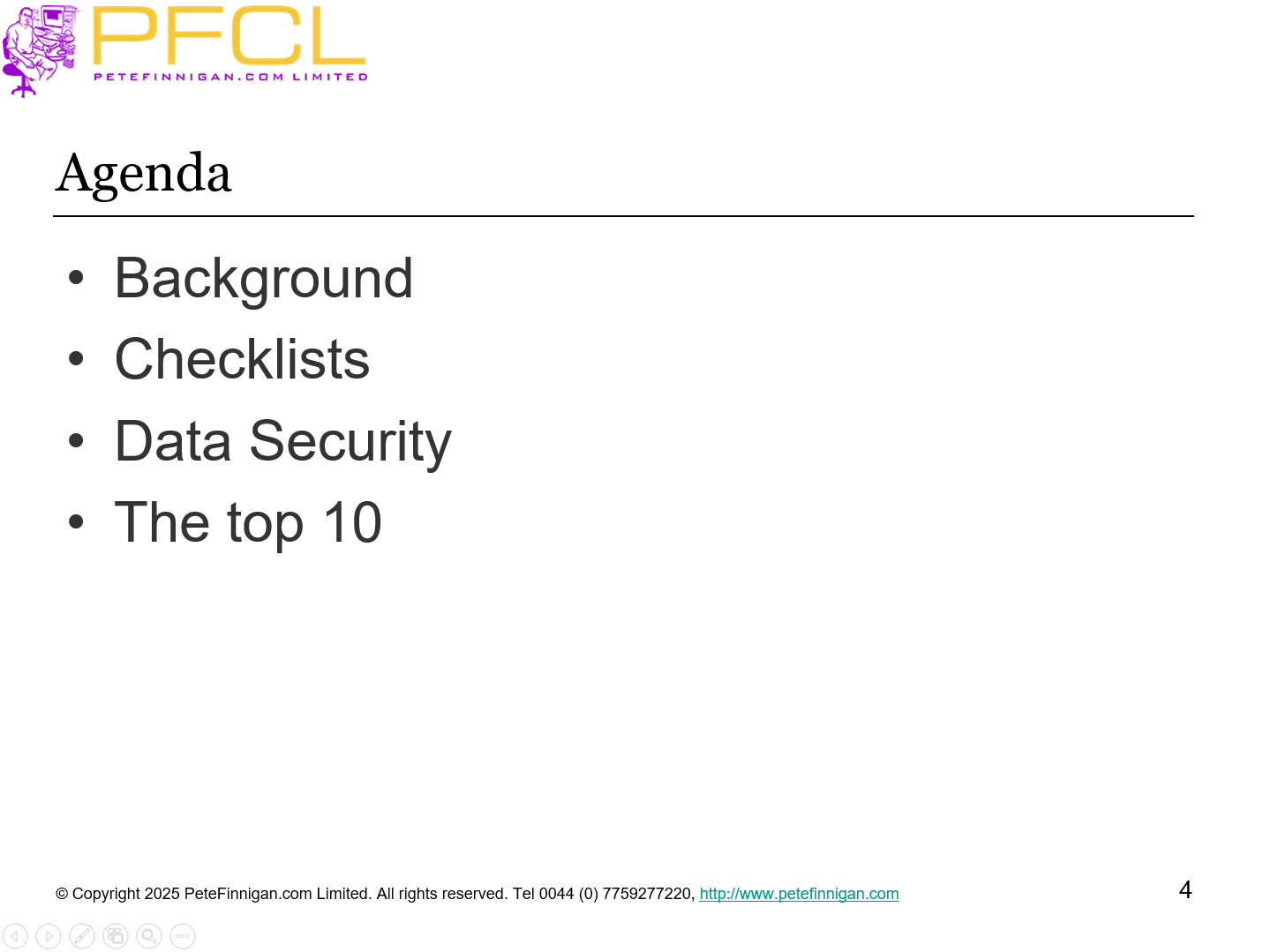

Slide 4 - Agenda

Background
Checklists
Data Security
The top 10

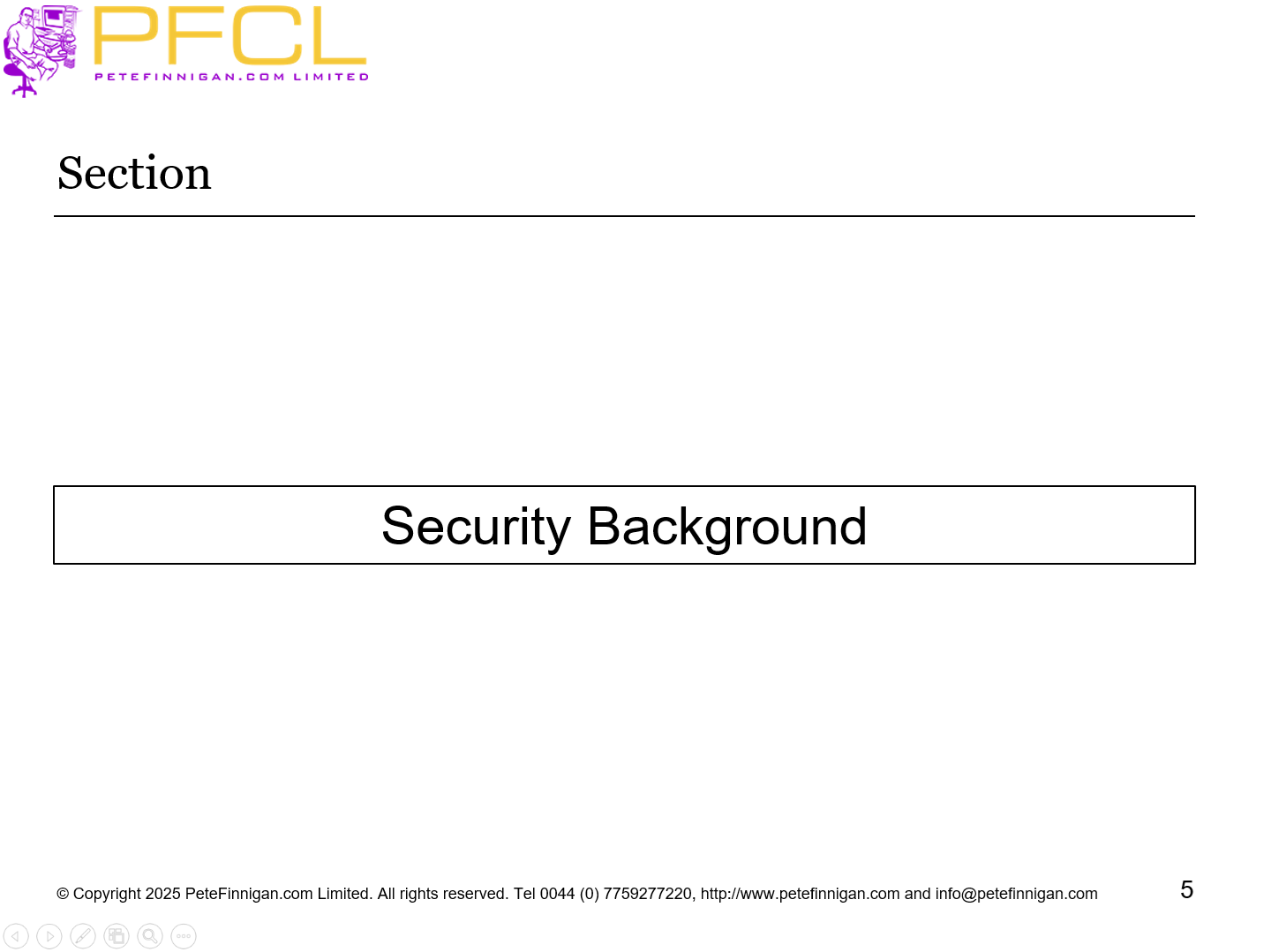

Slide 5 - Security Background

Security Background

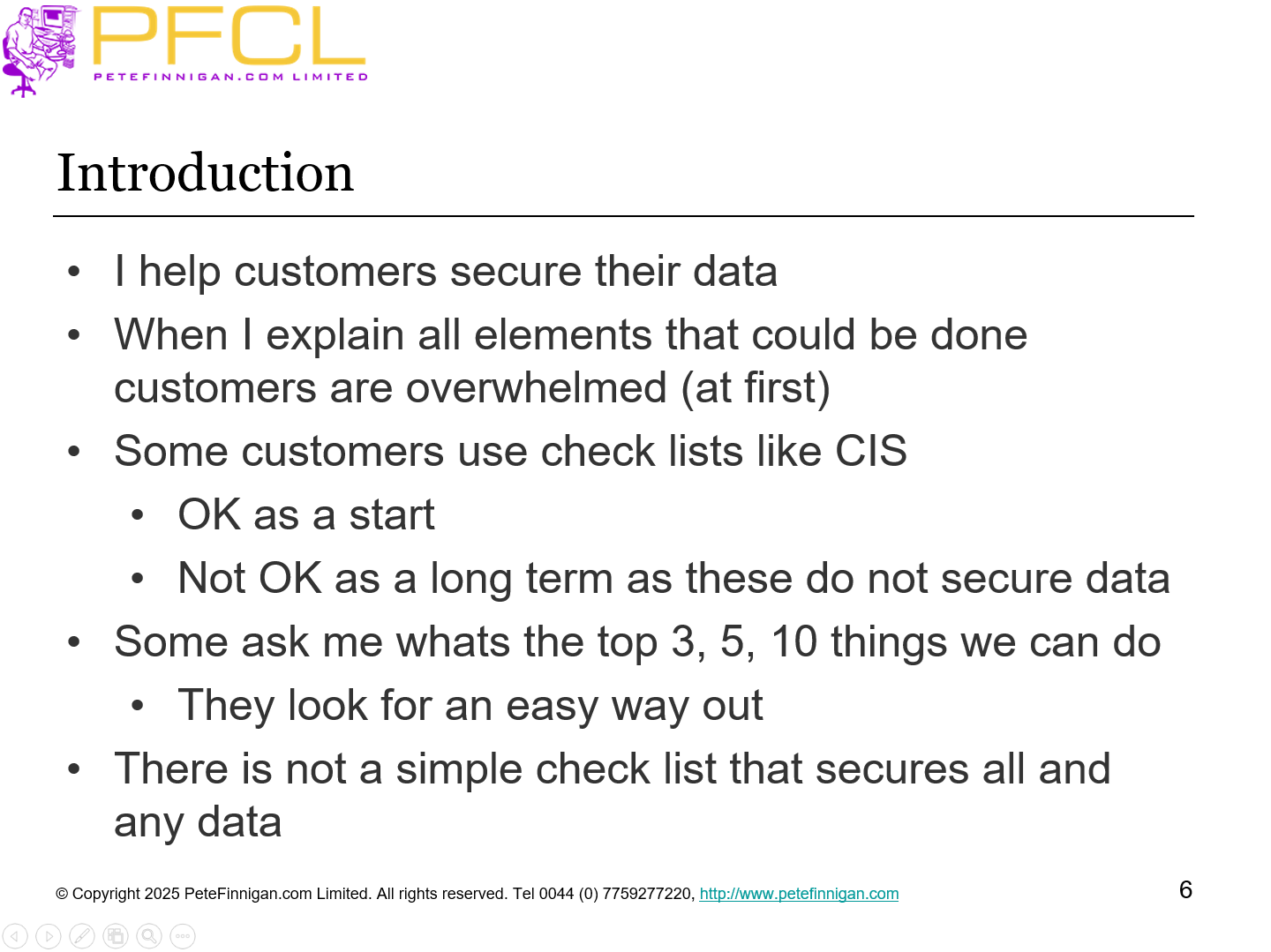

Slide 6 - Introduction

I help customers secure their data
When I explain all elements that could be done customers are overwhelmed (at first)
Some customers use check lists like CIS
OK as a start
Not OK as a long term as these do not secure data
Some ask me whats the top 3, 5, 10 things we can do
They look for an easy way out
There is not a simple check list that secures all and any data

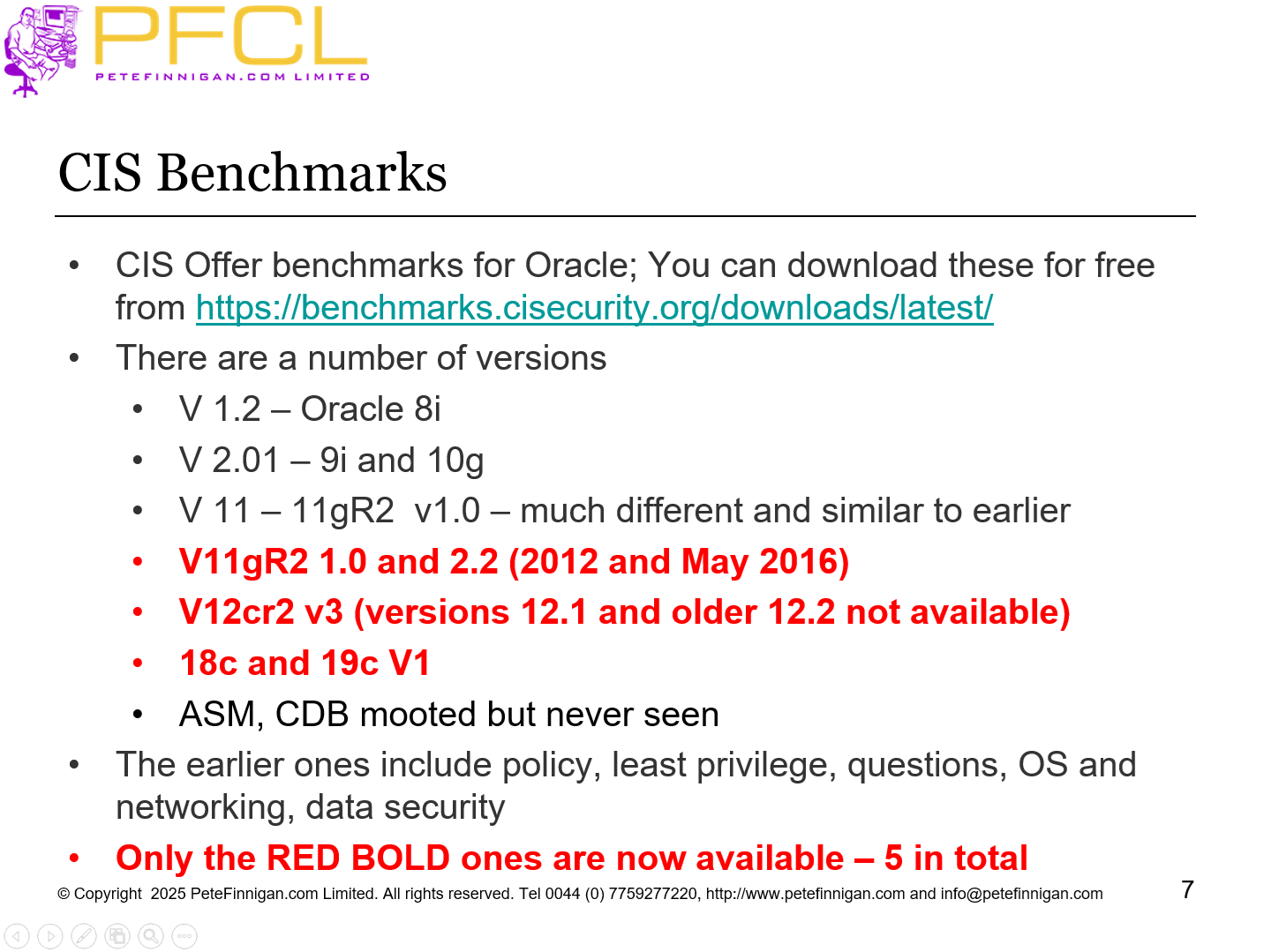

Slide 7 - CIS Benchmarks

CIS Offer benchmarks for Oracle; You can download these for free from https://benchmarks.cisecurity.org/downloads/latest/
There are a number of versions
V 1.2 – Oracle 8i
V 2.01 – 9i and 10g
V 11 – 11gR2 v1.0 – much different and similar to earlier
V11gR2 1.0 and 2.2 (2012 and May 2016)
V12cr2 v3 (versions 12.1 and older 12.2 not available)
18c and 19c V1
ASM, CDB mooted but never seen
The earlier ones include policy, least privilege, questions, OS and networking, data security
Only the RED BOLD ones are now available – 5 in total

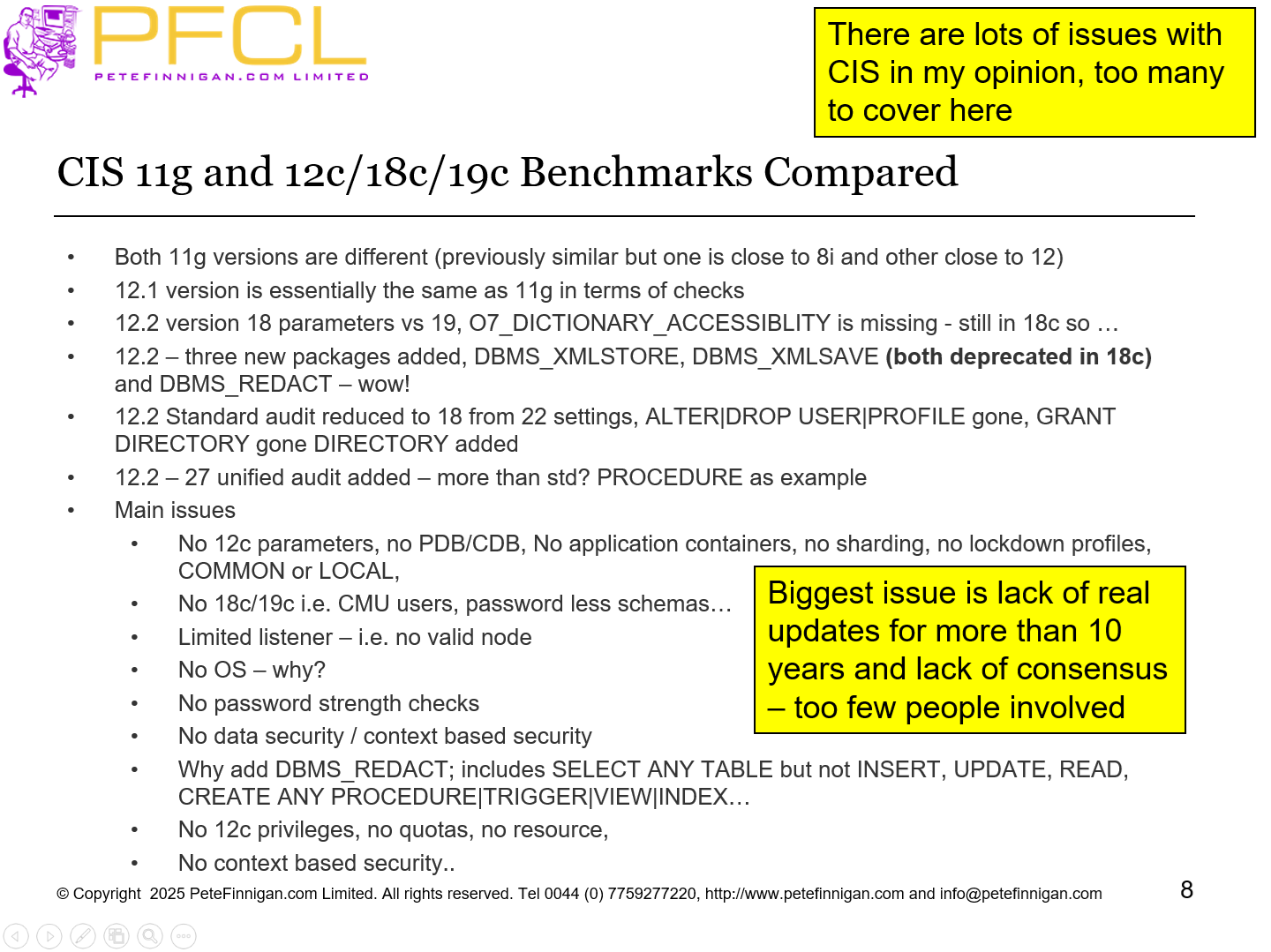

Slide 8 - CIS 11g and 12c/18c/19c Benchmarks Compared

Both 11g versions are different (previously similar but one is close to 8i and other close to 12)
12.1 version is essentially the same as 11g in terms of checks
12.2 version 18 parameters vs 19, O7_DICTIONARY_ACCESSIBLITY is missing - still in 18c so …
12.2 – three new packages added, DBMS_XMLSTORE, DBMS_XMLSAVE (both deprecated in 18c) and DBMS_REDACT – wow!
12.2 Standard audit reduced to 18 from 22 settings, ALTER|DROP USER|PROFILE gone, GRANT DIRECTORY gone DIRECTORY added
12.2 – 27 unified audit added – more than std? PROCEDURE as example
Main issues
No 12c parameters, no PDB/CDB, No application containers, no sharding, no lockdown profiles, COMMON or LOCAL,
No 18c/19c i.e. CMU users, password less schemas…
Limited listener – i.e. no valid node
No OS – why?
No password strength checks
No data security / context based security
Why add DBMS_REDACT; includes SELECT ANY TABLE but not INSERT, UPDATE, READ, CREATE ANY PROCEDURE|TRIGGER|VIEW|INDEX…
No 12c privileges, no quotas, no resource,
No context based security..

There are lots of issues with CIS in my opinion, too many to cover here

Biggest issue is lack of real updates for more than 10 years and lack of consensus – too few people involved

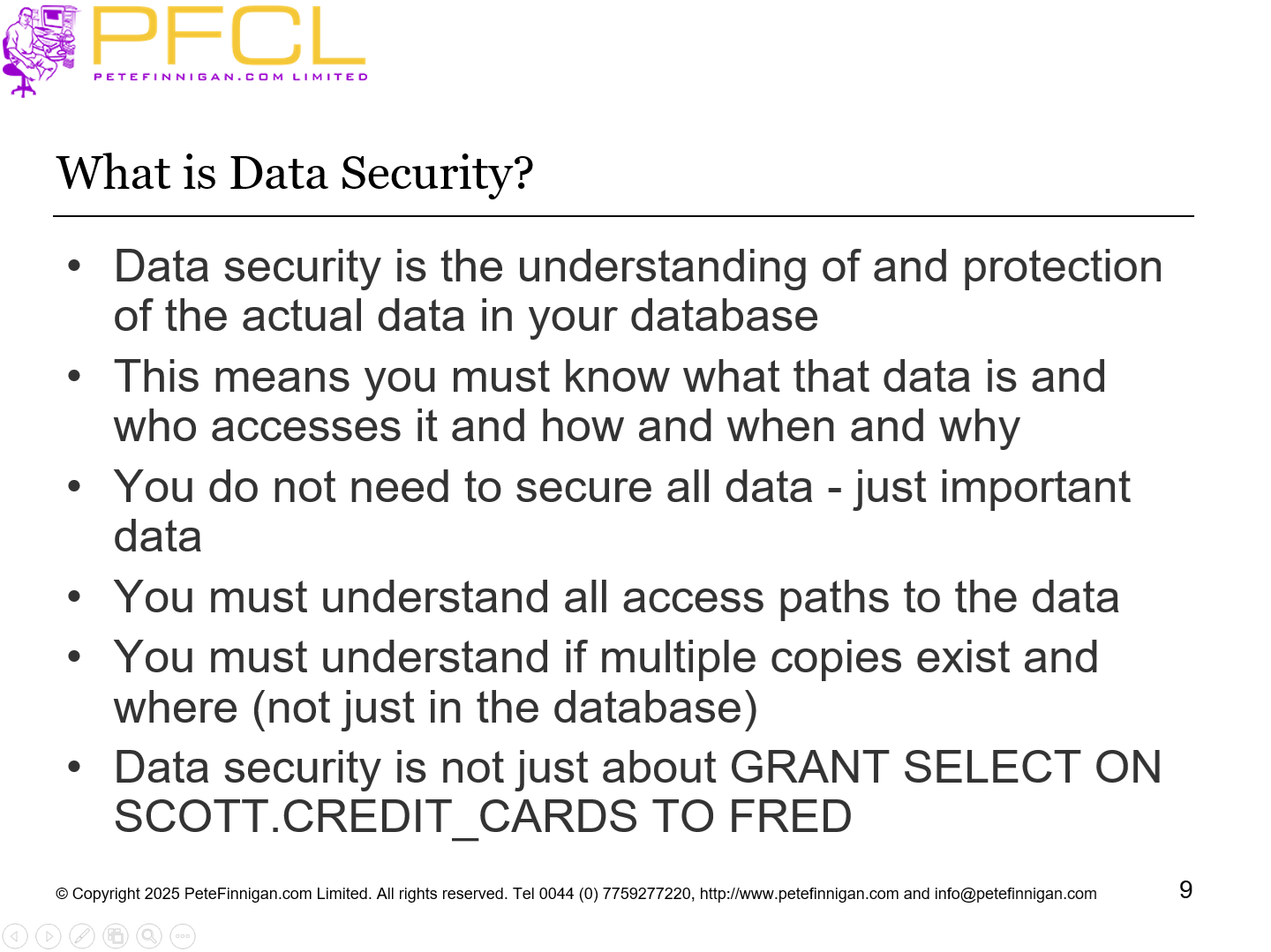

Slide 9 - What is Data Security?

Data security is the understanding of and protection of the actual data in your database
This means you must know what that data is and who accesses it and how and when and why
You do not need to secure all data - just important data
You must understand all access paths to the data
You must understand if multiple copies exist and where (not just in the database)
Data security is not just about GRANT SELECT ON SCOTT.CREDIT_CARDS TO FRED

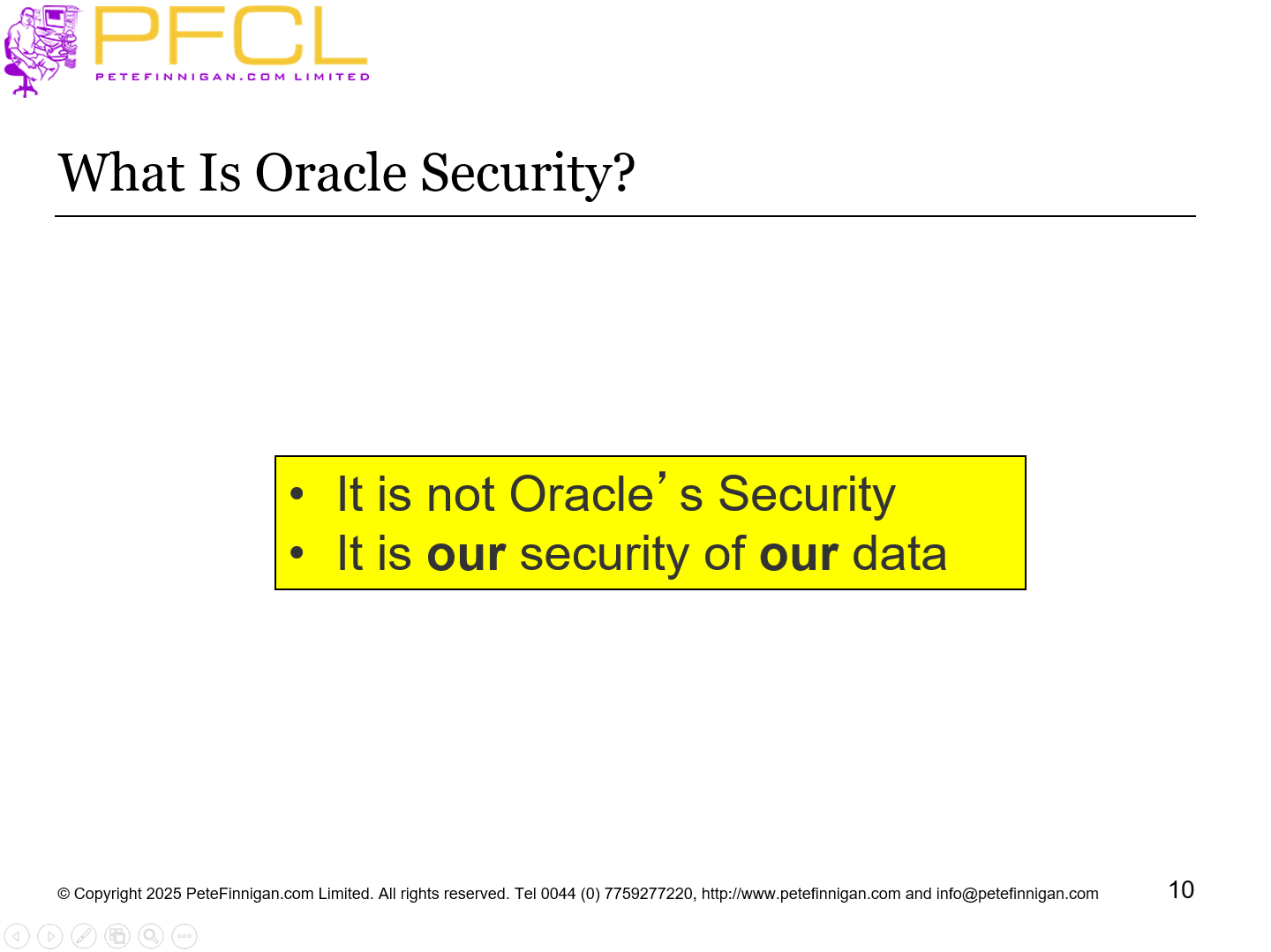

Slide 10 - What Is Oracle Security?

It is not Oracle’s Security
It is our security of our data

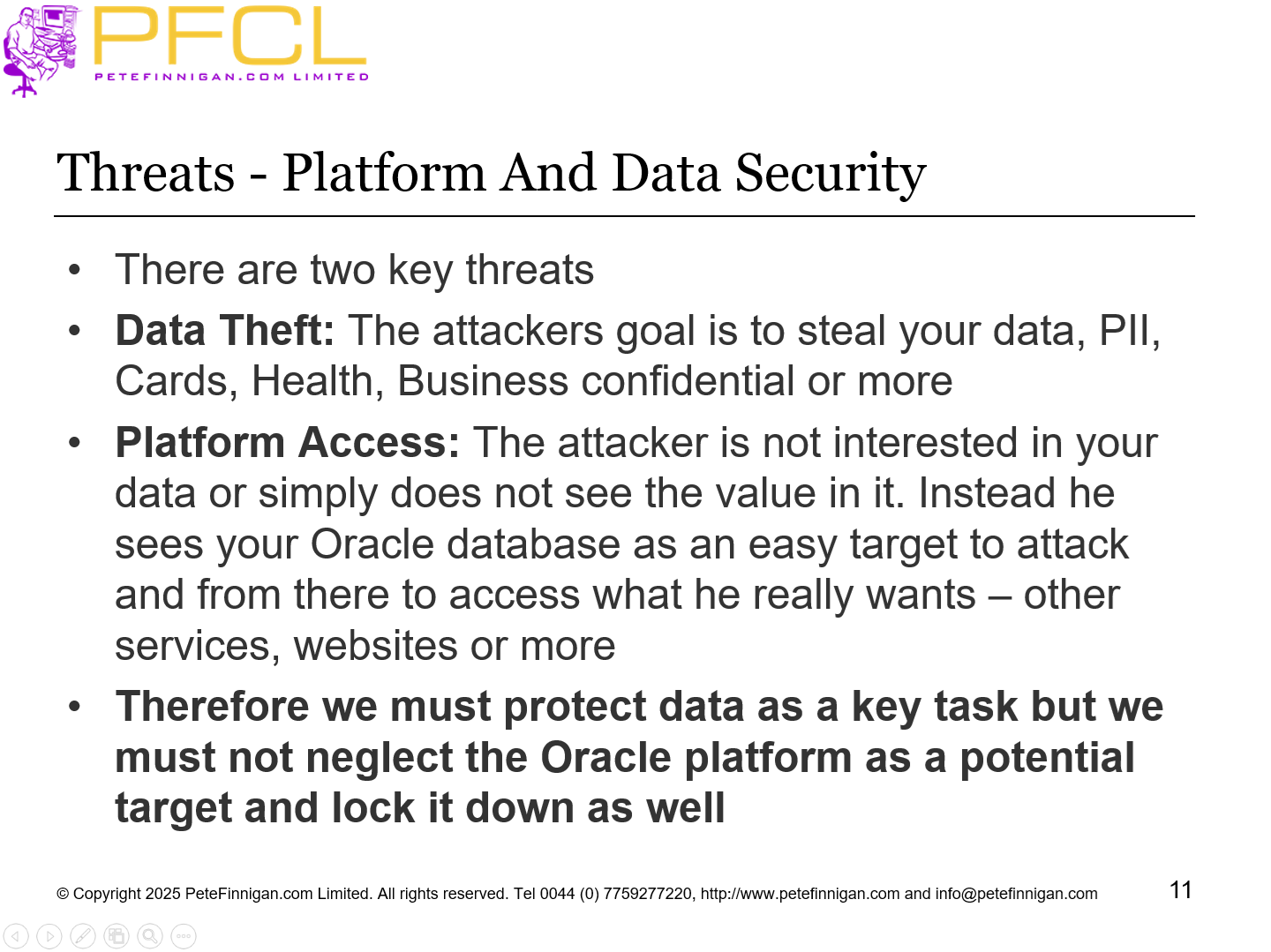

Slide 11 - Threats - Platform And Data Security

There are two key threats
Data Theft: The attackers goal is to steal your data, PII, Cards, Health, Business confidential or more
Platform Access: The attacker is not interested in your data or simply does not see the value in it. Instead he sees your Oracle database as an easy target to attack and from there to access what he really wants – other services, websites or more
Therefore we must protect data as a key task but we must not neglect the Oracle platform as a potential target and lock it down as well

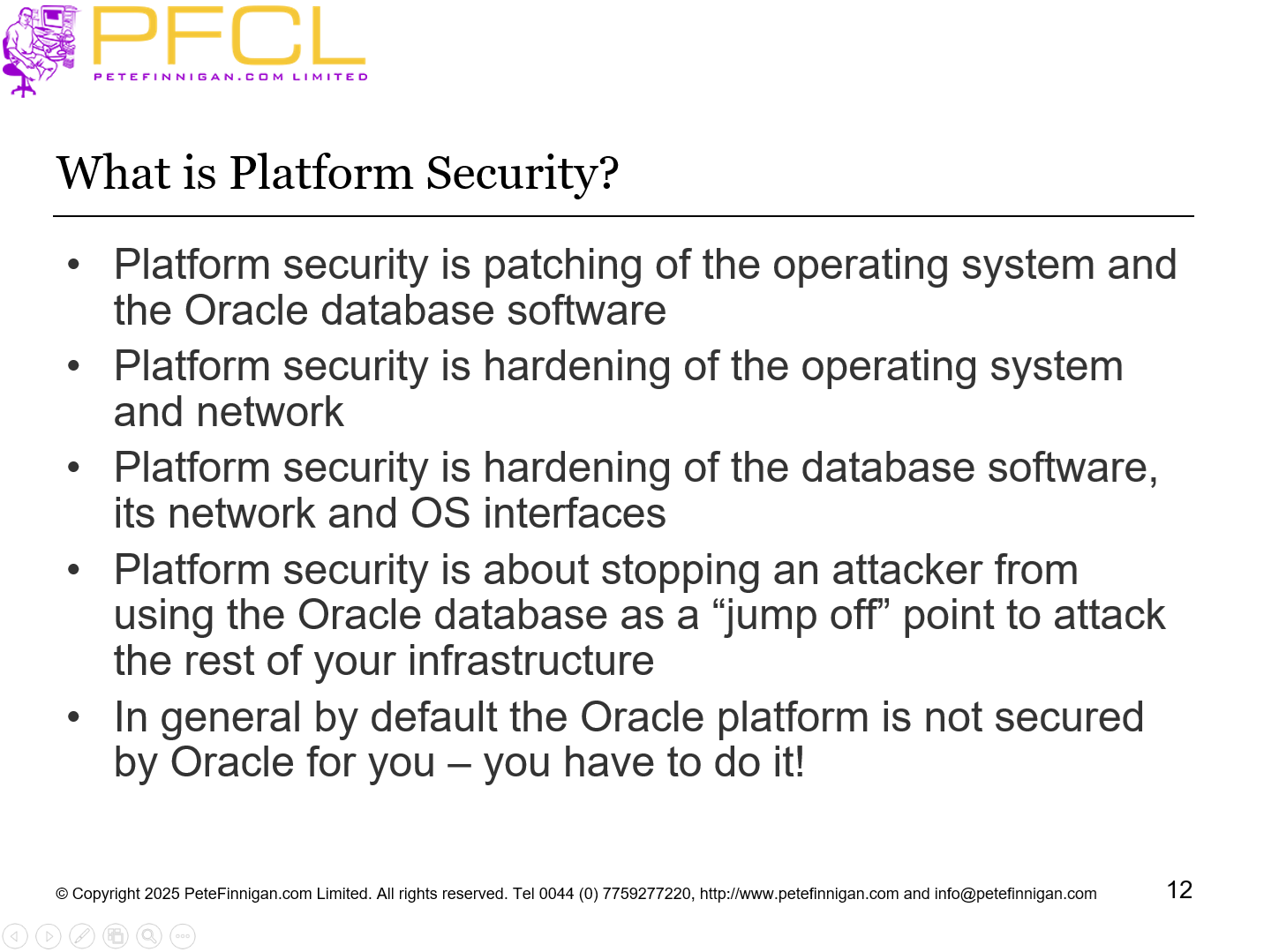

Slide 12 - What is Platform Security?

Platform security is patching of the operating system and the Oracle database software
Platform security is hardening of the operating system and network
Platform security is hardening of the database software, its network and OS interfaces
Platform security is about stopping an attacker from using the Oracle database as a “jump off” point to attack the rest of your infrastructure
In general by default the Oracle platform is not secured by Oracle for you – you have to do it!

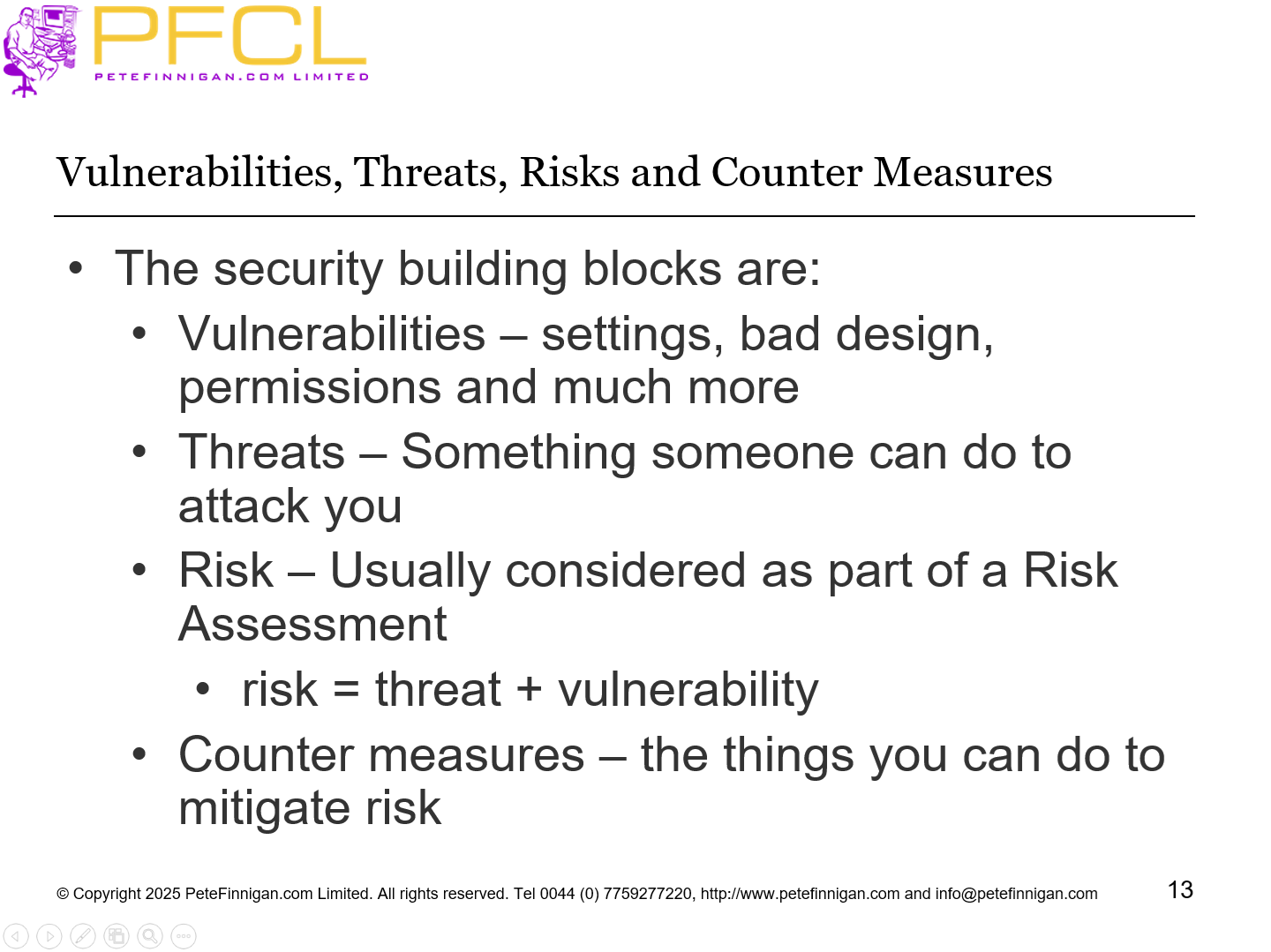

Slide 13 - Vulnerabilities, Threats, Risks and Counter Measures

The security building blocks are:
Vulnerabilities – settings, bad design, permissions and much more
Threats – Something someone can do to attack you
Risk – Usually considered as part of a Risk Assessment
risk = threat + vulnerability
Counter measures – the things you can do to mitigate risk

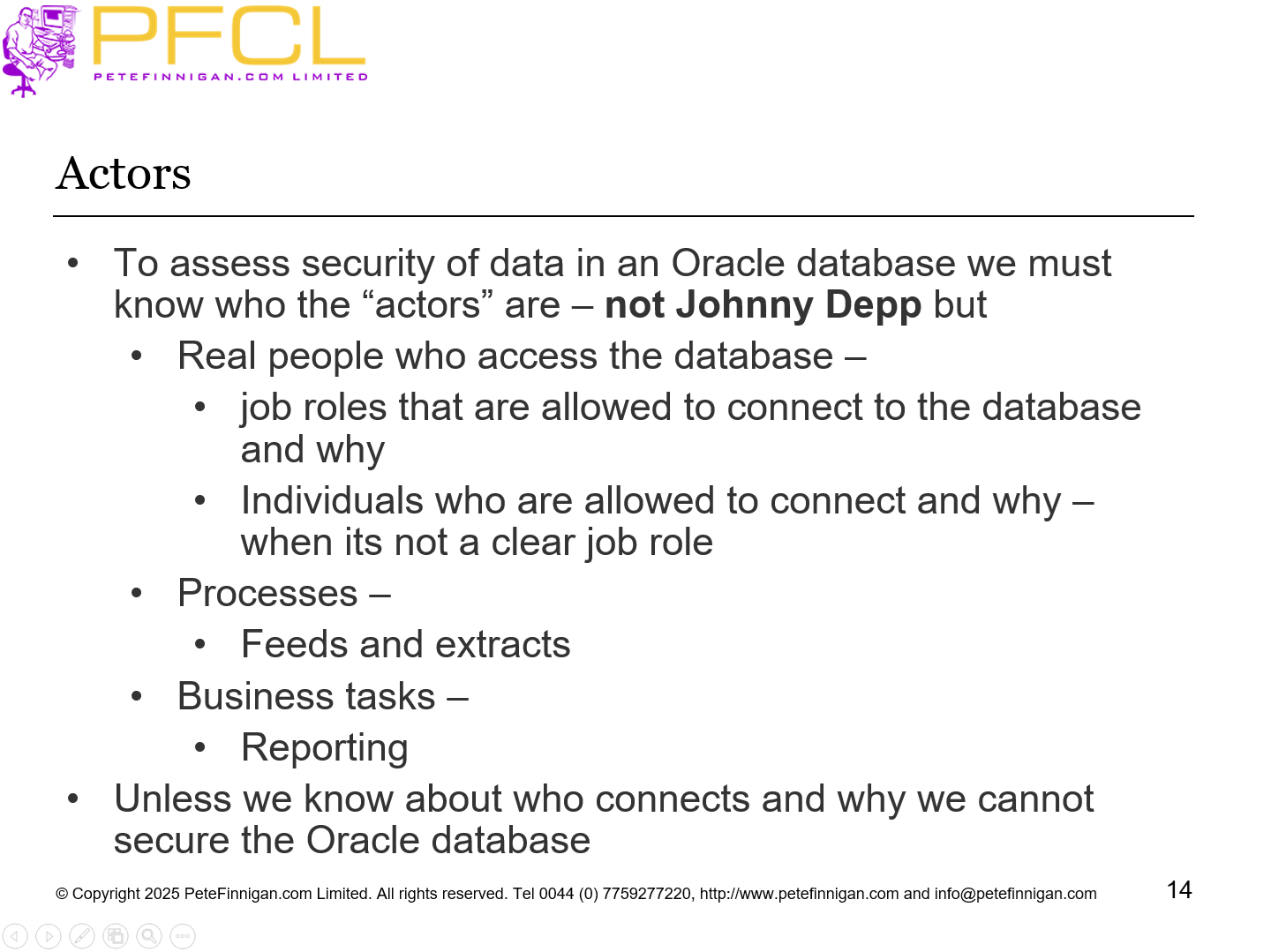

Slide 14 - Actors

To assess security of data in an Oracle database we must know who the “actors” are – not Johnny Depp but
Real people who access the database –
job roles that are allowed to connect to the database and why
Individuals who are allowed to connect and why – when its not a clear job role
Processes –
Feeds and extracts
Business tasks –
Reporting
Unless we know about who connects and why we cannot secure the Oracle database

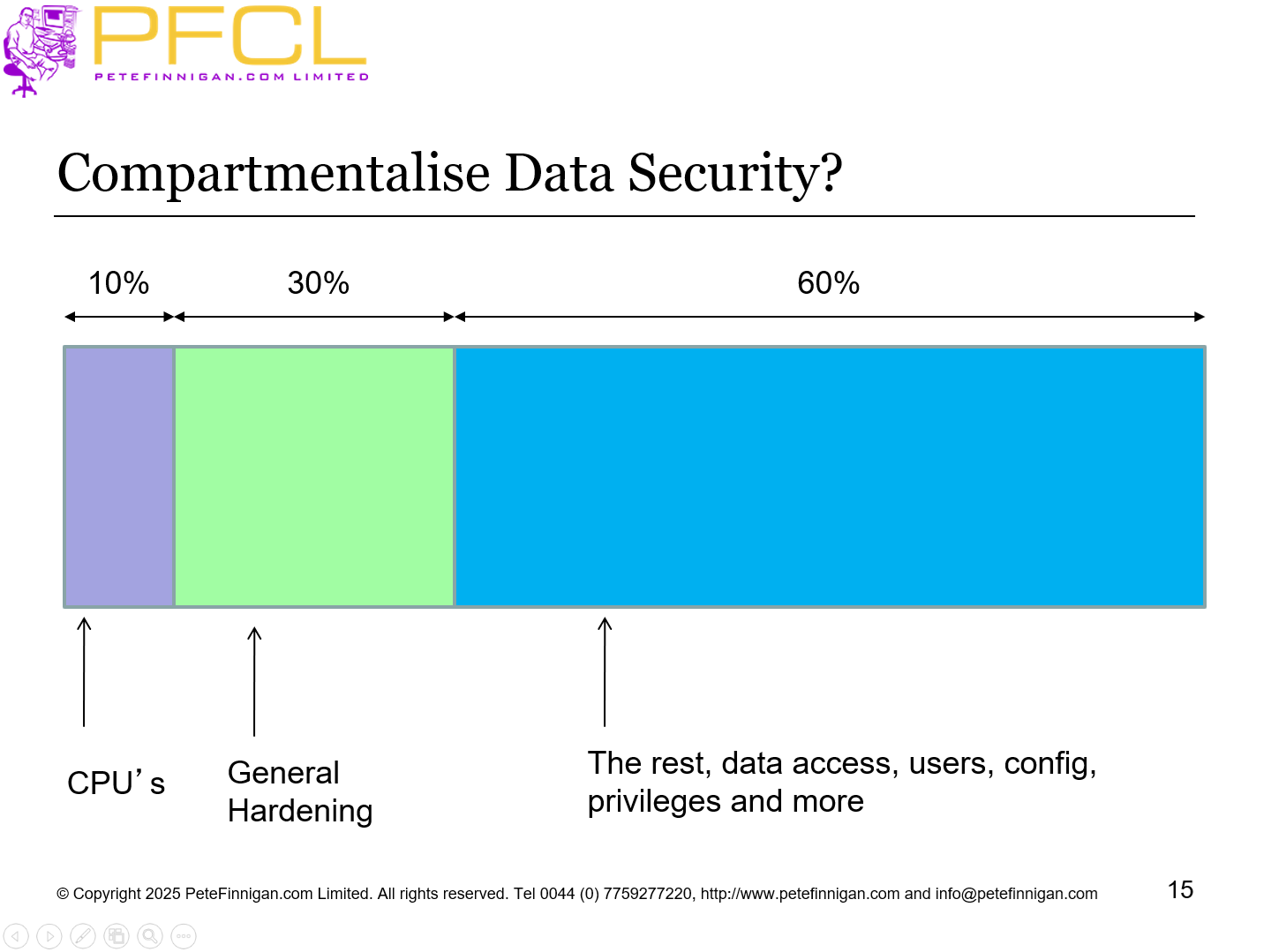

Slide 15 - Compartmentalise Data Security?

Compartmentalise Data Security?

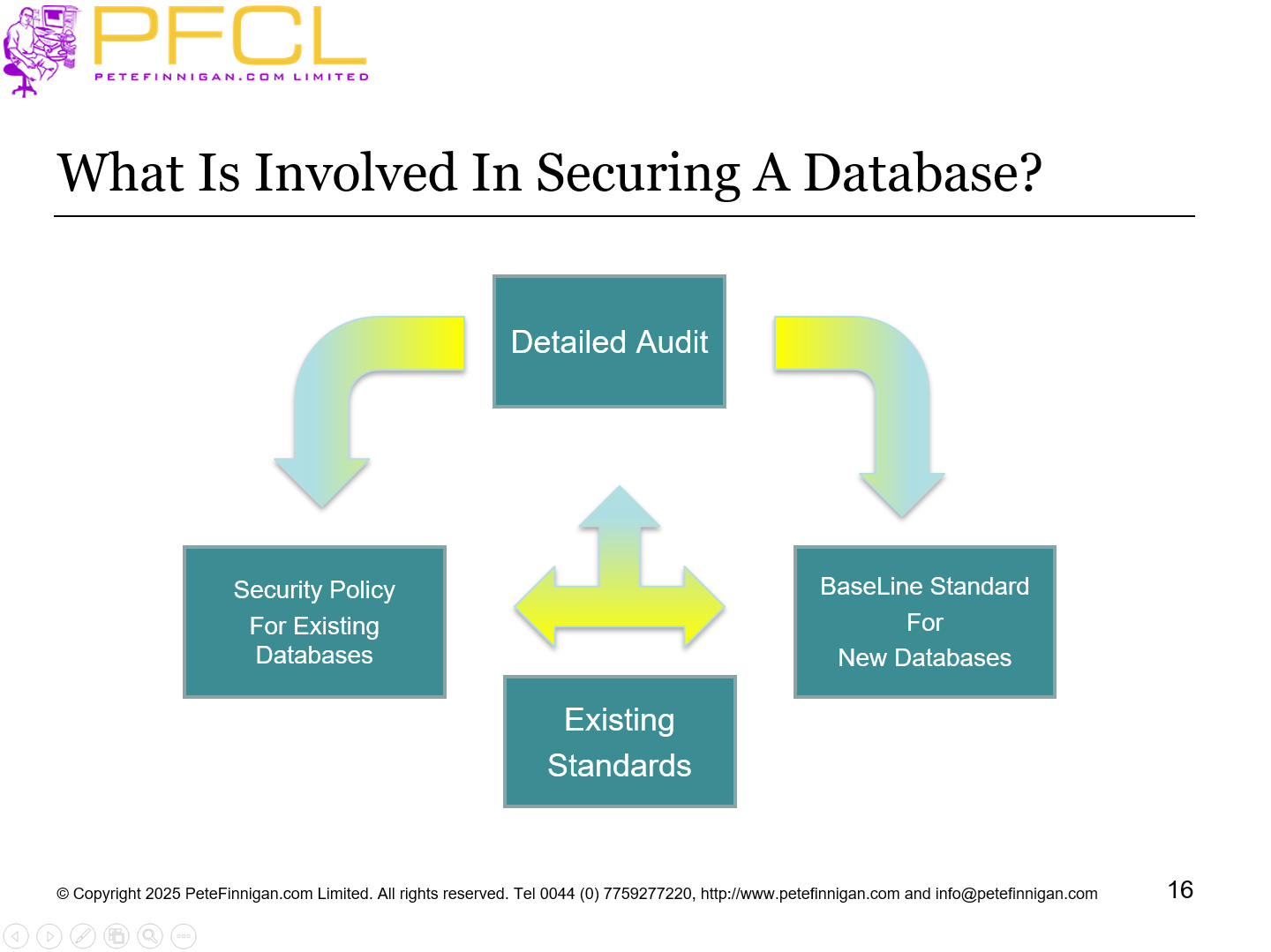

Slide 16 - What Is Involved In Securing A Database?

What Is Involved In Securing A Database?

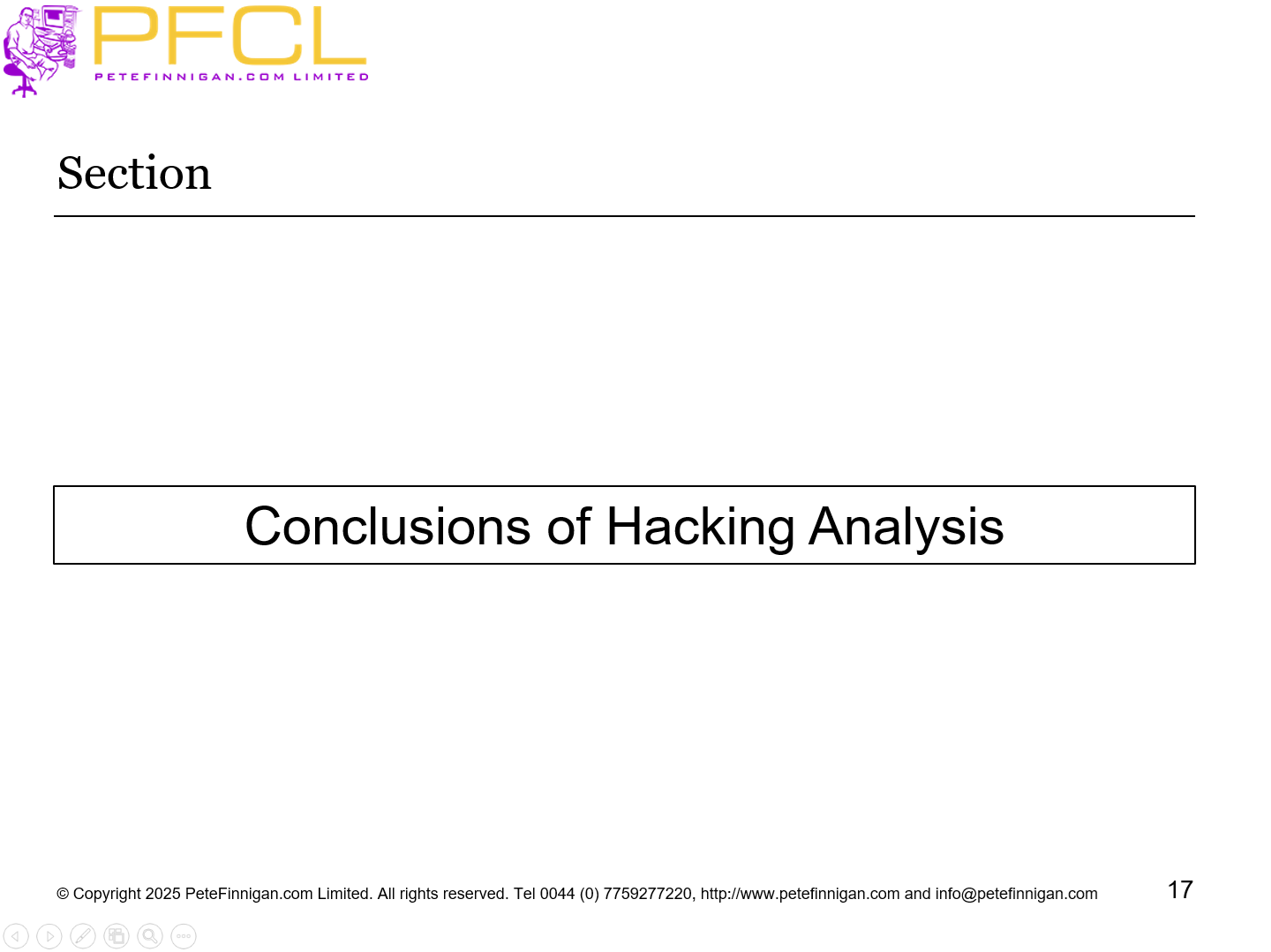

Slide 17 - Conclusions of Hacking Analysis

Conclusions of Hacking Analysis

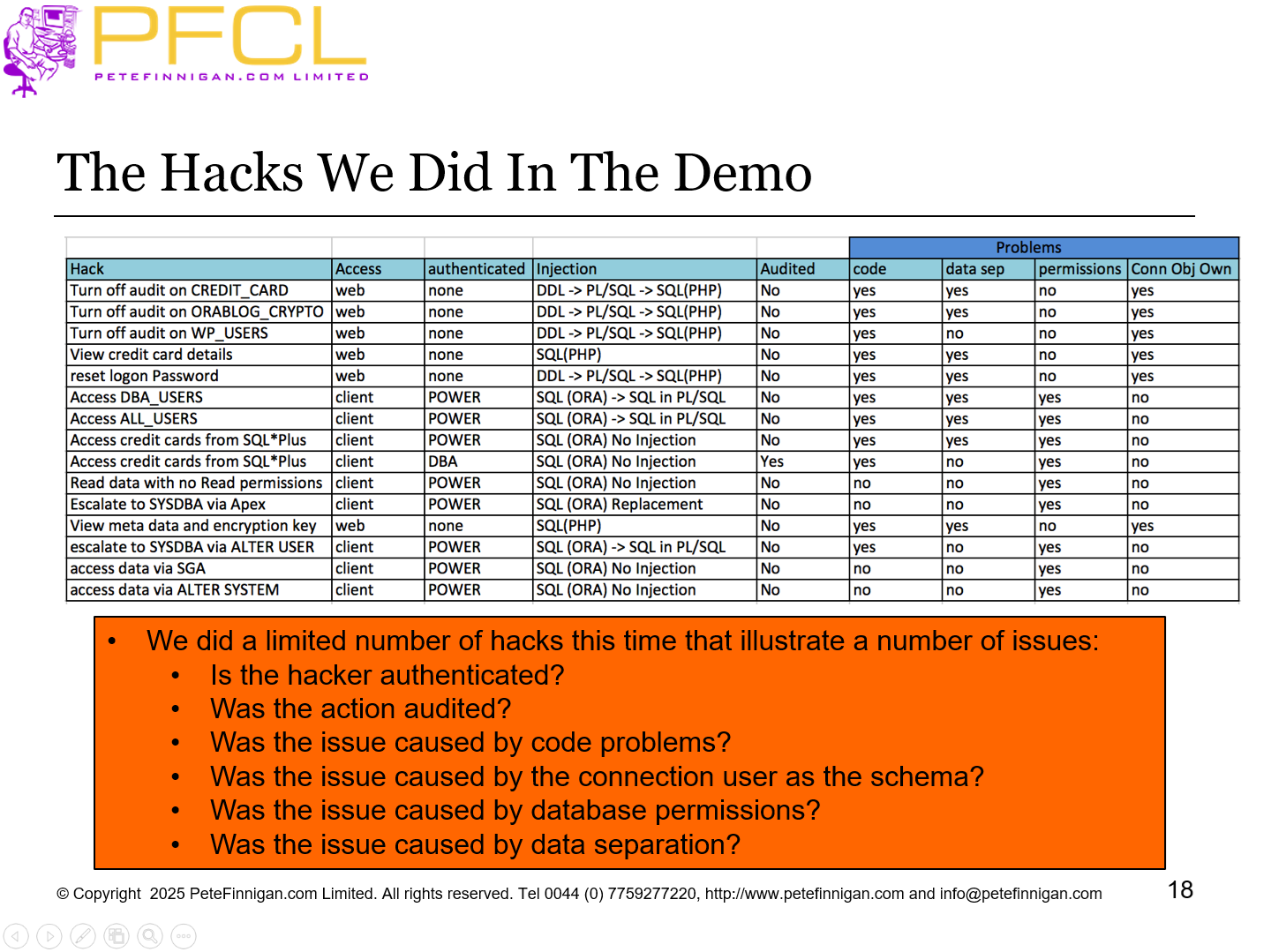

Slide 18 - The Hacks We Did In The Demo

The Hacks We Did In The Demo

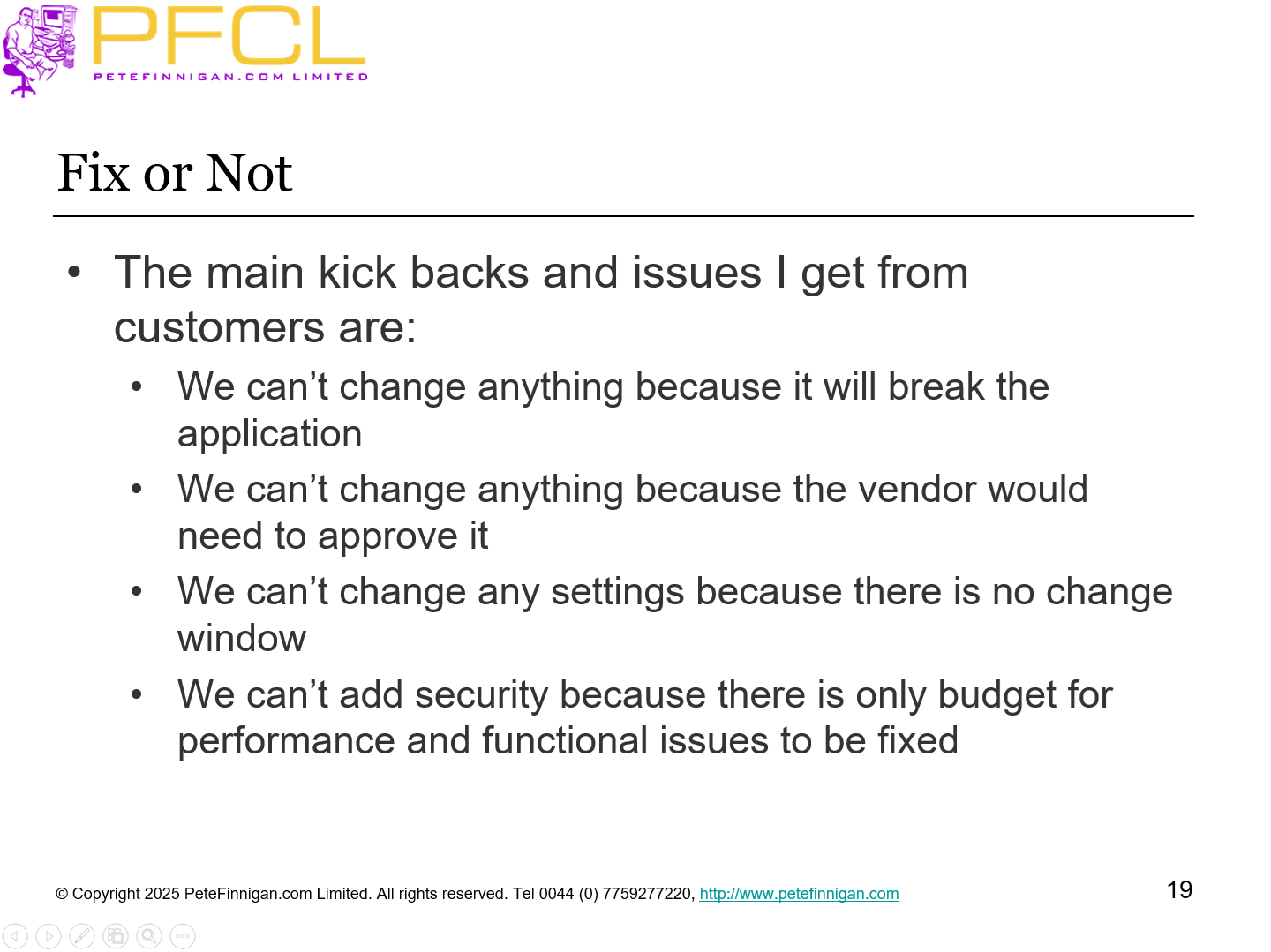

Slide 19 - Fix or Not

The main kick backs and issues I get from customers are:
We can’t change anything because it will break the application
We can’t change anything because the vendor would need to approve it
We can’t change any settings because there is no change window
We can’t add security because there is only budget for performance and functional issues to be fixed

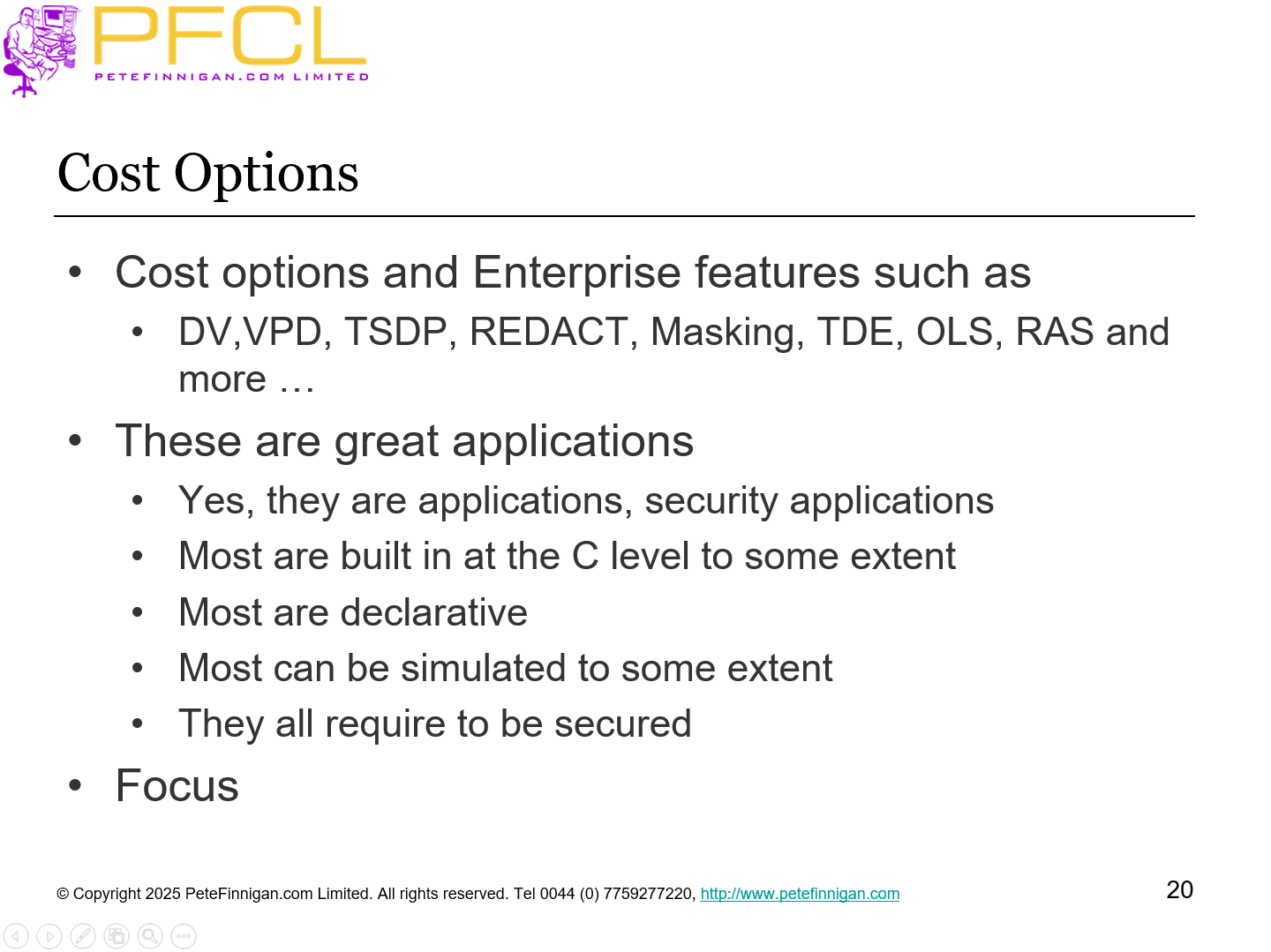

Slide 20 - Cost Options

Cost options and Enterprise features such as
DV,VPD, TSDP, REDACT, Masking, TDE, OLS, RAS and more …
These are great applications
Yes, they are applications, security applications
Most are built in at the C level to some extent
Most are declarative
Most can be simulated to some extent
They all require to be secured
Focus

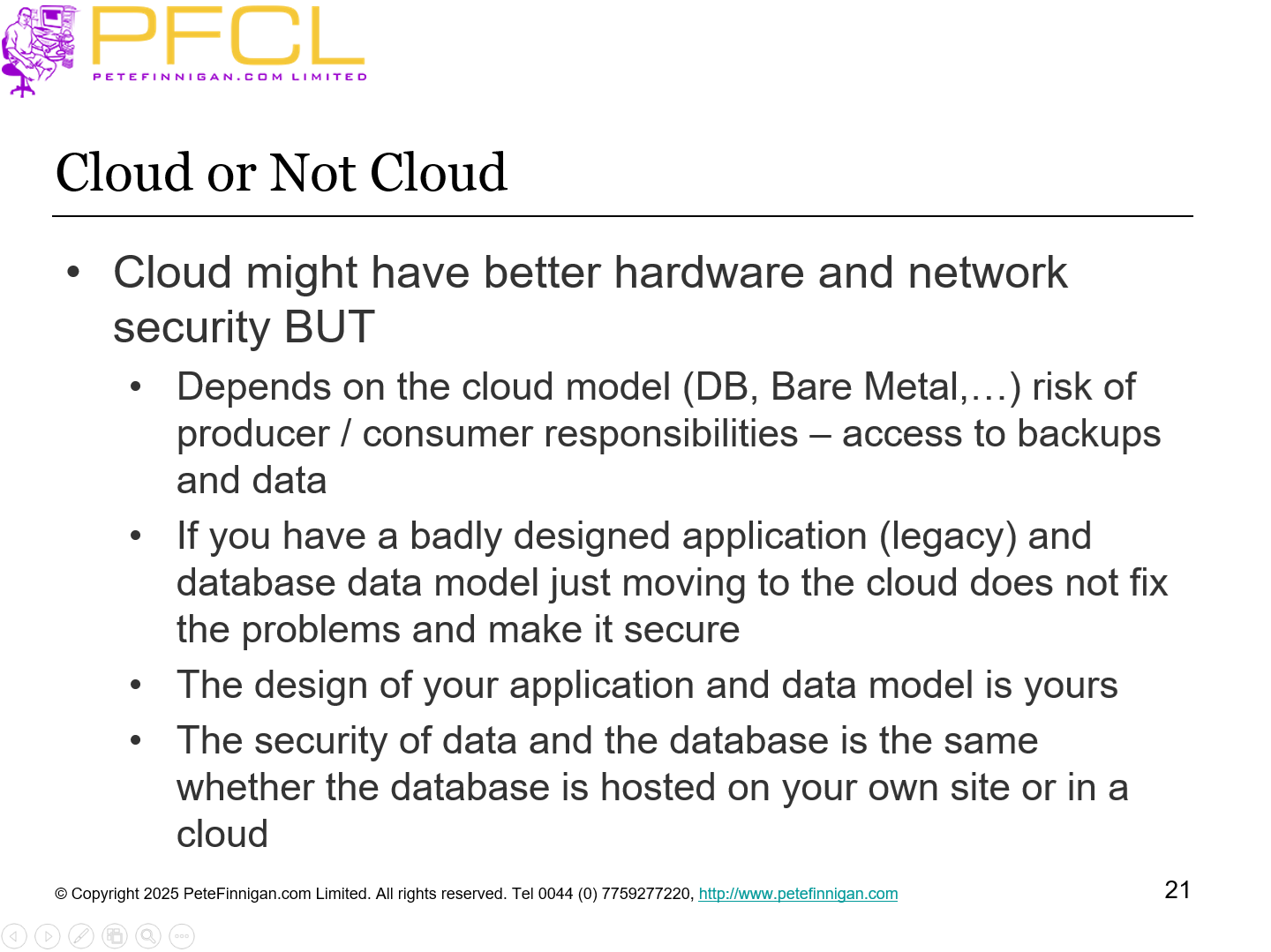

Slide 21 - Cloud or Not Cloud

Cloud might have better hardware and network security BUT
Depends on the cloud model (DB, Bare Metal,…) risk of producer / consumer responsibilities – access to backups and data
If you have a badly designed application (legacy) and database data model just moving to the cloud does not fix the problems and make it secure
The design of your application and data model is yours
The security of data and the database is the same whether the database is hosted on your own site or in a cloud

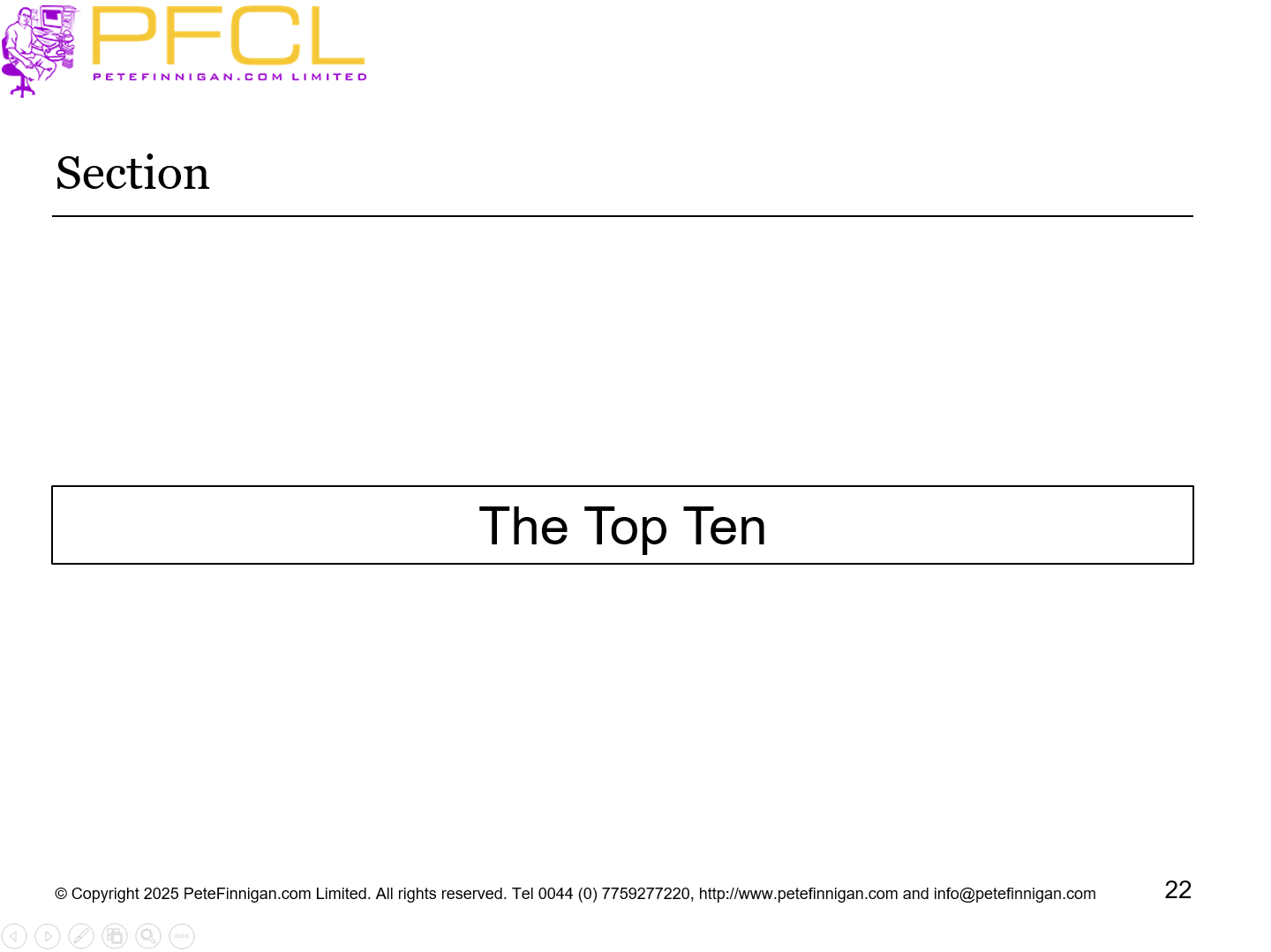

Slide 22 - The Top Ten

The Top Ten

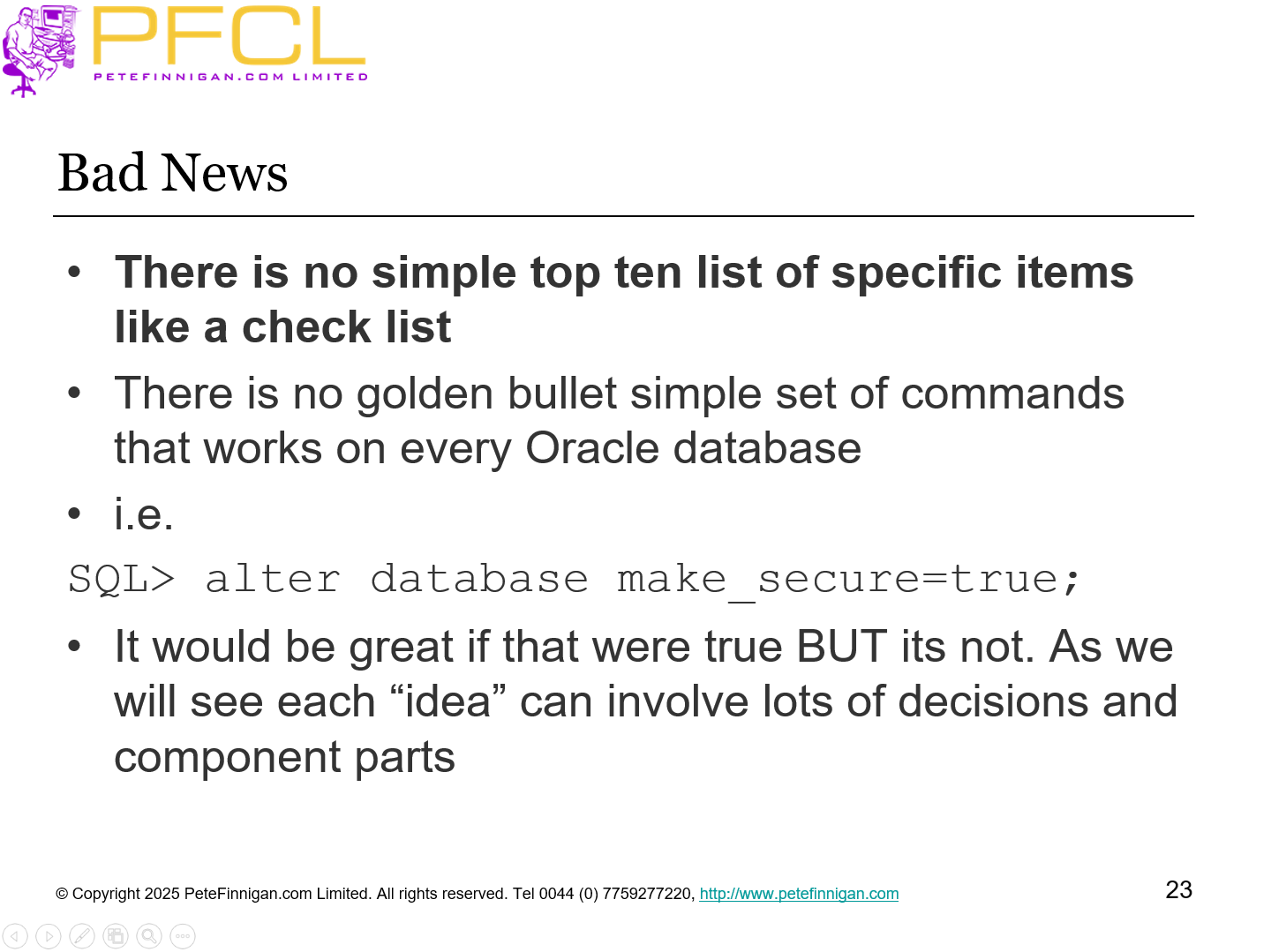

Slide 23 - Bad News

There is no simple top ten list of specific items like a check list
There is no golden bullet simple set of commands that works on every Oracle database
i.e.
SQL> alter database make_secure=true;
It would be great if that were true BUT its not. As we will see each “idea” can involve lots of decisions and component parts

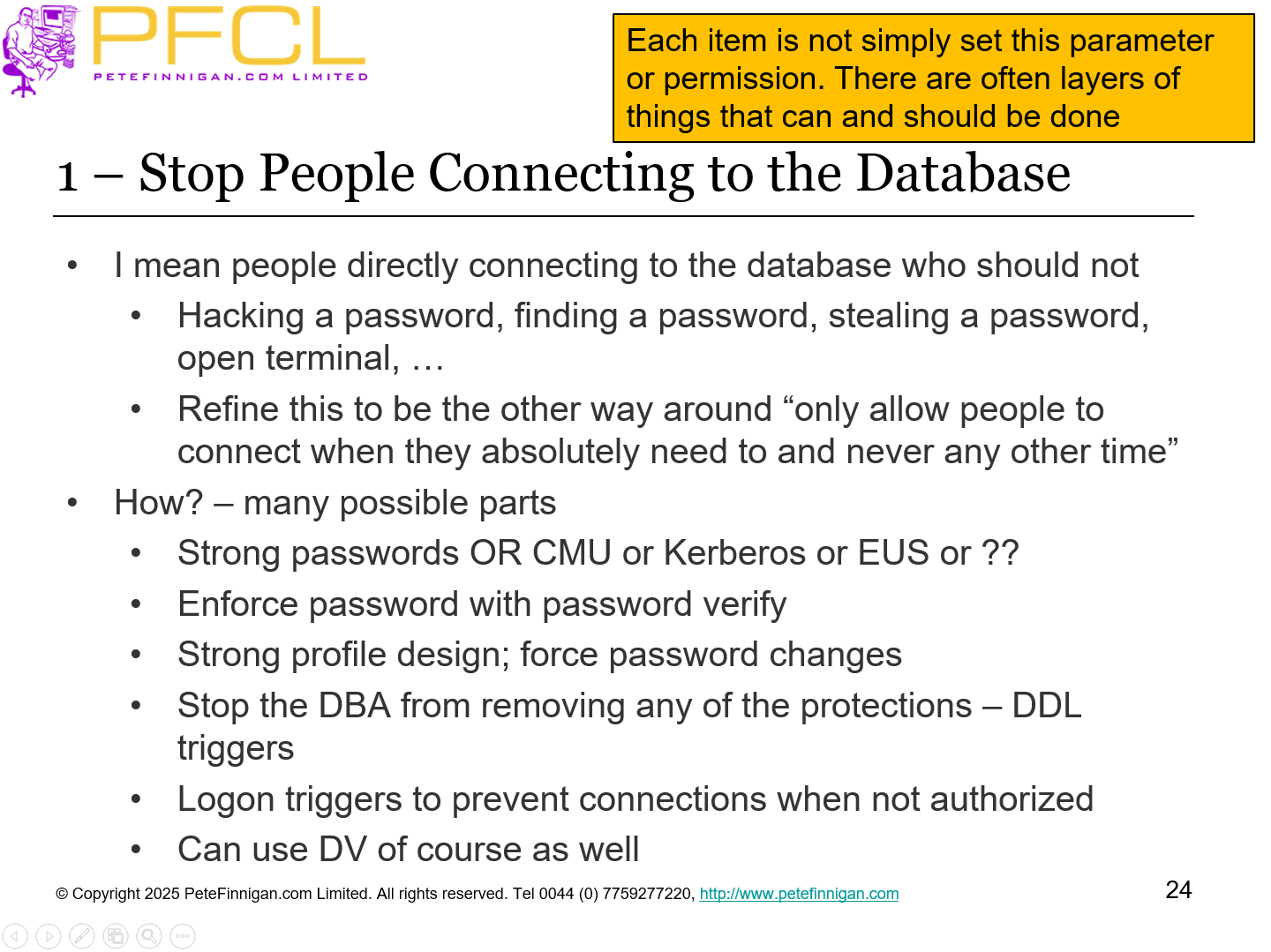

Slide 24 - 1 – Stop People Connecting to the Database

I mean people directly connecting to the database who should not
Hacking a password, finding a password, stealing a password, open terminal, …
Refine this to be the other way around “only allow people to connect when they absolutely need to and never any other time”
How? – many possible parts
Strong passwords OR CMU or Kerberos or EUS or ??
Enforce password with password verify
Strong profile design; force password changes
Stop the DBA from removing any of the protections – DDL triggers
Logon triggers to prevent connections when not authorized
Can use DV of course as well

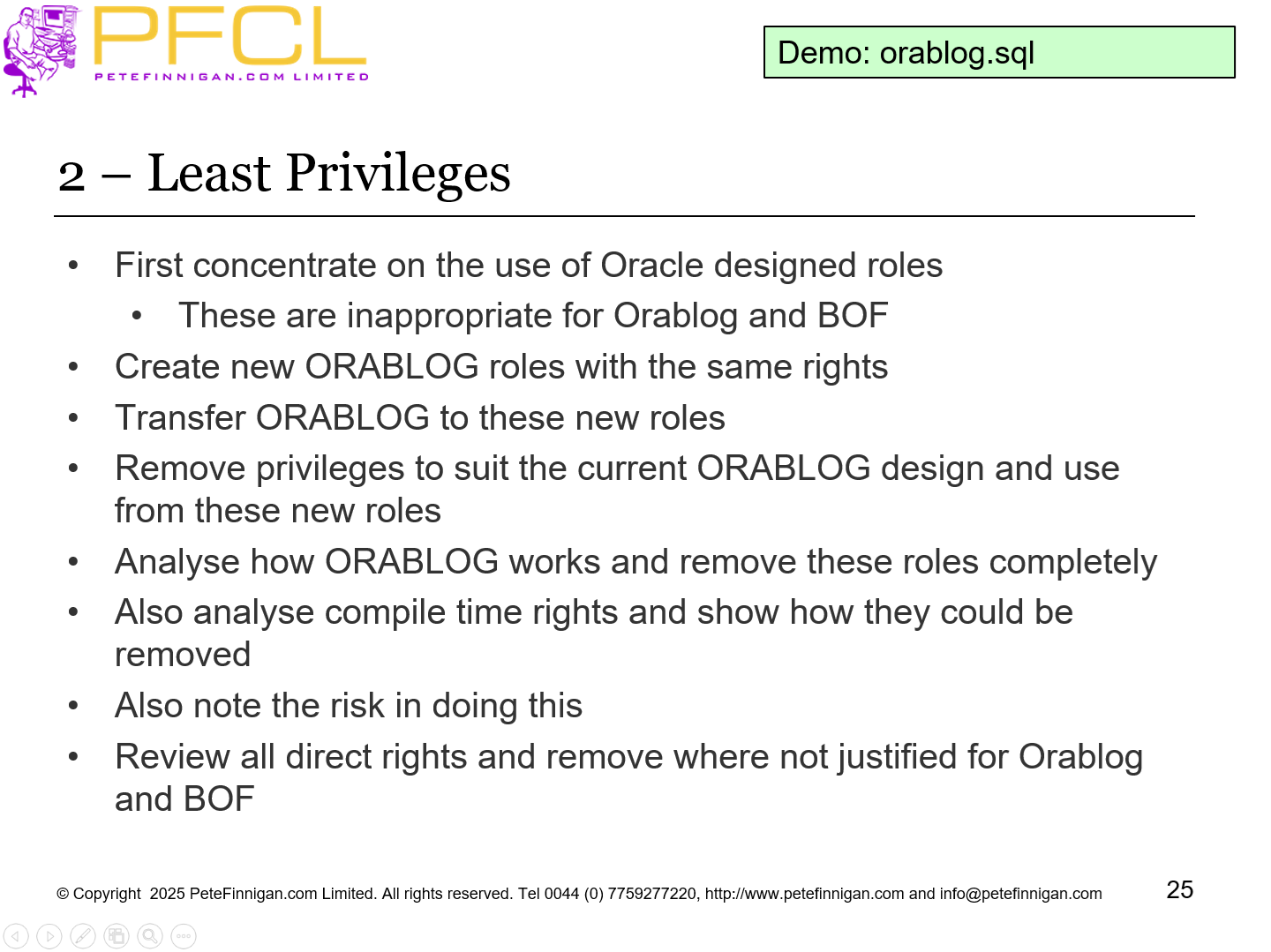

Slide 25 - 2 – Least Privileges

First concentrate on the use of Oracle designed roles
These are inappropriate for Orablog and BOF
Create new ORABLOG roles with the same rights
Transfer ORABLOG to these new roles
Remove privileges to suit the current ORABLOG design and use from these new roles
Analyse how ORABLOG works and remove these roles completely
Also analyse compile time rights and show how they could be removed
Also note the risk in doing this
Review all direct rights and remove where not justified for Orablog and BOF

Demo: orablog.sql

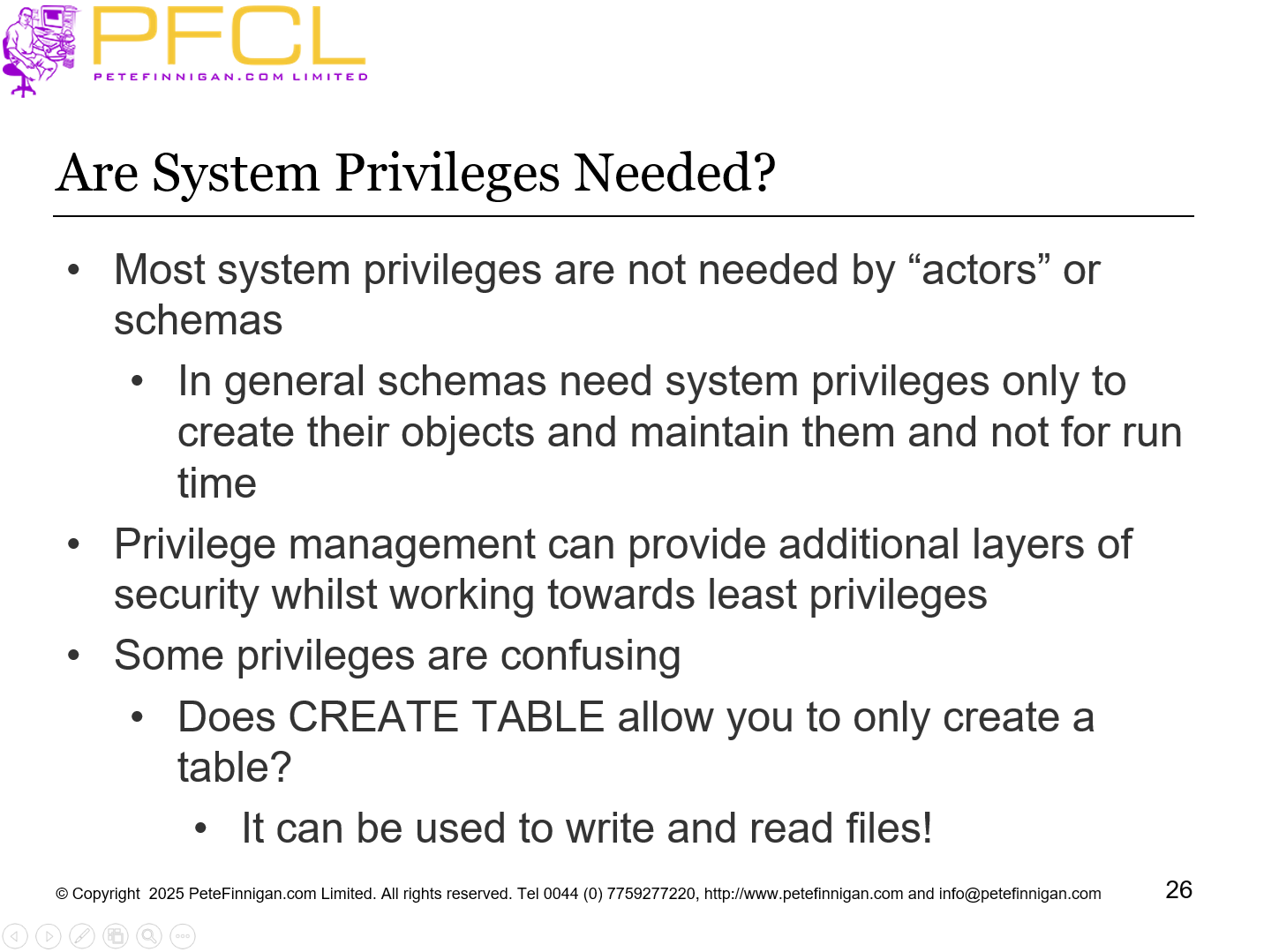

Slide 26 - Are System Privileges Needed?

Most system privileges are not needed by “actors” or schemas
In general schemas need system privileges only to create their objects and maintain them and not for run time
Privilege management can provide additional layers of security whilst working towards least privileges
Some privileges are confusing
Does CREATE TABLE allow you to only create a table?
It can be used to write and read files!

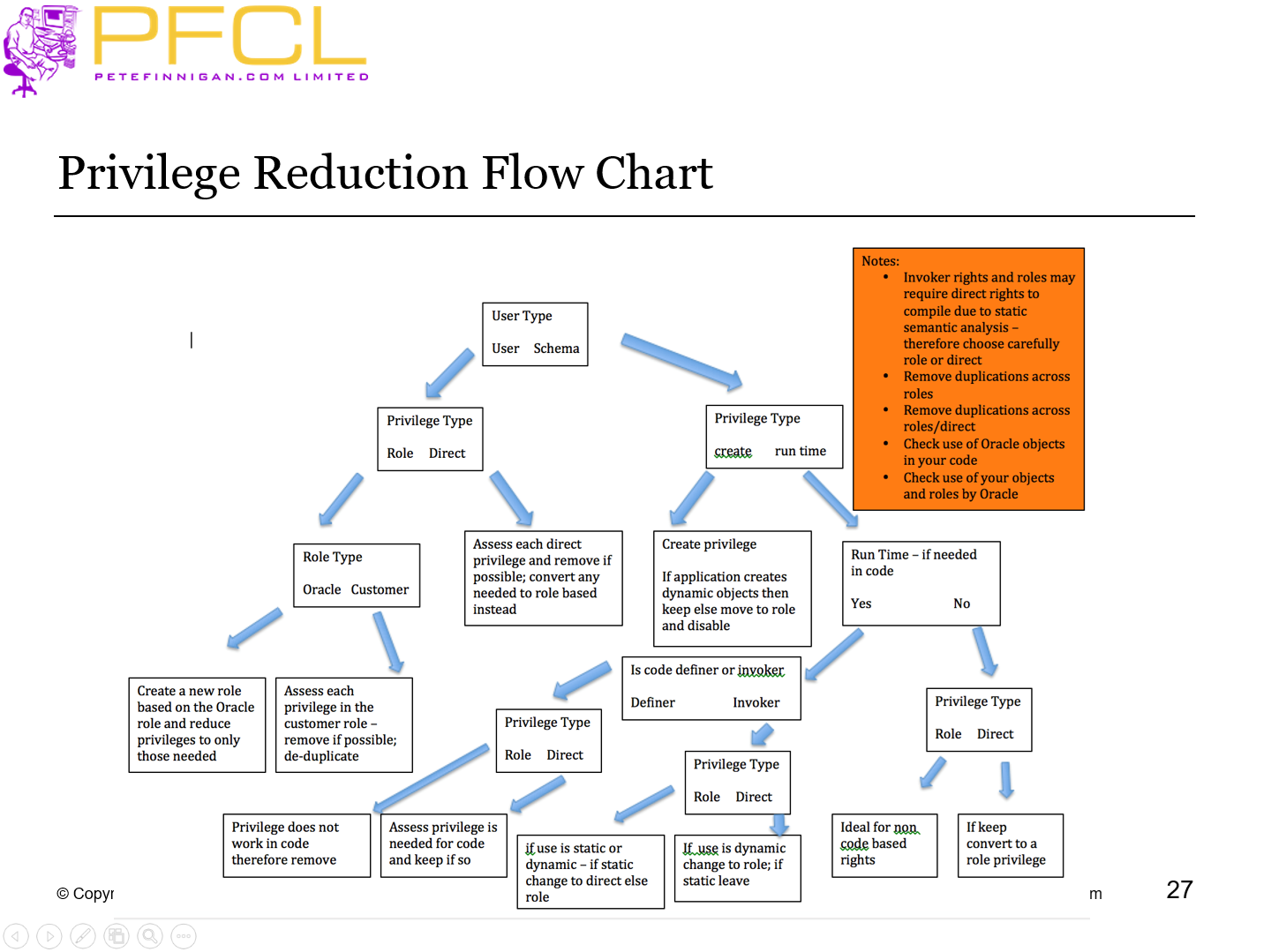

Slide 27 - Privilege Reduction Flow Chart

Privilege Reduction Flow Chart

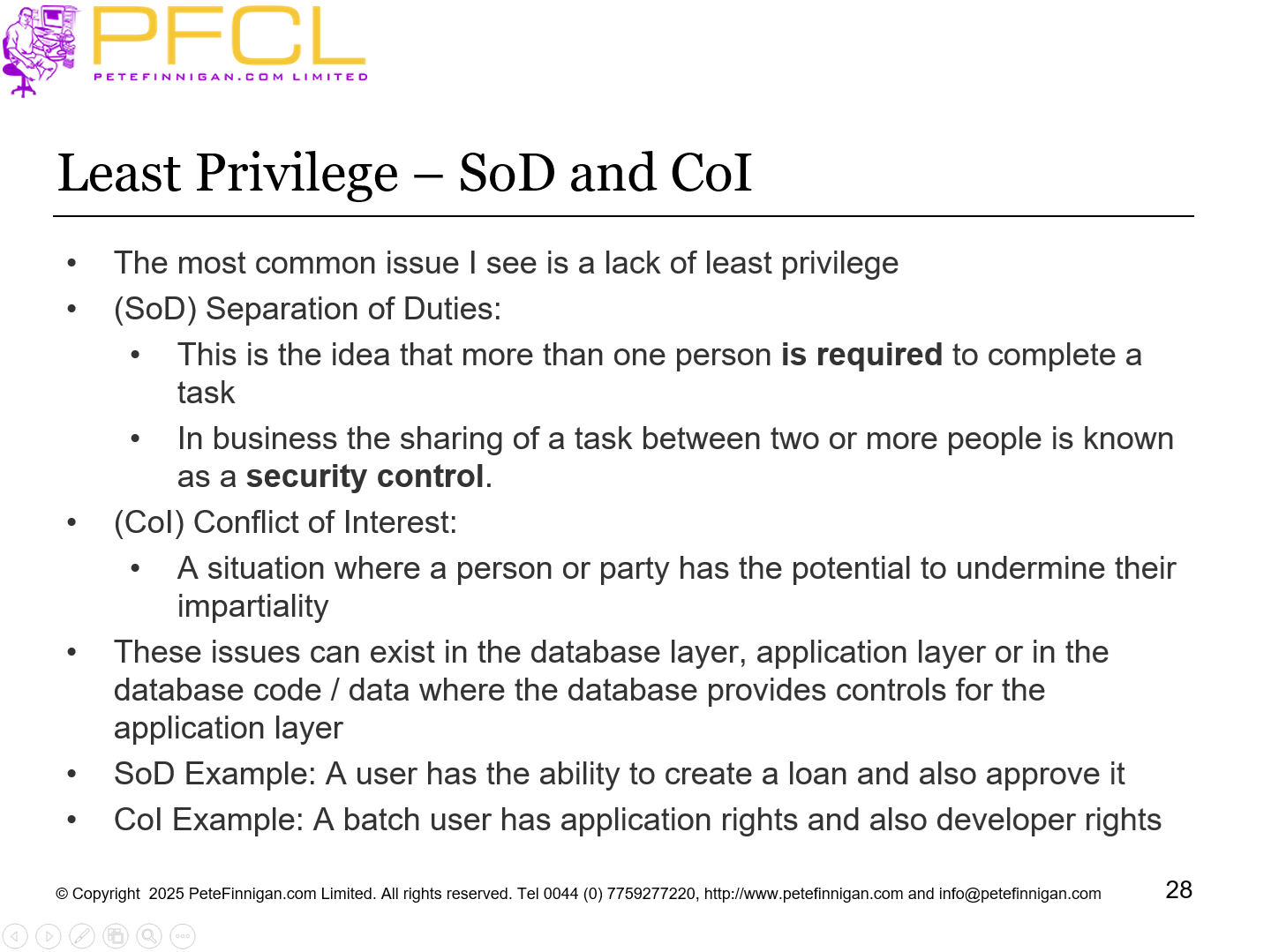

Slide 28 - Least Privilege – SoD and CoI

The most common issue I see is a lack of least privilege
(SoD) Separation of Duties:
This is the idea that more than one person is required to complete a task
In business the sharing of a task between two or more people is known as a security control.
(CoI) Conflict of Interest:
A situation where a person or party has the potential to undermine their impartiality
These issues can exist in the database layer, application layer or in the database code / data where the database provides controls for the application layer
SoD Example: A user has the ability to create a loan and also approve it
CoI Example: A batch user has application rights and also developer rights

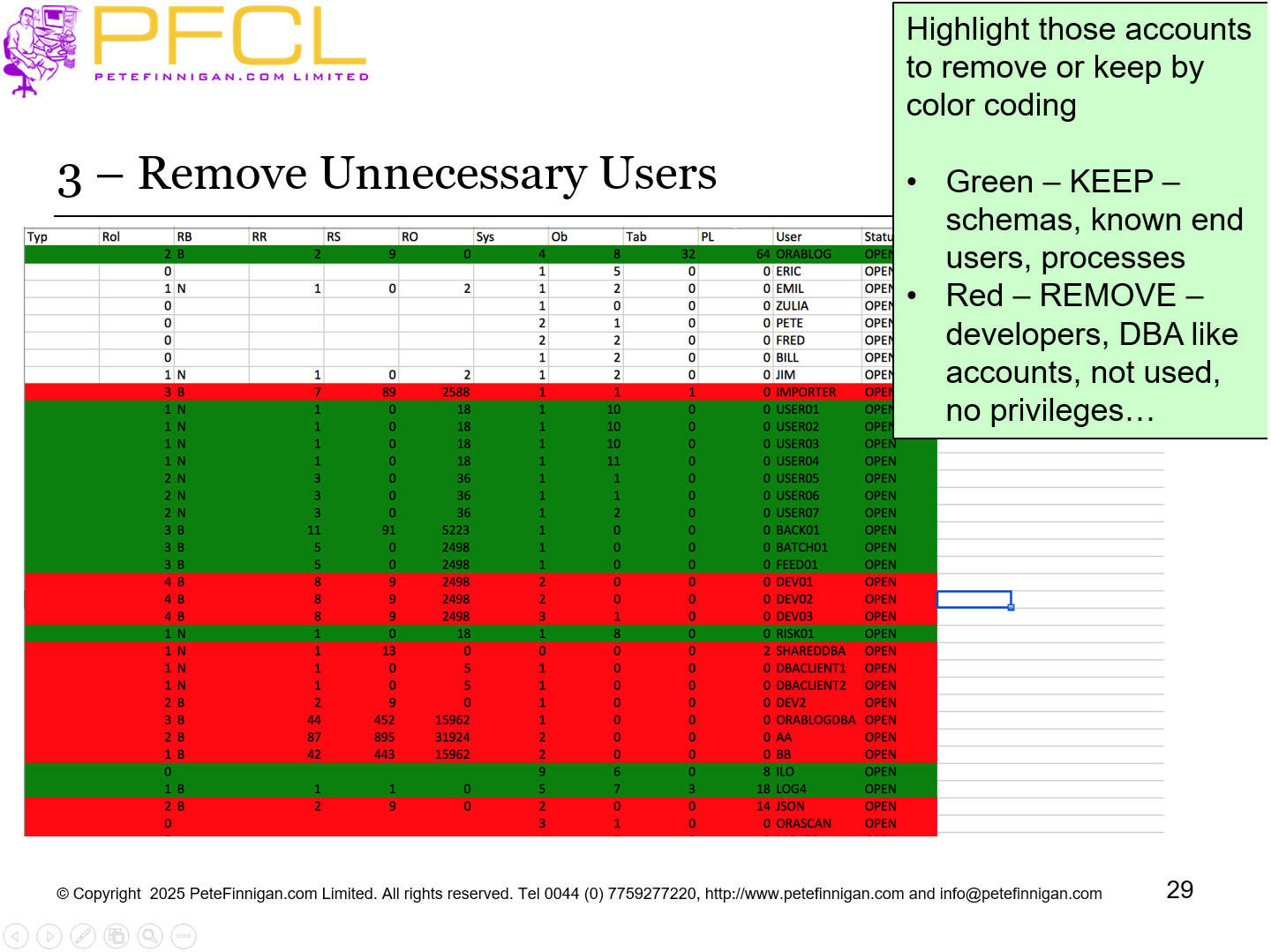

Slide 29 - 3 – Remove Unnecessary Users

Highlight those accounts to remove or keep by color coding

Green – KEEP – schemas, known end users, processes
Red – REMOVE – developers, DBA like accounts, not used, no privileges…

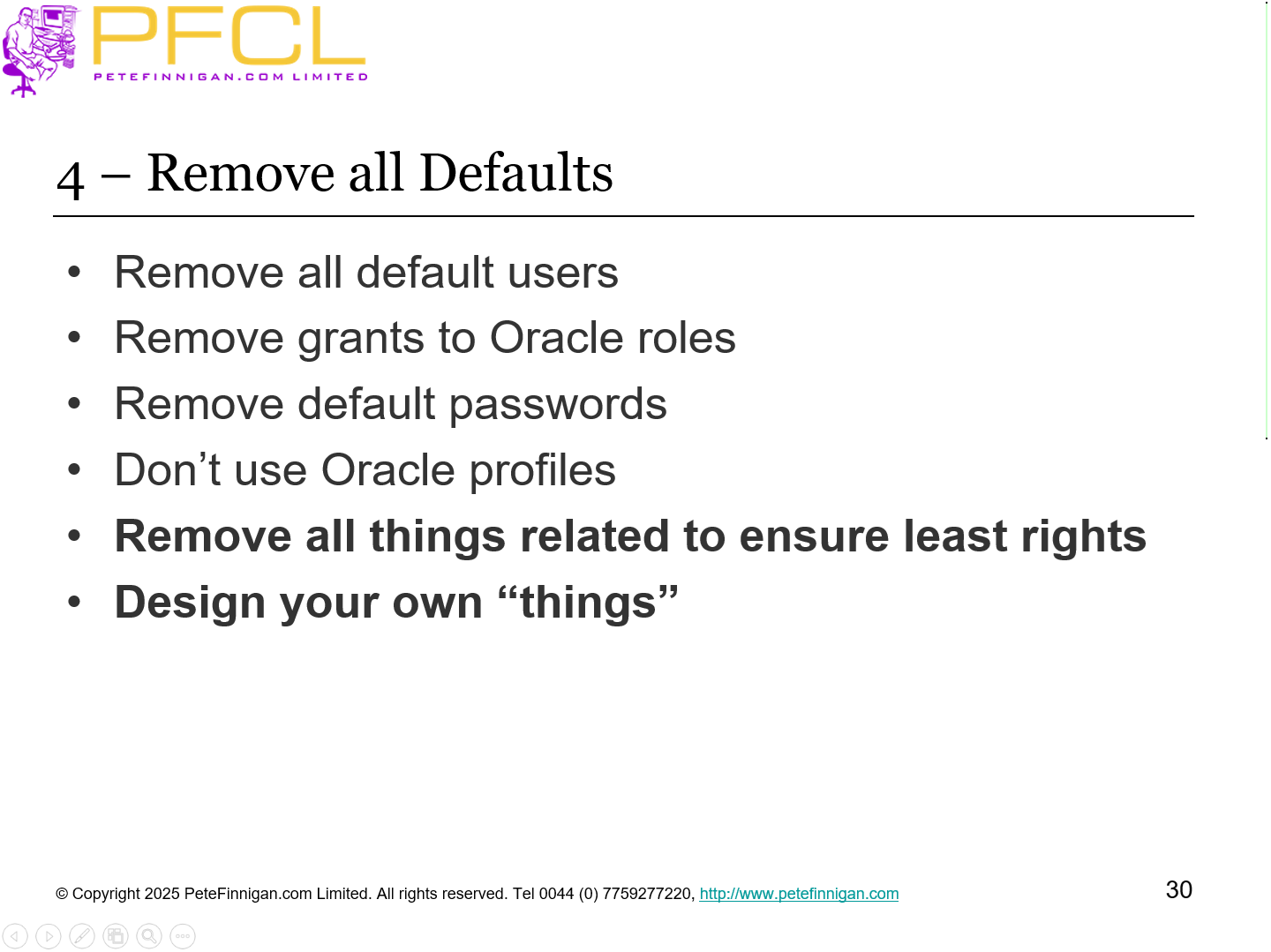

Slide 30 - 4 – Remove all Defaults

Remove all default users
Remove grants to Oracle roles
Remove default passwords
Don’t use Oracle profiles
Remove all things related to ensure least rights
Design your own “things”

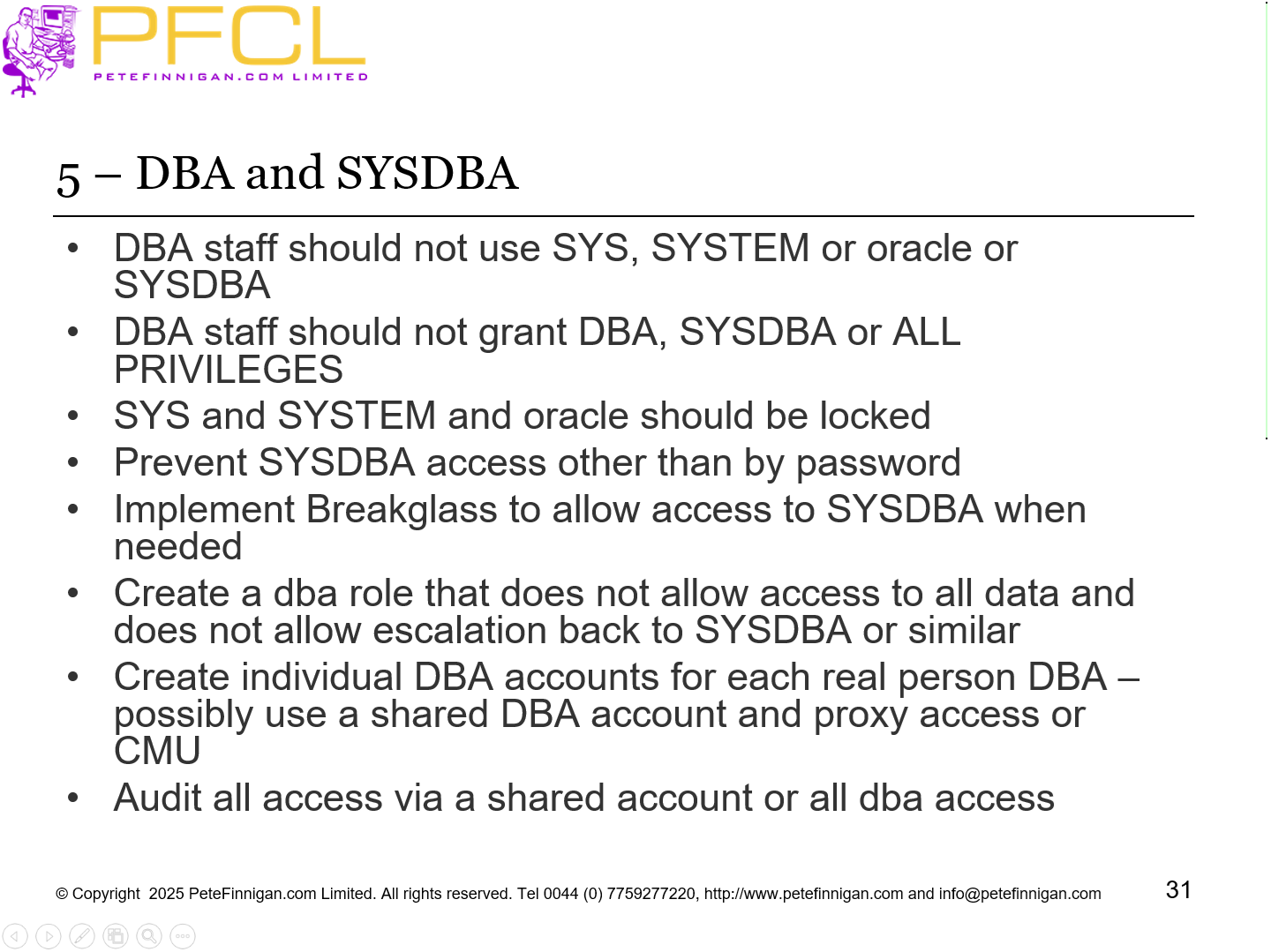

Slide 31 - 5 – DBA and SYSDBA

DBA staff should not use SYS, SYSTEM or oracle or SYSDBA
DBA staff should not grant DBA, SYSDBA or ALL PRIVILEGES
SYS and SYSTEM and oracle should be locked
Prevent SYSDBA access other than by password
Implement Breakglass to allow access to SYSDBA when needed
Create a dba role that does not allow access to all data and does not allow escalation back to SYSDBA or similar
Create individual DBA accounts for each real person DBA – possibly use a shared DBA account and proxy access or CMU
Audit all access via a shared account or all dba access

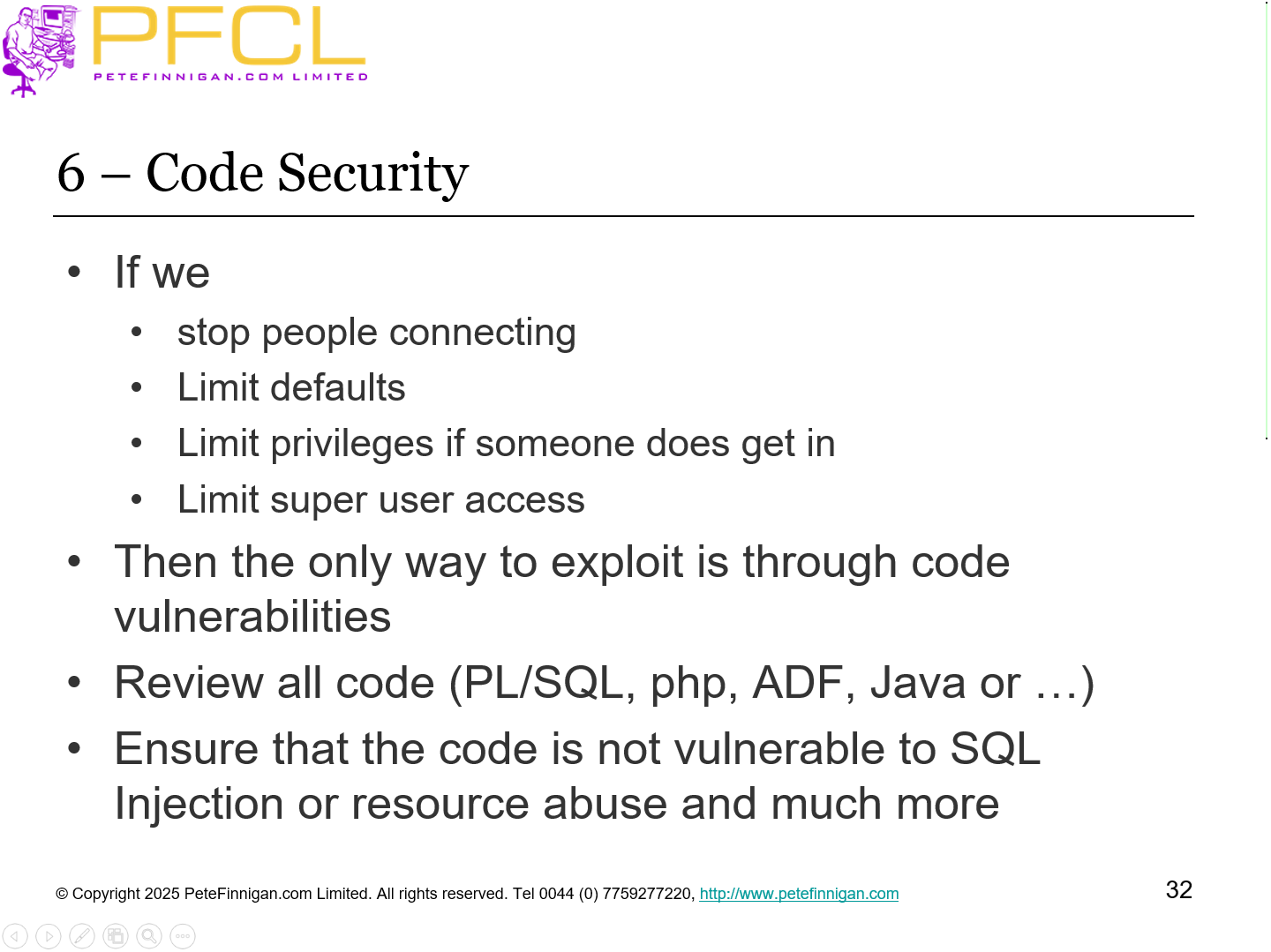

Slide 32 - 6 – Code Security

If we
stop people connecting
Limit defaults
Limit privileges if someone does get in
Limit super user access
Then the only way to exploit is through code vulnerabilities
Review all code (PL/SQL, php, ADF, Java or …)
Ensure that the code is not vulnerable to SQL Injection or resource abuse and much more

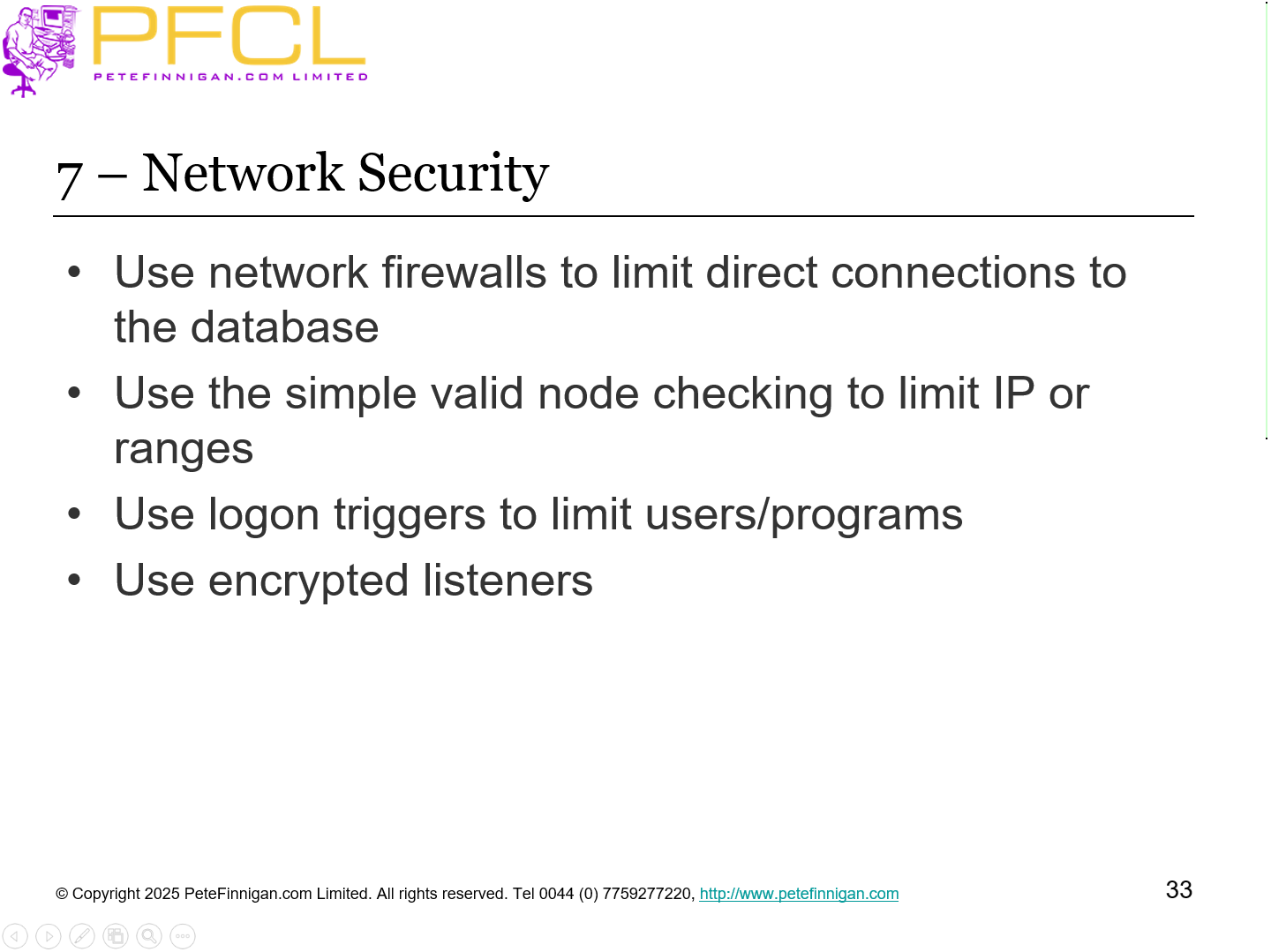

Slide 33 - 7 – Network Security
