We get requests occasionally for old databases to be audited and had one such request to be able to audit a 9iR2 database. The customer wanted to use our scanner PFCLScan to do this but wanted a small footprint on the clients Windows PC where PFCLScan runs from.
We have a tool called OEMFrame.exe that was used for a previous collaboration with an Oracle tools vendor. This is a very cut down version of the complete scanner and much smaller and command line scans only BUT you can choose the OCI library needed (Oracle Call Interface not Cloud) and choose the report output type such as HTML, JSON, XML etc.
We can extract the command line tool from a complete scanner install and it then needs to be deployed simply as a zip file. Once deployed the customer needs to run a set up tool from the command line and then request a license key also from the command line and finally once we supply the license key locked to the installation it needs to be applied via a command line tool. Simple, quick and easy and command line only BUT it is a full scan of the database.
Running a scan is simple and is one command:
C:\>cd customers\xxx_xxxxx\pfclscan\PFCLScan_Bin\bin
C:\customers\xxx_xxxxx\pfclscan\PFCLScan_Bin\bin>pfclset
pfclset.bat Release 1.0 Copyright 2015 PeteFinnigan.com Limited
c:\customers\xxx_xxxxx\pfclscan\PFCLScan_Data>oemframe system oracle1 192.168.1.36 1521 orcl.localdomain
[2026 Sep 09 10:16:11] OEMFrame : Opening the application settings file
OEMFrame: Release 6.0.26.1506 - Production on Wed, 09 Sep 2026 10:16:11 GMT
Copyright (c) 2026 PeteFinnigan.com Limited. All rights reserved.
[2026 Sep 09 10:16:11] OEMFrame : Starting OEMFrame...
[2026 Sep 09 10:16:11] OEMFrame : Create Credentials
[2026 Sep 09 10:16:11] OEMFrame : Run oemrun
Press any key to exit.
oemrun.bat Release 1.0 Copyright 2015 PeteFinnigan.com Limited, Production on 09/09/2026 10:16:11.78
[09/09/2026 10:16:11.79] oemrun: Start running OEM project processor
[09/09/2026 10:16:11.79] oemrun: Copy safe oemscan project
[09/09/2026 10:16:11.79] oemrun: Run the OEMBUILD project
...
The username and password are passed in clear text here as they would be using SQL*Plus BUT they can be encrypted first and during all steps of the scan the username and password are encrypted even if passed in clear text. This is just a demo here to show the functionality.
The scan runs the full suite of thousands of security checks that the normal GUI version of PFCLScan runs.
A sample of a policy being executed and scanned is here:
...
[2026 Sep 09 10:16:13] Lock : Creating policy file=[c:\customers\xxx_xxxxx\pfclscan\PFCLScan_Data\PeteFinnigan.com Limited\PFCLScan\plugins\policy\policy.4.1.29.1.0.conf.xml]
[2026 Sep 09 10:16:13] Lock : Closing Down LOCK
LOAD: Release 6.0.26.1506 - Production on Wed, 09 Sep 2026 10:16:13 GMT
Copyright (c) 2026 PeteFinnigan.com Limited. All rights reserved.
[2026 Sep 09 10:16:13] Load : Starting LOAD...
[2026 Sep 09 10:16:13] Load : Opening the application settings file
[2026 Sep 09 10:16:13] Load : Opening the project: c:\customers\xxx_xxxxx\pfclscan\PFCLScan_Data\PeteFinnigan.com Limited\PFCLScan\plugins\oemscan.pfclx
[2026 Sep 09 10:16:13] Load : Run Number=[cur]
[2026 Sep 09 10:16:13] Load : run cmd line [oscan -c c:\customers\xxx_xxxxx\pfclscan\PFCLScan_Data\PeteFinnigan.com Limited\PFCLScan\plugins\policy\4.1.1.1.0.conf -v]
OSCAN: Release 6.0.12.1526 - Production on Wed Sep 9 10:16:13 2026
Copyright (c) 2026 PeteFinnigan.com Limited. All rights reserved.
[2026 Sep 09 09:16:13] Oscan: Starting OSCAN...
[2026 Sep 09 09:16:13] Oscan: Running Scanner
[2026 Sep 09 09:16:13] Oscan: Load Test from XML...
[2026 Sep 09 09:16:13] Oscan: Load policy from XML...
[2026 Sep 09 09:16:13] Oscan: Load dictionary file...
[2026 Sep 09 09:16:13] Oscan: Load default list file...
[2026 Sep 09 09:16:13] Oscan: Connect to the database....
[2026 Sep 09 09:16:13] Oscan: Server Attached to [//192.168.1.36:1521/orcl.localdomain]
[2026 Sep 09 09:16:13] Oscan: Connected to [//192.168.1.36:1521/orcl.localdomain] as [:E:FE21B3993FCA2E83]
[2026 Sep 09 09:16:13] Oscan: Opening Output File
[2026 Sep 09 09:16:13] Oscan: [-] Stabalisation Check
[2026 Sep 09 09:16:13] Oscan: [-] Audit Users Privileges
[2026 Sep 09 09:16:13] Oscan: Disconnecting from [//192.168.1.36:1521/orcl.localdomain] as [:E:FE21B3993FCA2E83]
[2026 Sep 09 09:16:13] Oscan: Closing Output File [oscan.op.4.1.1.xml]
[2026 Sep 09 09:16:13] Oscan: Closing Down OSCAN
[2026 Sep 09 10:16:13] Load : Exit code=[0]
[2026 Sep 09 10:16:13] Load : Completed [oscan -c "c:\customers\xxx_xxxxx\pfclscan\PFCLScan_Data\PeteFinnigan.com Limited\PFCLScan\plugins\policy\4.1.1.1.0.conf" -v]
[2026 Sep 09 10:16:13] Load : Update the project runset
[2026 Sep 09 10:16:13] Load : Testing run file [c:\customers\xxx_xxxxx\pfclscan\PFCLScan_Data\PeteFinnigan.com Limited\PFCLScan\reports\run.4.1.1.data.xml] exists
[2026 Sep 09 10:16:13] Load : Testing raw file [c:\customers\xxx_xxxxx\pfclscan\PFCLScan_Data\oscan.op.4.1.1.xml] exists
[2026 Sep 09 10:16:13] Load : Running Loop compactor
[2026 Sep 09 10:16:13] Load : Run Loopcompact [loop "c:\customers\xxx_xxxxx\pfclscan\PFCLScan_Data\oscan.op.4.1.1.xml"]
...

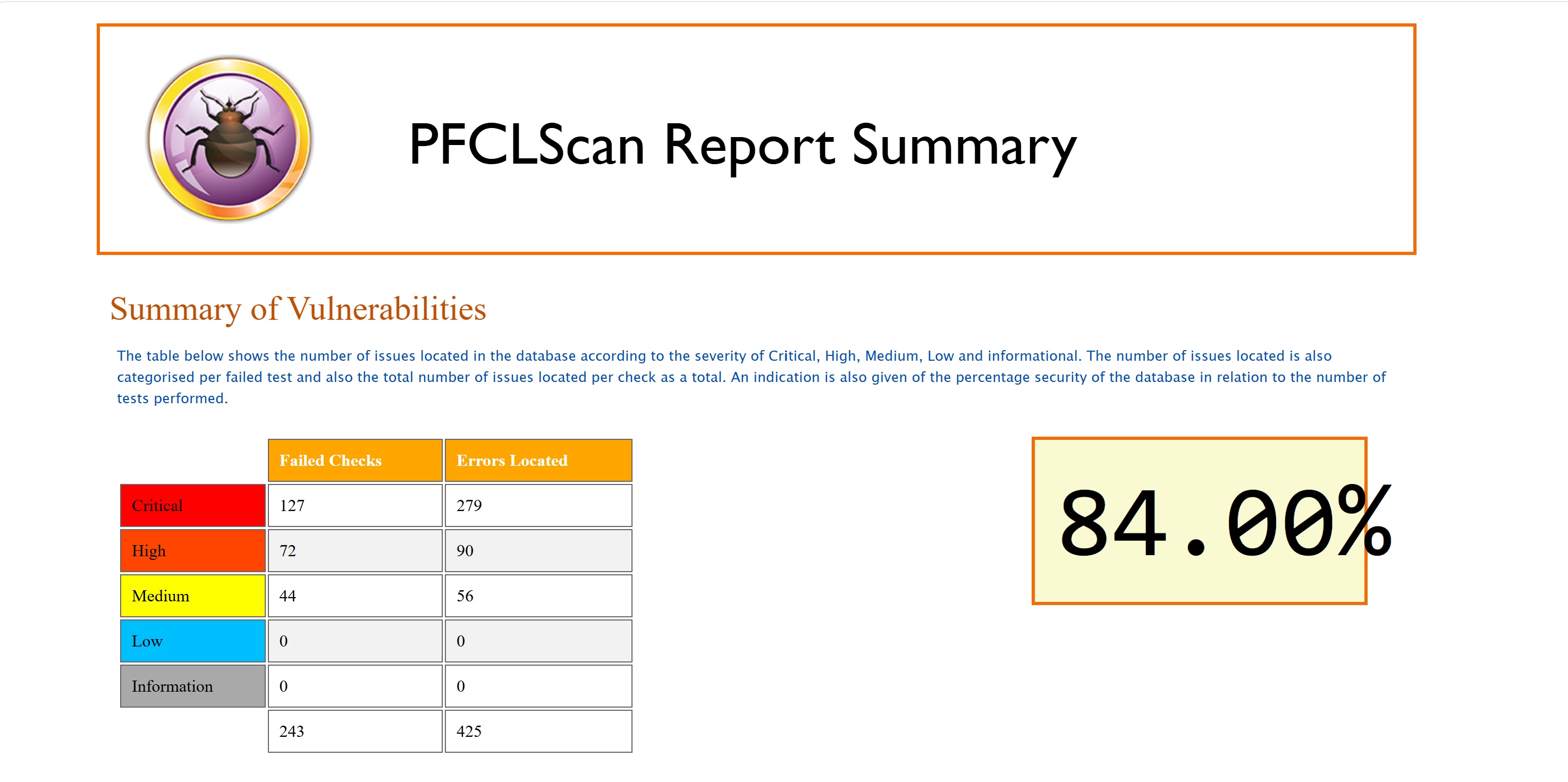

Here is part of the HTML report generated:
We were asked by a customer to scan a 9.2.0.8 database using PFCLScan so we used our cut down scanner above and tested it locally here on an old 9.2.0.1 database that we had an old virtual Box VM of. This VM had not been started for just over 10 years but worked.
Because we do not scan 9iR2 or indeed 10gR2 or 11gR2 anymore in testing and we update the scanner checks on a regular basis we found a few small issues where we use more modern techniques to do things now that do not work in 9iR2. We fixed these in a customer specific download and now have a working version of the scanner that will scan 9iR2. 11gR2 should work as we tested 11gR2 much more recently and 10gR2 can be made to work easily or may work now if we test it
Why scan old databases?
Some customers will be forced to run old out of date Oracle databases in some cases. The usual reason is they still have customers on old systems that will age out and then the system will be decommissioned when all the customers have had the service completed. Some run old applications where the vendor is not available and they do not want to run on newer databases. There are systems around still that use older databases.
Whilst there are not any security patches available for 9iR2 (of course) there is still a lot of the database configuration and controls that can be changed and tightened to improve the security even of old databases.
